Inseego Wavemaker FX4200 5G Cellular Router with Wi-Fi 7, Dual SIM and Battery Backup

5GMPN 649496 02754 4
  • Wi-Fi 7
  • Dual SIM
$755.16$899.00Save $143.84

In stockFree 2-day shipping

Included subscription
1 year3 years5 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Inseego Wavemaker FX4200 is an indoor 5G cellular router for businesses that need fast primary broadband or dependable failover. Built on the Qualcomm Dragonwing FWA Gen 3 Platform, it supports 5G SA/NSA with up to 7.5 Gbps down and 3 Gbps up, Wi-Fi 7 mesh for up to 256 devices, dual SIM carrier failover, a rechargeable battery backup and zero-touch deployment with Inseego Connect cloud management.

  • Qualcomm Dragonwing FWA Gen 3 Platform: 5G NR SA/NSA, 3x DL / 2x UL CA, up to 7.5 Gbps down and 3 Gbps up
  • Dual-band Wi-Fi 7 with 2x2 MU-MIMO, 30 dBm full-power AP and mesh support for up to 256 devices
  • Dual SIM (2x nano 4FF) with automated WAN failover and failback
  • Rechargeable Li-ion backup battery

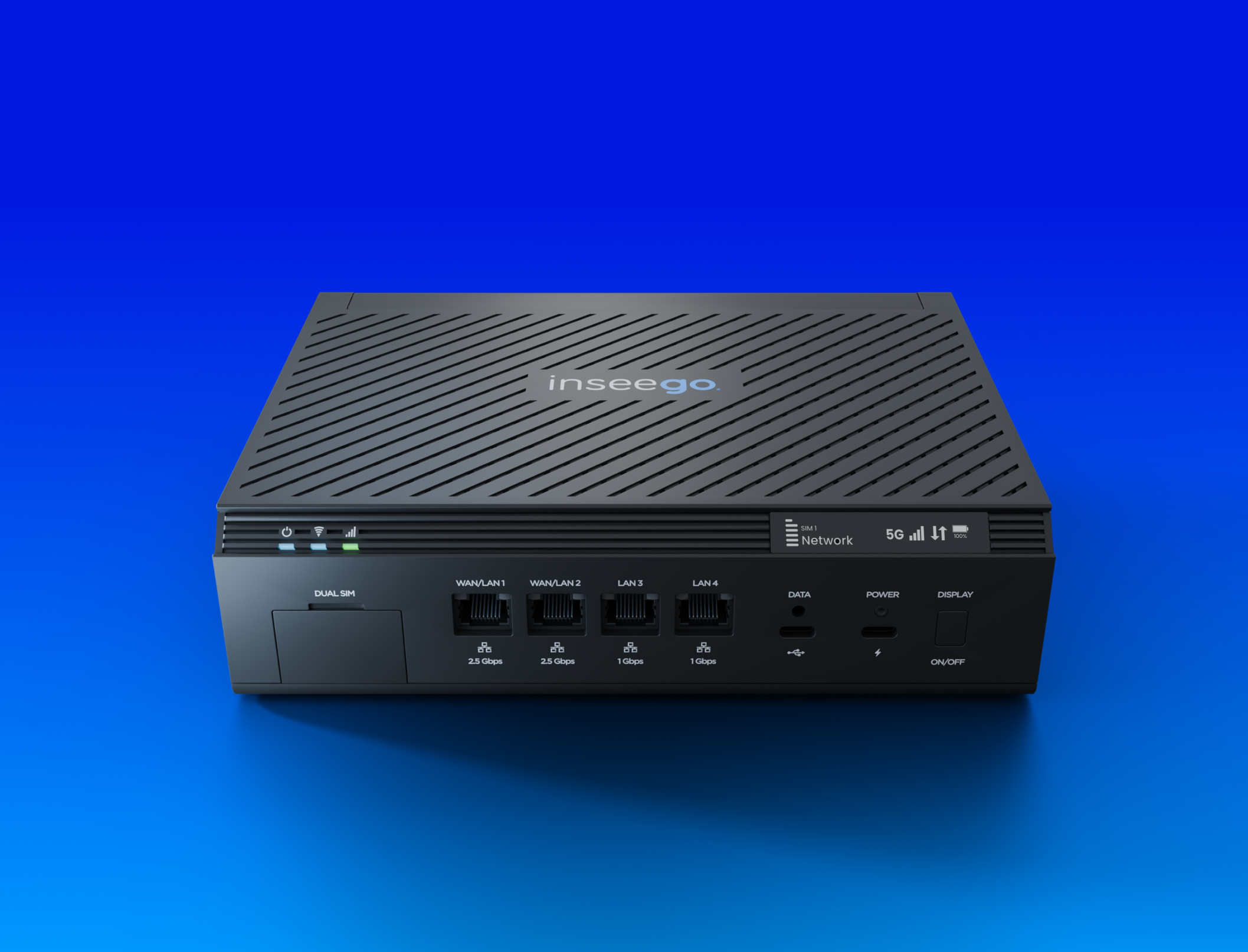

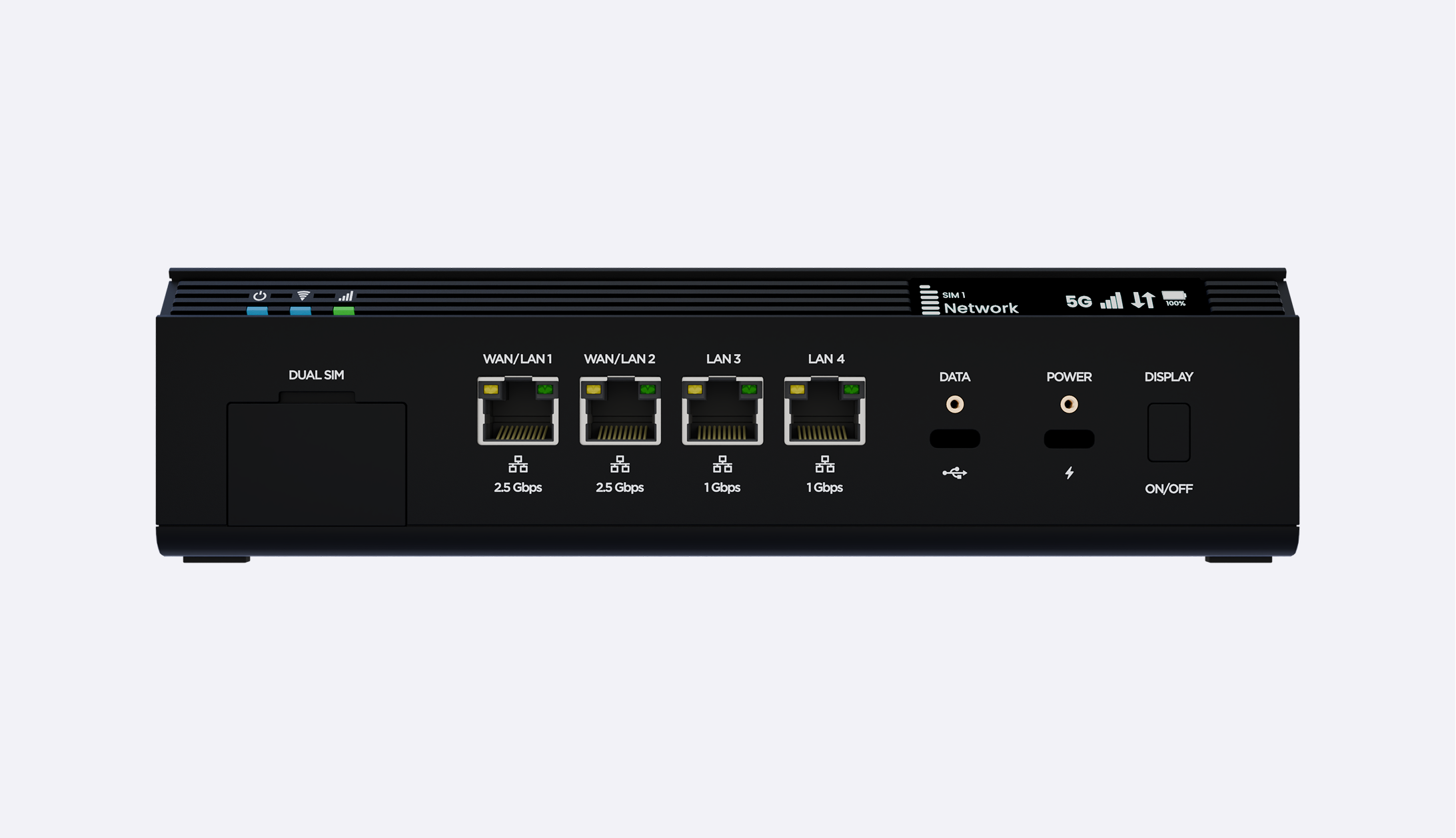

  • 2x 2.5 GbE and 2x 1 GbE RJ45, USB 3.1 Type-C data and 4x SMA external antenna ports
  • Certified for T-Mobile, Verizon and AT&T
  • Inseego Connect cloud management with zero-touch deployment and API support
  • Deploy branch connectivity in minutes without on-site IT

The Inseego Wavemaker FX4200 is a 5G fixed wireless router designed for fast rollouts across branches, retail and hybrid-work locations. Powered by the Qualcomm Dragonwing FWA Gen 3 Platform and a quad-core processor, it supports 5G NR sub-6 GHz in SA and NSA modes with 3x downlink and 2x uplink carrier aggregation and 4x4 MIMO, rated up to 7.5 Gbps down and 3 Gbps up. LTE Cat 20 with 4x4 MIMO provides fallback, and the router is certified for T-Mobile, Verizon and AT&T.

Uptime is the focus. Dual nano SIM slots with automated WAN failover and failback switch between carriers, WAN prioritization manages wired and cellular links, and a rechargeable Li-ion battery keeps the network running through power outages. Six internal WWAN antennas work out of the box, while four SMA ports accept full-spectrum external antennas (0.6-6 GHz). Wired connectivity includes two 2.5 GbE and two 1 GbE RJ45 ports plus USB-C data.

Simultaneous dual-band Wi-Fi 7 with 2x2 MU-MIMO and full-power 30 dBm output supports up to 256 devices, with primary and guest networks, WPA2/3 personal and enterprise, and wired or wireless mesh expansion using the optional Inseego Wavemaker Mesh Wi-Fi X700. A built-in display shows live signal, Wi-Fi and cellular status to guide placement during setup.

For IT teams, Inseego Connect and the Inseego Mobile app provide zero-touch deployment, automatic carrier selection, firmware scheduling, remote diagnostics, alerts, GPS map location and API integration. Security features include FIPS 140-3 OpenSSL, secure boot, IPsec VPN and OpenVPN, network slicing, IPv6 with XLAT and encrypted configuration backup. The unit measures 8.3 x 5.5 x 2.1 in and operates from 32 °F to 104 °F. A datasheet, user guide and quick start guide are available from Inseego. A data plan is required.

Ideal for

  • Primary 5G broadband for branch offices and retail locations
  • Always-on failover for business-critical networks with battery backup
  • Rapid multi-site rollouts managed through Inseego Connect
  • Large or distributed floor plans extended with X700 mesh nodes
  • Hybrid-work and secure edge networking deployments

Specifications

Wi-Fi

AP Power
Full power AP Wi-Fi (30 dBm) with mesh
Networks
Primary and guest networks
Protocol
802.11be with EasyConnect standards
Standard
Wi-Fi 7 with 2x2 MU-MIMO
Dual Band
Simultaneous dual-band Wi-Fi
Max Devices
Connects up to 256 Wi-Fi enabled devices

Ports

USB Data
1x USB 3.1 Type-C data
USB Power
1x USB PD Type-C power
Ethernet 1g
2x 1 GbE RJ45
Ethernet 2 5G
2x 2.5 GbE RJ45
External Antenna

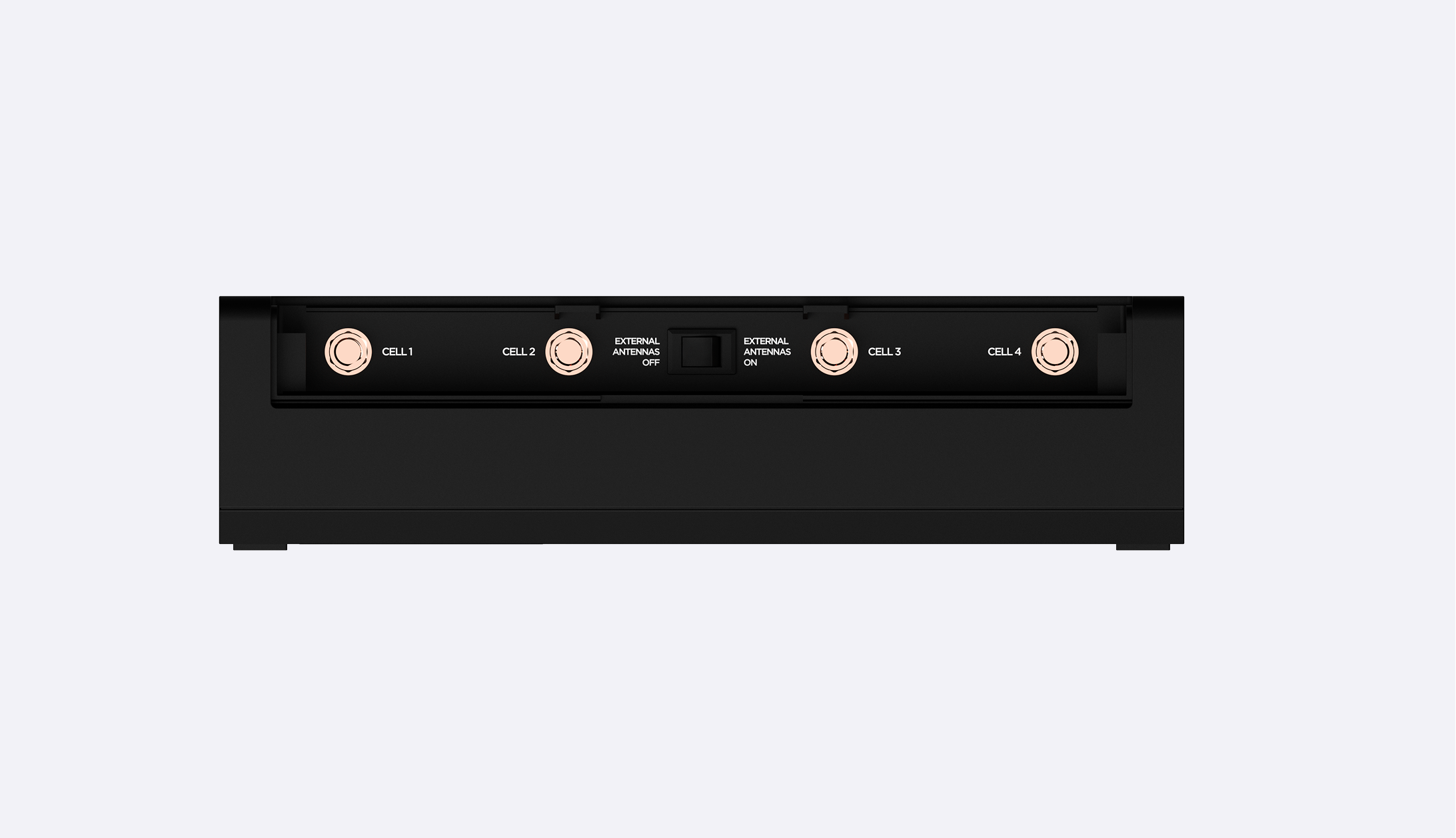

4x external full-spectrum SMA cellular antenna ports (0.6-6 GHz each)

Power

USB C
USB-C power
Adapter
24W (12V, 2A) AC power adapter

Battery

Type
Rechargeable Li-ion backup battery

Display

Leds
3x LED for device, Wi-Fi and cell status
Screen
Single line display for Wi-Fi and cell details, status, mesh pairing and FOTA updates

General

MPN
649496 02754 4
UPC
649496027544
Brand
Inseego
Model
Wavemaker 5G Cellular Router FX4200
Chipset
Qualcomm Dragonwing FWA Gen 3 Platform, quad-core processor
SIM Type
Dual SIM (2x nano 4FF)

Package

Shipping Weight
3.75 lb

Size Weight

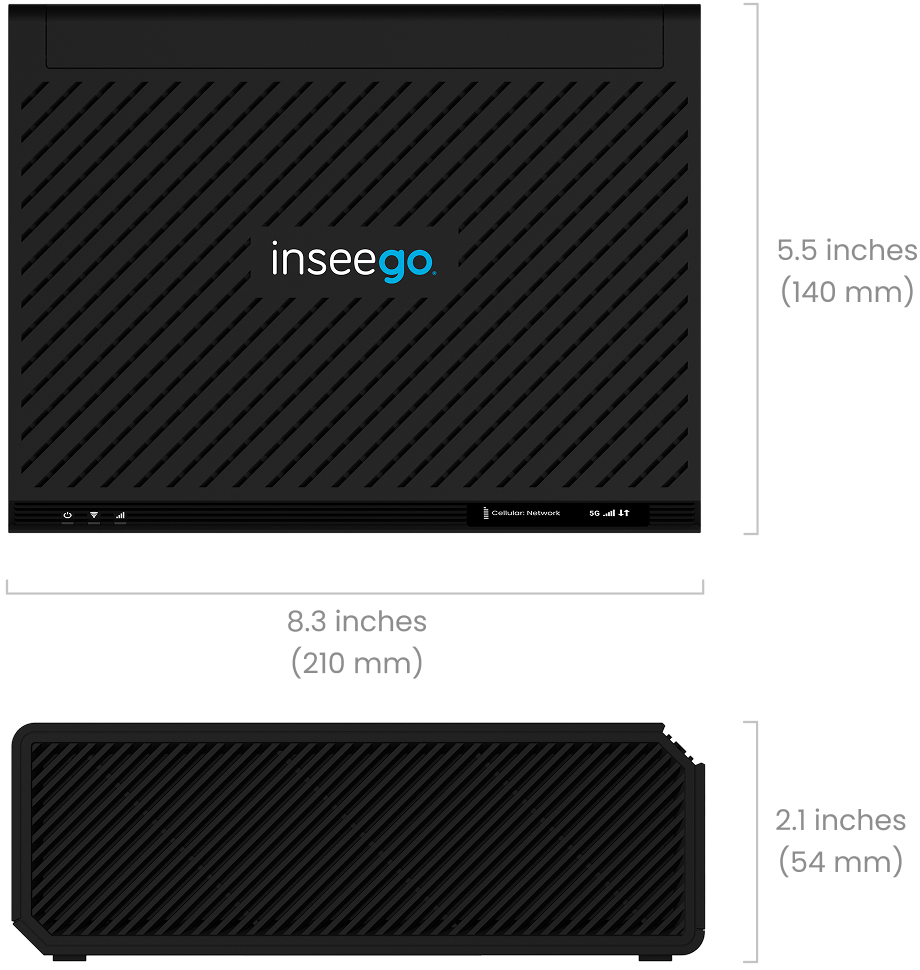

Depth
8.3 in (210 mm)
Width
5.5 in (140 mm)
Height
2.1 in (54 mm)
Weight
51.9 oz (1471 g)

Environmental

Operating Temperature
32 °F to 104 °F (0 °C to +40 °C)

Bands Supported

LTE
2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 70, 71
5G Sub6
n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 (ext 2A), n78 (ext 2A)

Carrier Certified

Att
Certified for AT&T
Verizon
Certified for Verizon
T Mobile
Certified for T-Mobile

Internal Antennas

GPS
1 GPS antenna
Wi-Fi
2x Wi-Fi antennas
Wwan
6x WWAN antennas (4 dBi peak gain)

Network Connectivity

5G
5G NR (SA/NSA) with 3x downlink CA and 2x uplink CA
LTE
4G LTE Cat 20 fallback
5G MIMO
4x4 MIMO 5G sub-6 GHz
LTE MIMO
4x4 MIMO 4G LTE
Peak Speed
Up to 7.5 Gbps down / 3 Gbps up

Cloud Based Management

API
Inseego Connect API support
VPN
IPsec VPN and OpenVPN
Alerts
Notifications and alerts
GPS Map
GPS with map location
Firmware
Firmware management and scheduling
Data Usage
Data usage monitoring
Mobile App
Inseego Mobile app
Speed Test
On-device speed test
Zero Touch
Zero-touch deployment
Diagnostics
Remote troubleshooting and diagnostics
Inseego Connect
Inseego Connect remote management
Carrier Selection
Automatic carrier selection

Operating System Features

FIPS
FIPS 140-3 OpenSSL
Mesh
Wired and wireless Wi-Fi mesh support
Firewall
Firewall
Local UI
Secure local user interface
Data Usage
Data usage monitoring
Speed Test
On-device speed test
IP Versions
IPv4 and IPv6 with XLAT support
WAN Failover
WAN failover and failback
Wi-Fi Security
WPA2/3 personal and enterprise
IP Passthrough
IP passthrough
Network Slicing
Network slicing
VPN Passthrough
VPN passthrough
WAN Prioritization
WAN prioritization

Accessories Sold Separately

Antennas
External antennas
Mesh Node
Inseego Wavemaker Mesh Wi-Fi X700

Questions buyers ask

What 5G modes and speeds does the FX4200 support?

It supports 5G NR sub-6 GHz in SA and NSA modes with 3x downlink and 2x uplink carrier aggregation, rated up to 7.5 Gbps down and 3 Gbps up. LTE Cat 20 provides fallback.

Does it keep working during a power outage?

Yes. A rechargeable Li-ion backup battery provides failover power during outages.

How does dual SIM failover work?

The FX4200 has two nano SIM slots and automated WAN failover and failback, switching between carriers to maintain connectivity.

Can I extend Wi-Fi coverage?

Yes. It supports wired and wireless mesh with the optional Inseego Wavemaker Mesh Wi-Fi X700, sold separately.

Which carriers is it certified for?

Inseego lists the FX4200 as certified for T-Mobile, Verizon and AT&T.
