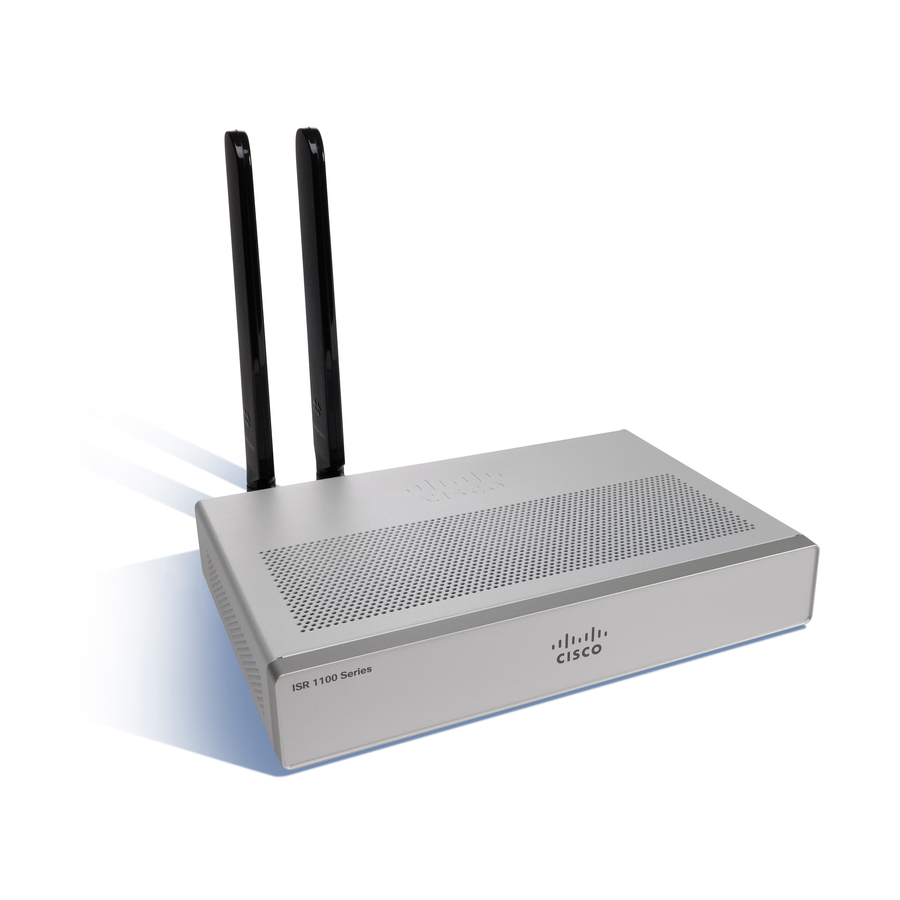

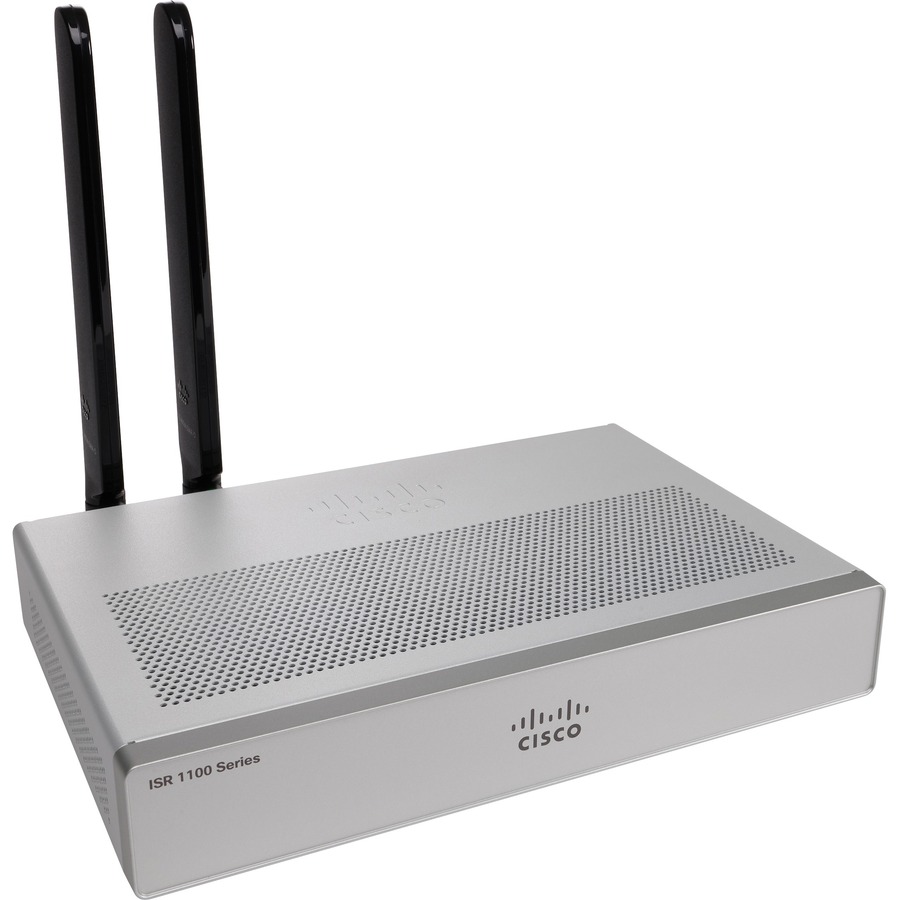

Cisco ISR 1101 C1101-4PLTEP Secure Branch Router with 4 GE LAN Ports and LTE Pluggable Slot

4G LTEMPN C1101-4PLTEP
  • 2–4 × 1 Gb Ethernet
$1,821.27$2,647.25Save $825.98

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cisco ISR 1101 (C1101-4PLTEP) is Cisco's smallest Integrated Services Router. It is built for small offices, clinics, retail sites and remote branches that need enterprise routing, security and cellular WAN in a compact chassis. It has four Gigabit Ethernet LAN ports, one Gigabit Ethernet WAN port and one pluggable interface module (PIM) slot for Cisco LTE modules. It runs Cisco IOS XE or controller-managed Cisco IOS XE SD-WAN.

  • Four integrated Gigabit Ethernet copper LAN ports and one Gigabit Ethernet copper WAN port
  • One pluggable interface module (PIM) slot for Cisco pluggable LTE modules (CAT4, CAT6, CAT7, CAT18)
  • Up to 1600 Mbps IPv4 forwarding and up to 500 Mbps IPsec throughput (512B) in autonomous mode
  • Cisco IOS XE (minimum 16.8.1) or Cisco IOS XE SD-WAN (minimum 17.5.1)
  • Fixed 4-GB flash, Micro-USB console port and Type A USB 3.0 storage port
  • FirstNet certified ISR when fitted with the CAT18 P-LTEAP18-GL pluggable
  • Cellular WAN backup: pluggable LTE modules switch automatically between the primary and backup links
  • Choose the right cellular module for your carrier and region, including North American options such as P-LTE-MNA and P-LTEA7-NA

The Cisco C1101-4PLTEP is the LTE pluggable model of the Cisco ISR 1101, the smallest form factor in the Cisco 1000 Series Integrated Services Routers. It combines routing, a four-port Gigabit Ethernet LAN switch and a cellular uplink option in one device. That makes it a good fit for executives on VPNs, small offices and branch sites where space is limited but enterprise-grade networking is still required.

For WAN connectivity, the router pairs one copper Gigabit Ethernet WAN port with a PIM slot. The slot accepts Cisco pluggable LTE modules from CAT4 through CAT18, and Cisco's CAT4 USB LTE dongles are also supported. The cellular modules add automatic failover between the primary and backup links, remote firmware upgrades over cellular, SIM lock and unlock, and dual micro (3FF) SIM sockets for cellular multihoming. When fitted with the CAT18 P-LTEAP18-GL module, the C1101-4PLTEP is listed by Cisco as a FirstNet certified ISR.

In autonomous mode, Cisco rates the ISR 1101 at up to 1600 Mbps IPv4 forwarding and up to 500 Mbps IPsec throughput (512B). It scales to 100 IPsec SVTI tunnels, 100K NAT sessions and 1K VRFs. In SD-WAN mode, it delivers up to 450 Mbps IPsec throughput and supports 200 overlay tunnels. Maximum single-tunnel encrypted throughput is 475 Mbps IMIX. The router has fixed 4-GB flash, a Micro-USB console port and a Type A USB 3.0 port for storage.

You can manage the router locally or at scale. Options range from the local WebUI to Cisco DNA Center in autonomous mode, or Cisco vManage in controller mode, either cloud-hosted or on-premises. The chassis measures 1.73 x 9.75 x 6.6 in, weighs 3.34 lb and draws a maximum of 21.8W from its external 12 VDC supply. It suits desktop or rack-mount installation. The Cisco 1000 Series ISR data sheet documents the full specification.

Ideal for

  • LTE-connected small branch offices and remote sites
  • Executive and small-office VPN endpoints where space is limited
  • Retail stores and medical clinics deployed plug-and-play under central management
  • Cellular backup for a primary wired WAN link
  • FirstNet deployments when paired with the CAT18 P-LTEAP18-GL module

Specifications

Power

AC Input
Universal 100 to 240 VAC, 50 to 60 Hz
Output Voltage
12 VDC output
Psu Max Output
30W external power supply
Max Power Consumption
21.8W max (excluding external PS loss)

General

MPN
C1101-4PLTEP
UPC
889728131438
Brand
Cisco
Form Factor
Desktop or rack-mountable
Product Family
Cisco ISR 1101

Cellular

WAN LTE
Yes (pluggable)
Firstnet
FirstNet certified with CAT18 PIM (P-LTEAP18-GL)
Pluggable LTE
Optional pluggable LTE (CAT4, CAT6, CAT7, CAT18)
Serial Module
Optional high-speed serial interface module (P-1T)
LTE USB Dongle
Optional pluggable LTE USB dongle (CAT4)
SIM Sockets Pim
Dual micro (3FF) SIM sockets on PIM modules, ISO-7816-2 compliant
Optional 5G SA Module
Optional pluggable 5G SA module (from Release 17.12.1a)
Optional 5G Nsa Module
Optional pluggable 5G NSA module (from Release 17.9.2a)

Licenses

App
L2TPv3, MPLS, PfRv3, NBAR2, AVC, LISP, VPLS
Sec
zone-based firewall, IPsec VPN, DMVPN, FlexVPN, GETVPN
Hsec
IPsec HSEC licence (IOS XE 16.7.1 or later)
Vperf
IPsec Performance: additional 100 Mbps
IP Base
routing protocols, ACL, NAT, QoS, BFD, VRF Lite, IP SLA Responder

Physical

Weight
3.34 lb (1.52 kg)
Dimensions Hwd
1.73 x 9.75 x 6.6 in (H x W x D)
Shipping Weight
5.80 lb shipping weight

Software

Flash
Fixed 4-GB flash
Management
Local WebUI, Cisco DNA Center (autonomous), Cisco vManage (controller)
Min Ios XE
Cisco IOS XE 16.8.1 minimum
Min XE SD-WAN
Cisco IOS XE SD-WAN 17.5.1 minimum

Interfaces

WAN Dsl
–
Pim Slot
1 PIM slot
USB Port
Type A USB 3.0 port for storage
Console Port
1 integrated Micro-USB console port
LAN GE Ports
4 integrated GE LAN ports (copper)
WAN GE Ports
1 integrated GE WAN port (copper)
Wi-Fi 802 11ac
LAN 802.11ac: No

Accessories

Dongle Holder
Magnetic holder for USB CAT4 LTE dongle
Blank Pluggable
Blank pluggable
Console Adapter
Micro USB to RJ-45 console adapter (1101 and 1109 models)

Performance

Ipv4 Forwarding 512b
Up to 1600 Mbps IPv4 forwarding (512B, autonomous)
Ipsec Throughput 512b
Up to 500 Mbps IPsec (512B, autonomous)
SD-WAN Overlay Tunnels
200 SD-WAN overlay tunnels
SD-WAN Ipsec Throughput 512b
Up to 450 Mbps SD-WAN IPsec (512B)
Max Encrypted Throughput Imix
475 Mbps (single tunnel, IMIX)
SD-WAN Profile Throughput 512b
Up to 400 Mbps SD-WAN IPsec + QoS + DPI + Flexible NetFlow (512B)

Scalability

Vrfs
1K VRFs
Ipv4 Routes
280K IPv4 routes
Ipv6 Routes
260K IPv6 routes
Nat Sessions
100K NAT sessions
Acls Per System
4K ACLs
Ipsec Svti Tunnels
100 IPsec SVTI tunnels
Ipv4 Aces Per System
10K IPv4 ACEs

Environmental

Operating Altitude
0 to 10,000 ft (0 to 3048 m)
Operating Humidity
10% to 85% RH noncondensing
Nonoperating Altitude
0 to 15,000 ft (0 to 4572 m)
Nonoperating Humidity
5% to 95% RH noncondensing
Operating Temperature
0° to 45°C at sea level, 1°C/1000 ft derating from 45°C
Nonoperating Temperature
-40° to +70°C (-40° to +158°F)

Pluggable Options

D LTE AS
CAT4 USB, Asia/South Africa
D LTE GB
CAT4 USB, Europe
D LTE NA
CAT4 USB, 75/50 Mbps, US all carriers
P LTE GB
CAT4 PIM, Europe
P LTE IN
CAT4 PIM, India and China
P LTE JN
CAT4 PIM, Japan
P LTE US
CAT4 PIM, AT&T and T-Mobile
P LTE VZ
CAT4 PIM, Verizon
P LTE Mna
CAT4 PIM, North America
P Ltea EA
CAT6 PIM, North America and Europe
P Ltea LA
CAT6 PIM, APAC, ANZ and LATAM
P Ltea7 JP
CAT7 PIM, Japan
P Ltea7 NA
CAT7 PIM, North America
P Ltea7 Eal
CAT7 PIM, EMEA/APAC/LATAM
P Lteap18 GL
CAT18 PIM, 1200/200 Mbps

Safety Compliance

Safety
UL/CSA/EN/IEC 60950-1 and 62368-1
Emc Immunity
EN55024/CISPR24, EN61000-4-x, EN300-386
Emc Emissions
EN55022/CISPR22, FCC Part 15, ICES003, VCCI and more
Cellular Radio
EN 301 908, EN 301 511, 47 CFR Parts 22 and 24
Radio Immunity
EN 301 489-1/-7/-24

Cellular Module Features

Duplex
TDD and FDD per band
Auto SIM
Auto SIM carrier selection, fast SIM failover
Failover
Automatic primary/backup failover
SIM Lock
SIM lock/unlock
Dying Gasp
Dying gasp (except CAT18 and 5G NSA PIMs)
Diagnostics
Micro-USB cellular diagnostics port
Data Callback
Remote data callback via voice or SMS
Remote Firmware
Remote firmware upgrade over cellular

Questions buyers ask

Which cellular modules work in the C1101-4PLTEP?

The PIM slot accepts Cisco pluggable LTE modules including CAT4 (P-LTE-VZ, P-LTE-US, P-LTE-MNA), CAT6 (P-LTEA-EA), CAT7 (P-LTEA7-NA) and CAT18 (P-LTEAP18-GL). Cisco CAT4 USB LTE dongles such as D-LTE-NA are also supported.

Does this router have built-in Wi-Fi?

No. Cisco lists the C1101-4PLTEP with no 802.11ac wireless LAN. It provides four wired Gigabit Ethernet LAN ports.

Can the ISR 1101 run Cisco SD-WAN?

Yes. It supports controller-managed Cisco IOS XE SD-WAN from release 17.5.1, with up to 450 Mbps SD-WAN IPsec throughput and 200 overlay tunnels. It also runs traditional Cisco IOS XE from 16.8.1.

Is the C1101-4PLTEP FirstNet certified?

Cisco lists the C1101-4PLTEP as a FirstNet certified ISR when it is fitted with the CAT18 P-LTEAP18-GL pluggable module.

How is the router powered?

It uses an external 30W power supply with universal 100 to 240 VAC input and 12 VDC output. Maximum consumption is 21.8W.
