Cisco5G & LTE Routers

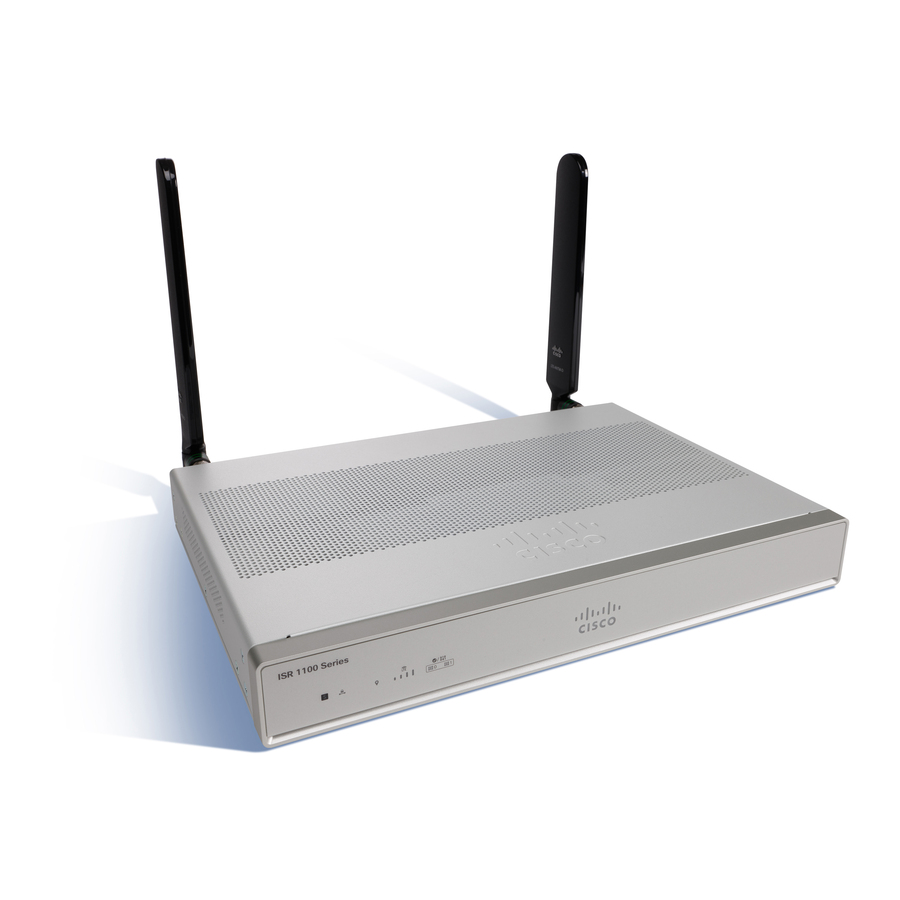

Cisco ISR C1111-8PLTEEA-DNA 8-Port Gigabit Branch Router with LTE Advanced

4G LTEMPN C1111-8PLTEEA-DNA
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • PoE out
$1,973.87$2,870.56Save $896.69

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cisco C1111-8PLTEEA-DNA is an ISR 1100 Series branch router built for sites that need more wired ports. It pairs an embedded dual-SIM LTE Advanced (CAT6) modem with two Gigabit WAN ports, one of them a copper/SFP combo, and an 8-port Gigabit LAN switch. It runs Cisco IOS XE or IOS XE SD-WAN, managed by Cisco DNA Center or vManage. The LTEEA variant is built for North America and EMEAR.

  • Embedded LTE Advanced CAT6 modem with two SIM slots and two external antennas, LTEEA variant for North America and EMEAR
  • Two Gigabit WAN ports: one copper and one copper/SFP combo
  • 8-port Gigabit LAN switch with optional PoE/PoE+ (4 PoE or 2 PoE+ with 150W PSU)
  • Up to 1800 Mbps IPv4 forwarding and up to 600 Mbps IPsec (512B, autonomous mode)
  • Up to 650 Mbps SD-WAN IPsec throughput with 200 overlay tunnels
  • Runs Cisco IOS XE or IOS XE SD-WAN, managed by Cisco DNA Center or vManage
  • Connect more desks, phones and cameras directly with eight Gigabit LAN ports
  • Hold two SIMs in the LTE modem for cellular flexibility at the branch

The Cisco ISR C1111-8PLTEEA-DNA brings routing, an 8-port Gigabit Ethernet switch and an embedded LTE Advanced CAT6 modem together in one desktop or rack-mountable chassis. It is aimed at branch offices, retail stores, clinics and campus outbuildings that need enterprise routing, security and cellular resilience alongside more local ports than a 4-port model offers. The LTEEA designation marks the North America and EMEAR radio variant.

The WAN side provides one copper Gigabit port and one copper/SFP combo port. The LTE modem supports two SIMs and two external antennas. It covers LTE 700, 800, 850, 900, 1700, 1800, 1900, 2100, 2300, 2500 and 2600, with UMTS, HSPA+ and DC-HSPA+ fallback. Cisco rates the router at up to 1800 Mbps IPv4 forwarding and 600 Mbps IPsec (512B) in autonomous mode. In SD-WAN mode it reaches up to 650 Mbps IPsec across as many as 200 overlay tunnels. It has 4 GB of DRAM and 4 GB of flash, and supports 280K IPv4 routes, 100K NAT sessions and 1K VRFs.

You can run Cisco IOS XE (16.6.1 or later) with Cisco DNA Center for central provisioning, or IOS XE SD-WAN managed by vManage. IP Base is the default licence. Optional licences add further capabilities: - Application Experience: MPLS, NBAR2, AVC - Security: zone-based firewall, DMVPN, FlexVPN, GETVPN - IPsec Performance: an extra 200 Mbps of IPsec on this 8-port platform

Optional PoE uses the 150W ISR-1100-POE4 power supply, which powers 4 PoE or 2 PoE+ devices. Maximum draw is 23.9W. The chassis is 1.75 in tall and weighs 4.5 lb. It also includes a Micro-USB/RJ-45 console port and a USB 3.0 Type A port.

Ideal for

  • Branch office router with more wired endpoints and LTE failover
  • Retail location connecting POS, IP phones and cameras with cellular backup
  • Clinic or campus outbuilding joining a Cisco SD-WAN network
  • Remote office powering PoE phones or access points from the router
  • Temporary site running on dual-SIM LTE until wired service arrives

Specifications

LAN

USB
1 x USB 3.0 Type A
Wi-Fi
No integrated Wi-Fi
Console
1 x Micro-USB/RJ-45 console port
LAN GE Ports
8 x Gigabit Ethernet LAN (copper)
PoE Optional
Optional 4 PoE or 2 PoE+ (requires 150W PSU)
Inline PoE Standards
802.3af PoE, 802.3at PoE+

Power

AC Input
Universal 100 to 240 VAC, 50 to 60 Hz
Output Voltage
12 VDC
Max Output Power
66 W
PoE Power Supply
150 W PSU required for PoE/PoE+ (ISR-1100-POE4)
PoE Output Voltage
-53.5 VDC
Max Power Consumption
23.9 W (C1111, excluding external PSU loss)

General

MPN
C1111-8PLTEEA-DNA
Brand
Cisco
Model
Cisco ISR C1111-8PLTEEA
Series
Cisco ISR 1000 Series (111x)
Form Factor
Desktop or rack-mountable
Country OF Origin
China

Cellular

LTE
Embedded LTE Advanced (CAT6)
Region
LTEEA: EMEAR and North America
Antennas
2 external antennas
LTE Bands
LTE 700/800/850/900/1700/1800/1900/2100/2300/2500/2600
SIM Slots
2 SIM
Fallback Technologies
UMTS, HSPA+, DC-HSPA+
LTE Advanced Pro Cat18
No CAT18 modem

Physical

Weight
4.50 lb (2.04 kg)
Dimensions Hwd
1.75 x 12.70 x 9.6 in
Rack Mount Kit
Optional ACS-1100-RM-19 rack-mount kit

Software

Management
Local WebUI, Cisco DNA Center (autonomous), vManage (SD-WAN)
Min Ios XE
Cisco IOS XE 16.6.1 or later
Default License
IP Base (default): routing protocols, ACL, NAT, QoS, BFD, VRF Lite, IP SLA Responder
Optional Licenses
Application Experience, Security, IPsec HSEC, IPsec Performance (+200 Mbps for 8P)
Min SD WAN Version
Per Cisco SD-WAN Compatibility Matrix

Scalability

Vrfs
1K
Flash Dram
4 GB DRAM / 4 GB flash
Ipv4 Routes
280K
Ipv6 Routes
260K
Nat Sessions
100K
Acls Per System
4K
Ipsec Svti Tunnels
100
Ipv4 Aces Per System
10K

Environmental

Storage Altitude
0 to 15,000 ft (0 to 4572 m)
Storage Humidity
5% to 95% RH, noncondensing
Operating Altitude
0 to 10,000 ft (0 to 3048 m)
Operating Humidity
10% to 85% RH, noncondensing
Storage Temperature
-40° to +70°C (-40° to +158°F)
Operating Temperature
0° to 40°C at sea level, 1°C/1000 ft derating from 40°C
Environmental Compliance
WEEE

WAN Interfaces

WAN GE
1 x Gigabit Ethernet WAN (copper)
WAN Dsl
No DSL WAN
WAN GE SFP Combo
1 x Gigabit Ethernet copper/SFP combo WAN

Safety Compliance

Safety
UL/CSA/EN/IEC 60950-1 and 62368-1
Emc Immunity
EN55024/CISPR24, EN61000-4-2/-3/-4/-5/-6/-11, EN300-386
Emc Emissions
EN55022/CISPR22, FCC Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2/-3-3/-6-1
Cellular Radio
EN 301 908-1/-2/-13, EN 301 511, 47 CFR Parts 22 and 24
Radio Immunity
EN 301 489-1, -7, -24

SD WAN Performance

SD WAN Overlay Tunnels
200 overlay tunnels
SD WAN Ipsec Throughput 512b
Up to 650 Mbps
SD WAN Ipsec Qos Dpi Netflow 512b
Up to 250 Mbps (IPsec + QoS + DPI + Flexible NetFlow)

Autonomous Performance

Ipv4 Forwarding 512b
Up to 1800 Mbps
Ipsec Throughput 512b
Up to 600 Mbps

Questions buyers ask

Which LTE bands does the C1111-8PLTEEA support?

It supports LTE 700, 800, 850, 900, 1700, 1800, 1900, 2100, 2300, 2500 and 2600. It falls back to UMTS, HSPA+ and DC-HSPA+ through its embedded LTE Advanced CAT6 modem.

How many SIM cards does it take?

The embedded cellular modem has two SIM slots and connects to two external antennas.

Does this router include Wi-Fi?

No. The C1111-8PLTEEA has no integrated 802.11ac access point. It provides wired Gigabit LAN, dual Gigabit WAN and LTE connectivity.

How many PoE devices can it power?

With the optional 150W ISR-1100-POE4 power supply, it powers 4 PoE or 2 PoE+ devices (802.3af/802.3at) from its LAN ports.

What performance does Cisco specify?

In autonomous mode, Cisco rates it at up to 1800 Mbps IPv4 forwarding and 600 Mbps IPsec (512B). In SD-WAN mode, it delivers up to 650 Mbps IPsec and 200 overlay tunnels.
