Cisco5G & LTE Routers

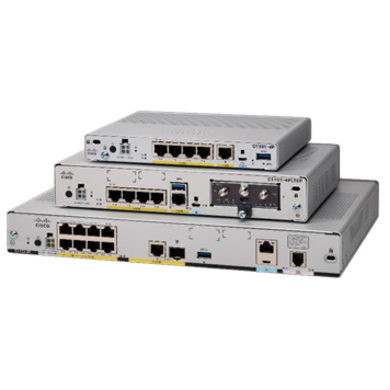

Cisco ISR C1161X-8PLTEP Branch Router with 8 GE LAN, Dual GE WAN/SFP and LTE Pluggable Slot

4G LTEMPN C1161X-8PLTEP
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • PoE out
$1,957.22$3,637.10Save $1,679.88

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cisco ISR C1161X-8PLTEP is a compact 1000 Series Integrated Services Router for small branches and remote offices. It combines eight Gigabit Ethernet LAN ports, a Gigabit Ethernet WAN port, a Gigabit Ethernet copper/SFP combo port and one pluggable cellular module slot for Cisco LTE pluggables. The "X" model carries 8 GB DRAM and 8 GB flash for app hosting and SD-WAN Advanced Security. It runs Cisco IOS XE or IOS XE SD-WAN and delivers up to 825 Mbps of single-tunnel IMIX encrypted throughput.

  • 8 integrated Gigabit Ethernet LAN ports (copper)
  • 1 Gigabit Ethernet WAN port plus 1 Gigabit Ethernet copper/SFP combo WAN port
  • One pluggable cellular module slot for Cisco CAT4, CAT6, CAT7 and CAT18 LTE pluggables
  • 8 GB DRAM and 8 GB flash for app hosting and SD-WAN Advanced Security
  • Up to 825 Mbps single-tunnel IMIX encrypted throughput; up to 850 Mbps SD-WAN IPsec (512B)
  • Type A USB 3.0 port and micro-USB console port
  • Optional PoE/PoE+ upgrade: 4 PoE or 2 PoE+ on the LAN ports
  • Replace a separate router, switch and cellular modem at small sites with one compact 116x platform

The Cisco ISR C1161X-8PLTEP belongs to the Cisco 116x family, the highest-performing group in the ISR 1000 Series. It is built for small branches, retail stores, clinics and remote offices that need enterprise routing, switching and security in a small footprint. The chassis provides eight integrated Gigabit Ethernet LAN ports, one copper Gigabit Ethernet WAN port and one Gigabit Ethernet combo port that accepts copper or an SFP transceiver, so fiber and copper circuits can terminate on the same box.

Cellular WAN is added through one pluggable interface module slot. Cisco offers its LTE pluggables (CAT4, CAT6, CAT7 and CAT18) as separate part numbers, and the cellular region follows the module selected, for example P-LTEA-EA for North America and Europe or P-LTEAP18-GL for global CAT18 coverage. The pluggable modules add automatic failover between primary and backup links, SMS-initiated data callback, remote firmware upgrade over cellular and dual micro-SIM multihoming on the modules that support it.

The 8 GB DRAM and 8 GB flash configuration supports app hosting and SD-WAN Advanced Security. Cisco rates the platform at up to 850 Mbps SD-WAN IPsec throughput (512B), 200 SD-WAN overlay tunnels, and up to 1900 Mbps IPv4 forwarding in autonomous mode. A Type A USB 3.0 port handles storage, a micro-USB port provides console access, and optional PoE/PoE+ upgrades (4 PoE or 2 PoE+ on the LAN ports, with a 150 W power supply) can power phones, cameras or access points.

Manage the router locally through the WebUI, centrally with Cisco DNA Center in autonomous mode, or with Cisco vManage in SD-WAN controller mode. Licensing is pay-as-you-grow, from IP Base to Application Experience, Security and HSEC tiers.

Ideal for

  • Small branch or remote office router with fiber or copper primary WAN and LTE backup
  • Retail stores and medical clinics needing routing, an 8-port switch and firewall in one device
  • SD-WAN edge managed from Cisco vManage across many sites
  • Executive or small-office VPN termination where space is limited
  • Voice-enabled branches using CUBE and SRST for resilience during WAN failures

Specifications

Power

AC Input
Universal 100 to 240 VAC, 50 to 60 Hz
Output Voltage
12 VDC output
Max Output Power
66 W max output
PoE Power Supply
150 W supply required for optional PoE/PoE+
PoE Output Voltage
-53.5 VDC PoE output
Max Power Consumption
24.8 W max (excluding external PSU loss)

Memory

Dram
8 GB DRAM
Flash
8 GB flash

General

MPN
C1161X-8PLTEP
UPC
889728165372
Brand
Cisco
Model Suffix X
"X" = 8 GB DRAM for app hosting
Product Family
Cisco ISR 1000 Series, 116x platform

Cellular

SIM
Dual micro-SIM (3FF) on supported pluggables
Region
Cellular region determined by pluggable module
WAN LTE
LTE WAN via pluggable module
Dying Gasp
Dying gasp on all pluggables except CAT18 and 5G NSA PIMs
Pluggable Features
Failover, SMS callback, remote firmware upgrade, SIM lock/unlock, auto SIM
LTE Pluggable Options
Optional LTE pluggables: CAT4, CAT6, CAT7, CAT18
LTE USB Dongle Option
Optional pluggable LTE USB dongle (CAT4)
WAN LTE Advanced Cat6
LTE Advanced (CAT6) with pluggable
WAN LTE Advanced Pro Cat18
LTE Advanced Pro (CAT18) with pluggable

Licenses

Hsec
IPsec HSEC licence (IOS XE 16.7.1 or later)
IP Base
routing protocols, ACL, NAT, QoS, BFD, VRF Lite, IP SLA Responder
Security
zone-based firewall, IPsec VPN, DMVPN, FlexVPN, GETVPN; up to 50 Mbps IPsec
Cisco One Bundle
Cisco One software bundle: APP, SEC, PRIME licences
Ipsec Performance
VPERF: additional 200 Mbps IPsec for ISR 1100-8P
Application Experience
L2TPv3, MPLS, PfRv3, NBAR2, AVC, IP SLA Initiator, LISP, VPLS, EoMPLS

Physical

Weight
3.74 lb (1.70 kg)
Dimensions Hwd
1.65 x 10.80 x 7.85 in (H x W x D)
Shipping Weight
8.87 lb shipping weight

Software

Management
WebUI, DNA Center, vManage
Min Ios XE
Cisco IOS XE 16.11.1 minimum
Min Ios XE SD-WAN
Cisco IOS XE SD-WAN 17.2.1 minimum

Interfaces

USB
1 x Type A USB 3.0 (storage)
Wi-Fi
No integrated 802.11ac/ax
LAN GE
8 x Gigabit Ethernet LAN (copper)
WAN GE
1 x Gigabit Ethernet WAN (copper)
Console
1 x micro-USB console
WAN Dsl
No DSL WAN
PoE Option
Optional PoE/PoE+ upgrade: 4 PoE or 2 PoE+ on the 8 GE LAN ports
WAN GE Total
2 x GE WAN total
Pluggable Slot
1 x pluggable cellular module slot
WAN GE SFP Combo
1 x Gigabit Ethernet combo WAN (copper/SFP)

Accessories

PoE Upgrade
PoE upgrade for 1100-8P (4 PoE or 2 PoE+)
Rack Mount Kit
Rack-mount kit for 112X and 116X Series ISRs
Blank Pluggable
Blank pluggable

Performance

Ipv4 Forwarding 512b
Up to 1900 Mbps IPv4 forwarding (autonomous, 512B)
Ipsec Throughput 512b
Up to 700 Mbps IPsec (autonomous, 512B)
SD-WAN Overlay Tunnels
200 SD-WAN overlay tunnels
SD-WAN Ipsec Throughput 512b
Up to 850 Mbps SD-WAN IPsec (512B)
Max Encrypted Throughput Imix
825 Mbps (single tunnel, IMIX)
SD-WAN Ipsec Qos Dpi Netflow 512b
Up to 350 Mbps (IPsec + QoS + DPI + Flexible NetFlow, 512B)

Scalability

Vrfs
4K VRFs
Ipv4 Routes
800K IPv4 routes
Ipv6 Routes
700K IPv6 routes
Nat Sessions
100K NAT sessions
Acls Per System
1.6K ACLs per system
Ipsec Svti Tunnels
100 IPsec SVTI tunnels
Ipv4 Aces Per System
4K IPv4 ACEs per system

SFP Support

FE SFP
100BASE-FX/LX/EX/ZX/BX SFPs
Bidi SFP
1000BASE-BX, BX40, BX80 SFPs
Cwdm SFP
CWDM SFPs 1470 to 1610 nm
Dwdm SFP
DWDM SFPs 1530.33 to 1560.61 nm (100 GHz ITU grid)
Copper SFP
10/100/1000BASE-T: GLC-T, GLC-TE, SFP-GE-T
GE Fiber SFP
1000BASE-SX/LX/LH/EX/ZX SFPs

Environmental

Operating Altitude
0 to 10,000 ft (0 to 3048 m)
Operating Humidity
5% to 85% RH, noncondensing
Nonoperating Altitude
0 to 15,000 ft (0 to 4572 m)
Nonoperating Humidity
5% to 95% RH, noncondensing
Operating Temperature
0 to 40°C at sea level; 1°C/1000 ft derating from 40°C
Nonoperating Temperature
-40 to +70°C (-40 to +158°F)

LTE Pluggables

D LTE AS
CAT4 USB, 75/50 Mbps, Asia/South Africa
D LTE GB
CAT4 USB, 75/50 Mbps, Europe
D LTE NA
CAT4 USB, 75/50 Mbps, US
P LTE GB
CAT4 PIM, 150/50 Mbps, Europe
P LTE IN
CAT4 PIM, 150/50 Mbps, India/China
P LTE JN
CAT4 PIM, 150/50 Mbps, Japan
P LTE US
CAT4 PIM, 150/50 Mbps, AT&T/T-Mobile
P LTE VZ
CAT4 PIM, 150/50 Mbps, Verizon
P LTE Mna
CAT4 PIM, 150/50 Mbps, North America
P Ltea EA
CAT6 PIM, 300/50 Mbps, NA and Europe
P Ltea LA
CAT6 PIM, 300/50 Mbps, APAC/ANZ/LATAM
P Ltea7 JP
CAT7 PIM, 300/150 Mbps, Japan
P Ltea7 NA
CAT7 PIM, 300/150 Mbps, North America
P Ltea7 Eal
CAT7 PIM, 300/150 Mbps, EMEA/APAC/LATAM
P Lteap18 GL
CAT18 PIM, 1200/200 Mbps

Safety And Compliance

Safety
UL/CSA/EN/IEC 60950-1 and 62368-1
Inline PoE
802.3af PoE, 802.3at PoE+
Emc Immunity
EN55024/CISPR24, EN61000-4 series, EN300-386
Emc Emissions
EN55022/CISPR22, FCC Part 15, ICES003, VCCI and more
Cellular Radio
EN 301 908, EN 301 511, 47 CFR Parts 22 and 24
Radio Immunity
EN 301 489-1, -7, -24

Questions buyers ask

Does the C1161X-8PLTEP have cellular built in?

The chassis has one pluggable cellular module slot. Cisco offers its LTE pluggables (CAT4, CAT6, CAT7 and CAT18) as separate part numbers, and the cellular region follows the module selected.

Which LTE module suits North America?

Cisco lists P-LTE-MNA and P-LTEA7-NA for North America, P-LTEA-EA for North America and Europe, P-LTE-US for AT&T and T-Mobile, and P-LTE-VZ for Verizon. P-LTEAP18-GL is a CAT18 option.

Can it use a fiber connection?

Yes. One of the two WAN ports is a Gigabit Ethernet combo port that accepts copper or an SFP, and Cisco supports a wide range of SFP, CWDM and DWDM transceivers on it.

Does it support PoE?

PoE is an optional upgrade providing 4 PoE or 2 PoE+ on the 8 GE LAN ports; it requires the 150 W power supply.

What software does it run?

Cisco IOS XE (minimum 16.11.1) or Cisco IOS XE SD-WAN (minimum 17.2.1), managed via WebUI, Cisco DNA Center or Cisco vManage.
