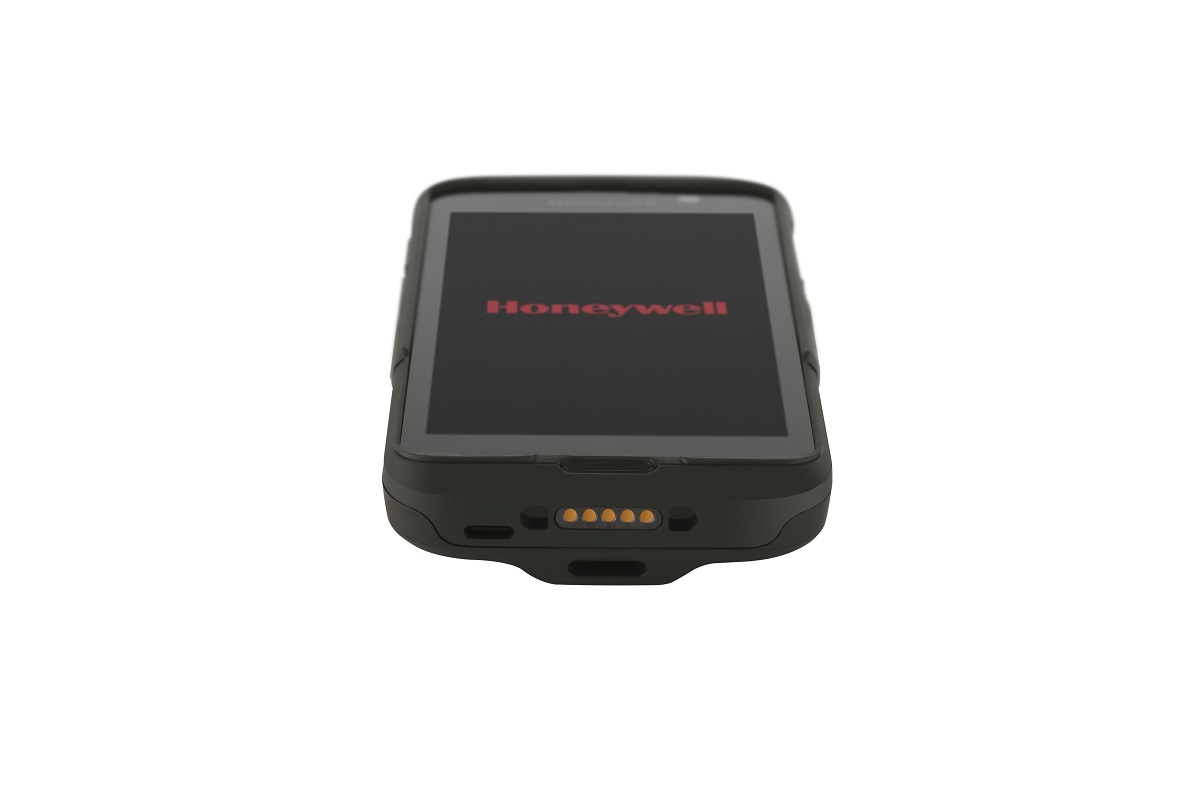

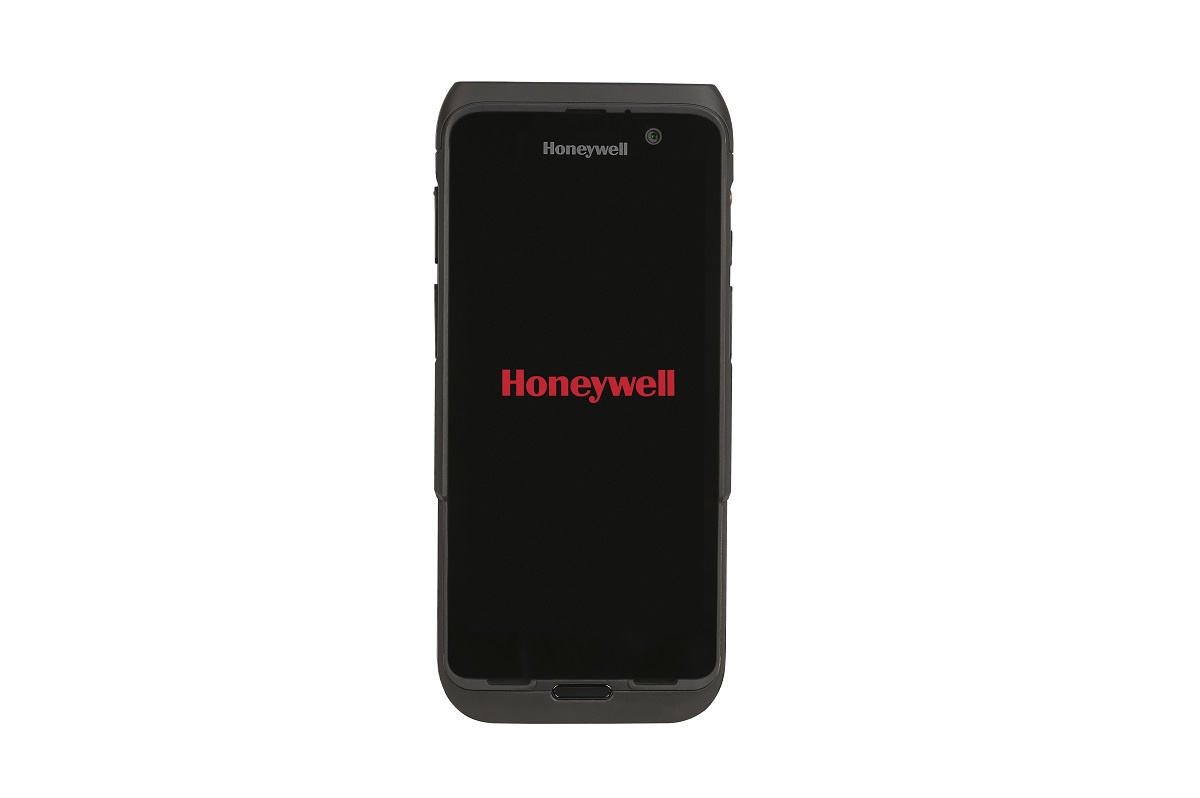

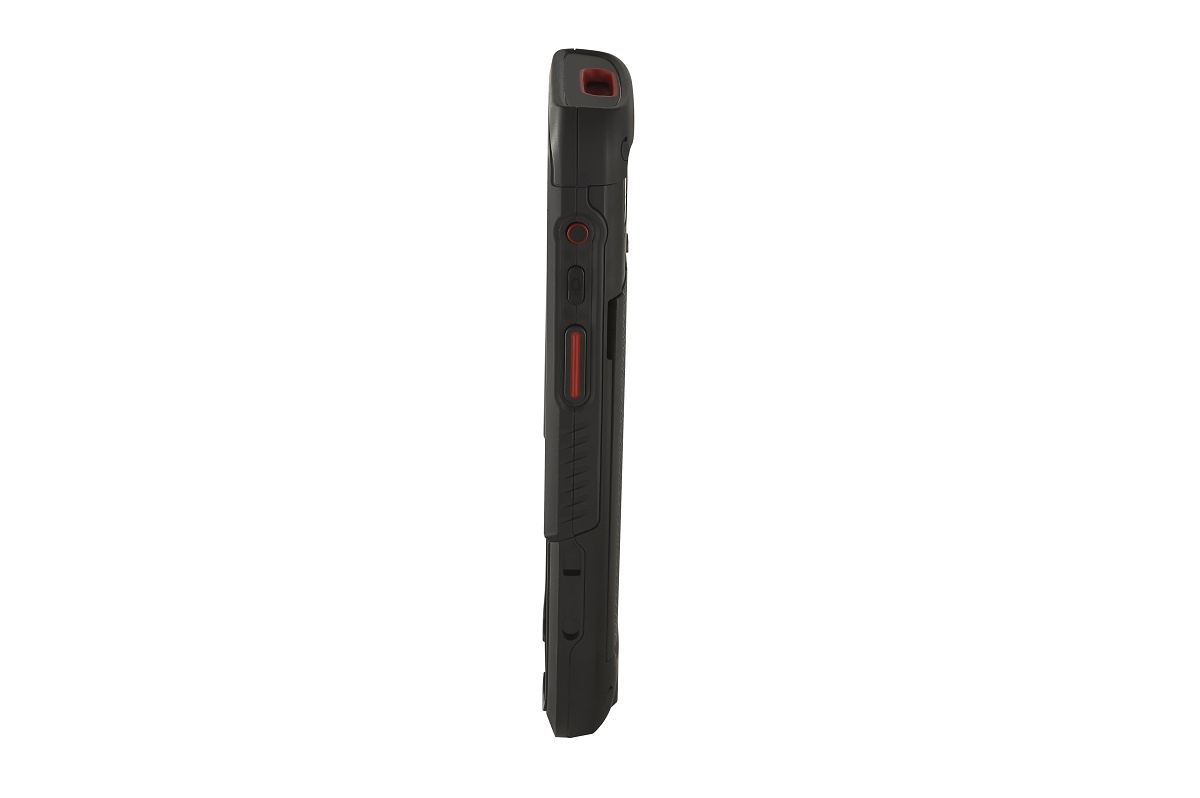

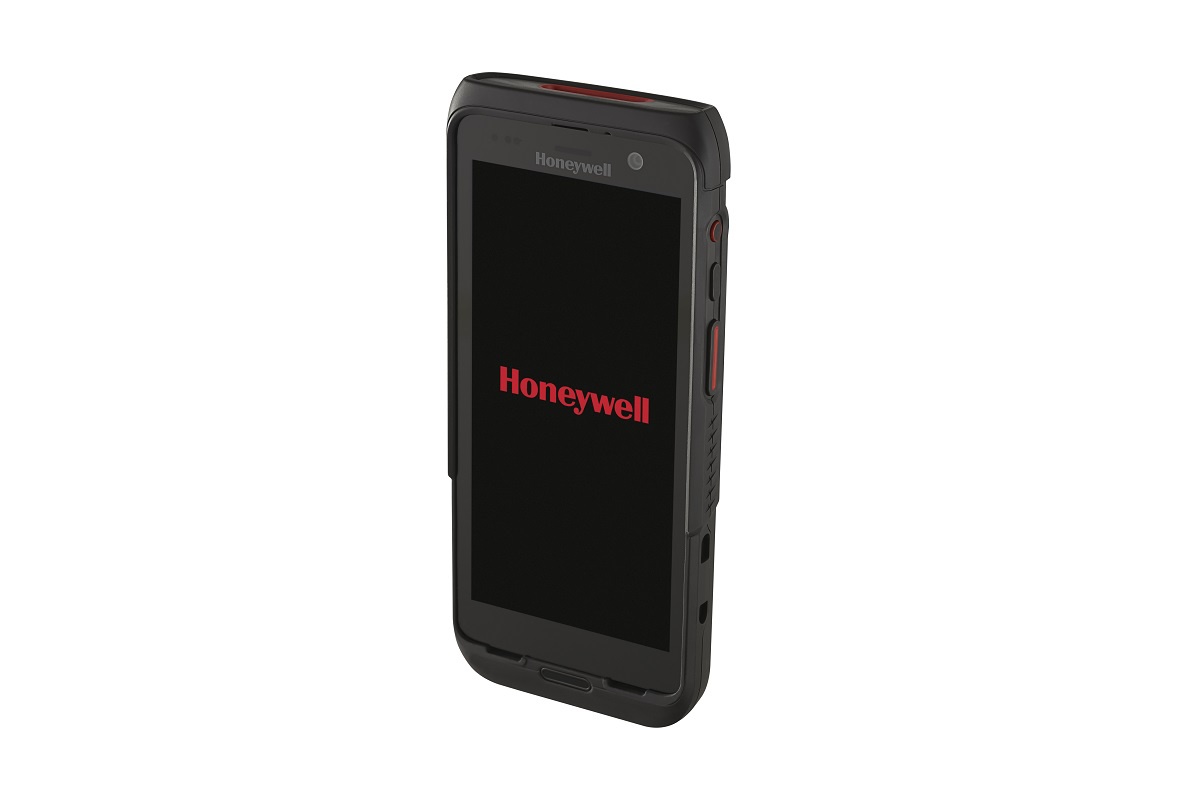

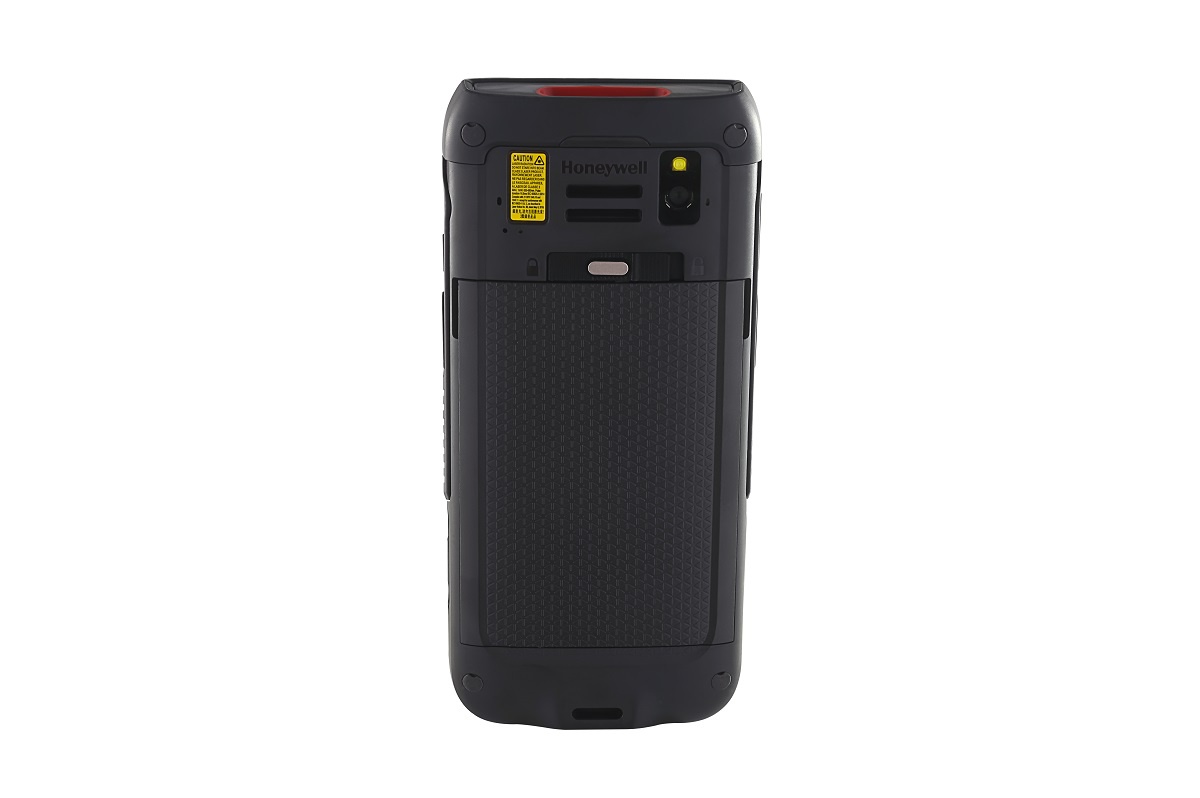

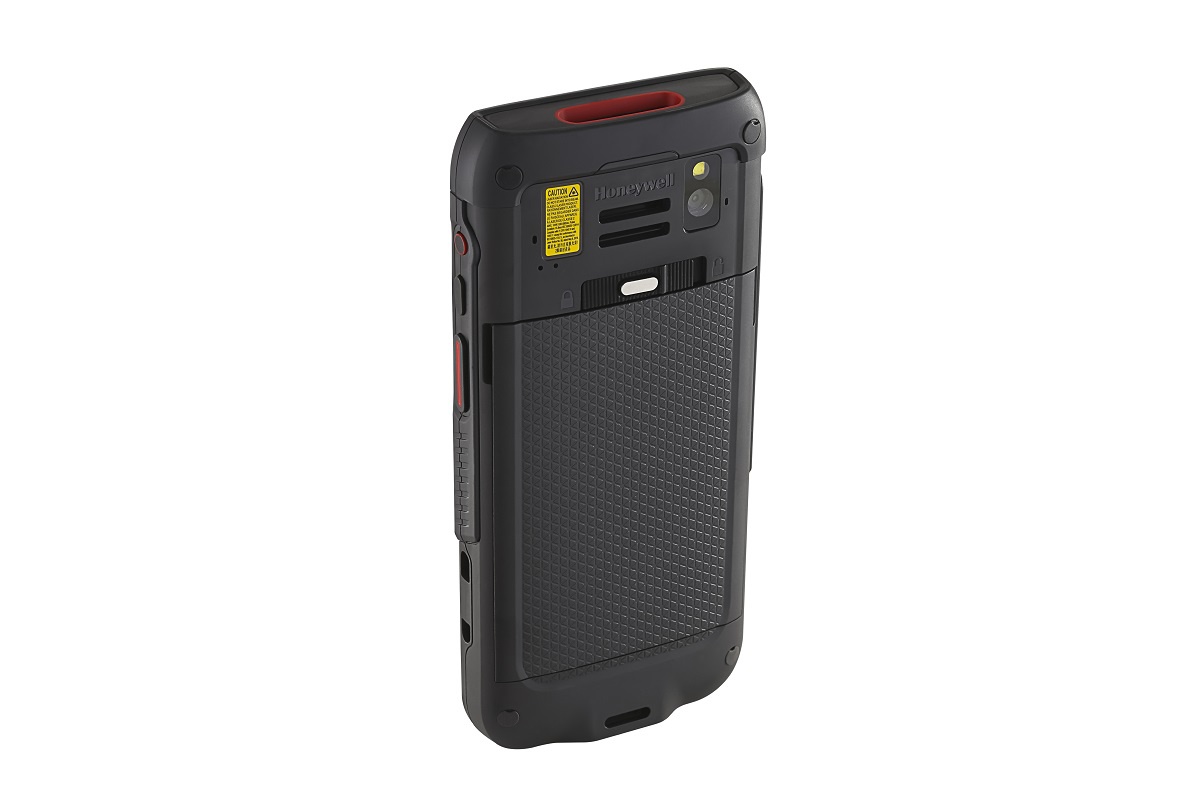

Honeywell CT47 5G Rugged Handheld Computer, 8GB/128GB, FlexRange Scanner, FIPS, Non-GMS, Global

5GMPN CT47-X1N-58D6E0G
  • 128 GB
  • Rugged
$2,936.95$4,183.49Save $1,246.54

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

The Honeywell CT47 (CT47-X1N-58D6E0G) is an ultra-rugged 5G handheld computer on the Mobility Edge platform. It is built for front-line workers in logistics, warehouse and field operations. This global configuration pairs 8GB RAM and 128GB flash with a 5.5-inch Full HD touchscreen, a FlexRange green-laser scan engine, Wi-Fi 6E, and nano SIM plus eSIM. It runs a FIPS, Non-GMS Android build with Launcher, Browser and Basic Terminal Emulator. The housing is IP65/IP68 certified and rated for multiple 8 ft drops to concrete.

  • 5G (FR1) and LTE CAT13 connectivity with 1 nano SIM and 1 eSIM, plus Wi-Fi 6E 2x2 MU-MIMO and Bluetooth 5.2
  • 8GB DDR4x RAM and 128GB UFS flash, with a microSD slot for cards up to 2 TB
  • 5.5-inch Full HD (2160 x 1080) rugged multi-touch display with Gorilla Glass 5
  • Honeywell FlexRange scan engine with green-laser aiming
  • FIPS, Non-GMS Android build with Launcher, Browser and Basic Terminal Emulator preloaded
  • IP65/IP68 certified, rated for multiple 8 ft drops to concrete and more than 3,500 tumbles at 0.5 m
  • Qualcomm QCS6490/QCM6490 octa-core 2.7GHz processor on the Mobility Edge platform
  • Keeps mobile workers connected indoors and out across public 5G, CBRS, private networks and Wi-Fi 6E

The Honeywell CT47 is an ultra-rugged, all-purpose mobile computer for front-line teams in transport and logistics, warehousing, manufacturing and field operations. This part number, CT47-X1N-58D6E0G, is the global configuration. It combines 5G and Wi-Fi 6E connectivity with a nano SIM and an eSIM, 8GB DDR4x RAM and 128GB UFS flash. A 5.5-inch Full HD (2160 x 1080) rugged multi-touch display and a Honeywell FlexRange scan engine with green-laser aiming handle barcode capture.

This SKU runs a Non-GMS Android build, so Google Mobile Services are not included. It carries FIPS security and comes preloaded with Launcher, Browser and Basic Terminal Emulator software. That makes it a fit for controlled, locked-down fleets and terminal-emulation workflows. The CT47 was released with Android 12 and is guaranteed through Android 15. A Qualcomm QCS6490/QCM6490 octa-core 2.7GHz processor powers the device. Fingerprint and facial-recognition login are available for multi-factor authentication.

The 5G radio covers FR1 bands 1 through 79, including n41, n71, n77 and n78. It also supports LTE up to CAT13 downlink and CAT5 uplink, plus CBRS and private networks. 4x4 MIMO is supported on key 5G and LTE bands. On Wi-Fi, the CT47 is Wi-Fi 6E certified with 2x2 MU-MIMO and WPA3 Enterprise. Bluetooth 5.2 and BLE are included.

The device survives multiple 2.45 m (8 ft) drops to concrete per MIL-STD-810H, or 2.75 m (9 ft) with the protective boot. It also exceeds 3,500 tumbles at 0.5 m. It is certified IP65 and IP68, with Gorilla Glass 5 on the display. The standard 4775 mAh lithium-ion battery keeps it running through demanding shifts. The unit weighs 314 g with that battery, and a microSD slot accepts cards up to 2 TB.

Ideal for

  • Warehouse picking, put-away and inventory with FlexRange barcode scanning
  • Last-mile delivery and transport logistics over 5G and LTE
  • Terminal-emulation host applications on FIPS, Non-GMS managed fleets
  • Manufacturing floor data capture over Wi-Fi 6E or private 5G/CBRS networks
  • Field operations teams that need a drop- and water-resistant handheld

Specifications

Others

Industry
Aerospace, Logistics & Warehouses, Manufacturing

General

MPN
CT47-X1N-58D6E0G
Brand
Honeywell
Model
CT47 Handheld Computer
Region
Global configuration
Device Type
Ultra-rugged 5G handheld mobile computer

Network

SIM
1 nano SIM and 1 eSIM
4x4 MIMO
4x4 MIMO on 5G n7, n38, n41, n48, n77, n78, n79 and 4G B7, B41, B42, B43, B48
Bluetooth
Bluetooth 5.2 and BLE
Gsm Bands
GSM quad band: 850/900/1800/1900 MHz
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B42, B43, B66, B71
5G Fr1 Bands
n1, n2, n3, n4, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
LTE Advanced
Up to 390 Mbps CAT13 LTE downlink, up to 75 Mbps CAT5 LTE uplink
Supported Eap
TLS, PEAP, TTLS, PWD, LEAP, CCX compatible
Wlan Security
OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
Umts Hspa Bands
UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19
Wlan Specifications
Wi-Fi 6E certified; IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO, Dual Band Simultaneous (DBS), IPv4, IPv6
Wwan Specifications
WWAN radio (ATT/VZW/SPRINT/TMO/NA/EU); AT&T FirstNet compliant
Computer Wireless Communication
5G & Wi-Fi 6E

Features

Application
Transportation & Logistics, Warehouse, Manufacturing, Field Operations
Environment
Standard environment
Connectivity
Wi-Fi & Cellular

Hardware

Keypad
Full touchscreen
Cameras
13-megapixel rear camera, 8-megapixel front camera
Sensors
Ambient light, proximity, accelerometer, gyroscope, magnetometer, barometer, eCompass, Hall sensor, High-G sensor
Processor
Qualcomm QCS6490/QCM6490 octa-core 2.7 GHz
Resolution
Full HD (2160 x 1080)
Touch Panel
Rugged multi-touch, Gorilla Glass 5
Display Size
14 cm (5.5 in)

Dimensions

Weight
314 g (11.1 oz) with standard battery
Overall Dimensions
170 mm x 79 mm x 19.2 mm (6.69 in x 3.11 in x 0.75 in) with standard battery

Electrical

Battery Type
Lithium-ion, standard battery
Battery Capacity
4775 mAh standard battery

Memory Data

RAM
8 GB DDR4x RAM
Storage
128 GB UFS Flash
Expansion
User-accessible microSD card up to 2 TB (SDXC/SDHC/SDIO-compliant)

Environmental

Storage Temperature
-30°C to +70°C (-22°F to +158°F)
Operating Temperature
-20°C to +50°C (-4°F to +122°F)

Service Terms

Warranty Duration
1 year

Software Firmware

Platform
Honeywell Mobility Edge
Security
FIPS
Google Services
Non-GMS (no Google Mobile Services)
Operating System
Released with Android 12 and guaranteed through Android 15
Preloaded Software
Launcher, Browser, Basic Terminal Emulator
Operating System Type
Android

Standards Approvals

Protection Ratings
Certified for IP65 & IP68
Drop Specifications
Multiple 2.45 m (8 ft) drops to concrete per MIL-STD-810H; multiple 2.75 m (9 ft) drops with protective boot per MIL-STD-810H
Tumble Specifications
Exceeds 2,000 tumbles at 1 m (3.28 ft) and 3,500 tumbles at 0.5 m (1.64 ft) per IEC 60068-2-32

Scanning Specifications

Decode Capability
Honeywell FlexRange scan engine with green-laser aiming

Questions buyers ask

What does Non-GMS mean on this CT47?

This configuration ships without Google Mobile Services. It runs a FIPS Android build with Launcher, Browser and Basic Terminal Emulator preloaded, which suits controlled enterprise deployments.

Does the CT47-X1N-58D6E0G support 5G?

Yes. It has a 5G WWAN radio covering FR1 bands including n41, n71, n77 and n78, LTE up to CAT13 downlink, and CBRS and private network support. It takes one nano SIM and one eSIM.

How rugged is the CT47?

It is certified IP65 and IP68. It survives multiple 8 ft (2.45 m) drops to concrete per MIL-STD-810H, or 9 ft with the protective boot, and exceeds 3,500 tumbles at 0.5 m.

What battery comes with this configuration?

This SKU uses the standard 4775 mAh lithium-ion battery. With it, the device measures 170 x 79 x 19.2 mm and weighs 314 g.

Which Android versions does the CT47 support?

The CT47 was released with Android 12 and is guaranteed through Android 15 on the Honeywell Mobility Edge platform.
