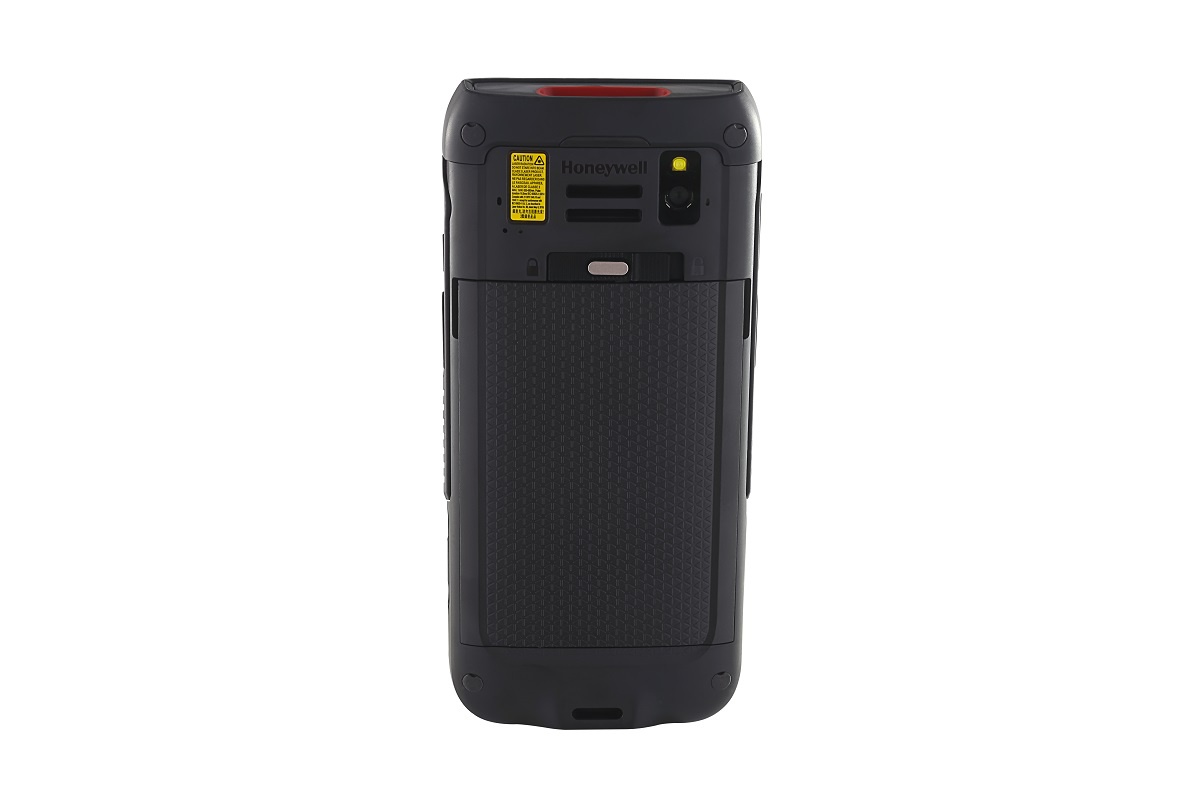

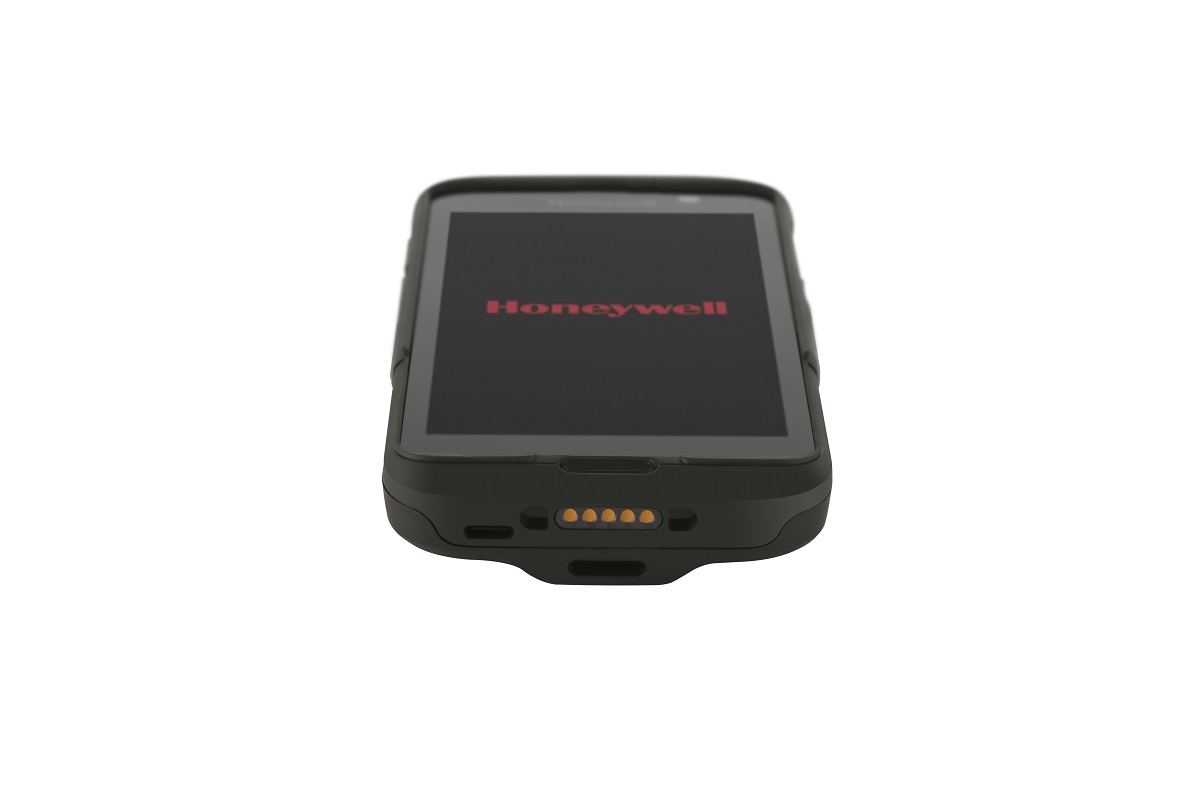

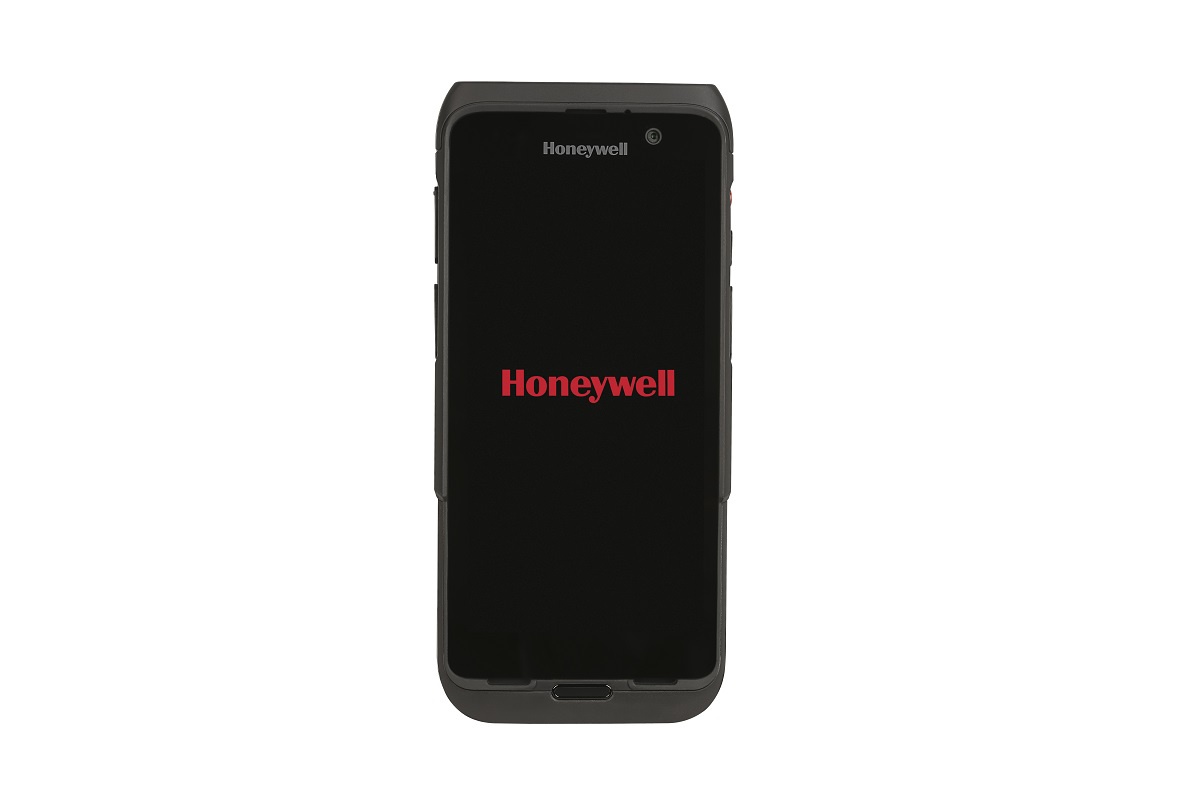

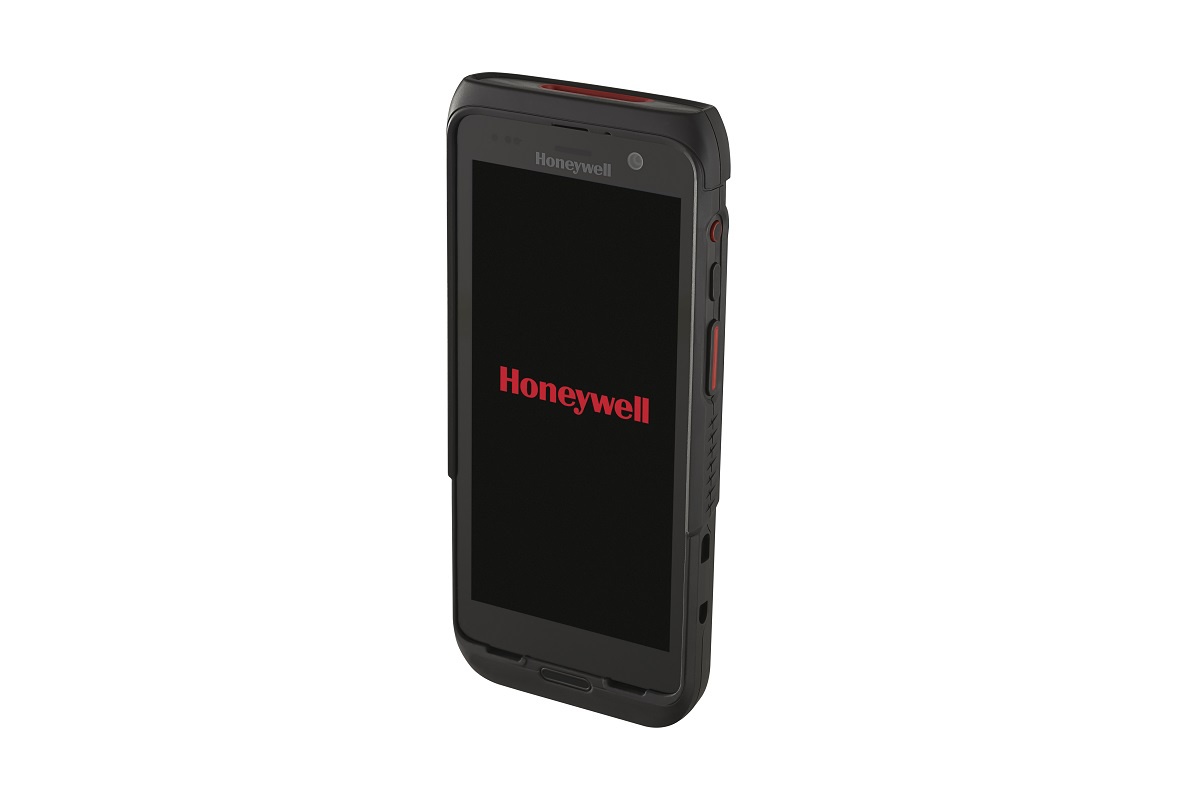

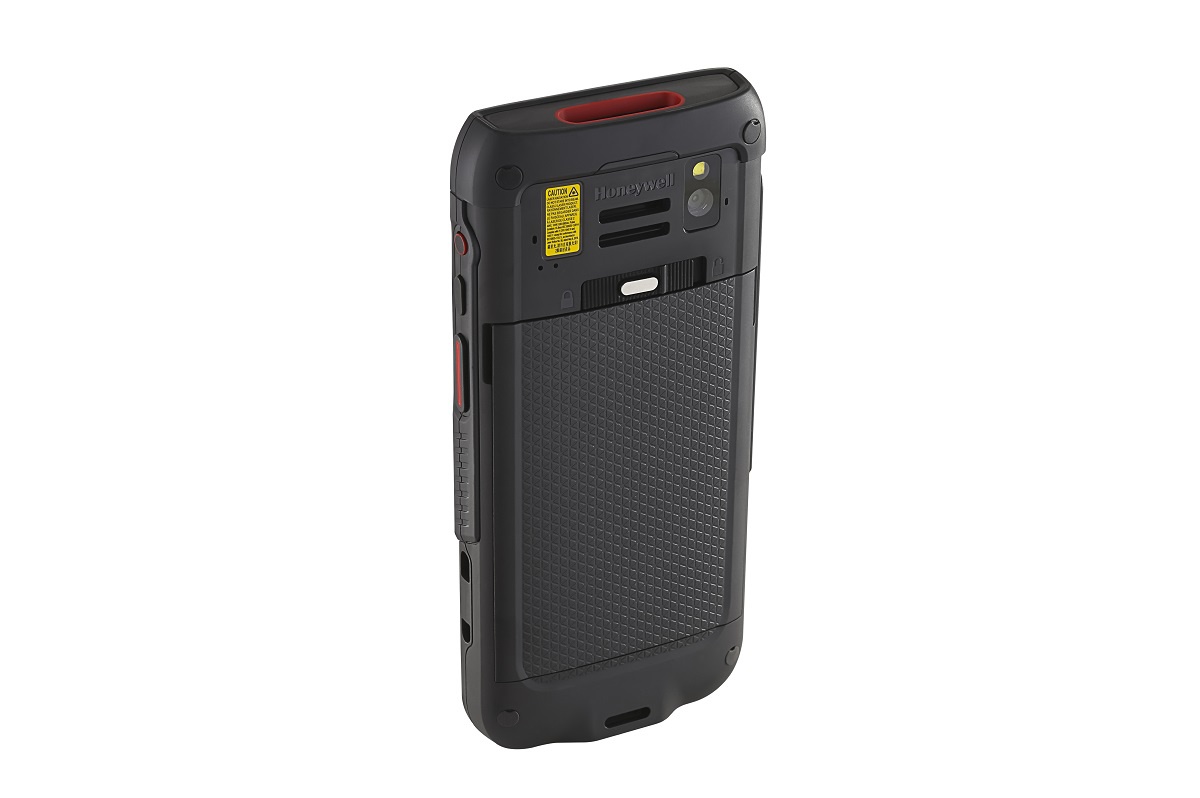

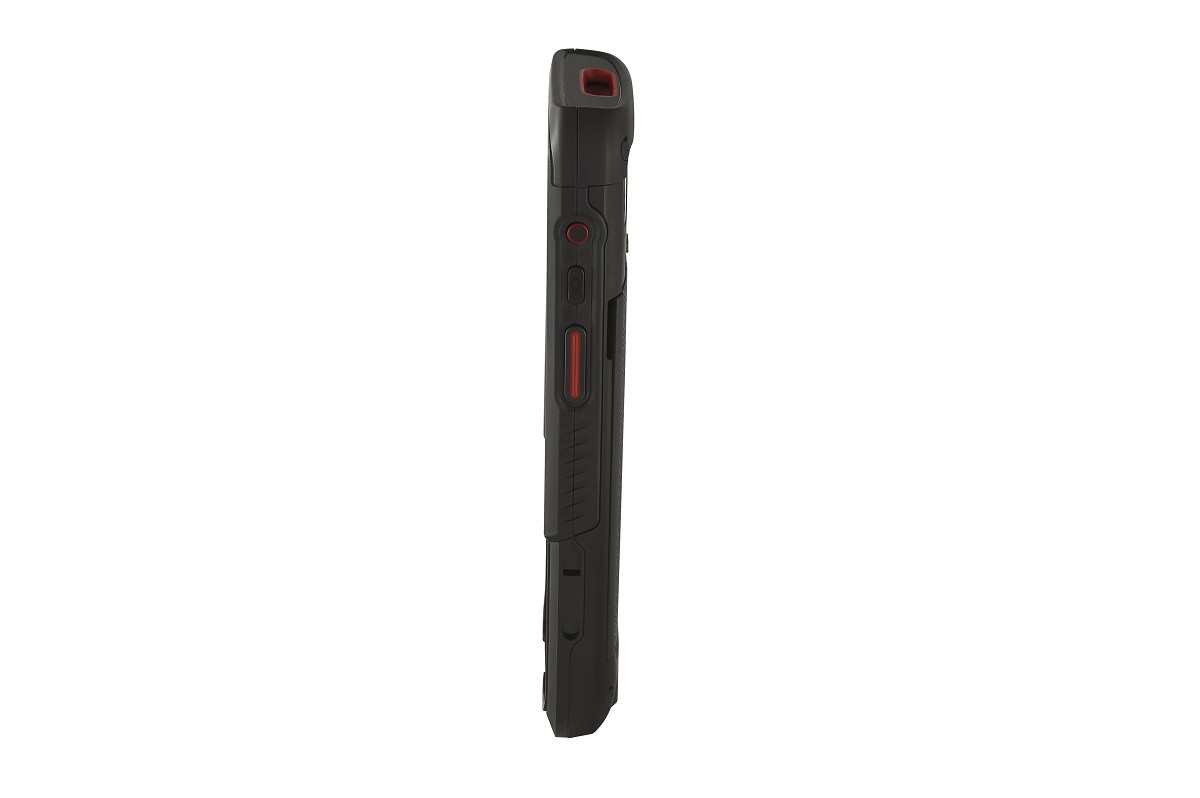

Honeywell CT47 5G Rugged Handheld Computer, 8GB/128GB, FlexRange, Extended Battery, GMS

5GMPN CT47-X1N-58E1E0G
  • 128 GB
  • Rugged
$2,952.15$4,205.16Save $1,253.01

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

The Honeywell CT47-X1N-58E1E0G is a global CT47 5G mobile computer configured for long shifts with the 7692 mAh extended battery. It combines a FlexRange green-laser scan engine, 8GB RAM and 128GB flash, a 5.5-inch Full HD touchscreen, Wi-Fi 6E, push-to-talk and Android with Google Mobile Services. It is built for logistics, warehouse and field teams that need maximum runtime from a single ultra-rugged device.

  • 7692 mAh extended battery with warm swap
  • FlexRange scan engine with green-laser aimer for 1D/2D barcodes
  • 5G FR1 and LTE Advanced CAT13 with CBRS and private network support
  • Wi-Fi 6E 2x2 MU-MIMO, Bluetooth 5.2 with BLE, 1 nano SIM + 1 eSIM
  • 8GB DDR4x RAM, 128GB UFS flash, Qualcomm octa-core 2.7 GHz
  • 5.5-inch Full HD display with Gorilla Glass 5; 13 MP rear and 8 MP front cameras
  • IP65/IP68 and multiple 8 ft drops per MIL-STD-810H
  • Cover extended shifts with the 7692 mAh battery instead of the 4775 mAh standard pack

The Honeywell CT47-X1N-58E1E0G pairs the ultra-rugged CT47 mobile computer with Honeywell's 7692 mAh extended battery. It is aimed at delivery drivers, warehouse associates and field technicians who work long shifts away from a charger. The battery is warm-swappable, and this global configuration ships with Android and Google Mobile Services on the Mobility Edge platform. The CT47 was released with Android 12, and Honeywell guarantees support through Android 15.

For connectivity, the device offers 5G FR1 and LTE Advanced with up to 390 Mbps CAT13 downlink and 4x4 MIMO on key bands. It supports CBRS and private networks, Wi-Fi 6E with 2x2 MU-MIMO and dual band simultaneous operation, and Bluetooth 5.2 with BLE. SIM options are one nano SIM plus one eSIM, and push-to-talk and USB-C 3.0 round out the communications and charging setup.

The FlexRange scan engine uses a green-laser aimer for 1D and 2D barcodes, and the device adds a 13 MP rear camera and an 8 MP front camera. A Qualcomm QCS6490/QCM6490 octa-core 2.7 GHz processor with 8GB DDR4x RAM and 128GB UFS flash keeps applications responsive, and microSD expansion reaches 2 TB. Fingerprint and facial-recognition login protect user data.

With the extended battery fitted, the CT47 measures 170 x 79 x 22.6 mm and weighs 358 g. It is certified to IP65 and IP68, uses Gorilla Glass 5, and survives multiple 8 ft drops to concrete per MIL-STD-810H. Honeywell's datasheet and quick start guide are available for this model.

Ideal for

  • Last-mile delivery and proof-of-delivery on long routes
  • Multi-shift warehouse picking and inventory
  • Field service technicians working away from charging points
  • Transport and logistics yard management with push-to-talk

Specifications

Wlan

Eap
TLS, PEAP, TTLS, PWD, LEAP; CCX compatible
MIMO
2x2 MU-MIMO
Security
OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
Standard
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
IP Support
IPv4, IPv6
Certification
Wi-Fi certified, Wi-Fi 6E certified
Dual Band Simultaneous
Dual Band Simultaneous (DBS)

Camera

Rear
13 MP rear camera
Front
8 MP front camera

Memory

RAM
8GB DDR4x RAM
Storage
128GB UFS flash
Expansion
User-accessible microSD up to 2 TB (SDXC/SDHC/SDIO-compliant)

Display

Size
5.5 in (13.97 cm)
Resolution
Full HD 2160 x 1080
Cover Glass
Corning Gorilla Glass 5
Touch Panel
Rugged multi-touch

General

MPN
CT47-X1N-58E1E0G
Brand
Honeywell
Model
CT47 Handheld Computer
Region
Global configuration
Industry
Aerospace, Logistics & Warehouses, Manufacturing
Application
Transportation & Logistics, Warehouse, Manufacturing, Field Operations
Connectivity
Wi-Fi & Cellular (5G & Wi-Fi 6E)
Sku Description
CT47, 5G, 8GB/128GB, FlexRange, extended battery, eSIM, GMS

Service

Warranty
1 year

Cellular

SIM
1 nano SIM and 1 eSIM
Firstnet
AT&T FirstNet Compliant
MIMO 4x4
4x4 MIMO on 5G n7, n38, n41, n48, n77, n78, n79 and 4G B7, B41, B42, B43, B48
Gsm Bands
GSM quad-band 850/900/1800/1900 MHz
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B42, B43, B66, B71
Generation
5G WWAN
Wwan Radio
ATT/VZW/SPRINT/TMO/NA/EU
LTE Advanced
Up to 390 Mbps CAT13 LTE downlink, up to 75 Mbps CAT5 LTE uplink
NR Fr1 Bands
5G FR1: n1, n2, n3, n4, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
Umts Hspa Bands
UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19
Private Networks
Private 5G and CBRS network support

Hardware

Port
USB Type-C 3.0
Keypad
Full touchscreen
Sensors
Ambient light, proximity, accelerometer, gyroscope, magnetometer, barometer, eCompass, Hall and High-G sensors
Processor
Qualcomm QCS6490/QCM6490 octa-core, 2.7 GHz
Biometrics
Fingerprint sensor and front-camera facial recognition
Push TO Talk
Push-to-talk

Scanning

Scan Engine

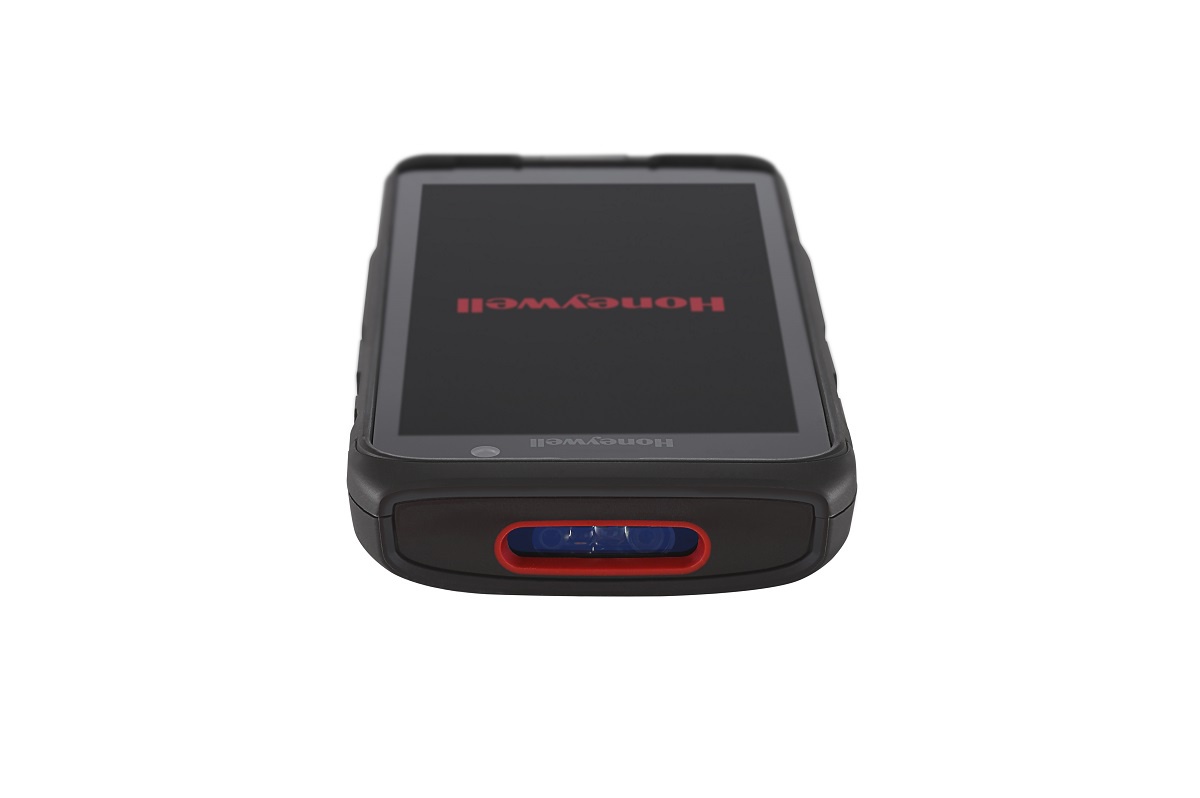

Honeywell FlexRange scan engine with green-laser aimer
Symbologies
1D and 2D barcodes
Scan Distance Family
CT47 family scan distance options: Long Range 0-20 m, Mid Range 0-5 m, Standard Range 0-1 m

Software

Platform
Honeywell Mobility Edge
Google Services
Google Mobile Services (GMS)
Operating System
Released with Android 12 and guaranteed through Android 15

Bluetooth

Version
Bluetooth 5.2 and BLE

Standards

Drop
Multiple 2.45 m (8 ft) drops to concrete per MIL-STD-810H; 2.75 m (9 ft) with protective boot
Tumble
Exceeds 2,000 tumbles at 1 m (3.28 ft) and 3,500 tumbles at 0.5 m (1.64 ft) per IEC 60068-2-32
Protection Rating
Certified for IP65 & IP68

Dimensions

Weight
358 g (12.6 oz) with extended battery pack
Overall
170 x 79 x 22.6 mm (6.69 x 3.11 x 0.89 in) with extended battery pack

Electrical

Battery
7692 mAh extended battery, warm swap
Battery Type
Lithium-ion
Battery Options
4775 mAh standard, 4680 mAh wireless, 7692 mAh extended

Environmental

Environment
Standard environment
Storage Temperature
-30°C to +70°C (-22°F to +158°F)
Operating Temperature
-20°C to +50°C (-4°F to +122°F)

Questions buyers ask

What battery comes with the CT47-X1N-58E1E0G?

It ships with Honeywell's 7692 mAh extended battery, which supports warm swap.

How much does it weigh?

With the extended battery pack, it weighs 358 g (12.6 oz) and measures 170 x 79 x 22.6 mm.

Does it include Google Mobile Services?

Yes. This configuration runs Android with GMS on Honeywell's Mobility Edge platform, with support guaranteed through Android 15.

Can it use eSIM?

Yes. It supports one eSIM and one nano SIM.
