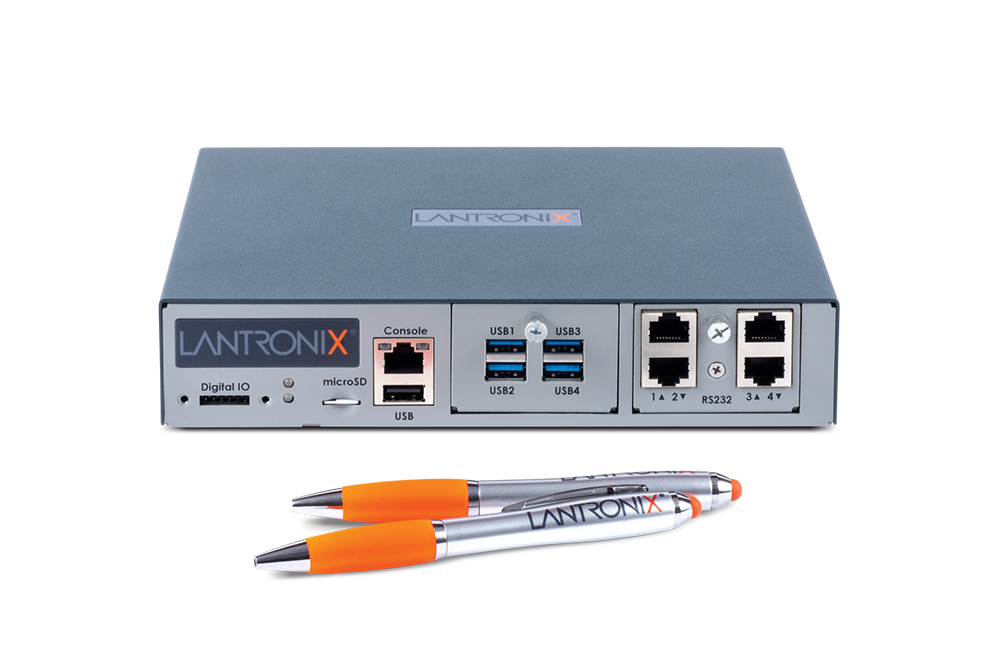

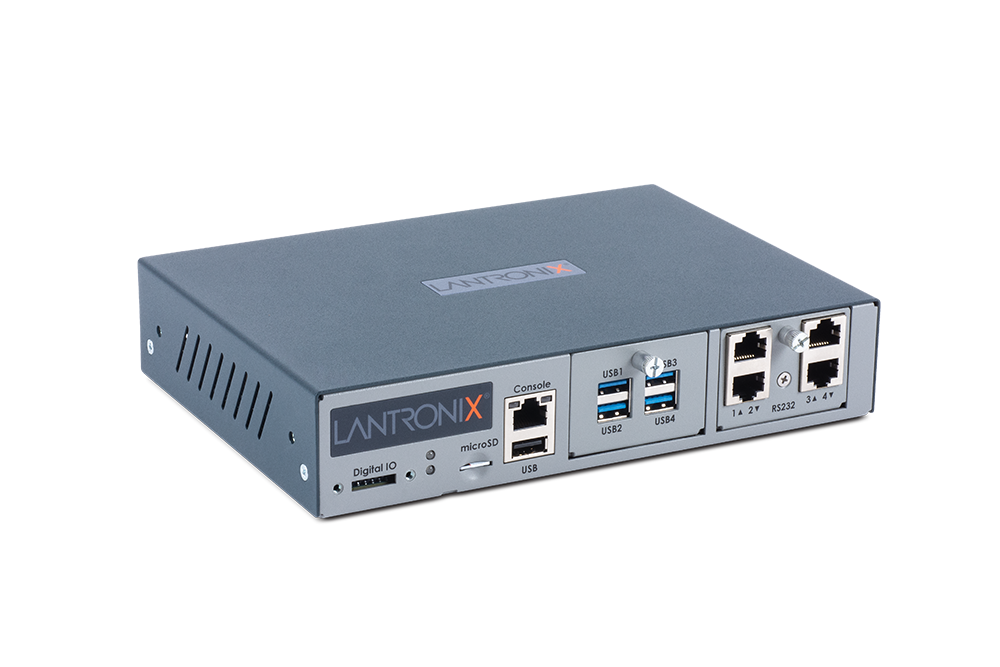

Lantronix EMG 8500 Edge Management Gateway with 4-Port RS-232 and LTE Cellular (EMG851010S)

4G LTEMPN EMG851010S
  • 2–4 × 1 Gb Ethernet
$1,052.66$1,200.00Save $147.34

Backordered · ships as soon as it arrives

Region
APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Lantronix EMG 8500 (EMG851010S) is a compact 1U out-of-band edge management gateway for branch offices, retail stores and remote sites. This configuration has a 4-port RS-232 (RJ45) serial module and an LTE cellular radio. If the primary network is congested or unresponsive, it fails over to LTE and fails back automatically, so administrators can reach console ports on routers, switches, servers and PDUs. Access is by Telnet/SSH or an HTML5 web terminal, and it supports FIPS 140-2 compliant cryptography.

  • 4-port RS-232 (RJ45) device port module, 300 to 921600 bps, with software-programmable reversible pinouts
  • LTE cellular out-of-band connectivity with automatic fail-over/fail-back, Private APN and VPN support
  • Two GbE (10/100/1000Mbps) RJ45 or two SFP fiber in-band ports
  • FIPS 140-2 compliant cryptography (Certificate #2398) and NIST-certified AES encryption
  • Modular design with two IO module slots and two connectivity module slots, all customer-replaceable
  • 256 KB buffering per port and HTML5 Java-free web terminal SSH access
  • Compatible with Lantronix Percepxion for Networking centralized management
  • Reach console ports on remote routers, switches and servers over LTE when the primary network is down

The Lantronix EMG 8500 Edge Management Gateway provides lights-out management where rack space is limited and staff are not on site. Model EMG851010S has a 4-port RS-232 (RJ45) device port module and an LTE cellular connectivity module. IT teams can connect to, monitor and repair network equipment through its serial console, even when the production network is down.

An integrated fail-over and fail-back mechanism switches the out-of-band path to 4G/LTE when the primary link is congested or unresponsive. It supports Private APN, VPN access, and public or private IP addressing. Network Performance Monitoring with IPSLA simulation traffic helps detect problems before they cause an outage. In-band connectivity uses two GbE RJ45 ports or two SFP fiber ports. Device ports run from 300 to 921600 bps with software-programmable reversible pinouts. Each port has 256 KB of buffering, and logs can go to local files, syslog, USB, SD card or an NFS share.

Security covers TLS 1.0 through 1.3, a packet-filtering firewall, per-port user permissions and remote authentication through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS. Encryption uses NIST-certified AES (FIPS-197) and FIPS 140-2 compliant cryptography (Certificate #2398). Remote power management controls supported PDUs and UPSs. Sensorsoft integration and digital I/O add environmental monitoring.

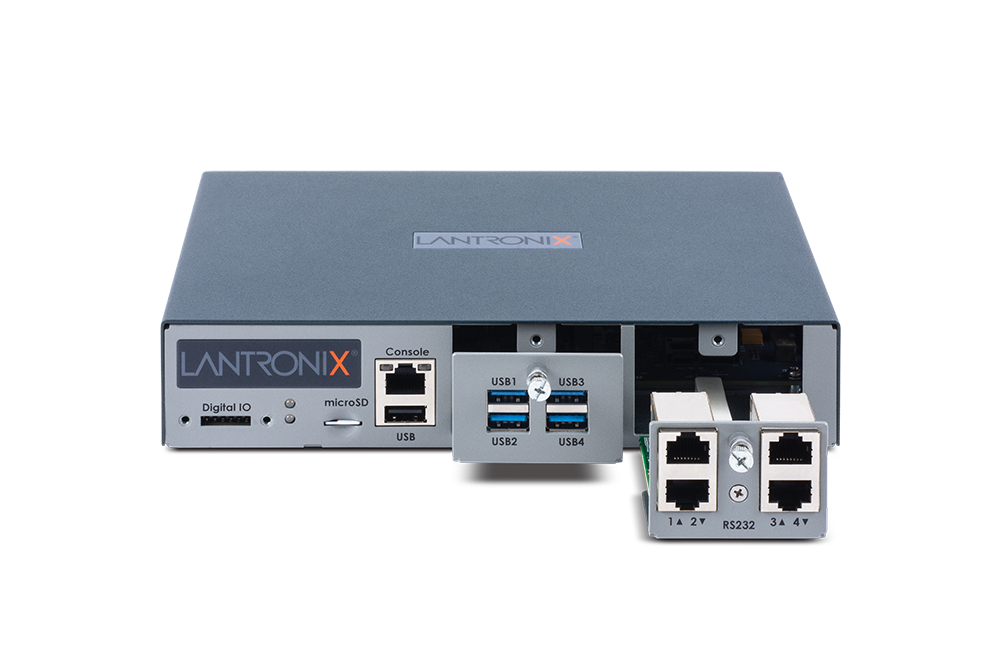

The chassis measures 8.37 x 6.60 x 1.70 in (1U) and runs on external 9-30 VDC power. It is modular: two customer-replaceable IO module slots accept RS-232, USB or Ethernet switch modules, and two connectivity slots accept LTE, Wi-Fi or dial-up modem modules. You can manage it centrally with Lantronix Percepxion for Networking. A product brief, quick start guide and user guide are available.

Ideal for

  • Out-of-band console access to routers, switches and firewalls at branch offices
  • Remote recovery of retail store network closets over LTE when the WAN fails
  • Lights-out management of servers and PDUs at unstaffed remote sites
  • Environmental monitoring of temperature, humidity and power in small equipment rooms
  • Secure console management in environments that require FIPS 140-2 cryptography

Specifications

Power

Power Inlet
External Power, 9-30 VDC
Input Voltage Range
9 V DC to 30 V DC

Memory

Internal Dram
1 GB Internal DRAM
External Storage
microSD Slot, up to 128 GB
Internal Nand Flash
1 GB Internal NAND Flash
Internal Storage Optional
128 GB Internal Flash (Optional)

General

MPN
EMG851010S
UPC
783384239623
Brand
Lantronix
Series
Lantronix EMG 8500
Product Type
Out-of-Band Edge Management Gateway
Configuration
4-Port RS-232 Serial, LTE Cellular
Country OF Origin
Malaysia

Package

Shipping Weight
6.40 lbs

Cellular

Failover
Automatic Fail-Over/Fail-Back to Cellular
Services
Private APN, VPN Access, Public and Private IP Addressing
Technology
4G/LTE Cellular
Network Performance Monitoring
Network Performance Monitoring with IPSLA Simulation Traffic

Physical

Weight
3.0 lbs (1.36 kg) Maximum, Depending on Options
Mounting
Front-Mid-Rear Mounting Brackets
Form Factor
Rack Mount
Rack Height
1U
Dimensions IN
8.37 x 6.60 x 1.70 in (L x W x H)
Dimensions MM
212.6 x 167.68 x 43.21 mm (L x W x H)

Warranty

Warranty
3-Year Limited Warranty

Interfaces

Front Panel Ports
USB Host Port, microSD/SDHC Slot, RS-232 Console
Back Panel Network Ports
Dual Gb Ethernet or Dual Gb Fiber SFP Ports
Front Panel I/O Module Slots

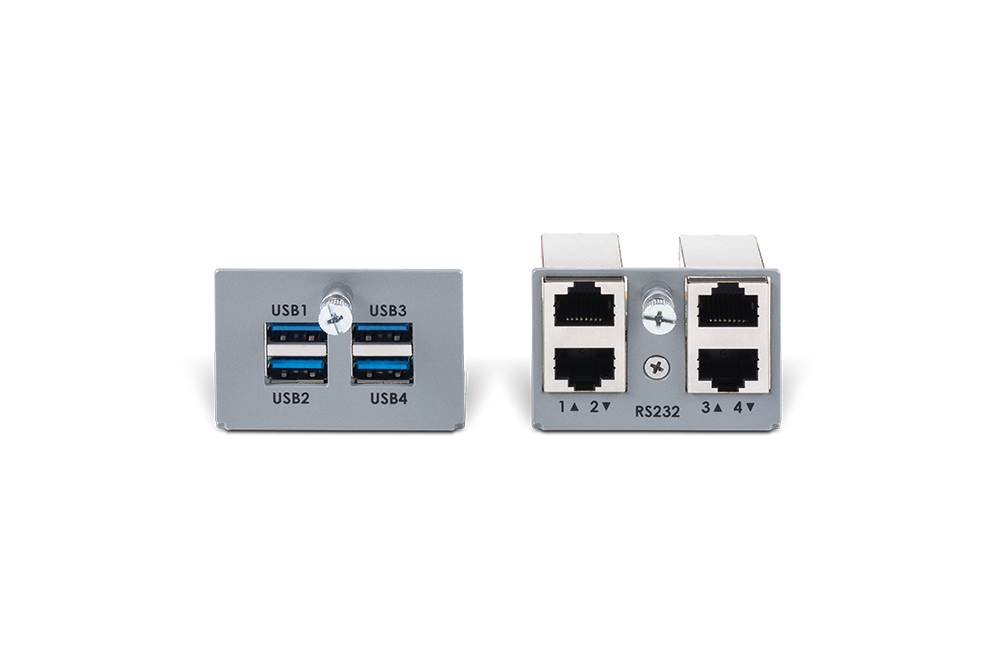

2 Customer-Replaceable IO Module Slots (4-Port RS-232 RJ45 300-921600 bps, 4-Port USB or 4-Port Ethernet Switch)
Back Panel Connectivity Module Slots
2 Customer-Replaceable Connectivity Module Slots (LTE/4G, Wi-Fi or Dial-Up Modem)

Management

Cli
CLI (Telnet, SSH, WebTerminal or Direct Console Port)
Snmp
SNMP (MIB II) v1, v2, v3, v3 over TLS, Custom MIBs
Diagnostics
Diagnostics and Port Status Counters
Network Trace
Network Trace Utility
Subnet Search
Local Subnet Search for Other Lantronix Console Managers
Web Interface
Quick Setup and Configuration Web Interface (TLS)
User Monitoring
Active User List, Port Monitoring and Timeout
Cli Setup Script
CLI Setup Script
Packet Generation
Packet Generation Utility
Digital I/O Sensors
Digital I/O Inputs and Sensorsoft Sensor Integration
Max Users Per Port
Maximum 15 Users per Device Port
Performance Monitoring
Performance Monitoring Utility
Remote Power Management
RPM for PDU and UPS Control and Monitoring

Device Access

IN Band
Two GbE (10/100/1000Mbps) RJ45 Ports or 2 SFP Fiber Ports
Out OF Band
2 Independent Ethernet Uplinks, Internal POTS Modem, External/Internal Cellular Radio, Wi-Fi

Environmental

Storage Humidity
10 to 90% RH, Non-Condensing
Operating Humidity
30 to 90% RH, Non-Condensing
Storage Temperature
-20 to 80 °C (-4 to 176 °F)
Operating Temperature
0 to 50 °C (32 to 122 °F)

Certifications

Compliance
CB, EU, FCC, IC, RCM, UKCA, UL RoHS
Environmental Compliance
WEEE Directive

Central Management

Platform
Compatible with Lantronix Percepxion for Networking

Additional Protocols

VPN
StrongSwan IPsec VPN Client
Ipv6
IPv6 Addressing
Routing
RIP and RIPv2
Time Sync
NTP Time Synchronization
Dynamic IP
DHCP and BOOTP
File Transfer
FTP, TFTP, SFTP, SCP Client
Name Resolution
DNS IP Address Name Resolution
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP with PAP/CHAP, NFS and CIFS

Environmental Sensors

Sensor Support
Plug-and-Go Temperature, Humidity, Power Availability and Dry-Contact Sensors

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable Multi-Level User Menus
Web Terminal
HTML5 Java-Free Web Terminal SSH Access
Storage Support
SD Card and USB
Direct IP Access
Telnet/SSH/RAW-TCP Direct to an IP Address
Device Port Types
RJ45 and/or USB Device Ports
Multiple Sessions
Multiple Telnet/SSH Sessions
Reversible Pinouts
Software-Programmable Reversible Pinouts
Simultaneous Access
Simultaneous User Access to the Same Console Port
Cli Logins From Ports
CLI Terminal Logins from Any Device Port
Port Initiated Connections
Automatic Port-Initiated Connections or Outbound SSH to Neighboring Equipment

Security And Authentication

Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS 140 2
FIPS 140-2 Compliant Cryptography (Certificate #2398)
Aes Encryption
NIST-Certified AES (FIPS-197)
Security Level
Enterprise-Grade Security
Packet Filtering
Packet Filtering (Firewall)
User Group Rights
Configurable User/Group Rights
Local Authentication
Local Username/Password
Per Port Permissions
Per-Port User Permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture And Notification

Port Logging
Port Logging to Local Files, Syslog, USB Thumb Drive, SD Card and NFS Share
Logging Types
System, Audit and Port Logging
Port Buffering
256 KB per Port
Event Notification
Event Notification via Email, SNMP or Syslog
Character String Recognition
Character String Recognition

Questions buyers ask

Does the EMG851010S support 5G?

No. The cellular module in this model is 4G LTE. It provides the out-of-band path with automatic fail-over and fail-back when the primary network connection is congested or unresponsive.

How do administrators reach connected console ports?

Through Telnet/SSH, Telnet/SSH/RAW-TCP direct to an IP address, or an HTML5 Java-free web terminal. No proprietary software is required, and up to 15 users can access each device port.

What power does the EMG 8500 require?

It uses an external power inlet rated for 9-30 VDC.

Can the gateway be expanded after deployment?

Yes. It has two customer-replaceable IO module slots for 4-port RS-232, 4-port USB or 4-port Ethernet switch modules. It also has two customer-replaceable connectivity module slots for LTE/4G cellular, Wi-Fi or dial-up modem modules.

Can it be managed centrally?

Yes. It is compatible with Lantronix Percepxion for Networking, an on-premise and cloud-based platform for centralized management, monitoring and real-time notifications, with mobile access from iOS or Android.
