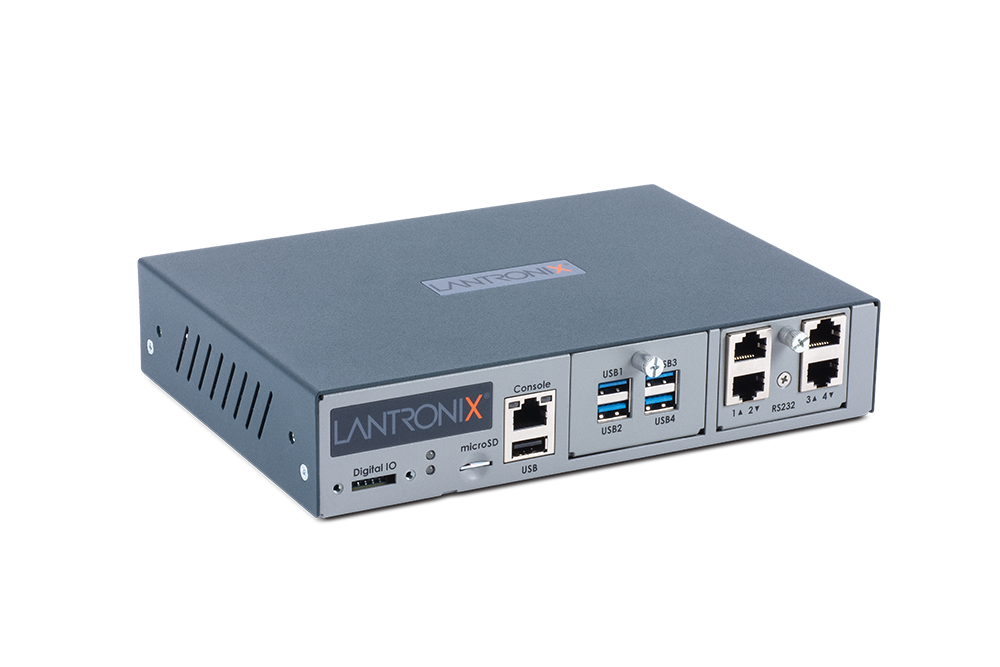

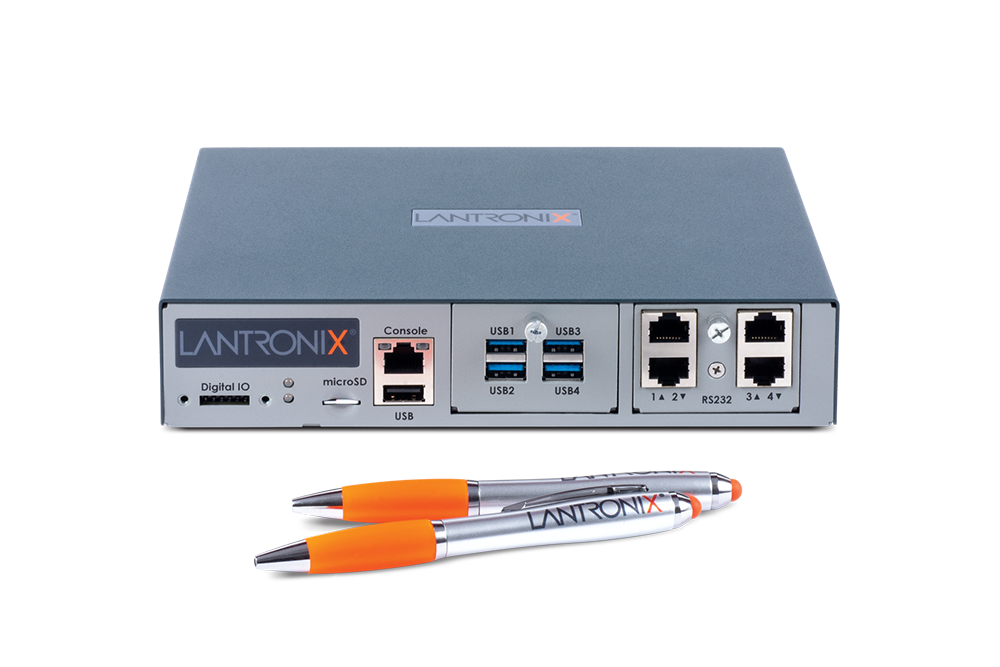

Lantronix EMG 8500 Edge Management Gateway with 4-Port RS-232 and LTE APAC Cellular (EMG851020S)

4G LTEMPN EMG851020S
  • 2–4 × 1 Gb Ethernet
$1,052.73$1,200.00Save $147.27

Backordered · ships as soon as it arrives

Region · APAC
APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Lantronix EMG 8500 (EMG851020S) is a compact 1U out-of-band edge management gateway with a 4-port RS-232 (RJ45) serial module and an LTE cellular radio for the Asia-Pacific (APAC) region. It is intended for deployments in APAC markets. US and other buyers should choose the standard LTE model (EMG851010S), because the radio bands and certifications differ by region. The gateway fails over to LTE automatically so administrators keep console access to remote equipment during outages.

  • 4-port RS-232 (RJ45) device port module, 300 to 921600 bps
  • LTE APAC cellular module for out-of-band access in Asia-Pacific deployments
  • Automatic fail-over/fail-back with Private APN, VPN, and public or private IP addressing
  • Two GbE (10/100/1000Mbps) RJ45 or two SFP fiber in-band ports
  • FIPS 140-2 compliant cryptography (Certificate #2398) and NIST-certified AES

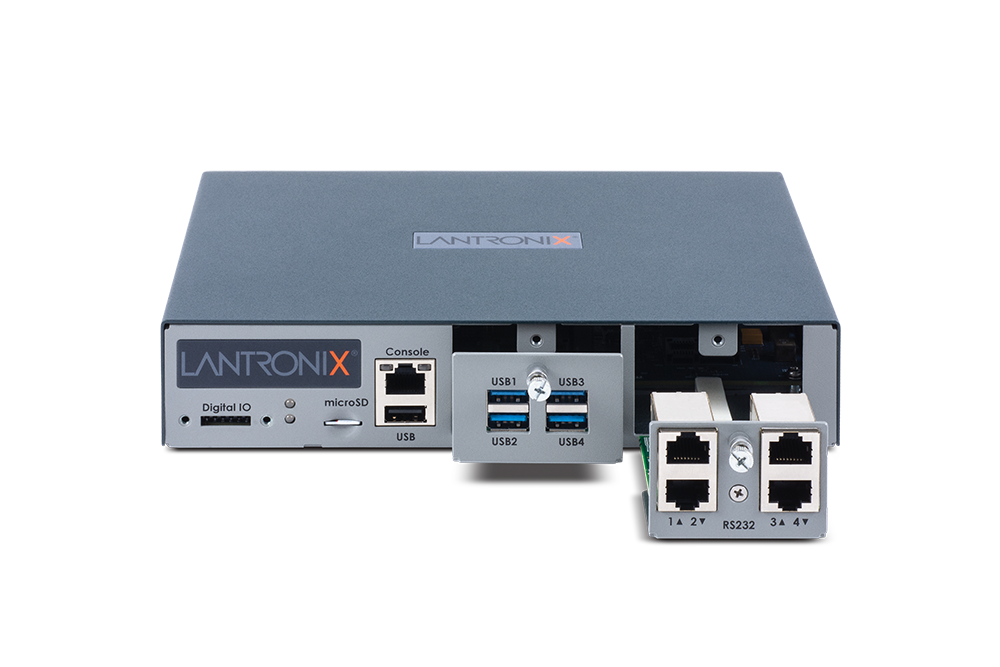

  • Customer-replaceable IO and connectivity module slots
  • Compatible with Lantronix Percepxion for Networking centralized management
  • Regional LTE radio for Asia-Pacific sites, so out-of-band access matches local networks

The Lantronix EMG 8500 Edge Management Gateway provides lights-out management for branch offices, retail stores and remote sites where space is limited. Model EMG851020S has a 4-port RS-232 (RJ45) device port module and an LTE APAC cellular module. This is the Asia-Pacific regional variant, and its radio bands and certifications differ from the standard LTE model. It is intended for APAC deployments. US buyers should look to the EMG851010S.

An integrated fail-over and fail-back mechanism switches the out-of-band path to 4G/LTE when the primary connection is congested or unresponsive. It supports Private APN, VPN access, and public or private IP addressing. Network Performance Monitoring with IPSLA simulation traffic helps prevent lights-out scenarios. In-band connectivity uses two GbE RJ45 ports or two SFP fiber ports. Device ports run from 300 to 921600 bps with software-programmable reversible pinouts. Each port has 256 KB of buffering, and logs can go to local files, syslog, USB, SD card or NFS.

Security includes TLS 1.0 through 1.3, a packet-filtering firewall, per-port permissions and LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS authentication. Encryption uses NIST-certified AES (FIPS-197) and FIPS 140-2 compliant cryptography (Certificate #2398). Remote power management controls supported PDUs and UPSs. Sensorsoft integration adds environmental monitoring.

The 1U chassis measures 8.37 x 6.60 x 1.70 in and runs on external 9-30 VDC power. It has two customer-replaceable IO module slots and two connectivity module slots, and it works with Lantronix Percepxion for Networking for central management. A product brief, quick start guide and user guide are available.

Ideal for

  • Out-of-band console access for branch networks across the Asia-Pacific region
  • Cellular failover management of retail and remote-site network equipment in APAC markets
  • Lights-out server and PDU management at unstaffed APAC facilities
  • Environmental monitoring of small equipment rooms and network closets
  • Secure console access where FIPS 140-2 compliant cryptography is required

Specifications

Power

Power Inlet
External Power, 9-30 VDC
Input Voltage Range
9 V DC to 30 V DC

Memory

Internal Dram
1 GB Internal DRAM
External Storage
microSD Slot, up to 128 GB
Internal Nand Flash
1 GB Internal NAND Flash
Internal Storage Optional
128 GB Internal Flash (Optional)

General

MPN
EMG851020S
UPC
783384239791
Brand
Lantronix
Series
Lantronix EMG 8500
Product Type
Out-of-Band Edge Management Gateway
Configuration
4-Port RS-232 Serial, LTE APAC Cellular
Country OF Origin
Malaysia

Package

Shipping Weight
6.53 lbs

Cellular

Region
Asia-Pacific (APAC) Regional Variant
Failover
Automatic Fail-Over/Fail-Back to Cellular
Services
Private APN, VPN Access, Public and Private IP Addressing
Technology
4G/LTE Cellular
Network Performance Monitoring
Network Performance Monitoring with IPSLA Simulation Traffic

Physical

Weight
3.0 lbs (1.36 kg) Maximum, Depending on Options
Mounting
Front-Mid-Rear Mounting Brackets
Form Factor
Rack Mount
Rack Height
1U
Dimensions IN
8.37 x 6.60 x 1.70 in (L x W x H)
Dimensions MM
212.6 x 167.68 x 43.21 mm (L x W x H)

Warranty

Warranty
3-Year Limited Warranty

Interfaces

Front Panel Ports
USB Host Port, microSD/SDHC Slot, RS-232 Console
Back Panel Network Ports
Dual Gb Ethernet or Dual Gb Fiber SFP Ports
Front Panel I/O Module Slots

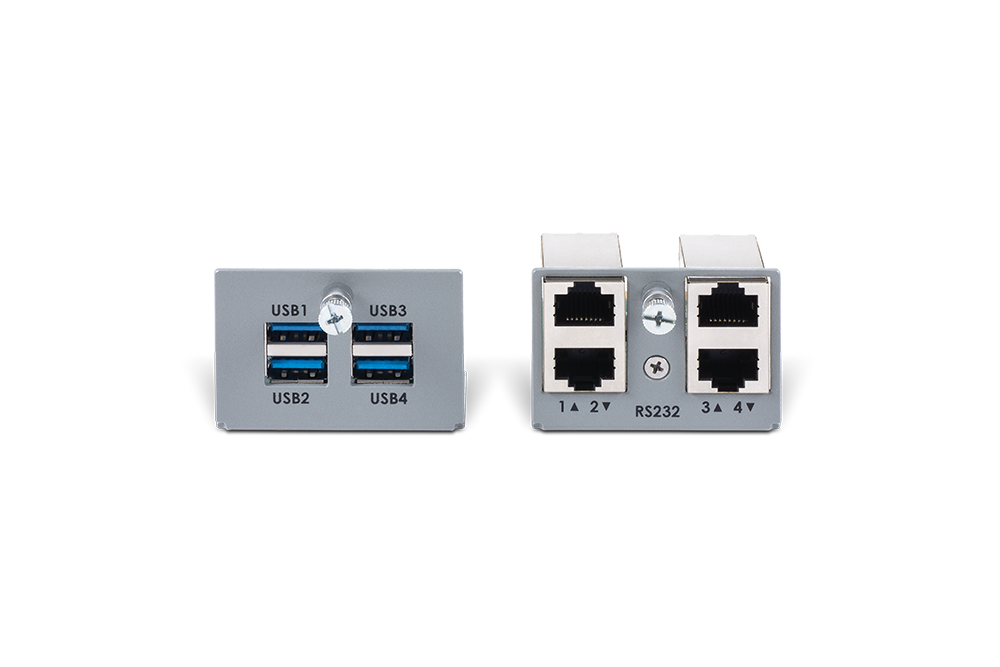

2 Customer-Replaceable IO Module Slots (4-Port RS-232 RJ45 300-921600 bps, 4-Port USB or 4-Port Ethernet Switch)
Back Panel Connectivity Module Slots
2 Customer-Replaceable Connectivity Module Slots (LTE/4G, Wi-Fi or Dial-Up Modem)

Management

Cli
CLI (Telnet, SSH, WebTerminal or Direct Console Port)
Snmp
SNMP (MIB II) v1, v2, v3, v3 over TLS, Custom MIBs
Diagnostics
Diagnostics and Port Status Counters
Network Trace
Network Trace Utility
Subnet Search
Local Subnet Search for Other Lantronix Console Managers
Web Interface
Quick Setup and Configuration Web Interface (TLS)
User Monitoring
Active User List, Port Monitoring and Timeout
Cli Setup Script
CLI Setup Script
Packet Generation
Packet Generation Utility
Digital I/O Sensors
Digital I/O Inputs and Sensorsoft Sensor Integration
Max Users Per Port
Maximum 15 Users per Device Port
Performance Monitoring
Performance Monitoring Utility
Remote Power Management
RPM for PDU and UPS Control and Monitoring

Device Access

IN Band
Two GbE (10/100/1000Mbps) RJ45 Ports or 2 SFP Fiber Ports
Out OF Band
2 Independent Ethernet Uplinks, Internal POTS Modem, External/Internal Cellular Radio, Wi-Fi

Environmental

Storage Humidity
10 to 90% RH, Non-Condensing
Operating Humidity
30 to 90% RH, Non-Condensing
Storage Temperature
-20 to 80 °C (-4 to 176 °F)
Operating Temperature
0 to 50 °C (32 to 122 °F)

Certifications

Compliance
CB, EU, FCC, IC, RCM, UKCA, UL RoHS
Environmental Compliance
WEEE Directive

Central Management

Platform
Compatible with Lantronix Percepxion for Networking

Additional Protocols

VPN
StrongSwan IPsec VPN Client
Ipv6
IPv6 Addressing
Routing
RIP and RIPv2
Time Sync
NTP Time Synchronization
Dynamic IP
DHCP and BOOTP
File Transfer
FTP, TFTP, SFTP, SCP Client
Name Resolution
DNS IP Address Name Resolution
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP with PAP/CHAP, NFS and CIFS

Environmental Sensors

Sensor Support
Plug-and-Go Temperature, Humidity, Power Availability and Dry-Contact Sensors

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable Multi-Level User Menus
Web Terminal
HTML5 Java-Free Web Terminal SSH Access
Storage Support
SD Card and USB
Direct IP Access
Telnet/SSH/RAW-TCP Direct to an IP Address
Device Port Types
RJ45 and/or USB Device Ports
Multiple Sessions
Multiple Telnet/SSH Sessions
Reversible Pinouts
Software-Programmable Reversible Pinouts
Simultaneous Access
Simultaneous User Access to the Same Console Port
Cli Logins From Ports
CLI Terminal Logins from Any Device Port
Port Initiated Connections
Automatic Port-Initiated Connections or Outbound SSH to Neighboring Equipment

Security And Authentication

Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS 140 2
FIPS 140-2 Compliant Cryptography (Certificate #2398)
Aes Encryption
NIST-Certified AES (FIPS-197)
Security Level
Enterprise-Grade Security
Packet Filtering
Packet Filtering (Firewall)
User Group Rights
Configurable User/Group Rights
Local Authentication
Local Username/Password
Per Port Permissions
Per-Port User Permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture And Notification

Port Logging
Port Logging to Local Files, Syslog, USB Thumb Drive, SD Card and NFS Share
Logging Types
System, Audit and Port Logging
Port Buffering
256 KB per Port
Event Notification
Event Notification via Email, SNMP or Syslog
Character String Recognition
Character String Recognition

Questions buyers ask

Is the EMG851020S suitable for use in the United States?

This is the APAC regional variant, and its LTE radio bands and certifications are intended for Asia-Pacific deployments. For US sites, the standard LTE model is the EMG851010S.

Is this a 5G gateway?

No. The cellular module is 4G LTE. It provides the out-of-band path with automatic fail-over and fail-back.

How many serial ports does it have?

This configuration has a 4-port RS-232 (RJ45) device port module supporting 300 to 921600 bps, plus an RS-232 console port on the front panel.

What authentication methods are supported?

Remote authentication through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS, plus local username and password, with per-port user permissions and configurable user/group rights.

What power does it need?

The EMG 8500 uses an external power inlet rated for 9-30 VDC.
