Lantronix EMG 8500 Edge Management Gateway with 8-Port RS-232 Serial and LTE APAC Cellular (EMG851120S)

4G LTEMPN EMG851120S
  • 2–4 × 1 Gb Ethernet
$1,402.43$1,600.00Save $197.57

Backordered · ships as soon as it arrives

Region · APAC
APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

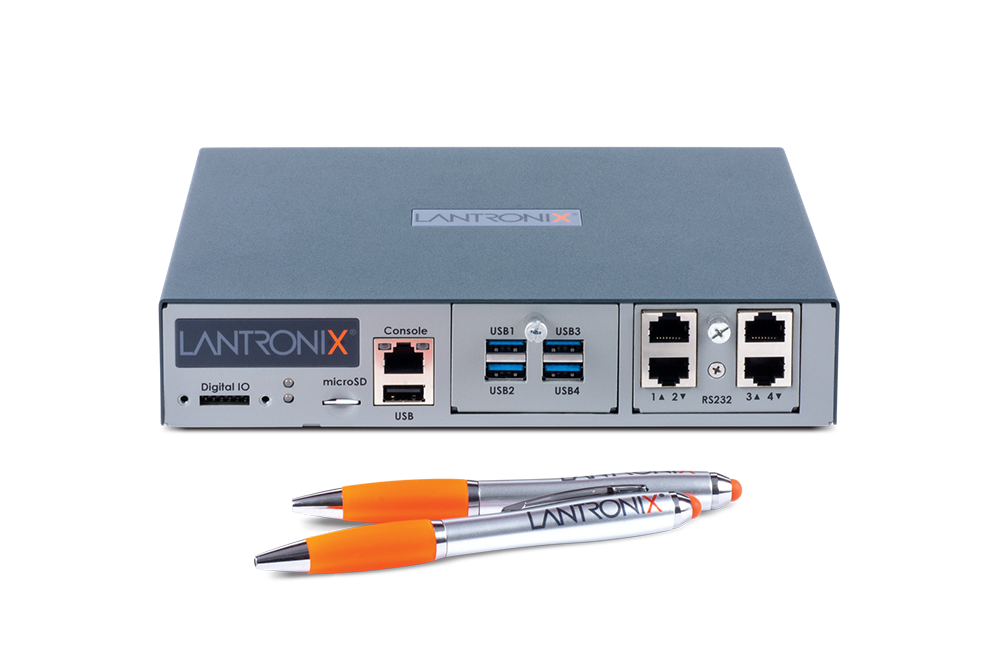

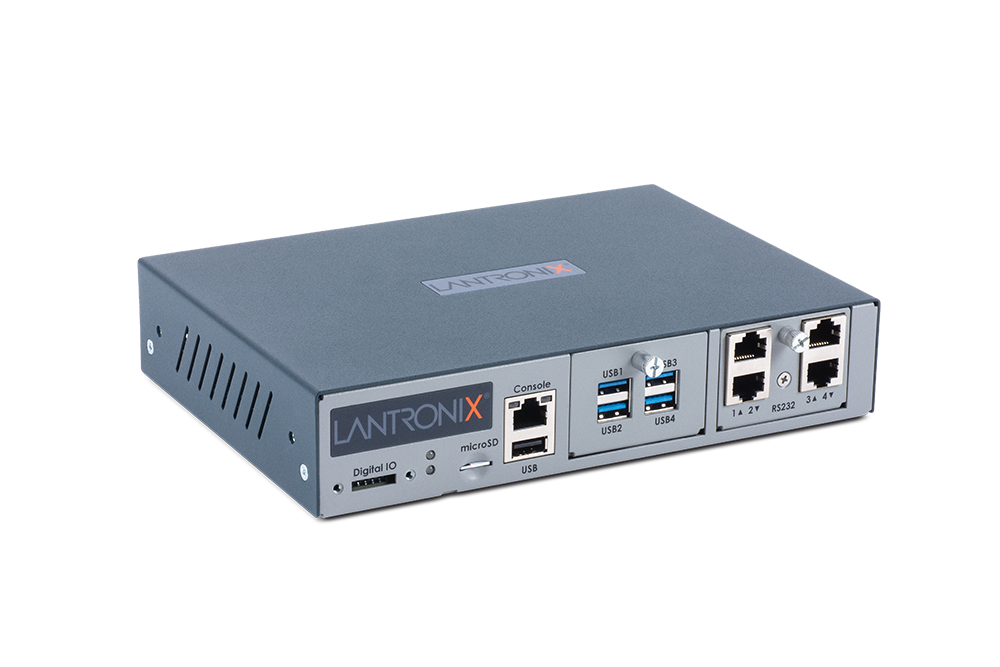

The Lantronix EMG851120S is an EMG 8500 Edge Management Gateway configured with eight RS-232 serial device ports and an LTE cellular radio for the Asia-Pacific (APAC) market. It gives IT teams secure out-of-band console access to routers, switches, firewalls and servers at branch offices, retail stores and remote sites. If the primary network fails, it can fail over automatically to 4G/LTE. Its 1U chassis measures 8.37 x 6.60 x 1.70 in.

  • Eight RS-232 serial device ports for console access to network and IT equipment
  • LTE cellular radio for the Asia-Pacific (APAC) market with automatic fail-over/fail-back
  • Two GbE RJ45 or two SFP fiber in-band ports, plus two independent Ethernet uplinks
  • Telnet/SSH, RAW-TCP and HTML5 Java-free web terminal access to console ports
  • NIST-certified AES (FIPS-197) and FIPS 140-2 compliant cryptography (Certificate #2398)
  • Customer-replaceable IO and connectivity modules in a 1U chassis
  • Compatible with Lantronix Percepxion for Networking centralized management
  • Reach console ports on up to eight devices when the production network is down, without sending staff on site

The Lantronix EMG 8500 Edge Management Gateway is a compact out-of-band management appliance for branch offices, remote locations, retail stores and space-limited sites. This SKU, EMG851120S, is built with eight RS-232 serial device ports and an LTE cellular radio for the Asia-Pacific (APAC) market. It suits deployments in APAC regions. For North American sites, Lantronix offers the LTE Cellular version of the 8-port serial model, EMG851110S.

When the primary connection is congested or unresponsive, an integrated fail-over/fail-back mechanism moves management traffic to 4G/LTE. The cellular link supports Private APN, VPN access, and public or private IP addressing. Network performance monitoring with IPSLA simulation traffic helps prevent lights-out scenarios. Administrators reach console ports through Telnet/SSH, RAW-TCP or an HTML5 web terminal, with no Java or proprietary software. Each port holds a 256 KB buffer, with logging to local files, syslog, USB, SD card or an NFS share. Up to 15 users can connect per device port.

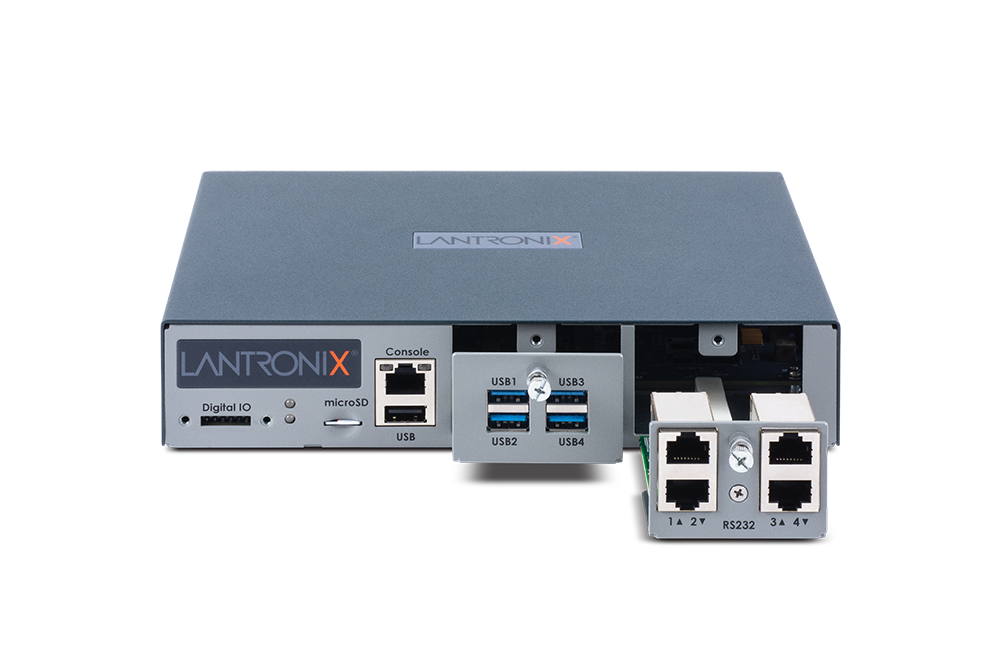

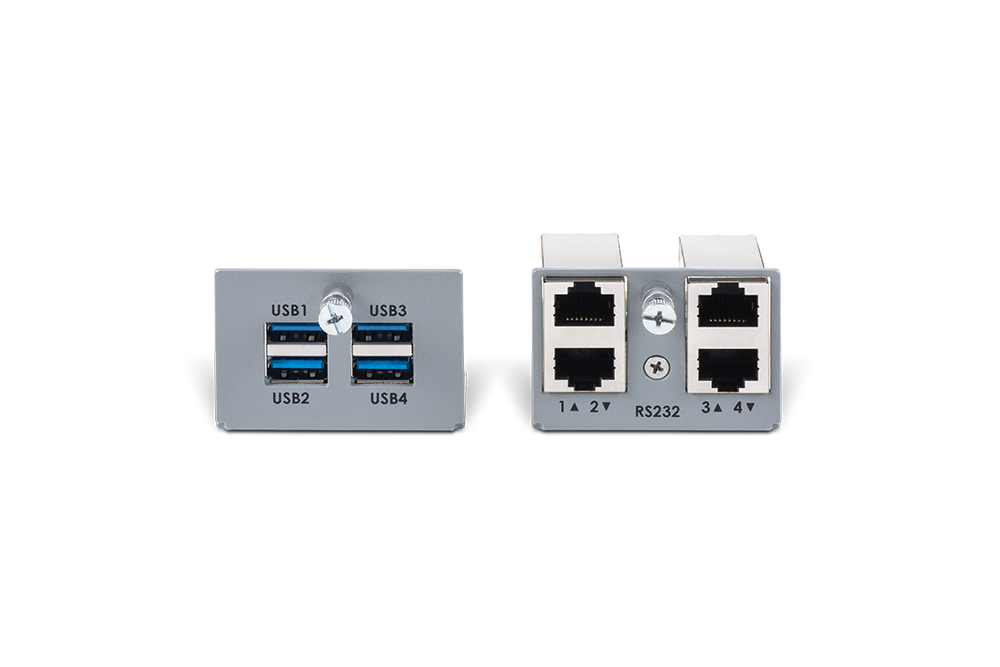

Security covers TLS v1 through v1.3, a packet-filtering firewall, and per-port and per-group permissions. Remote authentication supports LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS. Encryption is a NIST-certified AES implementation, and the cryptography is FIPS 140-2 compliant (Certificate #2398). The design is modular: two front IO module slots and two rear connectivity module slots are customer replaceable. That lets you add RS-232, USB or Ethernet device ports, plus cellular, Wi-Fi or dial-up out-of-band options, as needs change.

The unit runs on 9-30 VDC external power and is rated for 0 to 50 °C operation. It weighs 3.0 lbs maximum depending on options and includes front-mid-rear mounting brackets. It can be managed centrally through Lantronix Percepxion for Networking. Lantronix publishes a product brief, quick start guide and user guide for the EMG 8500, and the manufacturer warranty is 3 years.

Ideal for

  • Out-of-band console access to routers, switches and firewalls at APAC branch offices
  • Remote recovery of network equipment at retail stores and unstaffed sites in Asia-Pacific markets
  • LTE failover management path when the primary WAN is congested or down
  • Centralized lights-out management of distributed sites through Percepxion for Networking
  • Remote power cycling of PDU/UPS-connected equipment during outages

Specifications

Power

Power Inlet
External Power
Input Voltage
9-30 VDC

Memory

Dram
1 GB Internal DRAM
Nand Flash
1 GB Internal NAND Flash
External Storage
microSD Slot for up to 128 GB Flash
Internal Storage
128 GB Internal Flash (Optional)

General

MPN
EMG851120S
UPC
783384239814
Brand
Lantronix
Model
Lantronix EMG 8500
Product Type
Edge Management Gateway (Out-of-Band Console Access)
Cellular Variant
LTE Cellular, APAC (Asia-Pacific) Variant
Device Port Configuration
8-Port RS-232 Serial

Package

Shipping Weight
6.53 lbs

Physical

Weight
3.0 lbs (1.36 kg) Maximum, Depending on Options
Mounting
Front-Mid-Rear Mounting Brackets
Rack Units
1U
Dimensions IN
8.37 x 6.60 x 1.70 in (L x W x H)
Dimensions MM
212.6 x 167.68 x 43.21 mm (L x W x H)
Country OF Origin
Malaysia

Warranty

Warranty Length
3 Years

Interfaces

Front Panel Fixed
USB Host Port, microSD/SDHC Slot, RS-232 Console
Back Panel Network
Dual Gb Ethernet or Dual Gb Fiber SFP
Front Panel I/O Slots
2 Replaceable IO Module Slots (4-Port RS-232 RJ45 300-921600 bps, 4-Port USB or 4-Port Ethernet Switch)
Back Panel Connectivity Slots
2 Replaceable Connectivity Module Slots (LTE/4G, Wi-Fi, Dial-Up Modem)

Management

Cli
CLI via Telnet, SSH, WebTerminal or Direct Console Port
Snmp
SNMP (MIB II) v1, v2, v3, v3 over TLS, Custom MIBs
Digital I/O
Digital I/O Inputs and Sensorsoft Sensor Integration
Diagnostics
Diagnostics and Port Status Counters
Network Trace
Network Trace Utility
Subnet Search
Local Subnet Search for Other Lantronix Console Managers
Web Interface
Quick Setup and Configuration Web Interface (TLS)
User Monitoring
Active User List, Port Monitoring and Timeout
Cli Setup Script
CLI Setup Script
Packet Generation
Packet Generation Utility
Max Users Per Port
Maximum 15 Users per Device Port
Performance Monitoring
Performance Monitoring Utility
Remote Power Management
Remote Power Management for PDU and UPS Devices

Device Access

IN Band
Two GbE (10/100/1000Mbps) RJ45 or 2 SFP Fiber Ports
Out OF Band
2 Independent Ethernet Uplinks, Internal POTS Modem, External/Internal Cellular Radio, Wi-Fi

Environmental

Storage Humidity
10 to 90% RH, Non-Condensing
Operating Humidity
30 to 90% RH, Non-Condensing
Storage Temperature
-20 to 80 °C (-4 to 176 °F)
Operating Temperature
0 to 50 °C (32 to 122 °F)

Certifications

Compliance
CB, EU, FCC, IC, RCM, UKCA, UL, RoHS
Environmental Compliance
WEEE

Central Management

Platform
Compatible with Lantronix Percepxion for Networking

Additional Protocols

Dns
DNS Name Resolution
Ntp
NTP Time Synchronization
Ipv6
IPv6 Addressing Supported
Routing
RIP and RIPv2
Ipsec VPN
StrongSwan IPsec VPN Client
Dhcp Bootp
DHCP and BOOTP
File Transfer
FTP, TFTP, SFTP, SCP Client
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP with PAP/CHAP, NFS and CIFS

Environmental Sensors

Sensor Support
Plug-and-Go Sensors: Temperature, Humidity, Power Availability, Dry-Contact Closures

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable Multi-Level User Menus
Web Terminal
HTML5 Java-Free Web Terminal SSH Access
Storage Media
SD Card and USB
Direct IP Access
Telnet/SSH/RAW-TCP Direct to an IP Address
Device Port Types
RJ45 and/or USB Device Ports
Multiple Sessions
Multiple Telnet/SSH Sessions
Reversible Pinouts
Software-Programmable Reversible Pinouts
Simultaneous Access
Simultaneous User Access to the Same Console Port
Cli Logins From Ports
CLI Terminal Logins from Any Device Port
Port Initiated Connections
Automatic Port-Initiated or Outbound SSH Connections

Security And Authentication

Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS 140 2
FIPS 140-2 Compliant Cryptography (Certificate #2398)
Aes Encryption
NIST-Certified AES Implementation (FIPS-197)
Security Level
Enterprise-Grade Security
Packet Filtering
Packet Filtering (Firewall)
User Group Rights
Configurable User/Group Rights
Local Authentication
Local Username/Password
Per Port Permissions
Per-Port User Permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture And Notification

Port Logging
Port Logging to Local Files, Syslog, USB Thumb Drive, SD Card, NFS Share
Logging Types
System, Audit and Port Logging
Port Buffering
256 KB per Port
Event Notification
Event Notification via Email, SNMP or Syslog
String Recognition
Character String Recognition

Questions buyers ask

Is the EMG851120S suitable for use in the United States?

This SKU carries the LTE APAC cellular radio, intended for Asia-Pacific deployments. For North American sites, Lantronix lists EMG851110S, the 8-port RS-232 model with its standard LTE Cellular radio.

How many serial devices can it manage?

It is configured with eight RS-232 serial device ports. Up to 15 users can access each device port, and several users can share the same console port simultaneously.

What happens if the primary network connection fails?

An integrated fail-over/fail-back mechanism switches management access to the 4G/LTE cellular connection. The cellular link supports Private APN, VPN access, and public or private IP addressing.

Do administrators need special software to reach the console ports?

No. Ports are reachable by Telnet/SSH, RAW-TCP or an HTML5 Java-free web terminal, with no proprietary software required.

How is it powered and mounted?

It runs on external 9-30 VDC power. The 1U chassis measures 212.6 x 167.68 x 43.21 mm and includes front-mid-rear mounting brackets.
