Lantronix EMG 8500 Edge Management Gateway with 4-Port USB and LTE Cellular (EMG852010S)

4G LTEMPN EMG852010S
$1,052.73$1,200.00Save $147.27

Backordered · ships as soon as it arrives

Region
APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

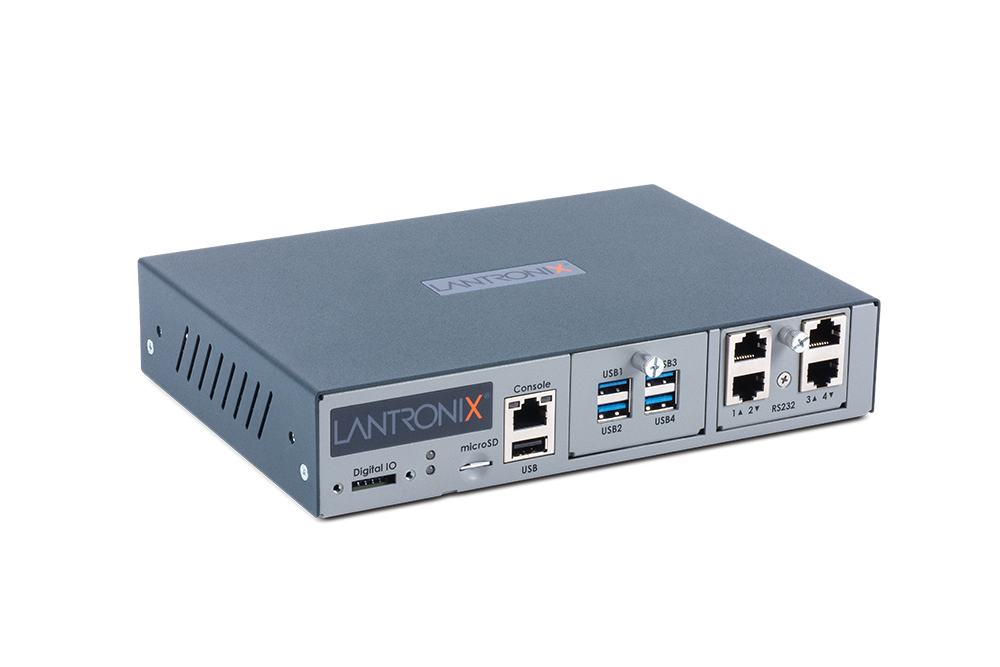

The Lantronix EMG852010S is an EMG 8500 Edge Management Gateway with four USB device ports and an LTE cellular radio. It gives IT teams secure out-of-band access to the USB console ports of network and IT equipment at branch offices, retail stores and remote sites. If the primary network becomes congested or unresponsive, it fails over automatically to 4G/LTE. The unit fits a compact 1U chassis powered from 9-30 VDC.

  • Four USB device ports for console access to USB-managed equipment
  • LTE cellular radio with automatic fail-over/fail-back for out-of-band access
  • Two GbE RJ45 or two SFP fiber in-band ports, plus two independent Ethernet uplinks
  • HTML5 Java-free web terminal plus Telnet/SSH and RAW-TCP port access
  • NIST-certified AES (FIPS-197) and FIPS 140-2 compliant cryptography (Certificate #2398)
  • Customer-replaceable IO and connectivity modules in a 1U chassis
  • Compatible with Lantronix Percepxion for Networking centralized management
  • Reach USB console ports on remote equipment without a site visit, even when the production network is down

The Lantronix EMG 8500 Edge Management Gateway is a small-form-factor out-of-band management appliance. It is built for branch offices, remote locations, retail stores and any site where a network device gateway is needed and space is limited. This configuration, EMG852010S, provides four USB device ports and an LTE cellular radio. It is a good fit for equipment that exposes USB console ports.

The integrated fail-over/fail-back mechanism keeps management access available over 4G/LTE when the primary connection is congested or unresponsive. The cellular link supports Private APN, VPN access, and public or private IP addressing. IPSLA-based network performance monitoring helps mitigate lights-out scenarios. Users reach device ports through Telnet/SSH, RAW-TCP or an HTML5 Java-free web terminal. Multiple sessions and simultaneous access to the same port are supported. Each port carries a 256 KB buffer, with logging to local files, syslog, USB, SD card or NFS. Event notification runs via email, SNMP or syslog.

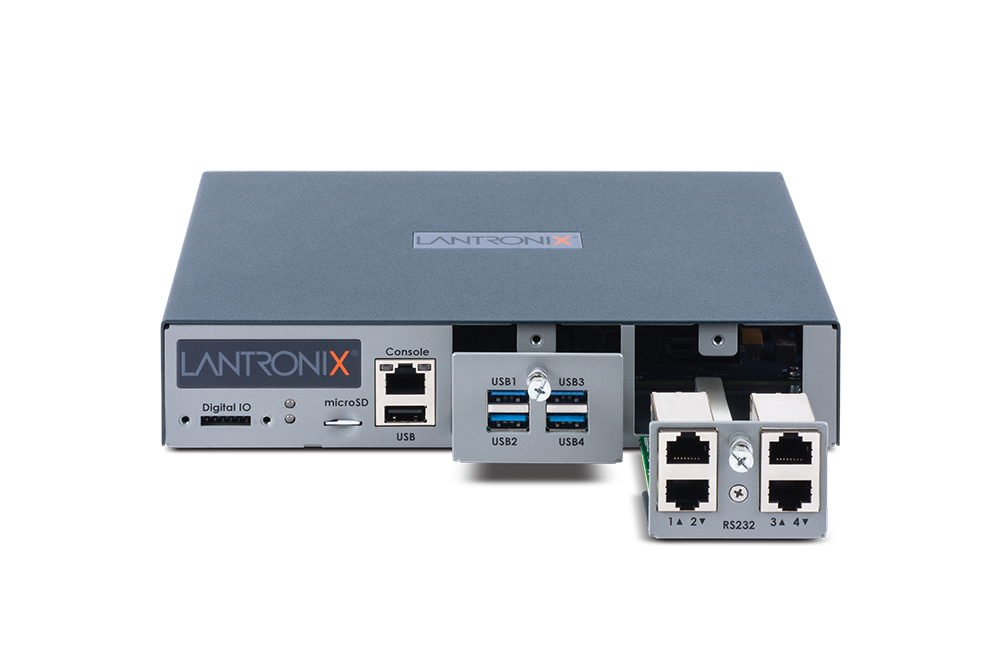

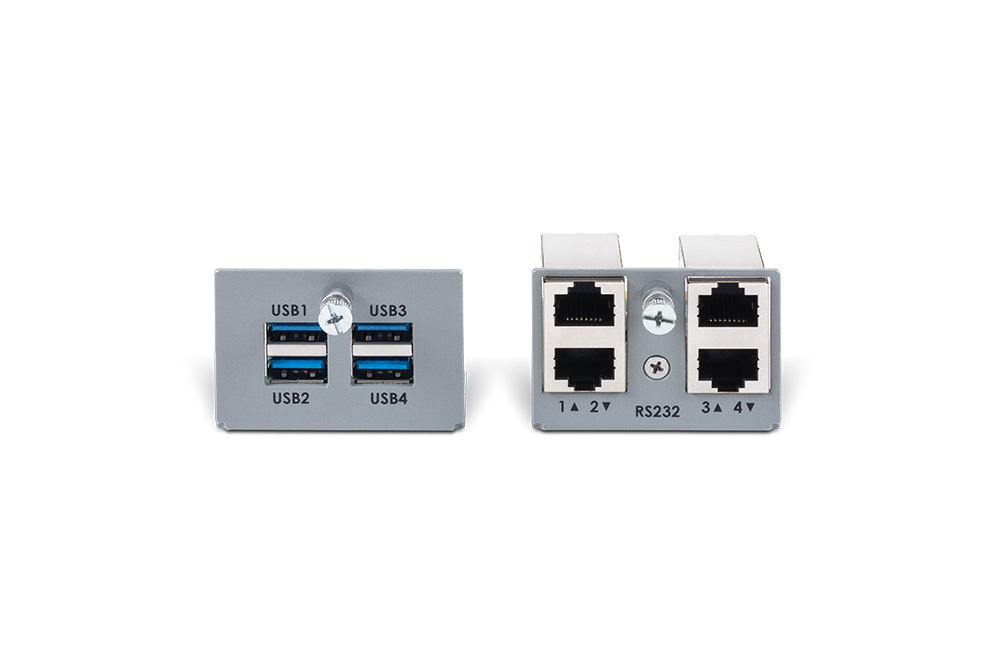

Security includes TLS v1 through v1.3, a packet-filtering firewall, and per-port and per-group rights. Remote authentication supports LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS. Encryption is a NIST-certified AES implementation, and the cryptography is FIPS 140-2 compliant (Certificate #2398). The two front IO module slots accept 4-port RS-232, 4-port USB or 4-port Ethernet switch modules. The two rear connectivity slots take LTE/4G, Wi-Fi or dial-up modem modules, and all of these modules are customer replaceable.

The gateway has 1 GB NAND flash, 1 GB DRAM and a microSD slot for up to 128 GB. It operates from 0 to 50 °C and weighs 3.0 lbs maximum depending on options. It works with Lantronix Percepxion for Networking for centralized management. A product brief, quick start guide and user guide are published by Lantronix, and the manufacturer warranty is 3 years.

Ideal for

  • Out-of-band access to USB console ports on switches, routers and firewalls at branch offices
  • LTE failover management path for retail stores and remote sites
  • Remote troubleshooting and recovery of edge equipment without dispatching technicians
  • Centralized monitoring of distributed sites through Percepxion for Networking
  • Environmental and power monitoring of small network closets with supported sensors and PDU/UPS devices

Specifications

Power

Power Inlet
External Power
Input Voltage
9-30 VDC

Memory

Dram
1 GB Internal DRAM
Nand Flash
1 GB Internal NAND Flash
External Storage
microSD Slot for up to 128 GB Flash
Internal Storage
128 GB Internal Flash (Optional)

General

MPN
EMG852010S
UPC
783384239647
Brand
Lantronix
Model
Lantronix EMG 8500
Product Type
Edge Management Gateway (Out-of-Band Console Access)
Cellular Variant
LTE Cellular
Device Port Configuration
4-Port USB

Package

Shipping Weight
6.53 lbs

Physical

Weight
3.0 lbs (1.36 kg) Maximum, Depending on Options
Mounting
Front-Mid-Rear Mounting Brackets
Rack Units
1U
Dimensions IN
8.37 x 6.60 x 1.70 in (L x W x H)
Dimensions MM
212.6 x 167.68 x 43.21 mm (L x W x H)
Country OF Origin
Malaysia

Warranty

Warranty Length
3 Years

Interfaces

Front Panel Fixed
USB Host Port, microSD/SDHC Slot, RS-232 Console
Back Panel Network
Dual Gb Ethernet or Dual Gb Fiber SFP
Front Panel I/O Slots
2 Replaceable IO Module Slots (4-Port RS-232 RJ45 300-921600 bps, 4-Port USB or 4-Port Ethernet Switch)
Back Panel Connectivity Slots
2 Replaceable Connectivity Module Slots (LTE/4G, Wi-Fi, Dial-Up Modem)

Management

Cli
CLI via Telnet, SSH, WebTerminal or Direct Console Port
Snmp
SNMP (MIB II) v1, v2, v3, v3 over TLS, Custom MIBs
Digital I/O
Digital I/O Inputs and Sensorsoft Sensor Integration
Diagnostics
Diagnostics and Port Status Counters
Network Trace
Network Trace Utility
Subnet Search
Local Subnet Search for Other Lantronix Console Managers
Web Interface
Quick Setup and Configuration Web Interface (TLS)
User Monitoring
Active User List, Port Monitoring and Timeout
Cli Setup Script
CLI Setup Script
Packet Generation
Packet Generation Utility
Max Users Per Port
Maximum 15 Users per Device Port
Performance Monitoring
Performance Monitoring Utility
Remote Power Management
Remote Power Management for PDU and UPS Devices

Device Access

IN Band
Two GbE (10/100/1000Mbps) RJ45 or 2 SFP Fiber Ports
Out OF Band
2 Independent Ethernet Uplinks, Internal POTS Modem, External/Internal Cellular Radio, Wi-Fi

Environmental

Storage Humidity
10 to 90% RH, Non-Condensing
Operating Humidity
30 to 90% RH, Non-Condensing
Storage Temperature
-20 to 80 °C (-4 to 176 °F)
Operating Temperature
0 to 50 °C (32 to 122 °F)

Certifications

Compliance
CB, EU, FCC, IC, RCM, UKCA, UL, RoHS
Environmental Compliance
WEEE

Central Management

Platform
Compatible with Lantronix Percepxion for Networking

Additional Protocols

Dns
DNS Name Resolution
Ntp
NTP Time Synchronization
Ipv6
IPv6 Addressing Supported
Routing
RIP and RIPv2
Ipsec VPN
StrongSwan IPsec VPN Client
Dhcp Bootp
DHCP and BOOTP
File Transfer
FTP, TFTP, SFTP, SCP Client
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP with PAP/CHAP, NFS and CIFS

Environmental Sensors

Sensor Support
Plug-and-Go Sensors: Temperature, Humidity, Power Availability, Dry-Contact Closures

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable Multi-Level User Menus
Web Terminal
HTML5 Java-Free Web Terminal SSH Access
Storage Media
SD Card and USB
Direct IP Access
Telnet/SSH/RAW-TCP Direct to an IP Address
Device Port Types
RJ45 and/or USB Device Ports
Multiple Sessions
Multiple Telnet/SSH Sessions
Reversible Pinouts
Software-Programmable Reversible Pinouts
Simultaneous Access
Simultaneous User Access to the Same Console Port
Cli Logins From Ports
CLI Terminal Logins from Any Device Port
Port Initiated Connections
Automatic Port-Initiated or Outbound SSH Connections

Security And Authentication

Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS 140 2
FIPS 140-2 Compliant Cryptography (Certificate #2398)
Aes Encryption
NIST-Certified AES Implementation (FIPS-197)
Security Level
Enterprise-Grade Security
Packet Filtering
Packet Filtering (Firewall)
User Group Rights
Configurable User/Group Rights
Local Authentication
Local Username/Password
Per Port Permissions
Per-Port User Permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture And Notification

Port Logging
Port Logging to Local Files, Syslog, USB Thumb Drive, SD Card, NFS Share
Logging Types
System, Audit and Port Logging
Port Buffering
256 KB per Port
Event Notification
Event Notification via Email, SNMP or Syslog
String Recognition
Character String Recognition

Questions buyers ask

What kind of equipment is the USB 4-port version for?

It is intended for network and IT equipment that provides USB console ports. The four USB device ports give remote CLI access through Telnet/SSH, RAW-TCP or an HTML5 web terminal.

Can I add RS-232 serial ports later?

Yes. The front panel has two customer-replaceable IO module slots that accept 4-port RS-232 (RJ45), 4-port USB or 4-port Ethernet switch modules.

How does the cellular failover work?

An integrated fail-over/fail-back mechanism moves management access to 4G/LTE when the primary connection is congested or unresponsive. The cellular link supports Private APN, VPN access, and public or private IP addressing.

Which authentication methods are supported?

It supports local username/password plus remote authentication through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS, with per-port and per-group permissions.

How much storage does it have for logs?

It includes 1 GB NAND flash and 1 GB DRAM, optional 128 GB internal flash, and a microSD slot for up to 128 GB. Logs can also go to syslog, USB or an NFS share.
