Lantronix EMG 8500 Edge Management Gateway with 4-Port USB and LTE APAC Cellular (EMG852020S)

4G LTEMPN EMG852020S
$1,052.73$1,200.00Save $147.27

Backordered · ships as soon as it arrives

Region · APAC
APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Lantronix EMG852020S is an EMG 8500 Edge Management Gateway with four USB device ports and an LTE cellular radio for the Asia-Pacific (APAC) market. It provides secure out-of-band access to USB console ports on network and IT equipment at branch offices, retail stores and remote sites in APAC regions. If the primary network fails, it can fail over automatically to 4G/LTE. It fits a compact 1U chassis.

  • Four USB device ports for console access to USB-managed equipment
  • LTE cellular radio for the Asia-Pacific (APAC) market with automatic fail-over/fail-back
  • Two GbE RJ45 or two SFP fiber in-band ports, plus two independent Ethernet uplinks
  • HTML5 Java-free web terminal plus Telnet/SSH and RAW-TCP port access
  • NIST-certified AES (FIPS-197) and FIPS 140-2 compliant cryptography (Certificate #2398)
  • Customer-replaceable IO and connectivity modules in a 1U chassis
  • Compatible with Lantronix Percepxion for Networking centralized management
  • Recover USB-managed equipment at remote APAC sites without a technician visit

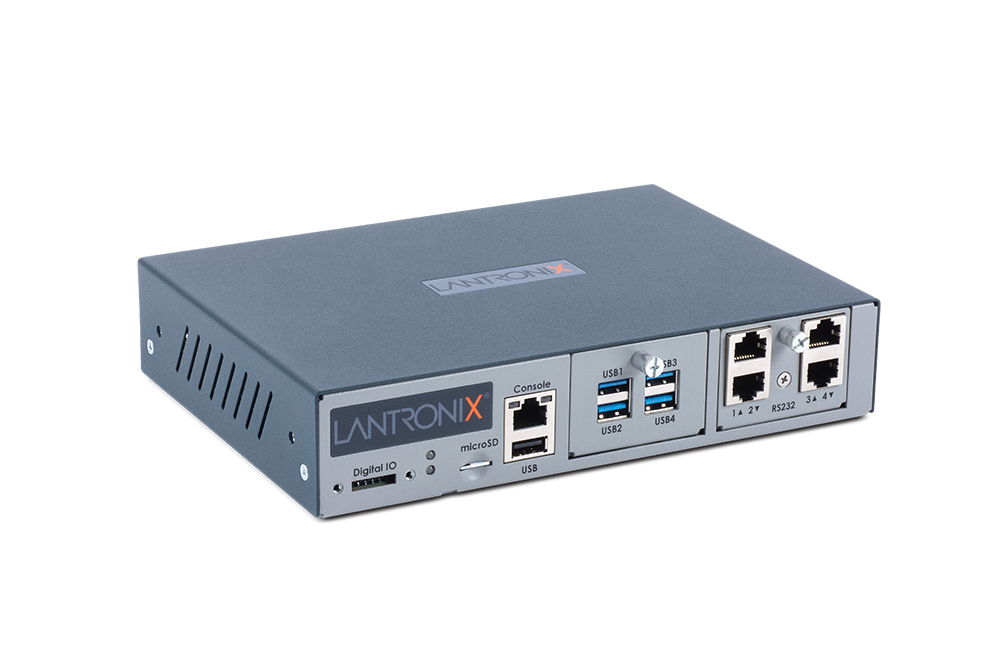

The Lantronix EMG 8500 Edge Management Gateway is a compact out-of-band management appliance for branch offices, remote locations and retail stores where space is limited. This configuration, EMG852020S, combines four USB device ports with an LTE cellular radio built for the Asia-Pacific (APAC) market. It is intended for APAC deployments. For other regions, Lantronix offers the LTE Cellular version of the same USB 4-port model, EMG852010S.

Automatic fail-over/fail-back moves management access to 4G/LTE when the primary connection is congested or unresponsive. The cellular link supports Private APN, VPN access, and public or private IP addressing. IPSLA simulation traffic supports network performance monitoring. Device ports are reachable over Telnet/SSH, RAW-TCP or an HTML5 Java-free web terminal, and up to 15 users can share each port. Port buffering of 256 KB per port, character string recognition and email, SNMP or syslog notifications help teams spot and diagnose faults quickly.

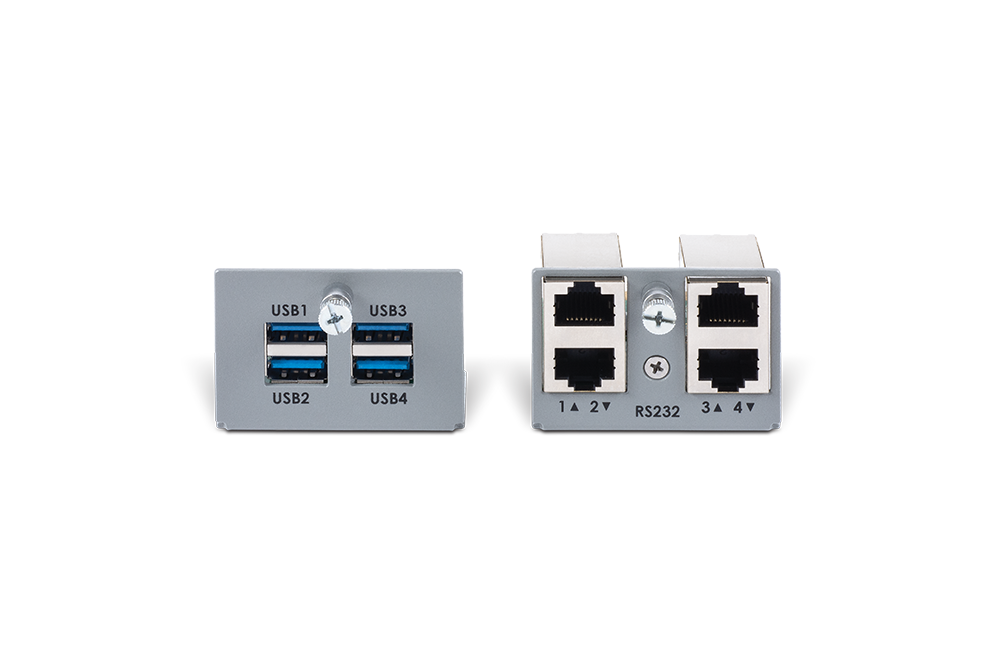

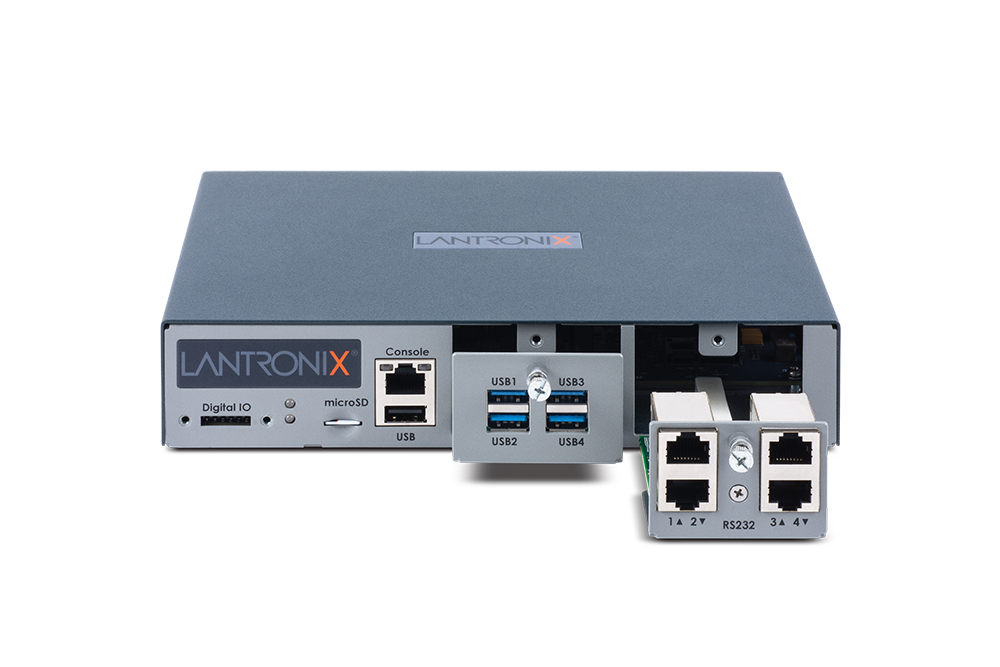

Security includes TLS v1 through v1.3, a packet-filtering firewall, and per-port and per-group permissions. Remote authentication supports LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS. Encryption is a NIST-certified AES implementation, and the cryptography is FIPS 140-2 compliant (Certificate #2398). The front IO module slots and rear connectivity slots are customer replaceable. They support RS-232, USB or Ethernet switch device modules, and LTE/4G, Wi-Fi or dial-up modem out-of-band options.

The gateway runs on 9-30 VDC external power and operates from 0 to 50 °C. It measures 212.6 x 167.68 x 43.21 mm in 1U and weighs 3.0 lbs maximum depending on options. It works with Lantronix Percepxion for Networking for centralized management and mobile access. Lantronix publishes a product brief, quick start guide and user guide, and the manufacturer warranty is 3 years.

Ideal for

  • Out-of-band access to USB console ports on network equipment at APAC branch offices
  • LTE failover management path for retail stores and remote sites in Asia-Pacific markets
  • Remote troubleshooting and recovery without dispatching field technicians
  • Centralized oversight of distributed APAC sites through Percepxion for Networking
  • Remote power control of PDU/UPS-connected equipment during outages

Specifications

Power

Power Inlet
External Power
Input Voltage
9-30 VDC

Memory

Dram
1 GB Internal DRAM
Nand Flash
1 GB Internal NAND Flash
External Storage
microSD Slot for up to 128 GB Flash
Internal Storage
128 GB Internal Flash (Optional)

General

MPN
EMG852020S
UPC
783384239807
Brand
Lantronix
Model
Lantronix EMG 8500
Product Type
Edge Management Gateway (Out-of-Band Console Access)
Cellular Variant
LTE Cellular, APAC (Asia-Pacific) Variant
Device Port Configuration
4-Port USB

Package

Shipping Weight
6.53 lbs

Physical

Weight
3.0 lbs (1.36 kg) Maximum, Depending on Options
Mounting
Front-Mid-Rear Mounting Brackets
Rack Units
1U
Dimensions IN
8.37 x 6.60 x 1.70 in (L x W x H)
Dimensions MM
212.6 x 167.68 x 43.21 mm (L x W x H)
Country OF Origin
Malaysia

Warranty

Warranty Length
3 Years

Interfaces

Front Panel Fixed
USB Host Port, microSD/SDHC Slot, RS-232 Console
Back Panel Network
Dual Gb Ethernet or Dual Gb Fiber SFP
Front Panel I/O Slots
2 Replaceable IO Module Slots (4-Port RS-232 RJ45 300-921600 bps, 4-Port USB or 4-Port Ethernet Switch)
Back Panel Connectivity Slots
2 Replaceable Connectivity Module Slots (LTE/4G, Wi-Fi, Dial-Up Modem)

Management

Cli
CLI via Telnet, SSH, WebTerminal or Direct Console Port
Snmp
SNMP (MIB II) v1, v2, v3, v3 over TLS, Custom MIBs
Digital I/O
Digital I/O Inputs and Sensorsoft Sensor Integration
Diagnostics
Diagnostics and Port Status Counters
Network Trace
Network Trace Utility
Subnet Search
Local Subnet Search for Other Lantronix Console Managers
Web Interface
Quick Setup and Configuration Web Interface (TLS)
User Monitoring
Active User List, Port Monitoring and Timeout
Cli Setup Script
CLI Setup Script
Packet Generation
Packet Generation Utility
Max Users Per Port
Maximum 15 Users per Device Port
Performance Monitoring
Performance Monitoring Utility
Remote Power Management
Remote Power Management for PDU and UPS Devices

Device Access

IN Band
Two GbE (10/100/1000Mbps) RJ45 or 2 SFP Fiber Ports
Out OF Band
2 Independent Ethernet Uplinks, Internal POTS Modem, External/Internal Cellular Radio, Wi-Fi

Environmental

Storage Humidity
10 to 90% RH, Non-Condensing
Operating Humidity
30 to 90% RH, Non-Condensing
Storage Temperature
-20 to 80 °C (-4 to 176 °F)
Operating Temperature
0 to 50 °C (32 to 122 °F)

Certifications

Compliance
CB, EU, FCC, IC, RCM, UKCA, UL, RoHS
Environmental Compliance
WEEE

Central Management

Platform
Compatible with Lantronix Percepxion for Networking

Additional Protocols

Dns
DNS Name Resolution
Ntp
NTP Time Synchronization
Ipv6
IPv6 Addressing Supported
Routing
RIP and RIPv2
Ipsec VPN
StrongSwan IPsec VPN Client
Dhcp Bootp
DHCP and BOOTP
File Transfer
FTP, TFTP, SFTP, SCP Client
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP with PAP/CHAP, NFS and CIFS

Environmental Sensors

Sensor Support
Plug-and-Go Sensors: Temperature, Humidity, Power Availability, Dry-Contact Closures

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable Multi-Level User Menus
Web Terminal
HTML5 Java-Free Web Terminal SSH Access
Storage Media
SD Card and USB
Direct IP Access
Telnet/SSH/RAW-TCP Direct to an IP Address
Device Port Types
RJ45 and/or USB Device Ports
Multiple Sessions
Multiple Telnet/SSH Sessions
Reversible Pinouts
Software-Programmable Reversible Pinouts
Simultaneous Access
Simultaneous User Access to the Same Console Port
Cli Logins From Ports
CLI Terminal Logins from Any Device Port
Port Initiated Connections
Automatic Port-Initiated or Outbound SSH Connections

Security And Authentication

Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS 140 2
FIPS 140-2 Compliant Cryptography (Certificate #2398)
Aes Encryption
NIST-Certified AES Implementation (FIPS-197)
Security Level
Enterprise-Grade Security
Packet Filtering
Packet Filtering (Firewall)
User Group Rights
Configurable User/Group Rights
Local Authentication
Local Username/Password
Per Port Permissions
Per-Port User Permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture And Notification

Port Logging
Port Logging to Local Files, Syslog, USB Thumb Drive, SD Card, NFS Share
Logging Types
System, Audit and Port Logging
Port Buffering
256 KB per Port
Event Notification
Event Notification via Email, SNMP or Syslog
String Recognition
Character String Recognition

Questions buyers ask

Which market is the EMG852020S intended for?

This SKU carries the LTE APAC cellular radio and is intended for Asia-Pacific deployments. For other regions, Lantronix lists EMG852010S, the USB 4-port model with its standard LTE Cellular radio.

Is this a 5G gateway?

No. The out-of-band cellular connection is 4G/LTE, used for automatic fail-over/fail-back when the primary network is congested or unresponsive.

Can the port configuration be changed after installation?

Yes. The two front IO module slots are customer replaceable and accept 4-port RS-232 (RJ45), 4-port USB or 4-port Ethernet switch modules.

How do administrators connect to managed devices?

Through Telnet/SSH, RAW-TCP or an HTML5 Java-free web terminal, with no proprietary software. It supports multiple sessions and up to 15 users per device port.

What are the operating conditions?

It operates from 0 to 50 °C at 30 to 90% relative humidity, non-condensing, and runs on external 9-30 VDC power.
