Lantronix G526 (G526GP1ASG) TAA-Compliant LTE Cat 4 Industrial IoT Cellular Gateway - North America

4G LTEMPN G526GP1ASG
  • Wi-Fi 5
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
  • GPS/GNSS
$328.35

Backordered · ships as soon as it arrives

Region · North America
North AmericaAPAC+$13.03
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

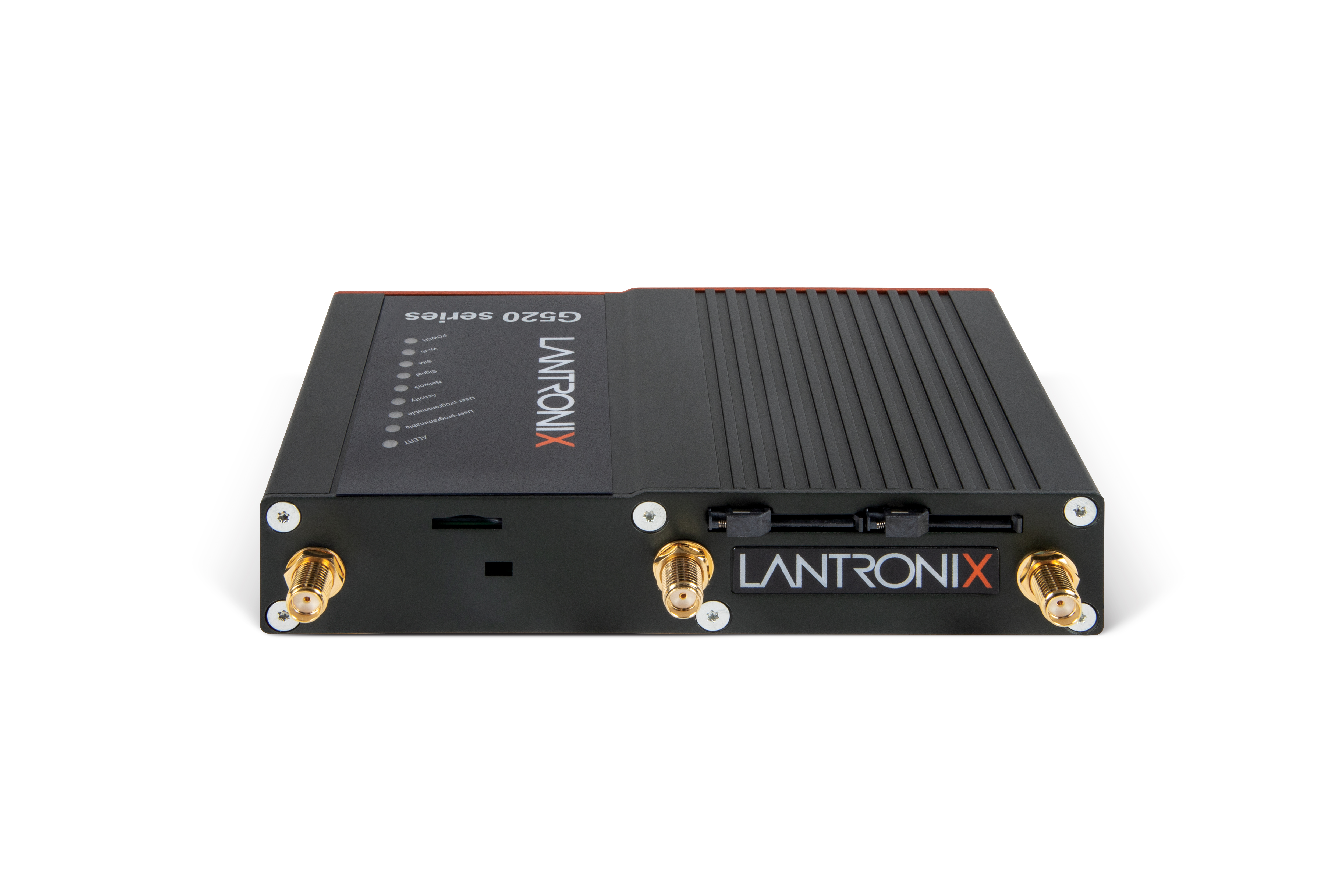

The Lantronix G526GP1ASG is the TAA-compliant North America variant of the G526, the industrial model in the G520 Series of IoT cellular gateways. It combines 4G LTE Cat-4 on bands B2, B4, B5, B10, B12, B13, B14, B17, B25, B26, B66 and B71 with dual SIM, two 10/100 Ethernet ports, Wi-Fi 5, Bluetooth/BLE 5.1, RS-232/RS-485, USB, configurable I/O, CAN bus and GPS. It is housed in brushed aluminum and rated for -30 °C to +70 °C.

  • TAA-compliant North America variant of the G526 industrial gateway
  • 4G LTE Cat-4: B2, B4, B5, B10, B12, B13, B14, B17, B25, B26, B66, B71
  • Dual SIM (single standby) with configurable failover or load balancing
  • 2x 10/100 Ethernet, Wi-Fi 5, Bluetooth/BLE 5.1, GPS
  • RS-232, RS-485, USB host, configurable I/O, ignition sensing, CAN bus
  • EtherCAT, DLMS, DNP3, Modbus master, IEC 104/101 protocols
  • Aluminum housing, -30 °C to +70 °C, 10.8-60 V DC input
  • Meets TAA sourcing requirements for government and public-sector procurement

The Lantronix G526GP1ASG is a TAA-compliant industrial LTE Cat-4 cellular gateway for North America. It suits government, public-sector and contract deployments that need TAA-compliant hardware on AT&T, T-Mobile and Verizon band sets. As the Industrial model of the G520 Series, it is built around Ethernet, serial, I/O and a fieldbus protocol conversion suite for factory equipment, utility sites and vehicles.

The LTE Cat-4 modem covers B2, B4, B5, B10, B12, B13, B14, B17, B25, B26, B66 and B71. Two mechanically secured mini-SIM holders provide dual SIM with single standby, and Ethernet, cellular and Wi-Fi can be set for failover or load balancing. Local connections include: - Two 10/100 Ethernet ports, one WAN reconfigurable as a second LAN - 2T2R Wi-Fi 5 as client or access point for about 12 users, plus Bluetooth/BLE 5.1 - Full RS-232 on a 9-pin sub-D and RS-485 on a 5-pin COMBICON header - A USB Type-A host port and two configurable I/Os (analogue, 4-20 mA or digital output) - An ignition pin, CAN bus and GPS on a dedicated SMA connector

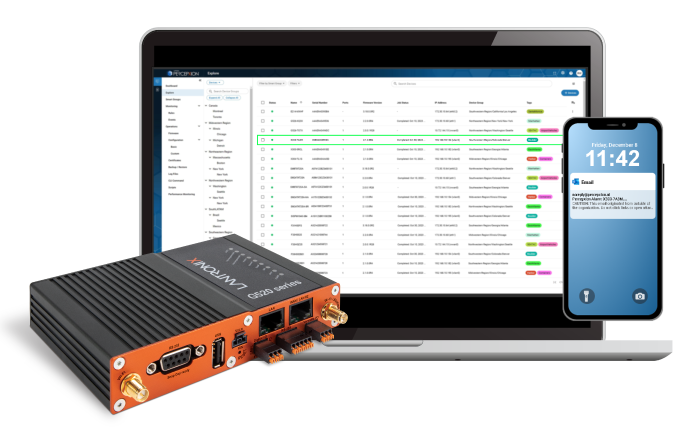

Built-in software supports EtherCAT, DLMS client, DNP3 Outstation, Modbus master, IEC 104 slave and IEC 101 master. Security features include a zone-based firewall, VLAN, DMZ and SIM PIN. VPN options are IPsec (up to 4 channels), OpenVPN, WireGuard, GRE, L2TP and PPTP client. Fleets can be managed through Lantronix Percepxion or third-party platforms, including TR-069, and the G520 SDK supports custom firmware in Python or C/C++.

The gateway runs a 600 MHz ARM926EJ-S CPU with 256 MB DDR2 RAM and 256 MB NAND flash, plus a microSD slot. It accepts 10.8-60 V DC and includes a last-gasp battery with about 100 seconds of reserve. Documentation includes the G520 Product Brief, User Guide and G526/G527 Quick Start Guide.

Ideal for

  • Government and public-sector IoT deployments requiring TAA-compliant hardware
  • Utility and water sites using DNP3, IEC 101/104 or Modbus over LTE
  • Fleet and transit vehicles using CAN bus, ignition sensing and GPS
  • Industrial automation connecting PLCs and serial devices to central systems
  • Remote sensor monitoring with 4-20 mA inputs and digital outputs

Specifications

I/O

Can Bus
CAN bus
User I/O
2x configurable I/O (analogue, 4-20 mA, digital out)
Ignition
Ignition sensing

USB

USB Host
1x USB 2.0 host, Type-A

Power

Last Gasp
Approx. 100 s last gasp
Input Voltage
10.8-60 V DC
Power Off Timekeeping
RTC, 100-day retention

Serial

Rs232
RS-232, 9-pin sub-D
Rs485
RS-485, 5-pin COMBICON (plug sold separately)

General

MPN
G526GP1ASG
TAA
TAA Compliant
UPC
783384254473
Brand
Lantronix
Model
G526 (Industrial)
Series
G520 Series
Region Variant
North America (AT&T, T-Mobile, Verizon)

Cellular

SIM
Dual SIM, single standby, 2x mini-SIM
LTE Bands
LTE B2, B4, B5, B10, B12, B13, B14, B17, B25, B26, B66, B71
Technology
4G LTE Cat-4

Ethernet

PoE
No PoE on G526
Ports
2x 10/100 RJ-45 (1 LAN, 1 WAN/LAN)

Physical

Weight
Approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
131.5 x 81.27 x 25 mm (without connectors)
Status Leds
9 status LEDs
Shipping Weight
1.03 lbs shipping weight

Compliance

TAA
TAA Compliant
Certificates
FCC, IC, NOM, IFETEL, CB, UL, RoHS, REACH

CPU Memory

CPU
ARM926EJ-S, 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB SPI flash
Secure Element
No secure element on G526
External Storage
microSD slot (card not included)
Internal Storage
256 MB NAND flash

Positioning

GPS
GPS, dedicated SMA

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-30 °C to +70 °C, up to 95% RH

Software Suite

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, NAT, DDNS, STP
Security
HTTPS UI, zone firewall, VLAN, DMZ, SIM PIN
Redundancy
Failover or load balancing
Resilience
Connectivity and application watchdogs
VPN Tunneling
OpenVPN, IPsec (4), WireGuard, GRE, L2TP, PPTP
Wi-Fi Security
WEP/WPA/WPA2/WPA3-PSK
Administration
Web UI, wizard, SMS/OTA config, TR-069
Device Management
Percepxion or third-party
Industrial Protocols
EtherCAT, DLMS, DNP3, Modbus, IEC 104/101
Performance Fault Management
Real-time load, traffic analysis, diagnostics

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5, 2x RP-SMA
Roaming
802.11r support
Bluetooth
Bluetooth/BLE 5.1
Wi-Fi Modes
Client or AP (approx. 12 users), WEP/WPA/WPA2-PSK

Questions buyers ask

Is the G526GP1ASG TAA compliant?

Yes. Lantronix lists the G526GP1ASG as the TAA-compliant North America (AT&T, T-Mobile, Verizon) version of the G526.

How does it differ from the G526GP1AS?

Both share the same North American LTE Cat-4 bands, interfaces and software. The G526GP1ASG adds TAA compliance.

Does the G526GP1ASG support 5G?

No. It is an LTE Cat-4 gateway. 5G is available on the G528 model in the G520 Series.

Can it be powered from a vehicle?

It accepts 10.8 to 60 V DC and has an ignition pin on the power header for ignition sensing.

Which management options are supported?

The gateway supports a web-based interface, SMS/OTA remote configuration and TR-069. It can also be managed through Lantronix Percepxion or third-party platforms.
