Lantronix G526 LTE Cat 4 Industrial IoT Cellular Gateway for China and India (G526GP1CS)

4G LTEMPN G526GP1CS
  • Wi-Fi 5
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
  • GPS/GNSS
$341.38

Backordered · ships as soon as it arrives

Region · APAC
North America−$13.03APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Lantronix G526GP1CS is the China and India regional version of the G526 industrial IoT cellular gateway from the G520 Series. It combines an LTE Cat 4 modem on bands B1, B3, B5, B8, B40 and B41 with 3G/2G fallback on B1 and B8. Dual SIM holders, two 10/100 Ethernet ports, RS-232/RS-485 serial, CANbus, ignition sensing, I/O and built-in fieldbus protocol conversion let it connect factory equipment and vehicles. It is not the North American variant.

  • LTE Cat 4 on bands B1, B3, B5, B8, B40, B41 with 3G/2G fallback on B1 and B8 (China/India regional variant)
  • Dual SIM, single standby, with two mechanically secured mini-SIM holders
  • Two 10/100 Ethernet ports, 2T2R Wi-Fi 5 and Bluetooth/BLE 5.1
  • RS-232, RS-485, USB 2.0 host, CANbus, ignition sensing and configurable analog/4–20 mA/digital I/O
  • Industrial protocols: EtherCAT, DLMS client, DNP3 Outstation, Modbus master, IEC 104 slave / IEC 101 master
  • 10.8–60 V DC input, approx. 100-second last gasp, -30 °C to +70 °C operating range
  • Percepxion ready, with a G520 SDK for custom Python or C/C++ packages
  • Connect legacy PLCs, meters and controllers directly over RS-232, RS-485 or Ethernet without extra converters

The Lantronix G526GP1CS is the China and India regional version of the G526, the industrial model in the Lantronix G520 Series of rugged IoT cellular gateways. It pairs an LTE Cat 4 modem with the wired and serial interfaces that factory and vehicle equipment still depends on. The modem covers bands B1, B3, B5, B8, B40 and B41, with 3G/2G fallback on B1 and B8. Lantronix publishes this band set for China, India, Indonesia and Thailand. This is not the North American variant, which Lantronix sells as the G526GP1AS.

For equipment connections, the gateway has two 10/100 Ethernet ports. One is a LAN port and the other is a WAN port that can be reassigned as a second LAN. It also provides full RS-232 on a 9-pin sub-D connector, RS-485 through a 5-pin COMBICON header, a USB 2.0 host port, CANbus and ignition sensing. User-configurable I/O can act as analog inputs, 4–20 mA current-loop inputs or digital outputs. Built-in protocol support covers EtherCAT, DLMS client, DNP3 Outstation, Modbus master, IEC 104 slave and IEC 101 master. For local wireless and positioning, it offers 2T2R Wi-Fi 5 (client or access point for about 12 users), Bluetooth/BLE 5.1 and GPS.

Several features keep the link up: • Two SIM holders • Ethernet, cellular and Wi-Fi failover or load balancing • Connectivity and application watchdogs

If power fails, a last-gasp battery gives the unit about 100 seconds to report the outage. The brushed aluminum housing operates from -30 °C to +70 °C on 10.8–60 V DC.

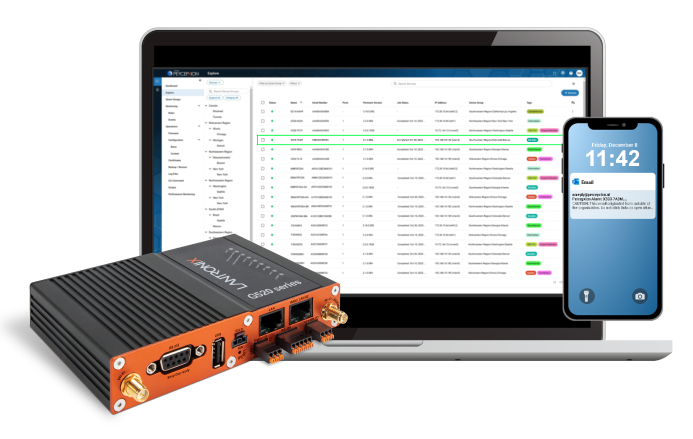

For fleet management, the G526 is Percepxion ready for remote updates, servicing and monitoring. It also works with third-party platforms and TR-069, and developers can build custom packages with the G520 SDK in Python or C/C++. Security includes a zone-based firewall, VLAN, DMZ, HTTPS administration and SIM PIN. VPN options range from IPsec (up to 4 channels) and OpenVPN to WireGuard.

Ideal for

  • Connecting PLCs, drives and meters over RS-232/RS-485 or Modbus to a cloud or SCADA system
  • Utility and substation telemetry using DNP3 Outstation and IEC 101/104
  • Vehicle and mobile equipment telematics with ignition sensing, CANbus and GPS
  • Smart metering data collection via DLMS client
  • Remote sensor monitoring with 4–20 mA analog inputs in China, India, Indonesia or Thailand

Specifications

I/O

Ignition
Ignition pin on power header
I/O Summary
4x I/O, Ignition Sensing, CANbus
Configurable I/O
2 configurable I/Os (analog / 4–20 mA / digital out)

USB

USB Host
One USB 2.0 host port (Type-A)

Power

Last Gasp
Approx. 100 s last gasp
Input Voltage
10.8 ~ 60 V DC
Power Off Timekeeping
RTC with 100-day retention

Serial

Rs232
RS-232 (DB9)
Rs485
RS-485 (5-pin COMBICON, plug sold separately)

General

MPN
G526GP1CS
UPC
783384244450
Brand
Lantronix
Model
G526 (Industrial)
Series
G520 Series
Product Group
Industrial Gateways
Regional Variant
India, China (band set also listed for Indonesia and Thailand)

Cellular

SIM
Dual SIM, single standby (2x mini-SIM)
LTE Bands
LTE B1, B3, B5, B8, B40, B41
Technology
4G LTE Cat 4
Fallback Bands
3G & 2G fallback: B1, B8

Ethernet

PoE
No PoE output
Ports
2 Ethernet ports
Speed
10/100 Base Ethernet
Connectors
RJ-45 headers with two LEDs
Port Configuration
1x LAN + 1x WAN/LAN

Physical

Weight
Approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
131.5 x 81.27 x 25 mm (without connectors)
Status Leds
Nine status LEDs
Shipping Weight
0.66 lb shipping weight

CPU Memory

CPU
ARM926EJ-S @ 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB SPI Flash
Secure Element
No secure element
External Storage
microSD slot (card not included)
Internal Storage
256 MB NAND Flash user storage

Positioning

GPS
GPS (SMA connector)
GNSS
GNSS GPS/GLONASS for time sync and positioning

Temperature

Storage
-40 °C ~ +85 °C; up to 95% RH
Operating
-30 °C ~ +70 °C; up to 95% RH

Documentation

Guides
User guide, quick start guide, product brief
Certifications
UL, CB, RoHS/REACH

Software Suite

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, NAT, DDNS, STP
Security
Zone firewall, VLAN, DMZ, SIM PIN
Redundancy
Failover / load balancing
Resilience
Network and application watchdogs
VPN Tunneling
IPsec (4), OpenVPN, WireGuard, GRE, L2TP, PPTP
Administration
Web UI, SMS/OTA config, TR-069
Device Management
Percepxion or third-party
Industrial Protocols
EtherCAT, DLMS, DNP3, Modbus, IEC 101/104
Performance Fault Management
Traffic analysis and diagnostics

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5
Bluetooth
Bluetooth/BLE 5.1
Wi-Fi Modes
Client or AP, approx. 12 users
Fast Roaming
802.11r support
Wi-Fi Security Hardware
WEP, WPA, WPA-PSK / WPA2-PSK
Wi-Fi Security Software
WEP, WPA, WPA-PSK / WPA2-PSK, WPA3-PSK
Wi-Fi Antenna Connectors
Two RP-SMA antenna connectors

Questions buyers ask

Which regions is the G526GP1CS intended for?

Lantronix lists it as the G526 India, China variant. Its LTE bands (B1, B3, B5, B8, B40, B41) and 3G/2G fallback (B1, B8) match the band set Lantronix publishes for China, India, Indonesia and Thailand. It is not the North American version, which is the G526GP1AS.

Does the G526 support PoE or a hardware secure element?

No. PSE-PoE+ output and the Microchip ATECC608 secure element are features of the G527 and G528 security variants. The G526 is the industrial model focused on Ethernet, serial, I/O and fieldbus conversion.

Which industrial protocols are built in?

The software suite includes EtherCAT, DLMS client, DNP3 Outstation, Modbus master, IEC 104 slave and IEC 101 master.

What happens if power is lost?

Two 96 mWh Li-ion batteries provide an approximately 100-second last gasp, which does not function below -10 °C. A separate real-time clock battery keeps time for up to 100 days.

Can I run my own applications on the gateway?

Yes. The G520 SDK lets you create custom packages and build custom firmware images in Python or standard C/C++.
