InHand Networks IR302 Industrial 4G LTE Cat 1 VPN Router with I/O (North America)

4G LTEMPN IR302-FQ33-IO
$131.89$155.76Save $23.87

Backordered · ships as soon as it arrives

Region
North America
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The InHand Networks IR302-FQ33-IO is a compact industrial cellular router for unattended North American IoT sites. Its LTE Cat 1 module covers FDD bands B2/B4/B5/B12/B13/B25/B26 with WCDMA fallback, and InHand lists it as certified with Verizon and AT&T. Dual-SIM backup, two 10/100 Ethernet ports, an RS232 DTU port and two I/O channels sit in a fanless metal IP30 enclosure. VPN options include IPsec, OpenVPN, WireGuard and ZeroTier, and the router runs on 9-36 V DC. This configuration does not include Wi-Fi.

  • North American LTE Cat 1 (FQ33: FDD B2/B4/B5/B12/B13/B25/B26; WCDMA B2/B4/B5), listed as certified with Verizon and AT&T
  • Dual Nano-SIM backup with ICCID binding, RSRP threshold and packet-loss triggered switching
  • 1 × 10/100 WAN/LAN switchable + 1 × 10/100 LAN, RS232 combo terminal and 2 × I/O
  • IPsec (IKEv1/v2), GRE, L2TP, PPTP, OpenVPN, WireGuard and ZeroTier VPN
  • InHand Device Manager and InConnect Service cloud management, plus SNMP, CLI, SSH and HTTP API
  • Fanless full-metal IP30 enclosure, 9-36 V DC input, 2-5 W typical power draw
  • Operates from -35 °C to 70 °C (extended -40 °C to 75 °C), MTBF ≥ 100,000 hours
  • Bring serial and Ethernet equipment online over LTE Cat 1, a good fit for low-to-moderate data IoT traffic

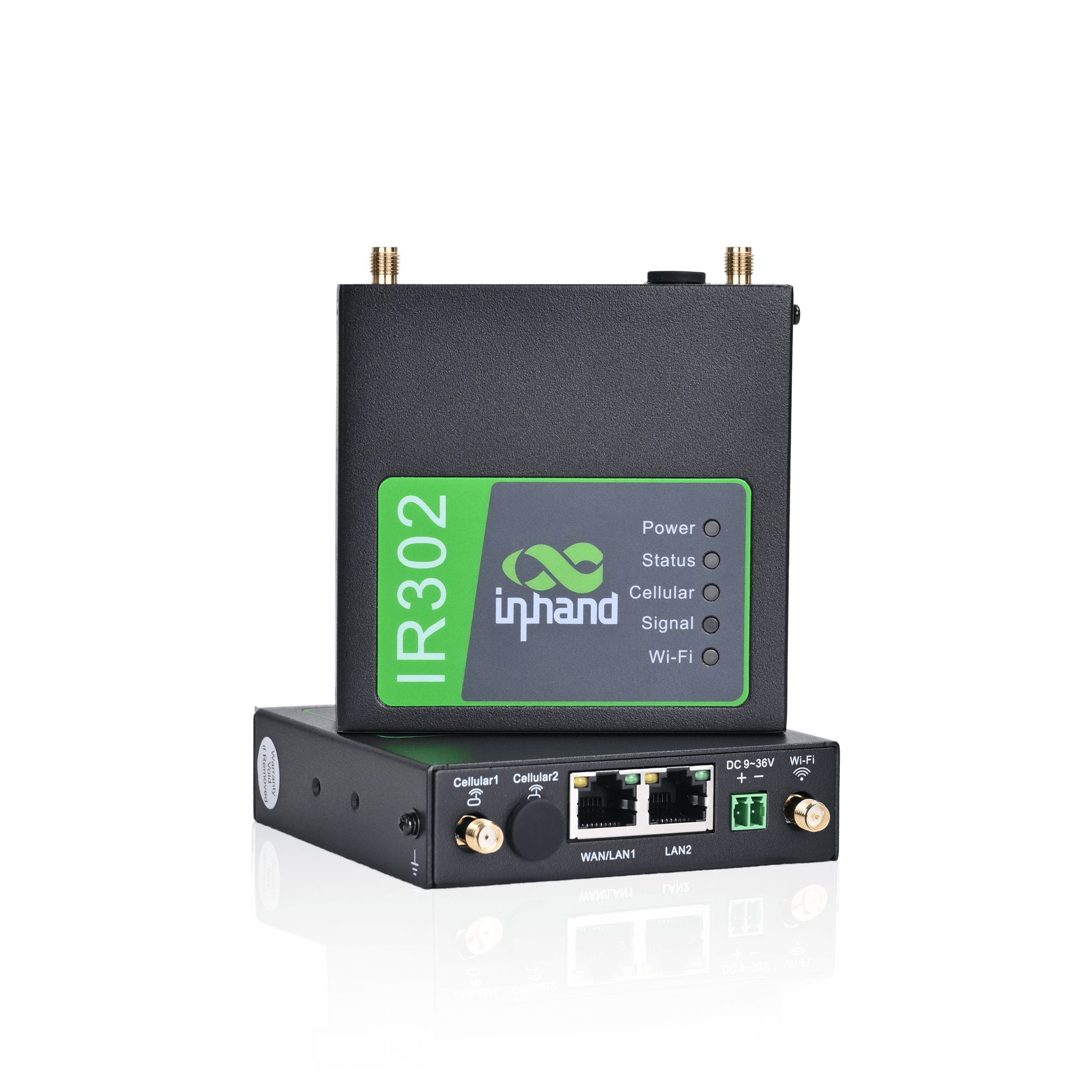

The IR302 is InHand Networks' compact industrial router for kiosks, meters, cabinets and other unattended equipment that needs a small, dependable WAN link. This IR302-FQ33-IO configuration uses the FQ33 North American LTE Cat 1 module on FDD bands B2/B4/B5/B12/B13/B25/B26, with WCDMA B2/B4/B5. It adds two I/O channels and has no Wi-Fi radio. InHand lists the FQ33 as certified with Verizon and AT&T, and FCC, PTCRB and IC certificates are published for it.

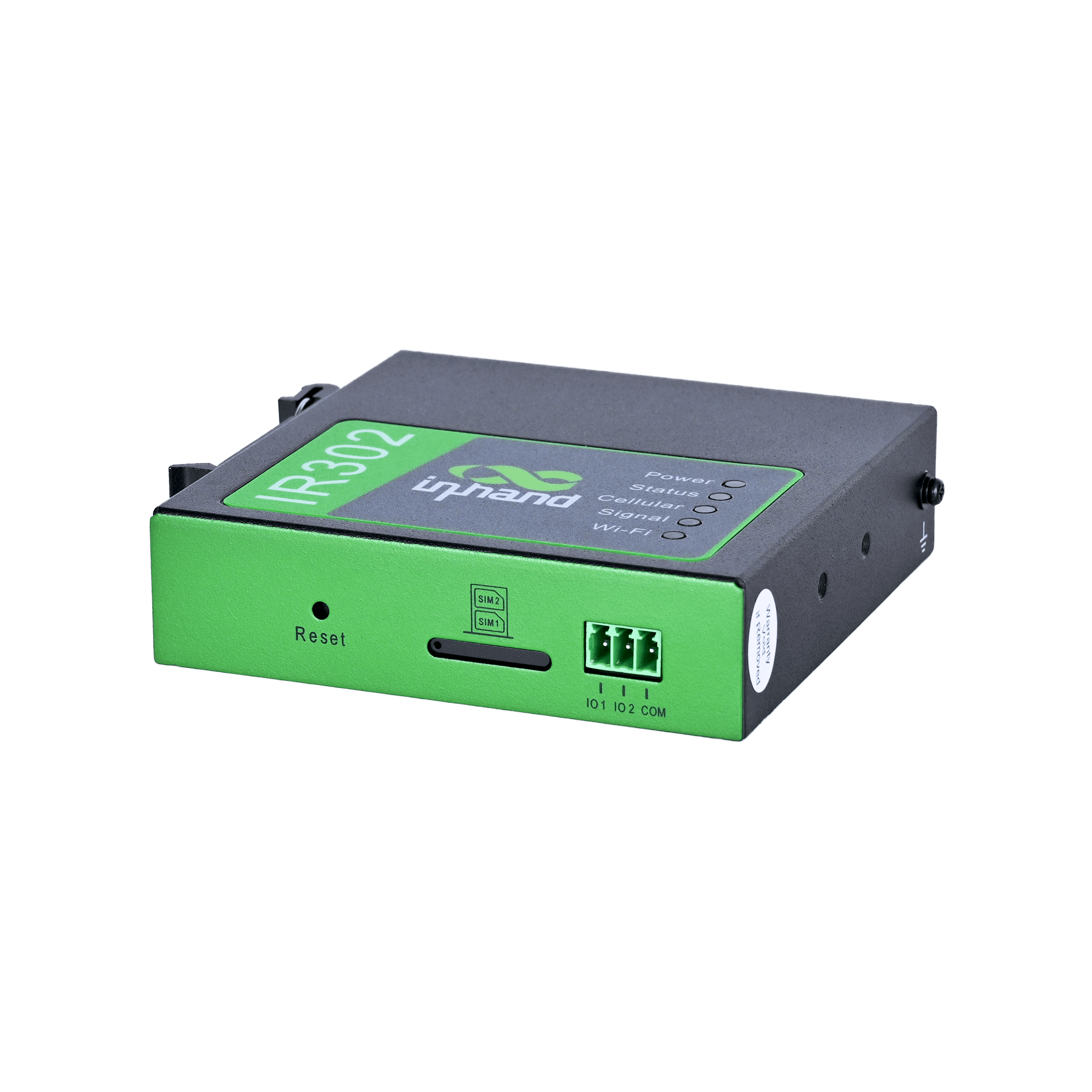

Two Nano-SIM drawer slots support dual-SIM backup. Switching can be triggered by ICCID binding, an RSRP signal threshold, packet-loss rate or dial-attempt limits, and VRRP is supported for redundancy. The router provides one WAN/LAN switchable and one LAN 10/100 Mbps Ethernet port. The RS232 combo terminal supports DTU transparent transmission in TCP server/client, UDP and MQTT modes, and Ethernet DTU and optional Modbus RTU/TCP conversion are also available.

Security covers a firewall, ACLs, MAC-IP binding (200 entries), content filtering and attack protection. VPN tunnels include IPsec IKEv1/v2 up to AES256/SHA512/ECP521, GRE, L2TP, PPTP, OpenVPN, WireGuard and ZeroTier. You can manage the router locally through WebUI, CLI, SSH, SNMP v1/v2c/v3 and an HTTP/HTTPS API. InHand Device Manager handles batch configuration, firmware upgrades and alarms across distributed fleets, and InConnect Service provides cloud management.

The full-metal, fanless housing measures about 100 × 30 × 100 mm and weighs about 250 g. It mounts on a DIN rail or wall and draws 2-5 W typical from a 9-36 V DC input. It operates from -35 °C to 70 °C, or -40 °C to 75 °C in the extended range, and carries an MTBF of at least 100,000 hours.

Ideal for

  • Remote meter, pump and tank monitoring over LTE Cat 1
  • Serial-to-cloud connectivity for legacy RS232 equipment via TCP, UDP or MQTT
  • Kiosks, vending and digital signage needing a secure VPN uplink
  • Unattended cabinets and substations requiring dual-SIM failover and remote reboot
  • Large distributed IoT fleets managed centrally through InHand Device Manager

Specifications

General

MPN
IR302-FQ33-IO
Brand
InHand Networks
Model
IR302 Industrial Router
Configuration
North America / LTE Cat 1 / I/O (no Wi-Fi)
Shipping Weight
0.70 lb (shipping)

Package

Standard Package
Router, power supply, 2 × 4G antennas, Ethernet cable, panel mounting kit (contents vary by order code)
Optional Accessories
Optional DIN rail mounting kit

Cellular

Module
FQ33 cellular module
Region
North America
Wcdma Bands
WCDMA B2/B4/B5
LTE Category
LTE Cat 1
LTE Fdd Bands
LTE FDD B2/B4/B5/B12/B13/B25/B26
Carrier Certifications
Certified with Verizon and AT&T
Regulatory Certificates
IR302-FQ33 FCC, PTCRB and IC certificates

Reliability

MTBF
≥ 100,000 hours (Telcordia SR-332, 25 °C)
Warranty Period
3 years (manufacturer)

VPN Tunnels

Gre
GRE, including GRE over IPsec
L2tp
L2TP over IPsec with MS-CHAPv2
Pptp
PPTP client/server
Ipsec
IPsec IKEv1/v2, PSK/certificate, up to AES256 + SHA512 + ECP521
Openvpn
OpenVPN TUN/TAP, UDP/TCP, TLS/SSL
Zerotier
ZeroTier SD-WAN virtual networking
Wireguard
WireGuard

Environmental

Altitude
Up to 5000 m
Storage Humidity
5-95% RH non-condensing
Protection Rating
IP30
Operating Humidity
5-95% RH non-condensing
Storage Temperature
-40 °C to 85 °C
Operating Temperature
-35 °C to 70 °C; extended -40 °C to 75 °C

Network Services

Dns
DNS forwarding, custom DNS servers
Nat
SNAT/DNAT, NAPT, port forwarding (100 rules), virtual IP mapping, DMZ
Ntp
NTP with custom servers and calibration cycles
Ddns
PeanutShell, DynDNS, No-IP and others
Dhcp Server
DHCP server/relay with Option 43/60/82 support
Tcp Checksum
TCP checksum option configuration
SMS Management
SMS remote reboot/dial control, custom commands, whitelist
Static Routing
Static and policy routes with priority
Dual SIM Management
Dual-SIM backup with ICCID binding, RSRP, packet-loss and dial-attempt switching rules

Remote Management

Cli
Full command-line interface
Ssh
SSH access and SSH client
Snmp
SNMP v1/v2c/v3 with traps and extended cellular OIDs
Webui
Web UI with tcpdump capture and status export
Http API
HTTP/HTTPS API
Device Manager
batch config, firmware, monitoring, alarms
Inconnect Service
InConnect Service cloud management

Power And Protection

Input Current
0.2 A typical, 0.8 A peak at 12 V
Input Voltage
9-36 V DC (typical 12 V/24 V)
Esd Protection
4 kV contact, 8 kV air (IEC 61000-4-2)
Surge Protection
IEC 61000-4-5: 2 kV common, 1 kV differential
Reverse Polarity Protection
Reverse polarity protection

Hardware Specifications

I/O
2 × I/O
Memory
128 MB DDR
Storage
32 MB SPI flash
Mounting
DIN rail or wall mounting
4G Module
FQ33 North America LTE Cat 1
Processor
580 MHz industrial-grade embedded processor
Serial Port
1 × RS232 combo terminal with DTU transparent transmission
Reset Button
Hardware factory reset button
Total Weight
Approx. 250 g
LED Indicators
Power, Status, Cellular, Signal, Wi-Fi
SIM Card Slots
2 × Nano-SIM drawer slots, dual-SIM backup
Power Interface
2-pin industrial terminal (9-36 V DC); optional 12 V DC adapter
Power Consumption
2-5 W typical, <10 W peak
Antenna Interfaces
2 × 4G main/diversity antenna connectors (SMA female)
Enclosure Material
Full metal enclosure, IP30
Product Dimensions
Approx. 100 × 30 × 100 mm (L × W × H)
Ethernet Interfaces
1 × 10/100 WAN/LAN switchable, 1 × 10/100 LAN

Industrial Communication Dtu

Serial Dtu
RS232 DTU: TCP server/client, UDP, MQTT, multi-center reporting
Ethernet Dtu
Ethernet DTU to remote TCP/UDP servers
Protocol Conversion
Optional Modbus RTU/TCP conversion
State Grid Encryption
National cryptographic module and IEC101/104 on -SEC models only

Key Technical Specifications

VPN
IPsec (IKEv1/v2), GRE, L2TP, PPTP, OpenVPN, WireGuard, ZeroTier
Wi-Fi
No Wi-Fi on this configuration (WLAN models only)
Cellular
LTE Cat 1 with WCDMA fallback, dual-SIM redundancy, ICCID binding, RSRP auto-switching
Ethernet
1 × 10/100 Mbps WAN/LAN + 1 × 10/100 Mbps LAN
Security
Firewall, ACL, MAC-IP binding (200 entries), content filtering, SIP ALG, attack protection
Processor
580 MHz processor, 128 MB DDR, 32 MB SPI flash
Dimensions
Approx. 100 × 30 × 100 mm (L × W × H, excl. mounting ears and antennas)
Power Supply
9-36 V DC, 2-5 W typical, <10 W peak, reverse polarity protection
Cloud Management
Device Manager batch configuration and firmware upgrade; InConnect Service cloud management
Serial Interface
1 × RS232 combo terminal, DTU (TCP server/client, UDP, MQTT)
Remote Management
SNMP v1/v2c/v3, WebUI, CLI, SSH client, HTTP/HTTPS API
Operating Temperature Protection
-35 °C to 70 °C (extended -40 °C to 75 °C), IP30, fanless metal

Emc And Safety Certifications

CE
EMC 2014/30/EU, RED 2014/53/EU
Emc
IEC 61000-4-2/-3/-4/-5/-6/-8
Fcc
FCC Part 15/22/24/27
Rohs
EU RoHS 2.0
Weee
EU WEEE
Safety
UL/cUL, CB (IEC 62368-1)

Questions buyers ask

Which carriers is the IR302-FQ33 certified with?

InHand lists the IR302-FQ33 (LTE Cat 1, North America) as certified with Verizon and AT&T. FCC, PTCRB and IC certificates are published for the FQ33 model.

Does the IR302-FQ33-IO have Wi-Fi?

No. This configuration has LTE Cat 1, two Ethernet ports, an RS232 terminal and 2 × I/O without a Wi-Fi radio. Wi-Fi is available on the WLAN versions of the IR302.

How do I log in for the first time?

Install the antennas, insert the SIM with power off, then power on. Connect a computer to either Ethernet port (both are LAN by default), set it to DHCP or a 192.168.2.x address, and browse to http://192.168.2.1. Use the credentials printed on the device label.

How do I set the APN?

Log in, go to Network > Cellular and choose your carrier profile under SIM1 Network Provider. For a custom APN, edit it in Profiles and select that profile, then click Apply. A steady Cellular LED means connected, and a blinking LED means it is dialing.

What power does the IR302 need?

It accepts 9-36 V DC (typically 12 V or 24 V) through a 2-pin industrial terminal, with reverse polarity protection. Typical consumption is 2-5 W, with peaks under 10 W.
