InHand Networks IR302-FQ38-IO Industrial 4G LTE Cat 4 Router with Dual SIM and I/O

4G LTEMPN IR302-FQ38-IO
$141.62$167.56Save $25.94

Backordered · ships as soon as it arrives

Region · North America
North America
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The InHand Networks IR302-FQ38-IO is a compact industrial 4G LTE Cat 4 router built for North American networks. It is certified with Verizon, AT&T, T-Mobile and FirstNet, plus FCC, IC and PTCRB. It gives unattended IoT and industrial sites a dual-SIM cellular link, two 10/100 Ethernet ports, an RS232 serial port and 2 I/O. The router adds VPN, firewall and cloud management in a fanless metal IP30 enclosure rated for -35°C to 70°C. This configuration has no Wi-Fi.

  • North America LTE Cat 4 (FQ38): FDD B2/B4/B5/B12/B13/B14/B66/B71 with WCDMA B2/B4/B5 fallback
  • Certified with Verizon, AT&T, T-Mobile and FirstNet, plus FCC, IC and PTCRB
  • Dual Nano-SIM backup with ICCID binding, RSRP threshold and packet-loss switching
  • 1x 10/100 WAN/LAN switchable port, 1x 10/100 LAN port, 1x RS232 and 2 I/O
  • VPN: IPsec (IKEv1/v2), GRE, L2TP, PPTP, OpenVPN, WireGuard and ZeroTier
  • InHand Device Manager cloud management, plus SNMP, WebUI, CLI, SSH and HTTP/HTTPS API
  • Fanless full-metal IP30 enclosure, -35°C to 70°C operation (extended -40°C to 75°C), 9-36V DC input
  • Deploy on major US carriers: the FQ38 radio is certified with Verizon, AT&T, T-Mobile and FirstNet

The IR302-FQ38-IO is the North American LTE Cat 4 version of InHand Networks' IR302 industrial router. It is designed for IoT and industrial automation sites that need a small, dependable cellular gateway, such as remote cabinets, kiosks, meters, PLC panels and unattended equipment. The FQ38 radio covers LTE FDD bands B2/B4/B5/B12/B13/B14/B66/B71 with WCDMA B2/B4/B5 fallback. It is certified with Verizon, AT&T, T-Mobile and FirstNet, and carries FCC, IC and PTCRB approvals. The -IO suffix adds 2 I/O. This configuration does not include Wi-Fi.

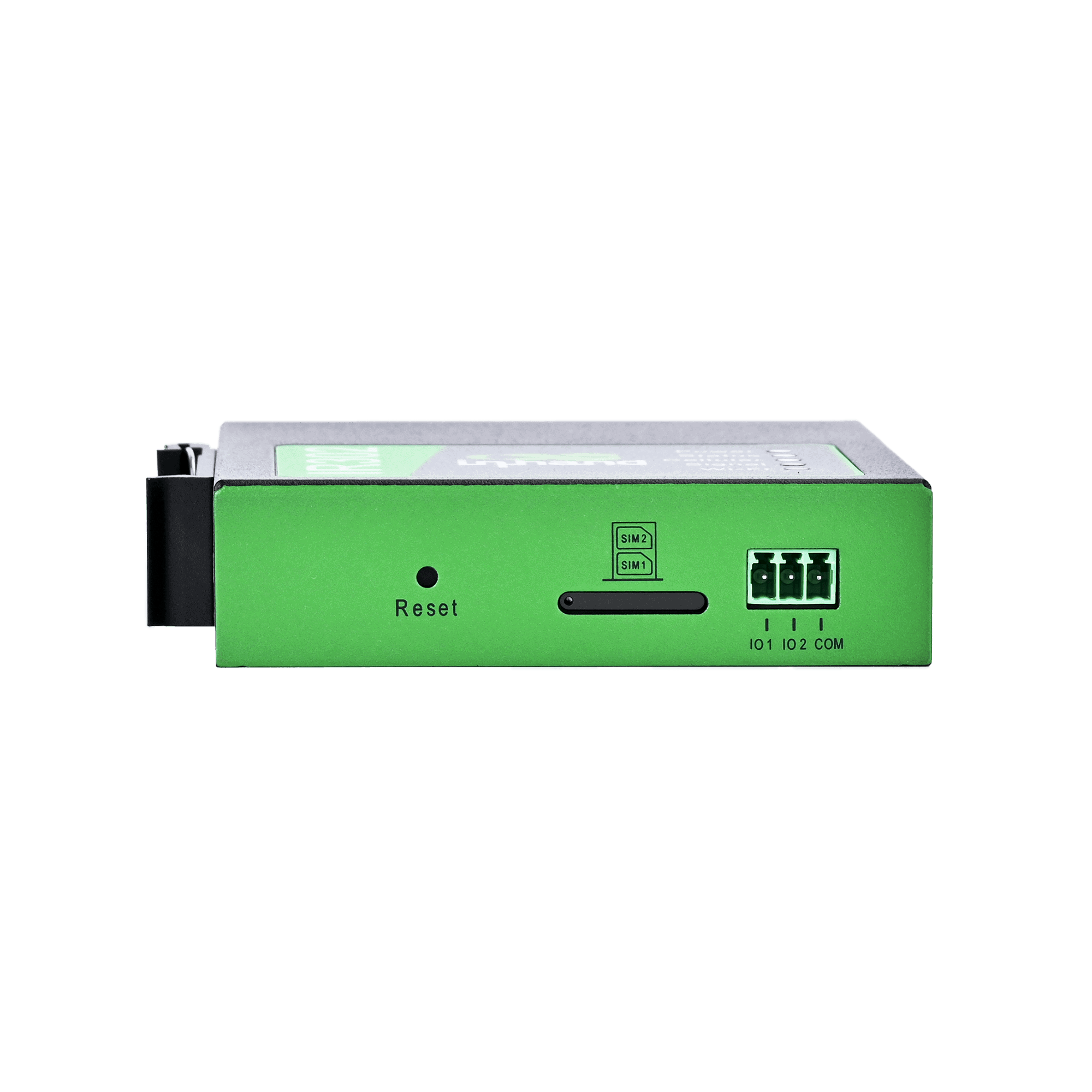

Two Nano-SIM slots support dual-SIM backup. Switching can be triggered by ICCID binding, an RSRP signal threshold or packet loss. Both slots feed two SMA antenna ports for main and diversity antennas. On the wired side there is one 10/100 Mbps WAN/LAN switchable port, one 10/100 Mbps LAN port and an RS232 terminal. The RS232 port supports DTU transparent transmission over TCP Server/Client, UDP and MQTT, with optional Modbus RTU/TCP conversion.

For security, the IR302 includes a firewall, ACLs, MAC-IP binding (200 entries), content filtering and attack protection. VPN options cover IPsec (IKEv1/v2), GRE, L2TP, PPTP, OpenVPN, WireGuard and ZeroTier. You can manage the router locally through the web UI, CLI, SSH, SNMP v1/v2c/v3 or the HTTP/HTTPS API. For fleets, InHand Device Manager handles batch configuration, firmware upgrades, monitoring and alarms. SMS commands allow remote reboot.

The hardware is a 580 MHz industrial processor with 128 MB DDR and 32 MB flash. It sits in a full-metal fanless IP30 enclosure measuring about 100 x 30 x 100 mm and weighing about 250 g, with DIN rail or wall mounting. It accepts 9-36V DC with reverse polarity protection, draws 2-5W typical and is rated for 100,000+ hours MTBF. The manufacturer warranty is 3 years. A datasheet and 2D mounting drawings are available from InHand.

Ideal for

  • Remote monitoring of utility, oil and gas, and water sites over LTE
  • Connecting PLCs and RS232 serial devices to SCADA or cloud platforms via DTU and Modbus conversion
  • Primary or failover connectivity for kiosks, digital signage, ATMs and vending equipment
  • Secure VPN backhaul for unattended cabinets and equipment enclosures
  • Fleet-scale IoT deployments managed centrally through InHand Device Manager

Specifications

General

MPN
IR302-FQ38-IO
Brand
InHand Networks
Model
IR302 Industrial Router
Warranty
3-year manufacturer warranty
Configuration
North America, LTE Cat 4, 2 I/O, no Wi-Fi

Package

Standard Contents
Router, power supply, 2x 4G antennas, Ethernet cable, panel mounting kit (contents vary by order code)
Optional Accessories
DIN rail mounting kit (optional)

Cellular

Dual SIM
Dual-SIM redundancy with ICCID binding and RSRP threshold auto-switching
Radio Code
FQ38 - North America, LTE Cat 4
Regulatory
FCC, IC and PTCRB
Technology
4G LTE Category 4
Wcdma Bands
WCDMA B2/B4/B5
LTE Fdd Bands
LTE FDD B2/B4/B5/B12/B13/B14/B66/B71
Carrier Certifications
Certified with Verizon, AT&T, T-Mobile and FirstNet (LTE/4G)

Reliability

MTBF
≥ 100,000 hours (Telcordia SR-332, 25°C)

VPN Tunnels

Gre
GRE, including GRE over IPsec
L2tp
L2TP over IPsec with MS-CHAPv2
Pptp
PPTP client/server
Ipsec
IPsec IKEv1/v2, PSK or certificate, AES up to 256, SHA up to 512, DH groups up to ECP521
Openvpn
OpenVPN TUN/TAP over UDP/TCP with TLS/SSL
Zerotier
ZeroTier SD-WAN virtual networking
Wireguard
WireGuard

Environmental

Altitude
Up to 5000 m
Storage Humidity
5% to 95% RH, non-condensing
Protection Rating
IP30
Operating Humidity
5% to 95% RH, non-condensing
Storage Temperature
-40°C to 85°C
Operating Temperature
-35°C to 70°C; extended -40°C to 75°C

Certifications

CE
CE (EMC 2014/30/EU, RED 2014/53/EU)
Emc
IEC 61000-4-2, -3, -4, -5, -6, -8
Fcc
FCC Part 15/22/24/27
Rohs
EU RoHS 2.0
Weee
EU WEEE
Safety
UL/cUL, CB (IEC 62368-1)

Network Services

Dns
DNS forwarding and custom DNS servers
Nat
SNAT/DNAT, NAPT, port forwarding (100 rules), virtual IP mapping, DMZ
Ntp
NTP time sync with custom servers and calibration cycles
Ddns
PeanutShell, DynDNS, No-IP and other providers
Dhcp Server
DHCP server/relay with Option 43/60/82 and custom dhcp-option
Tcp Checksum
TCP checksum option configuration
SMS Management
SMS remote reboot/dial control, custom commands, whitelist
Static Routing
Static and policy routing with route priority
Dual SIM Management
Dual-SIM backup with ICCID binding, RSRP and packet-loss switching, dial attempt limit, minimum connection time

Power Protection

Input Current
0.2 A typical, 0.8 A peak at 12V
Input Voltage
9-36V DC (typical 12V/24V)
Esd Protection
4 kV contact, 8 kV air (IEC 61000-4-2)
Surge Protection
Power port surge: IEC 61000-4-5, 2 kV CM / 1 kV DM
Reverse Polarity Protection
Reverse polarity protection

Remote Management

Cli
Full CLI
Ssh
SSH access and SSH client
Snmp
SNMP v1/v2c/v3 with traps and extended OIDs (IP, operator, ICCID, band)
Webui
Web UI with packet capture and status export
Http API
HTTP/HTTPS management API
Device Manager
batch config, firmware upgrades, monitoring, alarms
Inconnect Service
InConnect Service cloud management

Hardware Specifications

Memory
128 MB DDR
Storage
32 MB SPI Flash
Mounting
DIN rail mounting / wall mounting
Processor
580 MHz industrial-grade embedded processor
Serial Port
1x RS232 combo terminal (supports DTU transparent transmission)
Reset Button
Supports hardware factory reset
Total Weight
Approx. 250 g
LED Indicators
Power, Status, Cellular and Signal LEDs
SIM Card Slots
2x Nano-SIM drawer slots, dual-SIM network backup
Power Interface
2-pin industrial terminal (9-36V DC); optional 12V DC adapter
Power Consumption
2-5W typical, <10W peak
Antenna Interfaces
2x 4G main/diversity antenna connectors (SMA female)
Enclosure Material
Full metal enclosure, IP30
Product Dimensions
Approx. 100 x 30 x 100 mm (L x W x H, excluding mounting ears and antennas)
Ethernet Interfaces
1x 10/100 Mbps WAN/LAN switchable, 1x 10/100 Mbps LAN

Industrial Communication Dtu

Serial Dtu
RS232 DTU over TCP Server/Client, UDP, MQTT with multi-center reporting
Ethernet Dtu
Ethernet transparent transmission to remote TCP/UDP servers
Protocol Conversion
Modbus RTU/TCP protocol conversion (optional)
State Grid Encryption
National cryptographic module (optional, -SEC models), IEC101/IEC104

Key Technical Specifications

I/O
2x I/O
VPN
IPSec (IKEv1/v2), GRE, L2TP, PPTP, OpenVPN, WireGuard, ZeroTier
WI FI
No Wi-Fi on the FQ38-IO configuration (802.11 b/g/n on WLAN models only)
Ethernet
1x 10/100 Mbps WAN/LAN switchable + 1x 10/100 Mbps LAN
Security
Firewall, ACL, MAC-IP binding (200 entries), content filtering, SIP ALG, attack protection
Processor
580 MHz processor, 128 MB DDR, 32 MB SPI Flash
Dimensions
Approx. 100 x 30 x 100 mm (L x W x H, excluding mounting ears and antennas)
Power Supply
9-36V DC input, 2-5W typical, <10W peak, reverse polarity protection
Cloud Management
Device Manager batch configuration and firmware upgrade; InConnect Service cloud management
Serial Interface
1x RS232, DTU transparent transmission (TCP Server/Client/UDP/MQTT)
Remote Management
SNMP v1/v2c/v3, WebUI, CLI, SSH Client, HTTP/HTTPS API
Operating Temperature Protection
-35°C to 70°C (extended -40°C to 75°C), IP30, fanless full-metal enclosure

Questions buyers ask

Which carriers is the IR302-FQ38-IO certified with?

The FQ38 LTE Cat 4 version is certified with Verizon, AT&T, T-Mobile and FirstNet (LTE/4G). It also holds FCC, IC and PTCRB certifications.

Does the IR302-FQ38-IO have Wi-Fi?

No. The FQ38-IO configuration has LTE Cat 4, two Ethernet ports, RS232 and 2 I/O, but no Wi-Fi. Wi-Fi is available on the IR302-FQ38-WLAN-IO model.

How do I log in to the IR302 for the first time?

Install the antennas and insert the SIM with the router powered off, then connect power. Connect a computer to a LAN port; both ports are LAN by default. Set the computer to DHCP or a 192.168.2.x static IP, open http://192.168.2.1 in a browser, and log in with the credentials printed on the device label.

How do I set the APN?

Log in and go to Network > Cellular, then select your carrier profile under SIM1 Network Provider. For a custom APN, edit it in the Profiles section, select that profile index, and click Apply. A steady Cellular LED means the router is connected.

What power does the IR302 need?

The router accepts 9-36V DC through a 2-pin industrial terminal and has reverse polarity protection. It typically draws 2-5W, with a peak below 10W.
