InHand Networks IR302 Industrial 4G LTE Cat 1 Router with Wi-Fi and I/O (IR302-FQ33-WLAN-IO)

4G LTEMPN IR302-FQ33-WLAN-IO
$138.70$164.02Save $25.32

Backordered · ships as soon as it arrives

Region
North America
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The InHand Networks IR302-FQ33-WLAN-IO is a compact industrial cellular router for unattended IoT sites in North America. It pairs an LTE Cat 1 module certified with Verizon and AT&T with dual Nano-SIM backup, 802.11 b/g/n Wi-Fi, two I/O points and an RS232 combo terminal. VPN options include IPsec, OpenVPN and WireGuard. The router runs from 9–36V DC in a fanless metal enclosure rated from -35°C to 70°C, and you can manage it from the InHand Device Manager cloud.

  • North America LTE Cat 1 module: FDD B2/B4/B5/B12/B13/B25/B26, WCDMA B2/B4/B5; certified with Verizon and AT&T
  • Dual Nano-SIM backup with ICCID binding, RSRP threshold and packet-loss switching
  • 802.11 b/g/n Wi-Fi plus 2× 10/100 Mbps Ethernet (one WAN/LAN switchable)

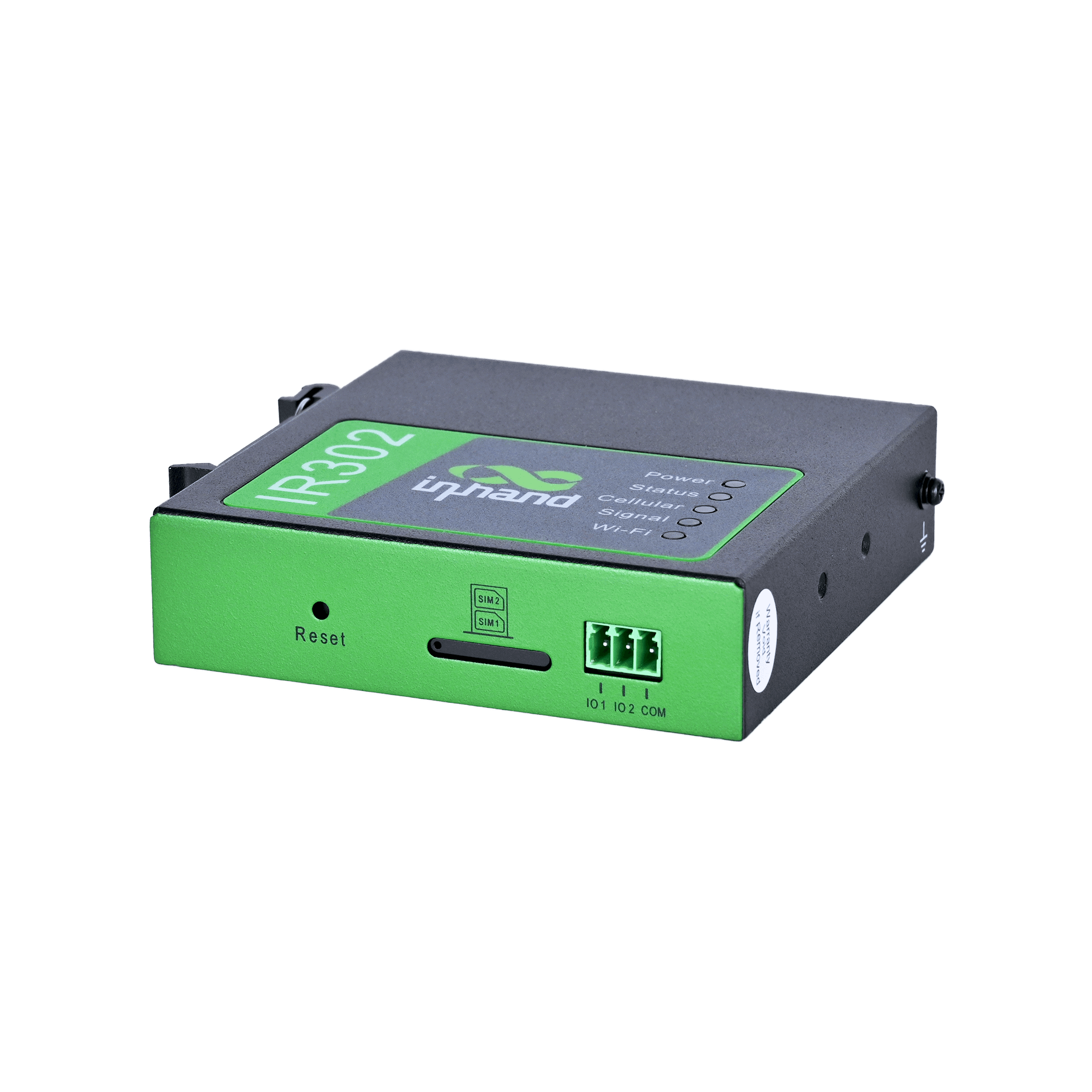

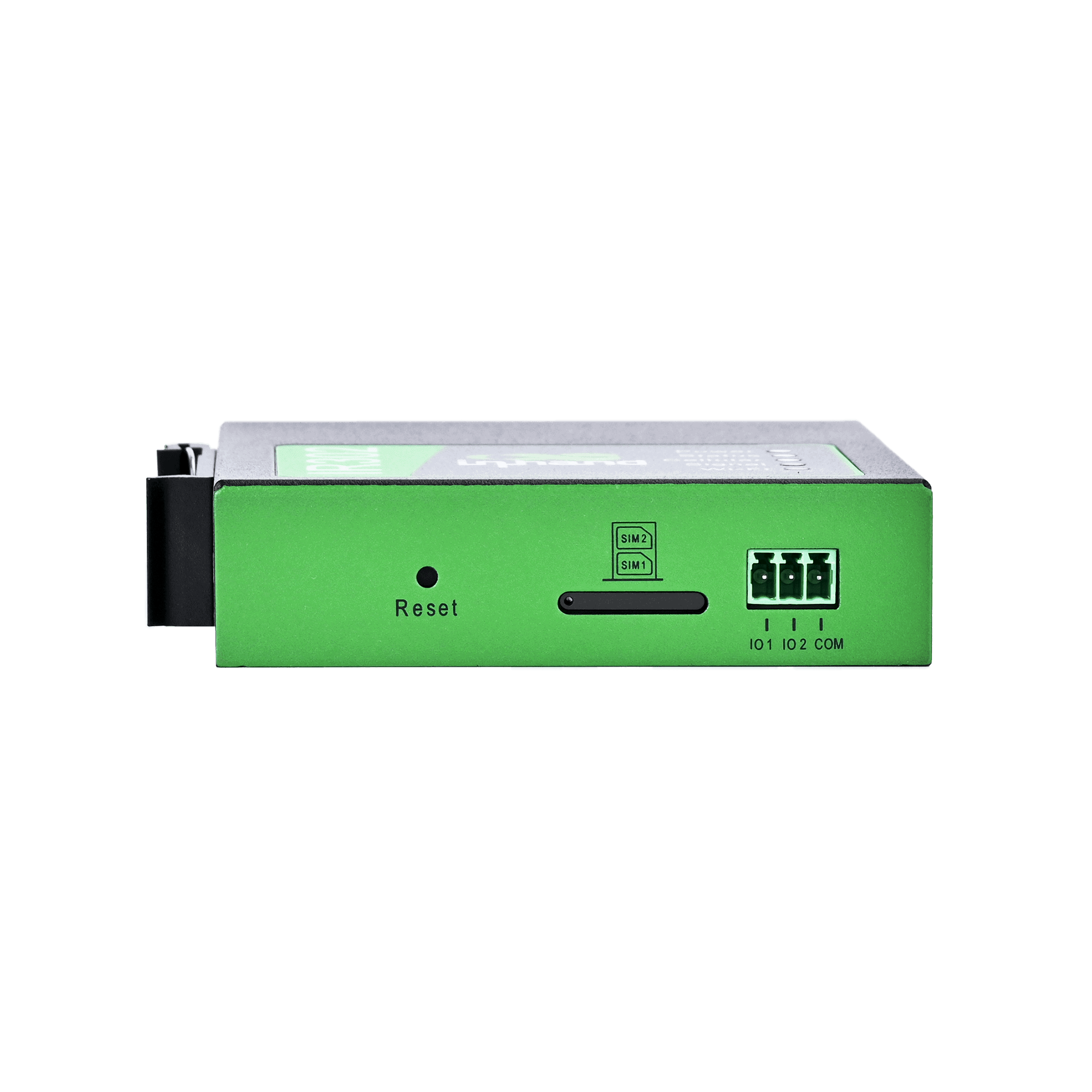

  • 2× I/O and an RS232 combo terminal with DTU transparent transmission (TCP/UDP/MQTT)
  • VPN: IPsec IKEv1/v2, OpenVPN, WireGuard, L2TP, GRE, PPTP and ZeroTier
  • Fanless full metal IP30 enclosure, -35°C to 70°C operation, 9–36V DC input
  • InHand Device Manager cloud, SNMP v1/v2c/v3, WebUI, CLI, SSH and HTTP/HTTPS API
  • Keeps unattended sites online by failing over between two SIMs and between cellular, wired and Wi-Fi links

The IR302-FQ33-WLAN-IO is the North America LTE Cat 1 build of InHand Networks' IR302 industrial router. It includes Wi-Fi and I/O. The cellular module covers LTE FDD B2/B4/B5/B12/B13/B25/B26 with WCDMA B2/B4/B5 fallback, and InHand lists this configuration as certified with Verizon and AT&T. Two Nano-SIM drawers provide carrier backup. The router can switch SIMs on ICCID binding, an RSRP signal threshold or packet loss.

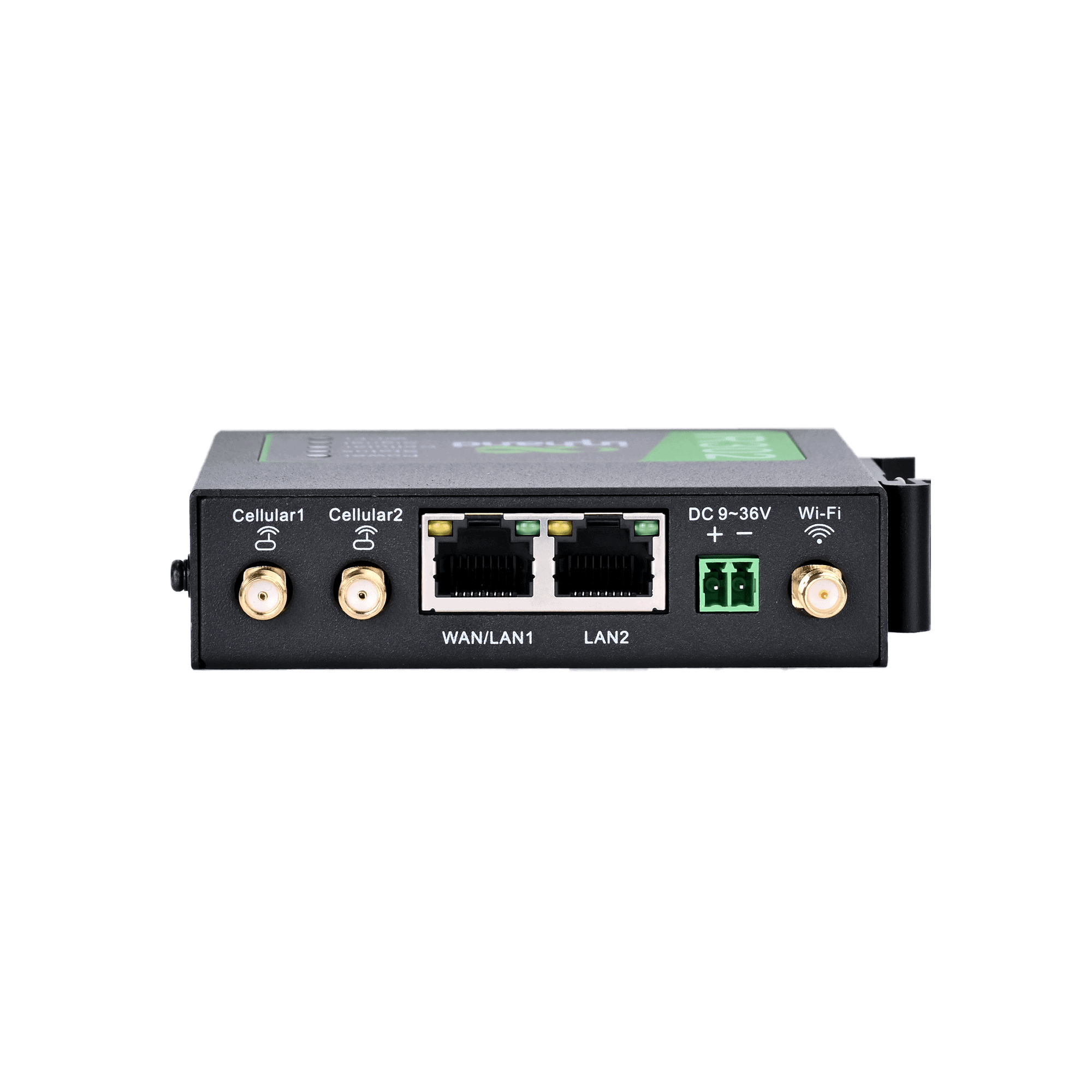

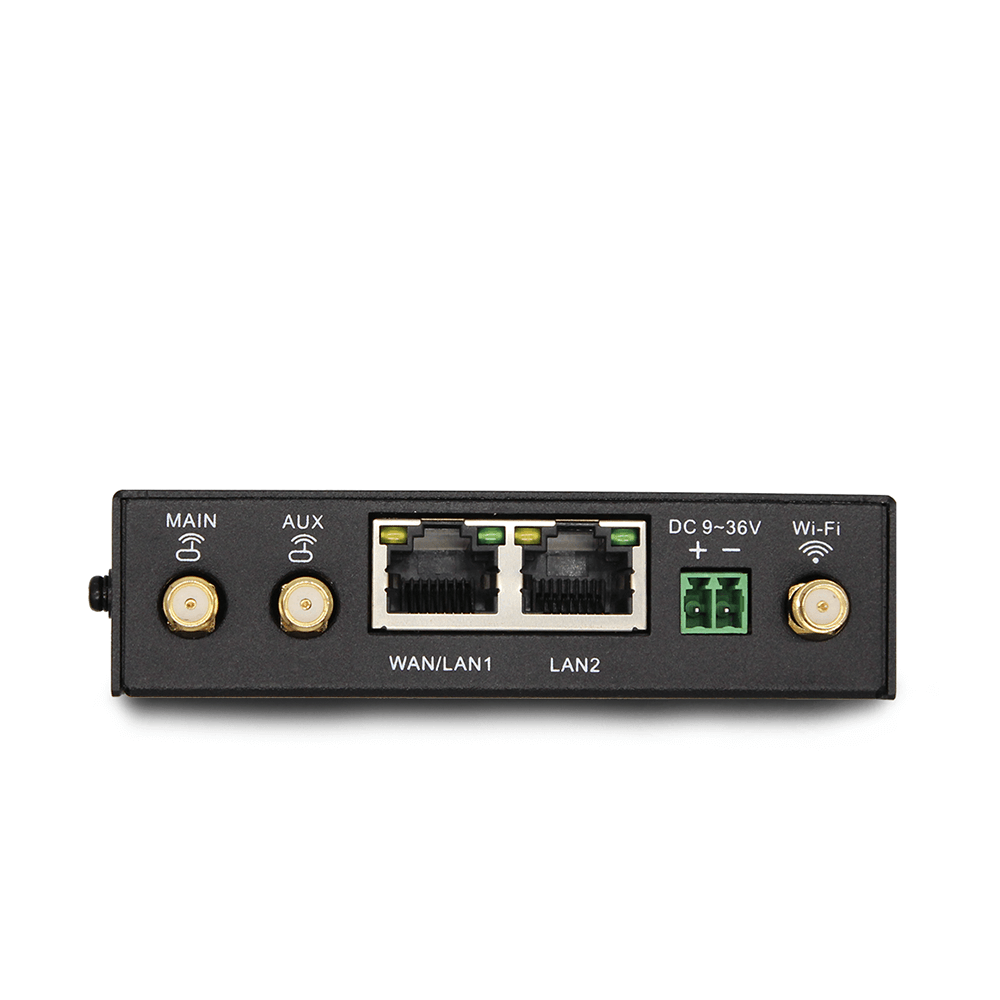

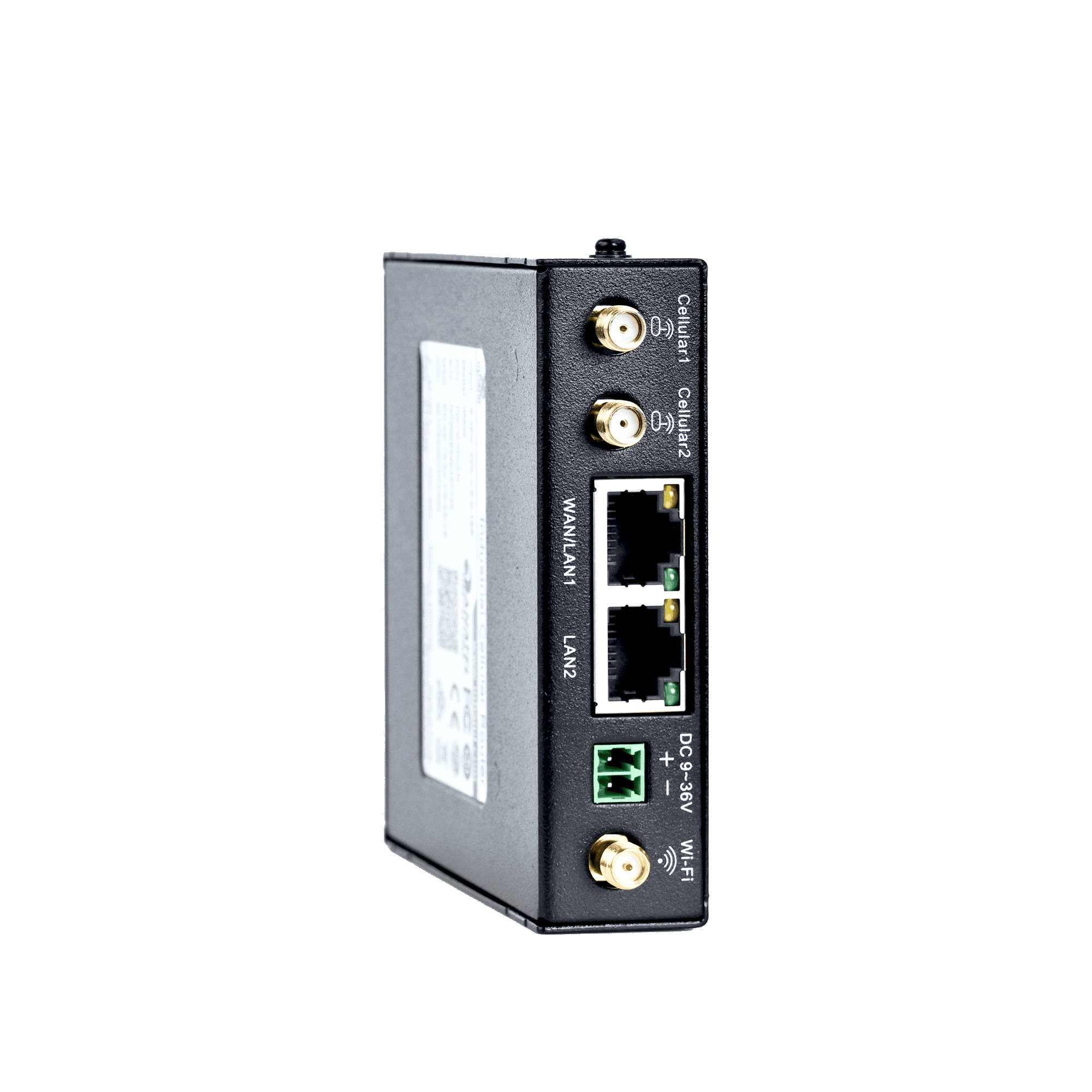

On site, the IR302 provides one 10/100 Mbps WAN/LAN switchable port, one 10/100 Mbps LAN port and 802.11 b/g/n Wi-Fi with a 72 Mbps negotiated rate. It also has an RS232 combo terminal for DTU transparent transmission over TCP, UDP or MQTT, and two I/O points for local signals. Traffic between the site and headquarters can run over IPsec (IKEv1/v2), OpenVPN, WireGuard, L2TP, GRE, PPTP or ZeroTier. The router also includes a firewall, ACLs, MAC-IP binding, content filtering and VRRP.

The IR302 is built for cabinets and remote enclosures. It has a full metal IP30 fanless housing of about 100 × 30 × 100 mm and weighs about 250 g. It operates from -35°C to 70°C, or from -40°C to 75°C in the extended range. The 9–36V DC terminal input includes reverse polarity and surge protection. The router mounts on a panel or wall, with a DIN rail kit available as an option.

For fleet operations, the InHand Device Manager handles batch configuration, firmware upgrades, status monitoring and alarms. SNMP v1/v2c/v3, a web UI, a CLI, SSH and an HTTP/HTTPS API support local and third-party management. The IR302 datasheet (V1.2) is available.

Ideal for

  • Remote monitoring of pumps, tanks and substations over Verizon or AT&T LTE
  • Serial and I/O data backhaul from PLCs, meters and RTUs to a SCADA or MQTT server
  • Secure VPN connectivity for kiosks, vending and digital signage
  • Failover WAN for small commercial sites with local Wi-Fi for technicians

Specifications

Power

Input Current
Typical 0.2 A @ 12V, peak 0.8 A @ 12V
Input Voltage
9–36V DC (typical 12V/24V)
Esd Protection
4 kV contact, 8 kV air (IEC 61000-4-2)
Surge Protection
Power port surge: IEC 61000-4-5, common mode 2 kV, differential mode 1 kV
Reverse Polarity Protection
Reverse polarity protection

General

MPN
IR302-FQ33-WLAN-IO
Brand
InHand Networks
Model
IR302 Industrial Router
Region
North America
Configuration
LTE Cat 1, Wi-Fi and 2× I/O

Package

Contents
IR302 router, power supply, 2× 4G antennas, Wi-Fi antenna, Ethernet cable, panel mounting kit
Shipping Weight
0.70 lb
Optional Accessories
DIN rail mounting kit (optional)

Cellular

SIM Slots
2 Nano-SIM drawer slots with dual-SIM network backup
Module Code
FQ33 (North America, LTE Cat 1)
Wcdma Bands
WCDMA B2/B4/B5
LTE Category
4G LTE Cat 1
LTE Fdd Bands
LTE FDD B2/B4/B5/B12/B13/B25/B26
Antenna Connectors
2× 4G main/diversity antenna, SMA female
Carrier Certification
Certified with Verizon and AT&T

Security

Features
Firewall, ACL access control, MAC-IP binding (200 entries), content filtering, SIP ALG, attack protection

Reliability

MTBF
≥100,000 hours (Telcordia SR-332, 25°C)
Warranty
3 years

VPN Tunnels

Gre
Standard GRE tunnel, supports GRE over IPsec
L2tp
L2TP over IPsec with MS-CHAPv2 authentication
Pptp
PPTP client/server
Ipsec
IPsec IKEv1/IKEv2, pre-shared key or certificate, AES-256+SHA-512+ECP521 supported
Openvpn
OpenVPN TUN/TAP mode, UDP/TCP transport, TLS/SSL encryption
Zerotier
ZeroTier SD-WAN virtual networking
Wireguard
WireGuard

Environmental

Altitude
Up to 5000 m
Storage Humidity
5% to 95% RH, non-condensing
Protection Rating
IP30
Operating Humidity
5% to 95% RH, non-condensing
Storage Temperature
-40°C to 85°C
Operating Temperature
Normal -35°C to 70°C; extended -40°C to 75°C

Certifications

CE
EMC Directive 2014/30/EU, RED Directive 2014/53/EU
Emc
IEC 61000-4-2, -3, -4, -5, -6, -8
Fcc
FCC Part 15, 22, 24 and 27
Rohs
EU RoHS 2.0
Weee
EU WEEE
Safety
UL/cUL, CB (IEC 62368-1)
Sku Certificates
IR302-FQ33 FCC, PTCRB and IC certificates; UL 62368-1, E-mark, ECE R118 and UKCA certificates

Network Services

Dns
DNS forwarding, domain name service, custom DNS servers
Nat
SNAT/DNAT, NAPT, port forwarding (100 rules), virtual IP mapping, DMZ
Ntp
Network time sync with custom NTP servers and calibration cycles
Ddns
PeanutShell, DynDNS, No-IP and other dynamic DNS providers
Dhcp
DHCP server/relay with dhcp-option customization, Option 43/60/82 and other extensions
Tcp Checksum
TCP checksum option configuration
SMS Management
SMS remote reboot/dial control, custom commands, access whitelist
Static Routing
Multiple static routes and policy routes with route priority
Dual SIM Management
Dual-SIM backup, ICCID binding, RSRP threshold switching, packet-loss triggered switching, max dial attempts, minimum connection time

Remote Management

Cli
Full command line: show, ping, telnet, traceroute, reboot, arping
Ssh
Secure remote CLI access; can act as SSH client
Snmp
SNMP v1/v2c/v3, MIB-II and private MIBs, Trap alarms, custom ports, extended OIDs (operator, ICCID, band)
Webui
Responsive web UI with wireless client display, tcpdump packet capture, status export
Http API
HTTP and HTTPS management interfaces for remote configuration and status queries
Device Manager
batch configuration, firmware upgrades, status monitoring, alarm management
Inconnect Service
InConnect Service (ICS) cloud management with OpenVPN configuration delivery

Wi-Fi Wireless LAN

Standard
802.11 b/g/n Wi-Fi
Throughput 1m
72 Mbps negotiated, 54 Mbps typical LAN→WLAN
Throughput 5m
72 Mbps negotiated, 41 Mbps typical LAN→WLAN
Throughput 10m
72 Mbps negotiated, 31 Mbps typical LAN→WLAN
Throughput 30m
72 Mbps negotiated, 14 Mbps typical LAN→WLAN (depending on obstacles)

Hardware Specifications

I/O
2× I/O
Memory
128 MB DDR
Weight
Approx. 250 g
Storage
32 MB SPI Flash
Mounting
DIN rail or wall mounting
Enclosure
Full metal enclosure, IP30, fanless natural convection cooling
Processor
580 MHz industrial-grade embedded processor
Dimensions
Approx. 100 × 30 × 100 mm (L × W × H, excluding mounting ears and antennas)
Serial Port
1× RS232 combo terminal (DTU transparent transmission)
Reset Button
Supports hardware factory reset
LED Indicators

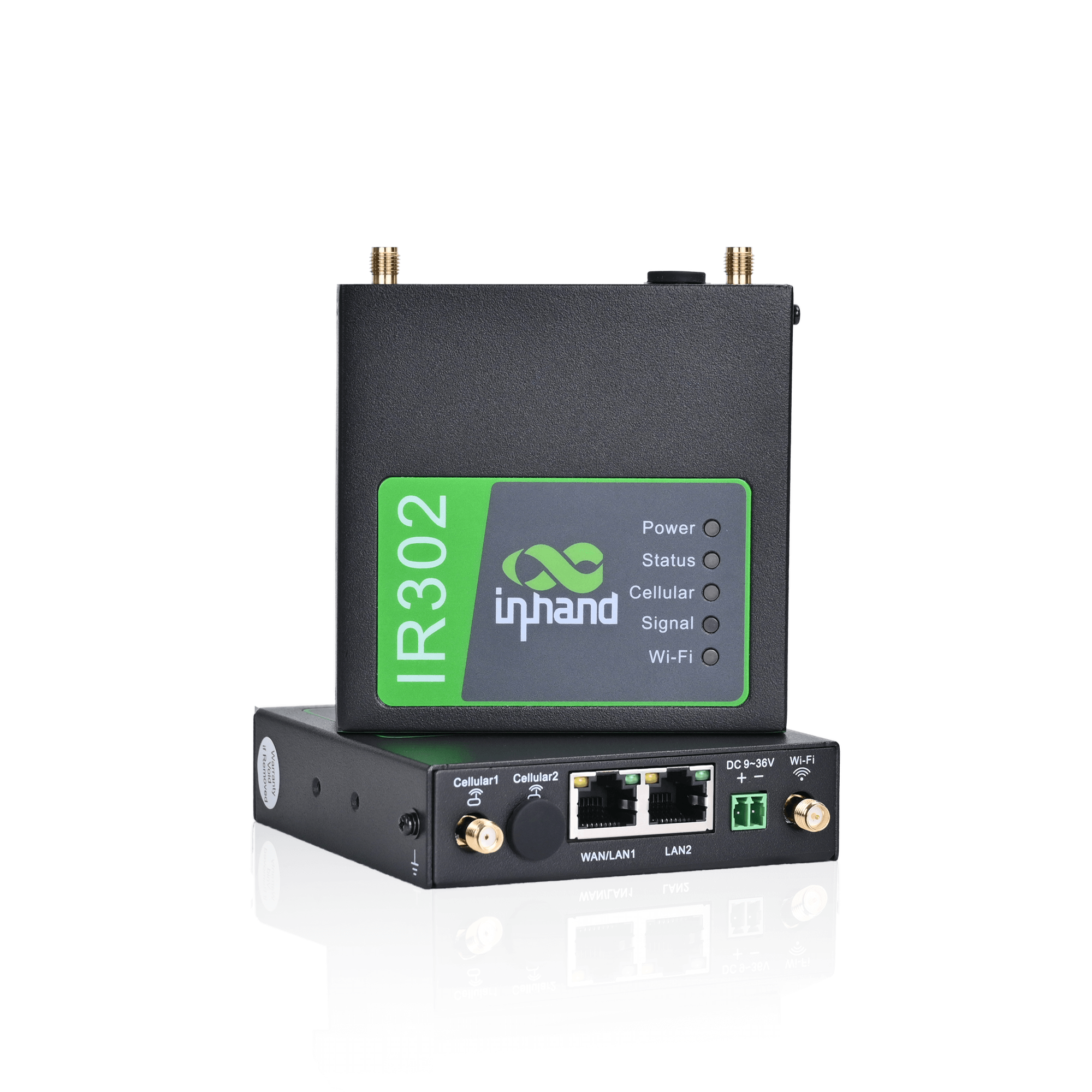

Power (red), Status (green), Cellular (yellow), Signal (red/yellow/green), Wi-Fi (green)
Power Interface
2-pin industrial terminal, 9–36V DC; optional 12V DC adapter
Power Consumption
Typical 2–5 W, peak <10 W
Ethernet Interfaces
1× 10/100 Mbps WAN/LAN switchable port, 1× 10/100 Mbps LAN port
Wi-Fi Antenna Connector
Wi-Fi antenna connector, SMA female

Industrial Communication

Serial Dtu
RS232 transparent transmission, TCP Server/Client, UDP, MQTT, multi-center reporting
Ethernet Dtu
Transparent transmission of Ethernet port data to remote TCP/UDP servers
Protocol Conversion
Modbus RTU/TCP protocol conversion (optional)

Questions buyers ask

Which carriers is the IR302-FQ33 certified with?

InHand lists the IR302-FQ33 (LTE Cat 1, North America) as certified with Verizon and AT&T.

What LTE bands does this model support?

The FQ33 module supports LTE FDD B2/B4/B5/B12/B13/B25/B26, with WCDMA B2/B4/B5.

How do I log in for the first time?

Install the antennas, insert the SIM with the router powered off, then connect power. Connect a computer to a LAN port and set it to DHCP or a 192.168.2.x address. Browse to http://192.168.2.1 and use the credentials printed on the device label.

How do I turn on the Wi-Fi?

Wi-Fi is disabled by default. In the web GUI, go to Network > Switch WLAN Mode and set the WLAN Type to AP. Then enable Network > WLAN and set the SSID, security type and password.

What power does the IR302 need?

It accepts 9–36V DC (typically 12V or 24V) on a 2-pin industrial terminal. Typical draw is 2–5 W, with a peak below 10 W. Reverse polarity protection is built in.
