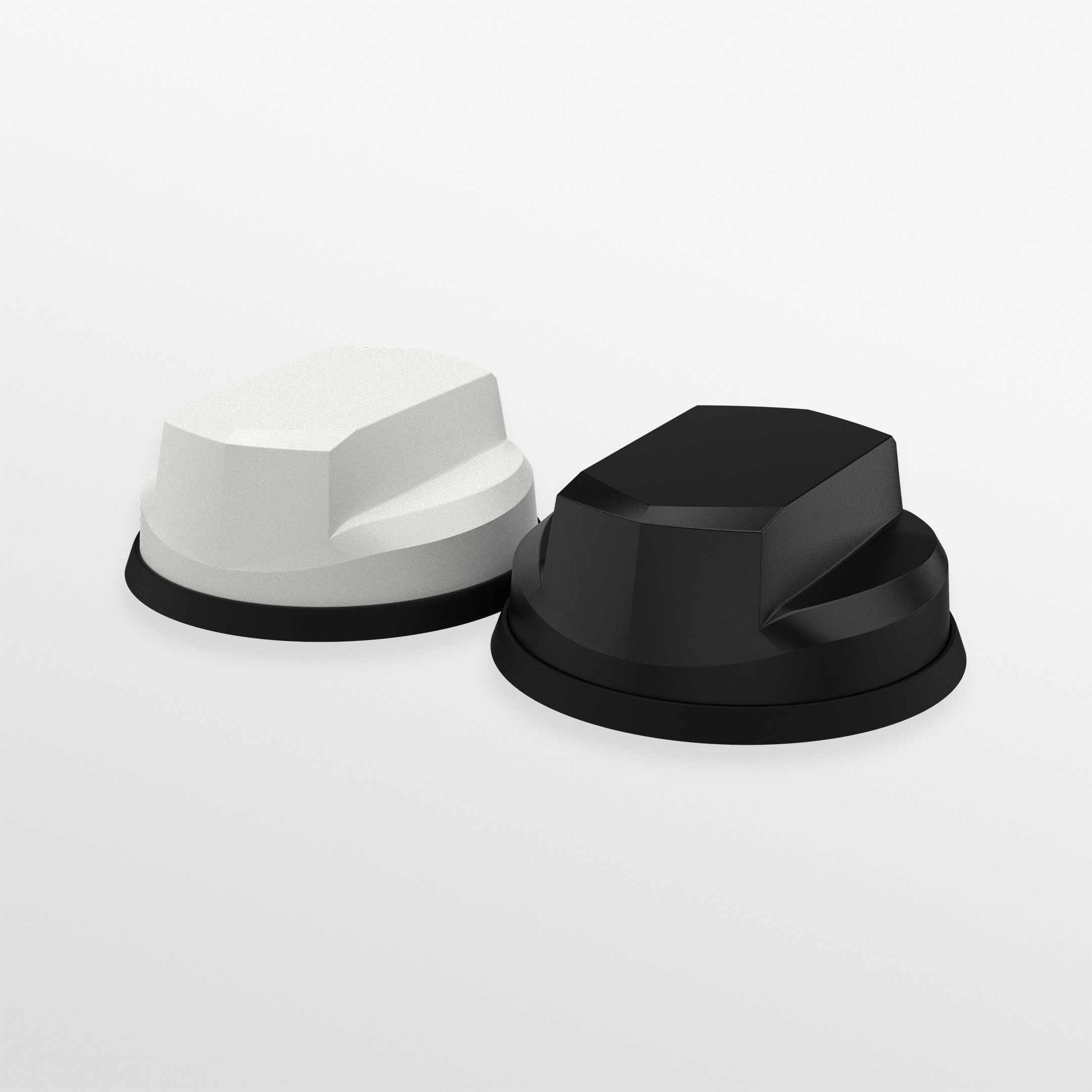

Panorama Great White LG-IN2457-LC 5-in-1 4G/5G, Wi-Fi and GNSS Vehicle Dome Antenna, Black, Loose Cables

5GMPN LG-IN2457-LC
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 3–5 m

Made for Cradlepoint

$307.32$424.66Save $117.34

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

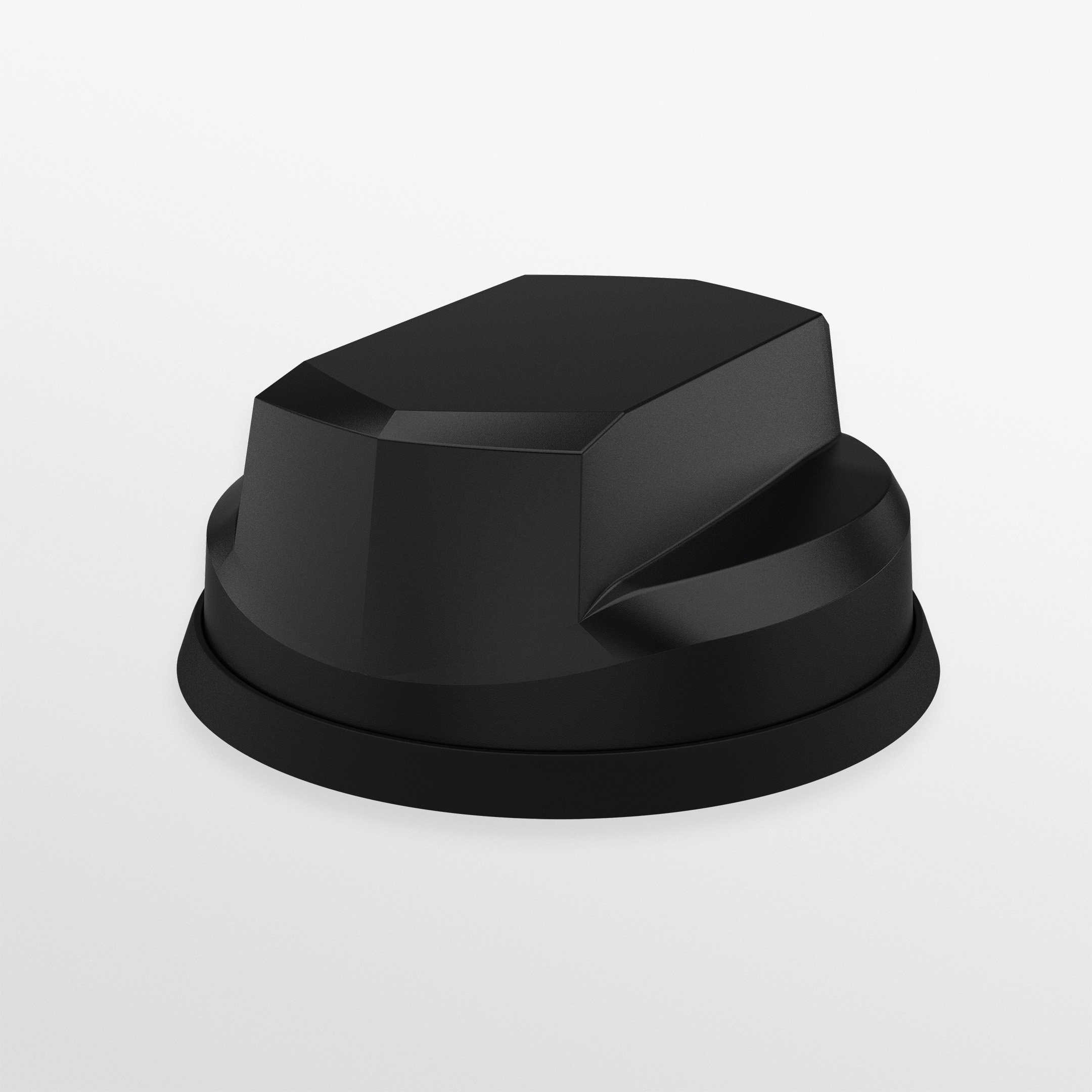

The Panorama Great White LG-IN2457-LC is a low-profile 5-in-1 vehicle dome antenna that combines 2x2 MIMO 4G/5G cellular, 2x2 MIMO Wi-Fi and an active GPS/GNSS module in one black housing rated IP69K and IK10. It ships with 5 m flame-retardant RG174 extension cables supplied loose rather than factory-fitted, terminated in SMA (m) for cellular and GNSS and RP-SMA for Wi-Fi, ready to connect to an in-vehicle router.

  • Five functions in one dome: 2x2 MIMO 4G/5G cellular, 2x2 MIMO Wi-Fi and one GPS/GNSS module
  • Cellular coverage 617–960 / 1427–6000 MHz with 5 dBi, 9 dBi and 10 dBi band gains; Band 71 600 MHz ready
  • Active GNSS with 26 dB LNA supporting GPS, GLONASS, Galileo and Compass, with LTE B13/14 filtering

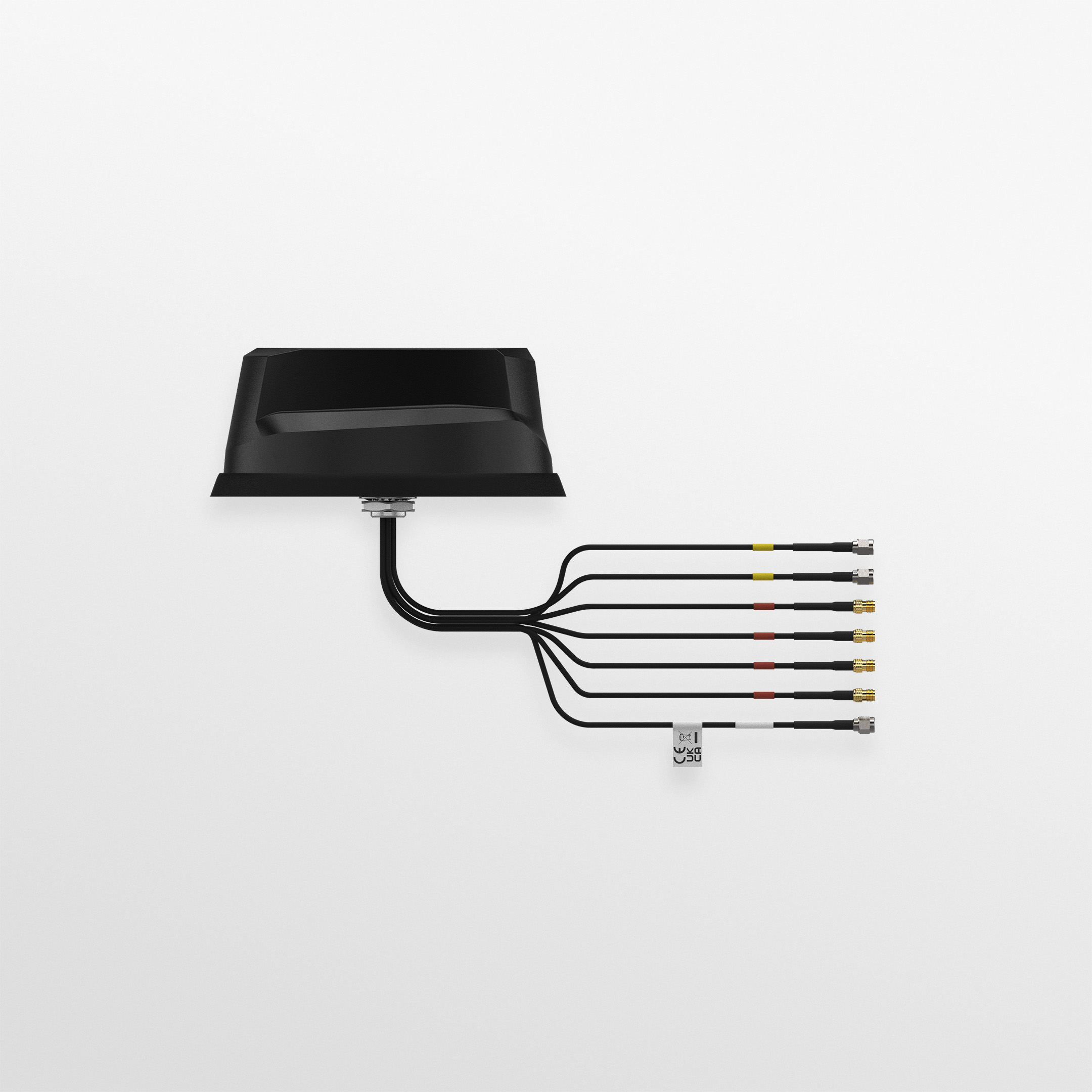

  • 5 m FR RG174 extension cables supplied loose: SMA (m) cellular and GNSS, RP-SMA Wi-Fi
  • IP69K ingress protection and IK10 vandal resistance; -40 °C to +80 °C operation

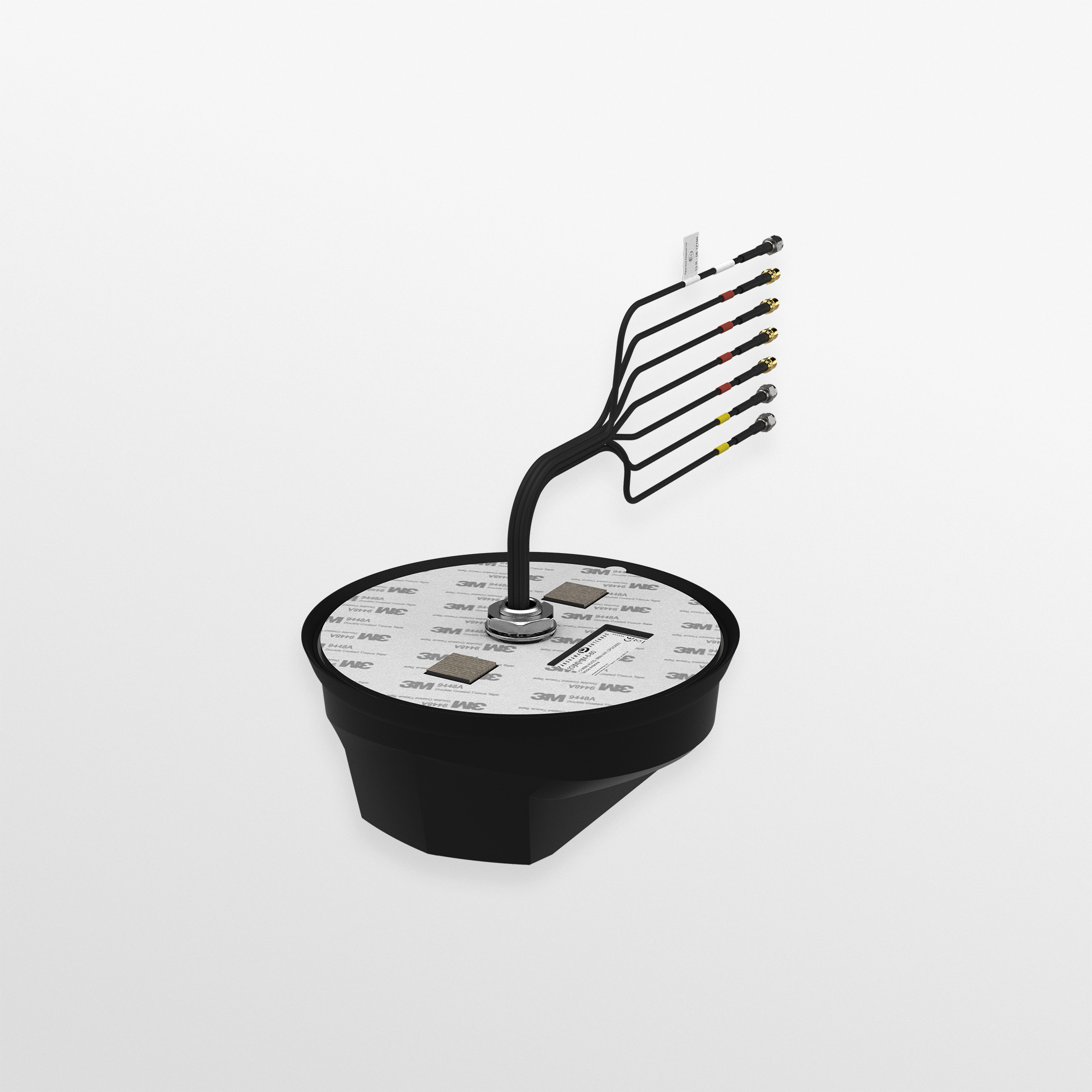

  • Ground-plane independent panel mount for conductive or non-conductive surfaces
  • Suitable for FirstNet (USA) and ESN (UK)
  • One roof penetration serves cellular, Wi-Fi and location for an in-vehicle router

The LG-IN2457-LC is the black, loose-cable version of Panorama's Great White 5G dome, configured with five functions: two cellular elements for 2x2 MIMO 4G/5G, two Wi-Fi elements for 2x2 MIMO, and one GPS/GNSS module. Panorama designs it as an all-in-one antenna for in-vehicle routers, and rates it as suitable for FirstNet in the USA and ESN in the UK, which makes it a strong fit for public-safety, utility and fleet vehicles that need cellular, onboard Wi-Fi and location from a single roof penetration.

The cellular elements cover 617–960 MHz and 1427–6000 MHz, with published gain of 5 dBi at 617–960 MHz, 9 dBi at 1710–3800 MHz and 10 dBi at 4900–6000 MHz, including Band 71 600 MHz. The pattern is omnidirectional and maximum input power is 20 W. The integrated GNSS module supports GPS, GLONASS, Galileo and Compass with a 26 dB LNA and filtering for LTE Bands 13/14 to reduce in-band interference. Wi-Fi elements cover 2.4 GHz and 4.9–7.2 GHz.

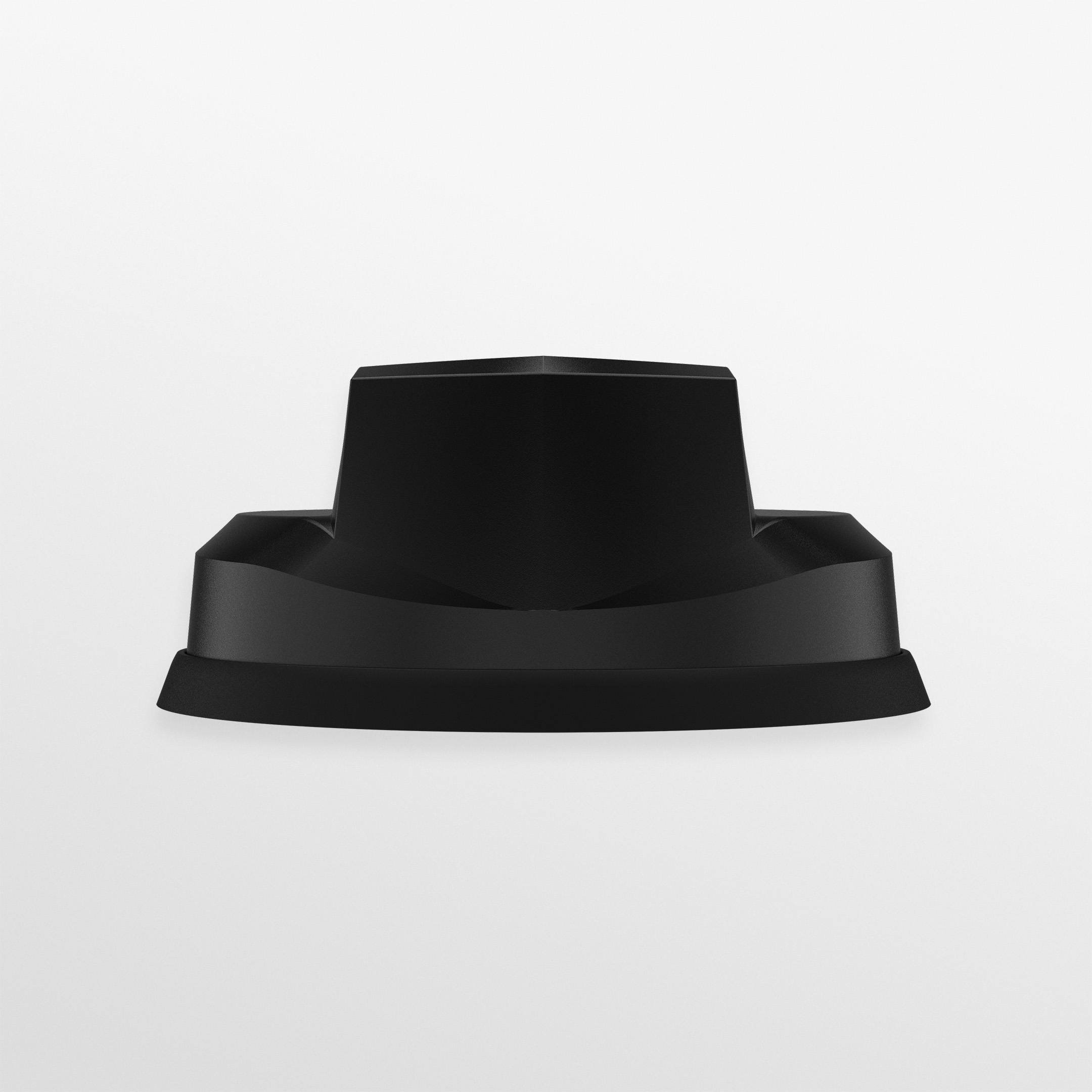

Mechanically, the dome stands 75 mm (2.95 in) tall with a 180 mm (7.09 in) diameter and is ground-plane independent, so it can be panel mounted on conductive or non-conductive surfaces. The halogen-free, flame-retardant radome meets IP69K for ingress protection and IK10 for vandal resistance, and it operates from -40 °C to +80 °C. The FR RG174 cables comply with UN ECE R118 and EN45545-2. Panorama publishes a datasheet and installation instructions for this range.

Ideal for

  • Police, fire and ambulance vehicles on FirstNet running an in-vehicle router
  • Utility and field-service fleets needing cellular, onboard Wi-Fi and GNSS tracking
  • Transit buses offering passenger or staff Wi-Fi over 4G/5G
  • Retrofit installs where cables must be routed before connection

Specifications

General

MPN
LG-IN2457-LC
UPC
5055416055231
Brand
Panorama Antennas
Product Family
Great White (L[G]M[H]M-6-60)

Package

Documentation
Datasheet and installation instructions
Shipping Weight
5.00 lb

GPS Data

Lna Gain
26 dB
GNSS Systems
GPS, GLONASS, Galileo, Compass
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable Data

Cable Supply
Cables supplied loose
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Cable Length Wi-Fi
5 m (16.4 ft)
Quantity OF Cell Cable
2
Quantity OF Wi-Fi Extension
2
Quantity OF GPS GNSS Extension
1

Mounting Data

Ground Plane
Ground plane independent
Mounting Methods
Panel; Magnetic
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals Data

IP Rating
IP69K
Impact Rating
IK10
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical Data

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
20 W
Gain 617 960 MHz
5 dBi
Gain 1710 3800 MHz
9 dBi
Gain 4900 6000 MHz
10 dBi
Wi-Fi Frequency Range
2.4 / 4.9–7.2 GHz
Cellular LTE Elements
2 x 2 MIMO
Cellular Frequency Range
617–960 / 1427–6000 MHz

Mechanical Data

Colour
Black
Height
75 mm (2.95 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology Data

Technology
GPS, Wi-Fi MIMO, 4G/5G, 5G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS

Termination Data

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

What does the -LC suffix mean?

LC indicates the 5 m extension cables are supplied loose. The LG-IN2457 without the suffix has the same antenna with cables fitted.

Does it need a metal roof to perform?

No. The Great White is ground-plane independent and can be panel mounted on conductive or non-conductive surfaces.

Which connectors are used?

The two cellular cables and the GNSS cable terminate in SMA (m); the two Wi-Fi cables terminate in Reverse Polarity SMA.

Which satellite systems does the GNSS module support?

GPS, GLONASS, Galileo and Compass, with a 26 dB LNA and filtering for LTE Bands 13/14.

Is it suitable for FirstNet?

Panorama rates the Great White as suitable for FirstNet in the USA and ESN in the UK, and lists Band 71 600 MHz support.
