Panorama Great White LG-IN2457-W 5-in-1 4G/5G, Wi-Fi and GNSS Dome Antenna for Cradlepoint COR IBR900, White

5GMPN LG-IN2457-W
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up

Made for Cradlepoint

$307.41$424.66Save $117.25

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

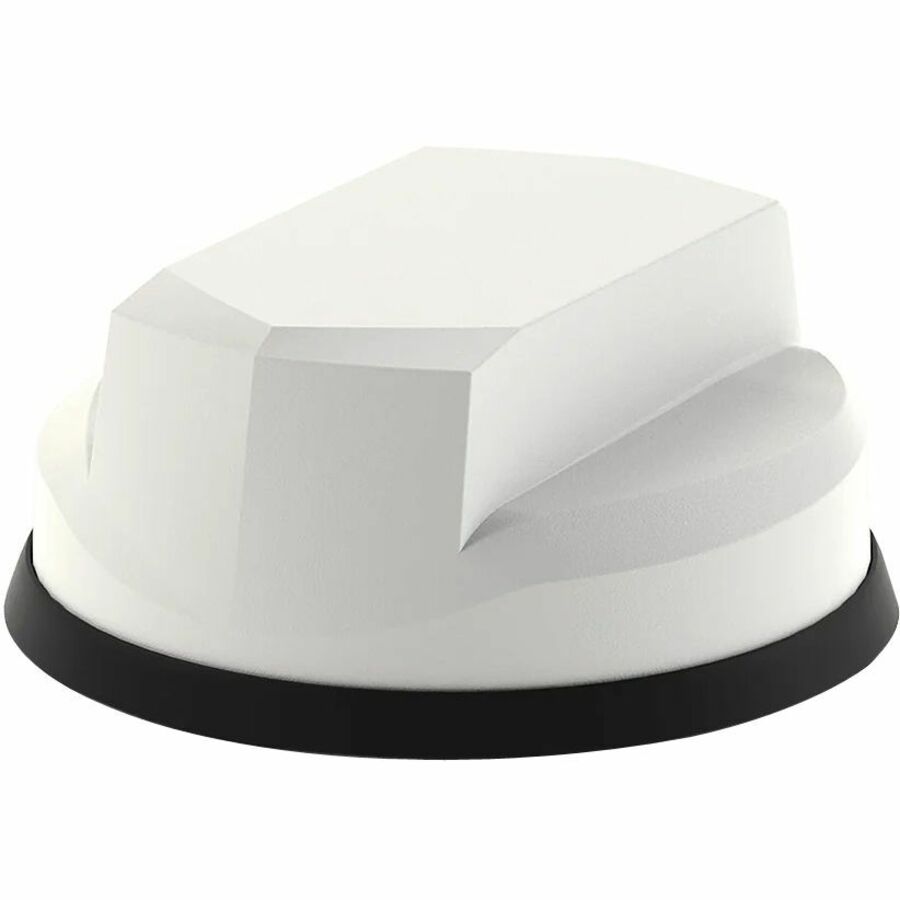

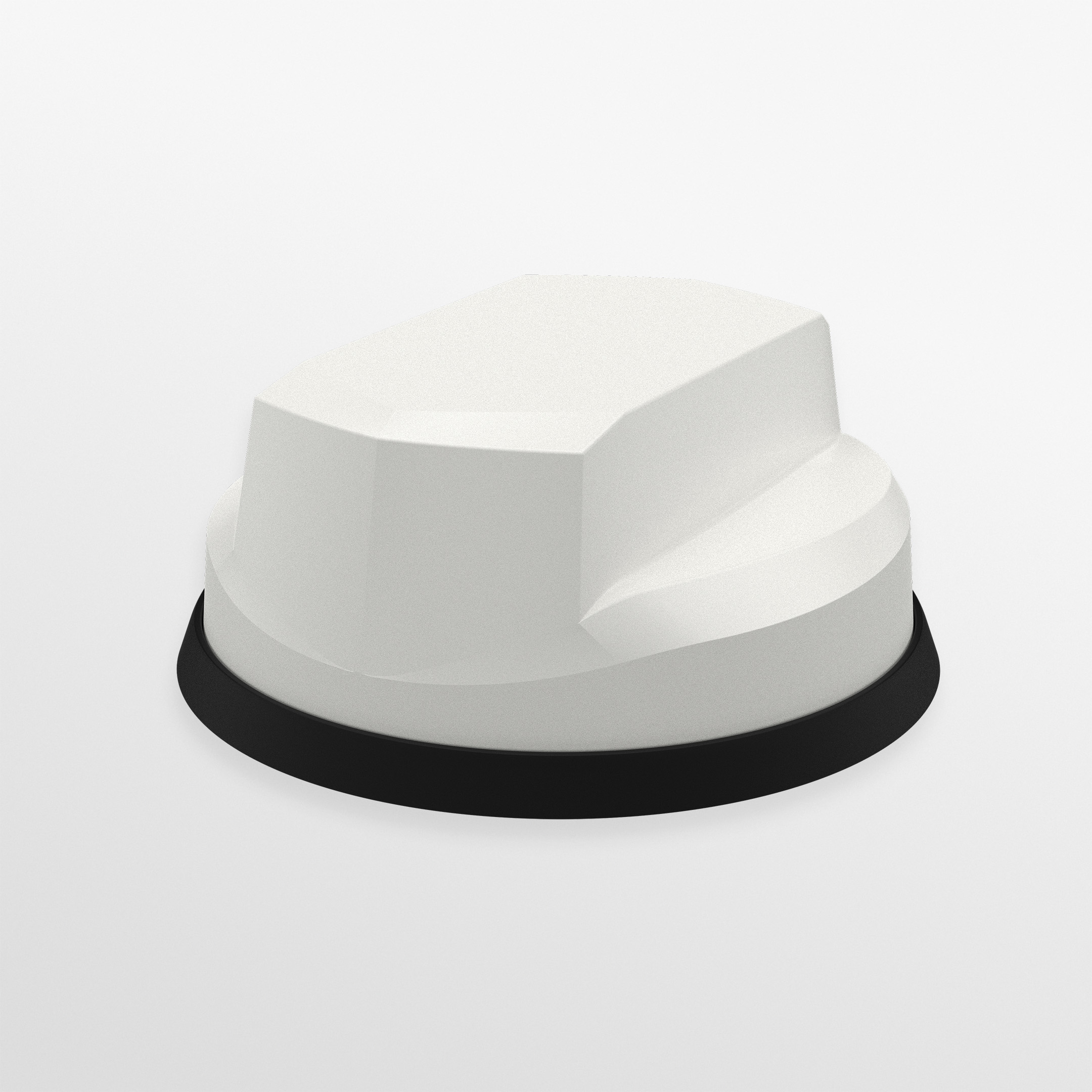

The Panorama Great White LG-IN2457-W is a white, low-profile 5-in-1 vehicle dome antenna combining 2x2 MIMO 4G/5G cellular, 2x2 MIMO Wi-Fi and an active GPS/GNSS module. It comes with factory-fitted 5 m flame-retardant RG174 cables terminated in SMA (m) and RP-SMA, and is suitable for Cradlepoint COR IBR900 Series routers in fleet and public-safety vehicles.

  • Five functions: 2x2 MIMO 4G/5G cellular, 2x2 MIMO Wi-Fi and one GPS/GNSS module
  • Suitable for Cradlepoint COR IBR900 Series routers
  • Cellular 617–960 / 1427–6000 MHz with 5, 9 and 10 dBi band gains; Band 71 600 MHz ready

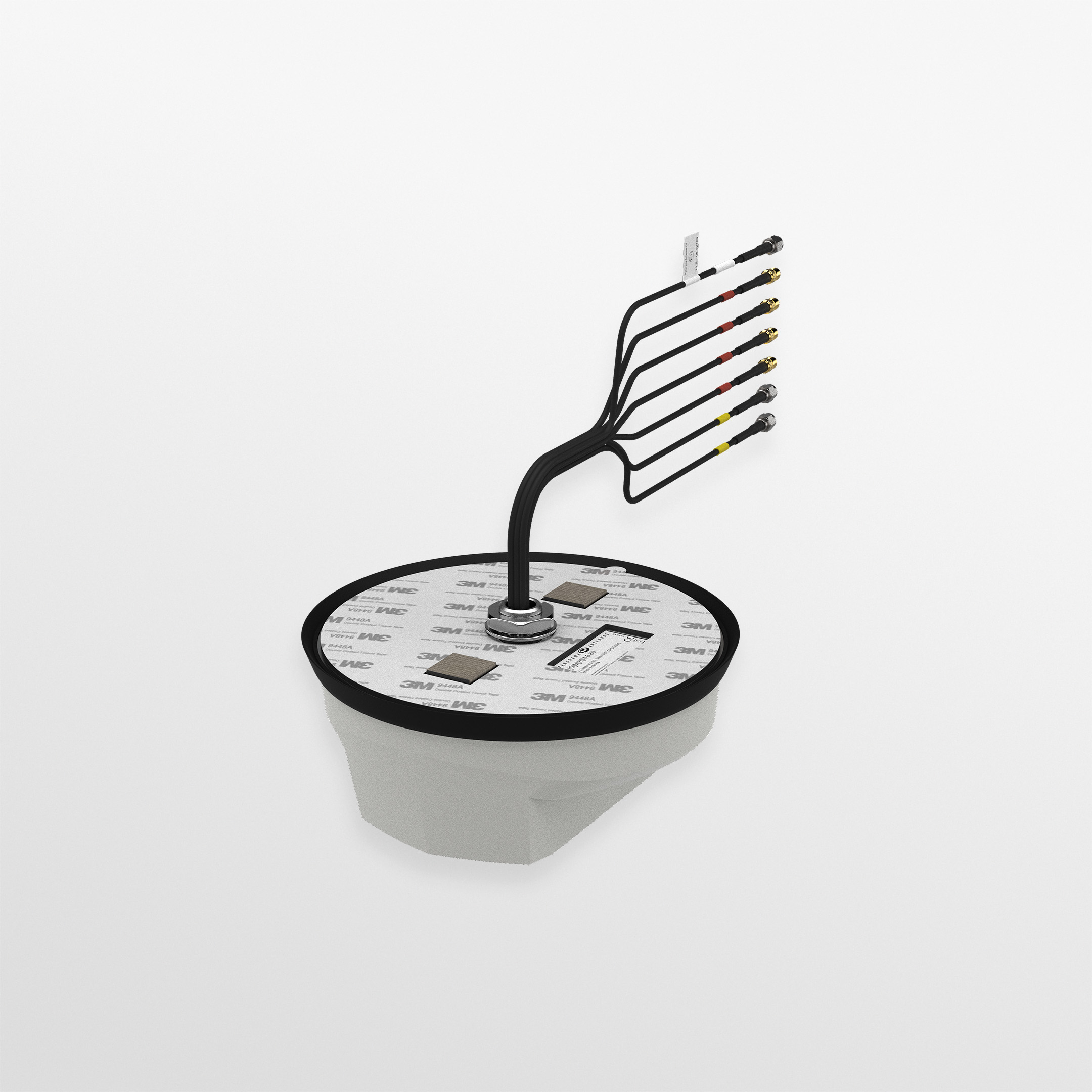

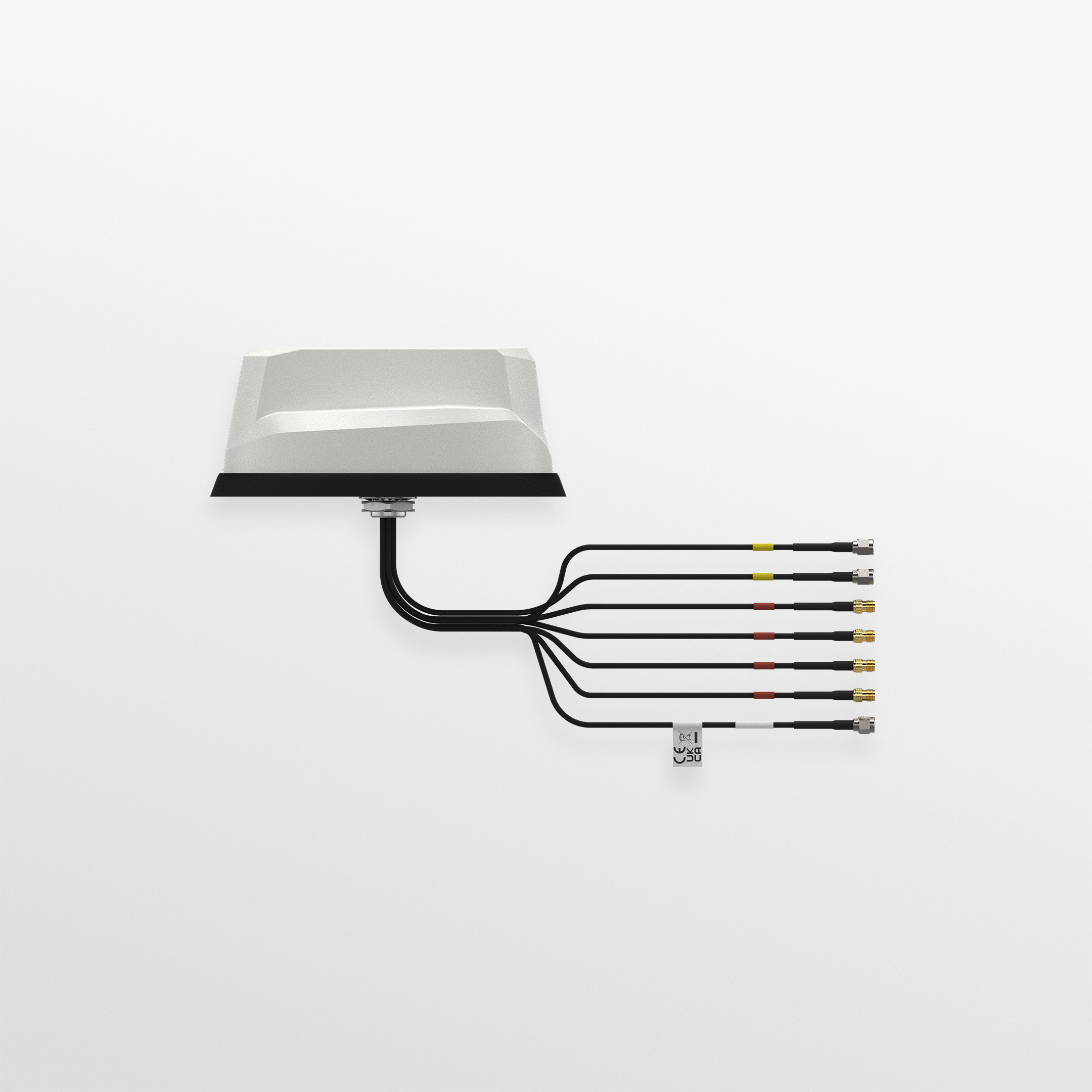

  • Factory-fitted 5 m FR RG174 cables: SMA (m) cellular and GNSS, RP-SMA Wi-Fi
  • Active GNSS with 26 dB LNA for GPS, GLONASS, Galileo and Compass
  • IP69K and IK10 rated white radome; -40 °C to +80 °C
  • Ground-plane independent panel mount
  • Covers every antenna port a Cradlepoint COR IBR900 vehicle install typically needs from one dome

The LG-IN2457-W is the white, cables-fitted version of Panorama's Great White 5G dome, configured with two cellular elements for 2x2 MIMO 4G/5G, two Wi-Fi elements for 2x2 MIMO and one GPS/GNSS module. It is suitable for Cradlepoint COR IBR900 Series routers, giving a compact vehicle router its cellular, Wi-Fi and location antennas through a single roof-mounted dome. Panorama rates the range as suitable for FirstNet (USA) and ESN (UK).

Cellular coverage spans 617–960 MHz and 1427–6000 MHz, with published gain of 5 dBi at 617–960 MHz, 9 dBi at 1710–3800 MHz and 10 dBi at 4900–6000 MHz, including Band 71 600 MHz. The omnidirectional antenna handles up to 20 W input. The GNSS module supports GPS, GLONASS, Galileo and Compass with a 26 dB LNA and LTE B13/14 filtering, and the Wi-Fi elements cover 2.4 GHz and 4.9–7.2 GHz.

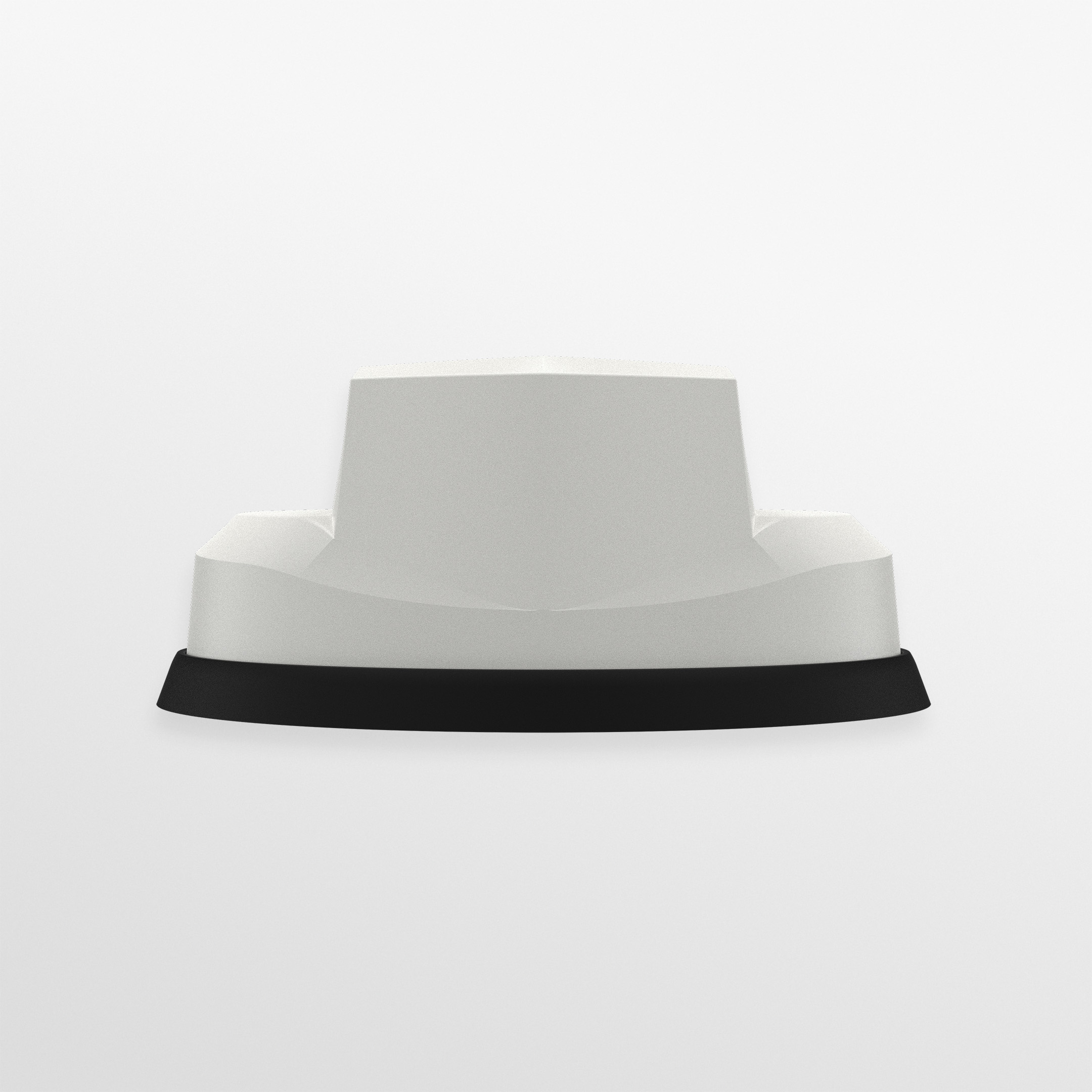

The dome is 75 mm (2.95 in) high and 180 mm (7.09 in) across, panel mounts on conductive or non-conductive surfaces without a ground plane, and operates from -40 °C to +80 °C. Its halogen-free flame-retardant radome is rated IP69K and IK10, and the fitted FR RG174 cables comply with UN ECE R118 and EN45545-2. The white radome suits vehicles where a light-coloured roof fitting is preferred. The product is TAA compliant, and Panorama publishes a datasheet and installation instructions for the range.

Ideal for

  • Cradlepoint COR IBR900 installs in police, fire and EMS vehicles
  • Fleet and utility vehicles needing cellular, Wi-Fi and GNSS from one dome
  • Transit and shuttle vehicles offering onboard Wi-Fi
  • Light-coloured vehicle roofs where a white antenna is preferred

Specifications

General

MPN
LG-IN2457-W
UPC
5055416055248
Brand
Panorama Antennas
TAA Compliant
TAA compliant
Product Family
Great White (L[G]M[H]M-6-60)

Package

Documentation
Datasheet and installation instructions
Shipping Weight
4.05 lb

GPS Data

Lna Gain
26 dB
GNSS Systems
GPS, GLONASS, Galileo, Compass
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable Data

Cable Supply
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Cable Length Wi-Fi
5 m (16.4 ft)
Quantity OF Cell Cable
2
Quantity OF Wi-Fi Extension
2
Quantity OF GPS GNSS Extension
1

Compatibility

Routers
Cradlepoint COR IBR900 Series routers

Mounting Data

Ground Plane
Ground plane independent
Mounting Methods
Panel; Magnetic
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals Data

IP Rating
IP69K
Impact Rating
IK10
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical Data

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
20 W
Gain 617 960 MHz
5 dBi
Gain 1710 3800 MHz
9 dBi
Gain 4900 6000 MHz
10 dBi
Wi-Fi Frequency Range
2.4 / 4.9–7.2 GHz
Cellular LTE Elements
2 x 2 MIMO
Cellular Frequency Range
617–960 / 1427–6000 MHz

Mechanical Data

Colour
White
Height
75 mm (2.95 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology Data

Technology
GPS, Wi-Fi MIMO, 4G/5G, 5G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS

Termination Data

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

Which Cradlepoint routers is it suited to?

It is suitable for Cradlepoint COR IBR900 Series routers.

Are the cables pre-attached?

Yes. The LG-IN2457-W has 5 m FR RG174 cables fitted. The LG-IN2457-W-LC variant supplies them loose.

What connectors does it use?

SMA (m) on the two cellular cables and the GNSS cable, and Reverse Polarity SMA on the two Wi-Fi cables.

What environmental ratings does it carry?

The radome is rated IP69K for ingress protection and IK10 for vandal resistance, with an operating range of -40 °C to +80 °C.
