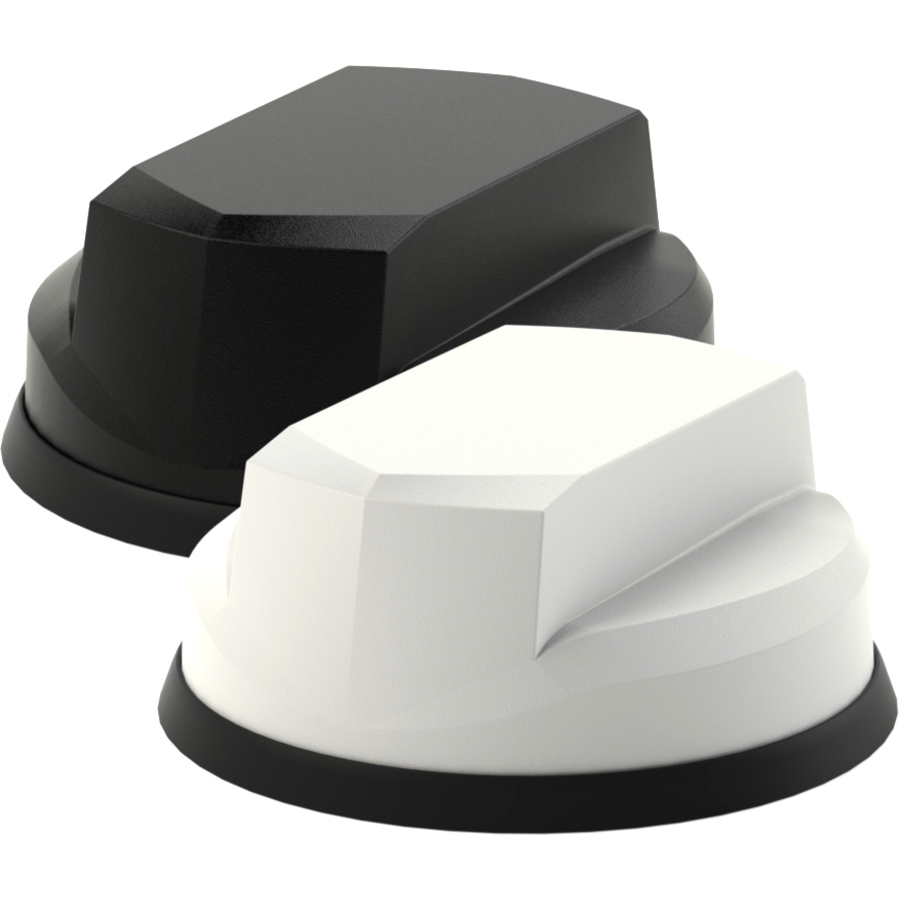

Panorama LG-IN2457-W-LC 5-in-1 5G/4G Dome Antenna Kit for Cradlepoint, White

5GMPN LG-IN2457-W-LC
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 3–5 m

Made for Cradlepoint

$308.02$424.66Save $116.64

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Overview

Give a Cradlepoint vehicle install every antenna it needs from one roof penetration. The Panorama LG-IN2457-W-LC packs 5 antenna functions into a single white dome and ships as a kit with 5 m loose extension cables sized for Cradlepoint COR IBR900 Series routers. One low-profile housing combines two 4G/5G cellular elements (2x2 MIMO), two 2.4/5.0 GHz Wi-Fi elements (2x2 MIMO), and an active GPS/GNSS element with 26 dB LNA.

  • 5-in-1 combination antenna: two 4G/5G cellular elements (2x2 MIMO), two 2.4/5.0 GHz Wi-Fi elements (2x2 MIMO), and an active GPS/GNSS element with 26 dB LNA
  • 617-960 / 1710-6000 MHz cellular coverage (5G-ready, includes C-band)
  • Up to 9 dBi peak gain
  • SMA (cellular & GNSS) and RP-SMA (Wi-Fi) connector termination
  • 5 m Loose extension cables (supplied in kit)
  • Single-hole panel / roof mount installation, conductive or non-conductive panels
  • Kitted for Cradlepoint COR IBR900 Series routers
  • White UV-stable housing

The Panorama LG-IN2457-W-LC is a 5-in-1 white dome antenna kit specified for Cradlepoint COR IBR900 Series routers. Instead of a rooftop cluttered with separate cellular whips, Wi-Fi stubs, and a GPS puck, one 7-inch dome carries every radio the router exposes - through a single sealed mounting hole.

The cellular elements cover 617-960 / 1710-6000 MHz. The cellular section spans every LTE and sub-6 GHz 5G band deployed by U.S. carriers - from 617 MHz low band through 3.45 GHz and C-band - so one part number serves Verizon, AT&T, T-Mobile, and FirstNet activations. The 2.4/5.0 GHz Wi-Fi section supports 2x2 MIMO for high-throughput WLAN, hotspot, or offload duty from the same footprint. An active GPS/GNSS element with a 26 dB low-noise amplifier feeds your router's GPS input for fleet tracking and location reporting. Peak gain reaches 9 dBi.

The housing is UV-stable and weatherproof, built for year-round exterior exposure; at 3.15 in tall and 7.09 in across it stays discreet on a roof or cabinet. Installation uses a single-hole panel / roof mount arrangement on conductive or non-conductive surfaces. The 5 m extension cables are supplied loose in the kit rather than factory-fitted, which makes it easier to route them through tight grommets and headliners before terminating at the router. All 5 leads terminate in SMA (cellular & GNSS) and RP-SMA (Wi-Fi) connectors.

Cloud Care Networks stocks the LG-IN2457-W-LC alongside the cellular routers and gateways it pairs with, so network teams can consolidate antennas, spares, and replacement hardware on a single order.

Ideal for

  • Police, fire, and EMS vehicles running Cradlepoint in-vehicle routers
  • School bus and transit fleet Wi-Fi and telematics
  • Field-service and utility vans needing reliable 5G/LTE WAN
  • Mobile command posts and pop-up connectivity sites

Specifications

Antenna

GNSS
Active GPS/GNSS, 26 dB LNA
Peak Gain
Up to 9 dBi
Directivity
Omni-directional
Wi-Fi Elements
2x Wi-Fi 2.4/5.0 GHz (2x2 MIMO)
Cellular Elements
2x 4G/5G (2x2 MIMO)
Cellular Frequency
617-960 / 1710-6000 MHz

Package

Compatibility
Cradlepoint COR IBR900 Series routers
Shipping Weight
5.00 lb

Physical

Color
White
Height
3.15 in
Diameter
7.09 in
Mounting
Single-hole panel / roof mount
Form Factor
Low-profile dome

Connectivity

Connectors
SMA (cellular & GNSS) and RP-SMA (Wi-Fi)
Cable Length
5 m
Cable Configuration
Loose extension cables (supplied in kit)

Questions buyers ask

Which routers is the LG-IN2457-W-LC designed for?

Panorama specifies this kit for Cradlepoint COR IBR900 Series routers. Because the leads terminate in standard SMA (cellular & GNSS) and RP-SMA (Wi-Fi) connectors, it also works with any router or gateway that exposes matching antenna ports - connect the cellular leads to the modem ports, the Wi-Fi leads to the WLAN ports, and the GNSS lead to the GPS input.

Does it work with Verizon, AT&T, T-Mobile, and FirstNet?

Yes. The cellular elements cover 617-960 / 1710-6000 MHz, which includes the low-band, mid-band, and C-band spectrum used by all major U.S. carriers and FirstNet Band 14. The antenna is passive and carrier-agnostic - your router's modem and SIM determine the network.

How is it mounted?

It uses a single-hole panel / roof mount installation. A single central fixing carries all the cables through the mounting surface, so the installation stays weatherproof and low-profile. Panorama's design works on conductive or non-conductive panels, making it suitable for vehicle roofs, equipment cabinets, and enclosures.

What is included in the box?

The dome antenna assembly with its extension cable set (supplied loose for easier routing), sealing gasket, and single-hole fixing hardware. Router sold separately.
