Panorama LG-IN2457 Great White 5G 5-in-1 Dome Antenna for Cradlepoint IBR900, 2x2 MIMO, 2x2 Wi-Fi, GNSS, Black

5GMPN LG-IN2457
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up

Made for Cradlepoint

$307.32$424.66Save $117.34

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

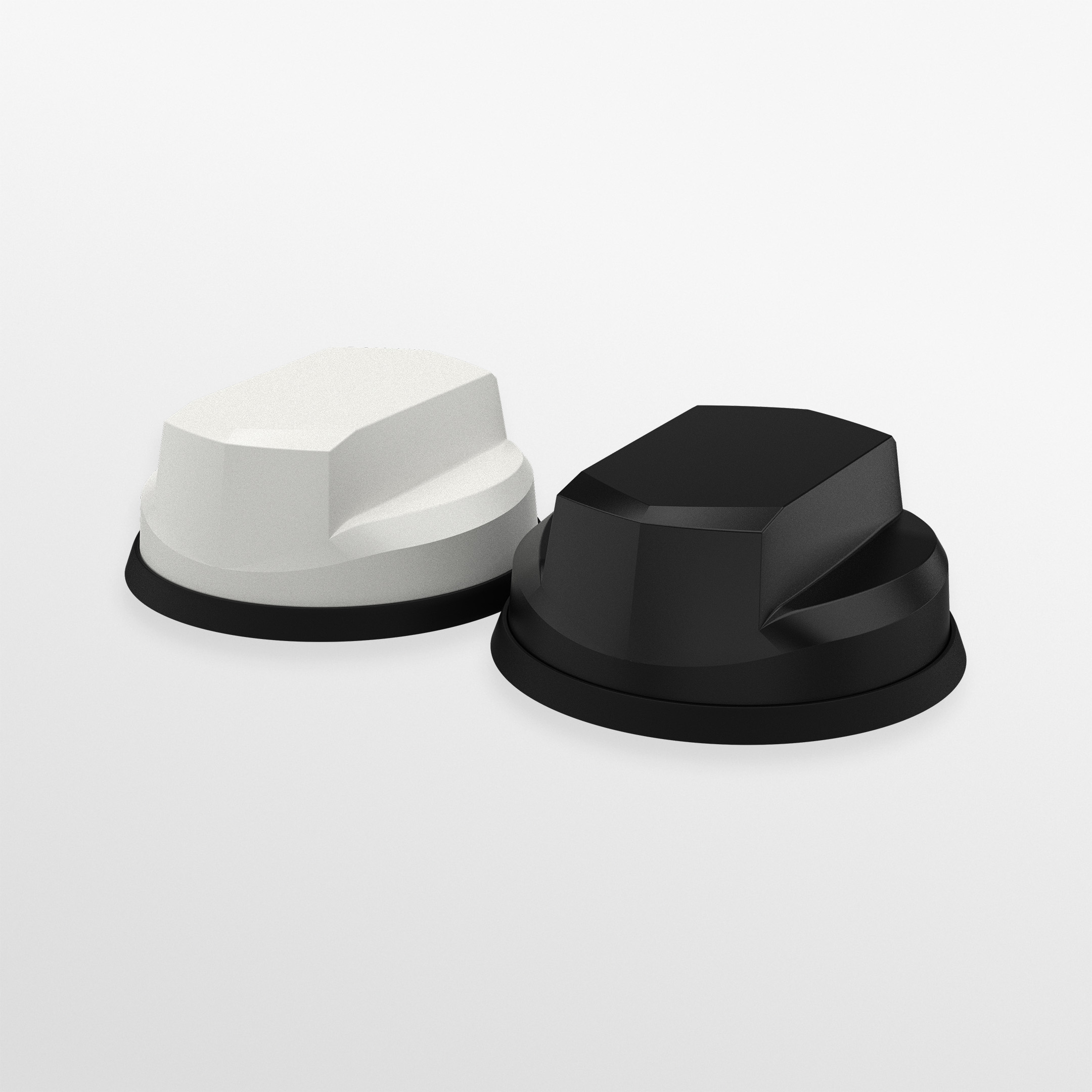

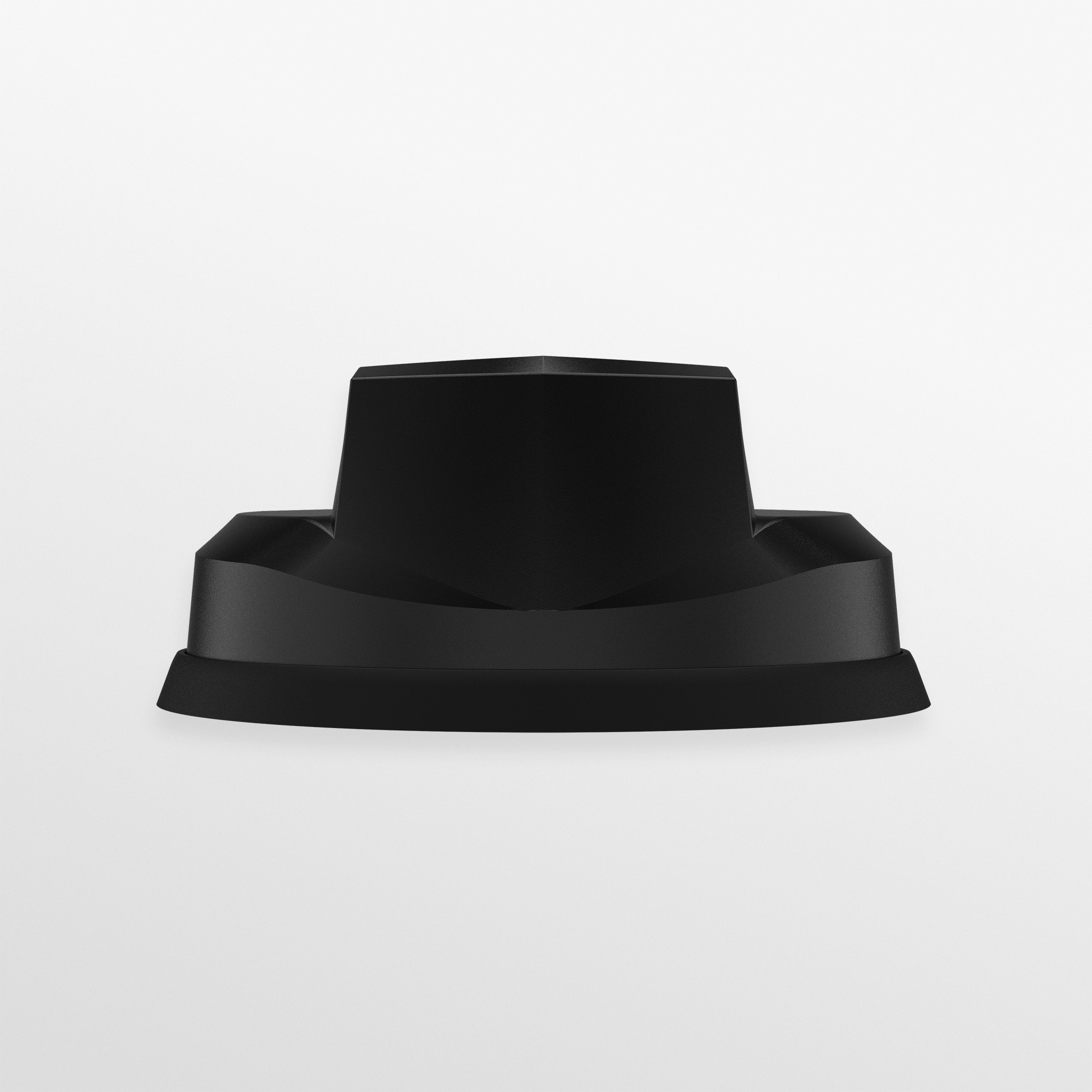

The Panorama LG-IN2457 is a black Great White 5G dome antenna with five functions in one low-profile housing. It has two cellular elements for 2x2 MIMO 4G/5G, two dual-band Wi-Fi elements for 2x2 MIMO, and a GPS/GNSS module with a 26 dB LNA. It is kitted for Cradlepoint COR IBR900 Series routers and comes with fitted 5 m cables.

  • Great White 5G dome with 5 functions: 2x cellular, 2x Wi-Fi, 1x GPS/GNSS
  • 2x2 MIMO 4G/5G, 617–960 / 1427–6000 MHz, Band 71 600 MHz ready
  • Gain of 5 dBi (617–960 MHz), 9 dBi (1710–3800 MHz) and 10 dBi (4900–6000 MHz)
  • 2x2 MIMO dual-band Wi-Fi, 2.4 / 4.9–7.2 GHz
  • GNSS module for GPS, GLONASS, Galileo and Compass, 26 dB LNA with LTE B13/14 filtering
  • Fitted 5 m FR RG174 cables: SMA (m) cellular/GPS, RP-SMA Wi-Fi
  • IK10 and IP69K halogen-free radome, 75 mm low profile
  • Matches the 2x2 cellular and 2x2 Wi-Fi port layout of a Cradlepoint COR IBR900

The Panorama LG-IN2457 is the 5-in-1 version of the Great White 5G dome, in black. It combines two cellular elements for 2x2 MIMO 4G/5G, two dual-band Wi-Fi elements for 2x2 MIMO, and an integrated GPS/GNSS module. It is kitted for Cradlepoint COR IBR900 Series routers and suits vehicles that need cellular, Wi-Fi and location from one compact roof antenna.

The Great White range delivers 2x2 4G/5G MIMO from 617–960 MHz and 1427–6000 MHz, and it is Band 71 600 MHz ready. Gain is 5 dBi at 617–960 MHz, 9 dBi at 1710–3800 MHz and 10 dBi at 4900–6000 MHz, with an omnidirectional pattern. The Wi-Fi elements cover 2.4 GHz and 4.9–7.2 GHz. The GNSS module supports GPS, GLONASS, Galileo and Compass with 26 dB LNA gain. It adds advanced filtering for LTE Band 13/14 to minimise in-band interference. Panorama rates the antenna as suitable for FirstNet (USA) and ESN (UK).

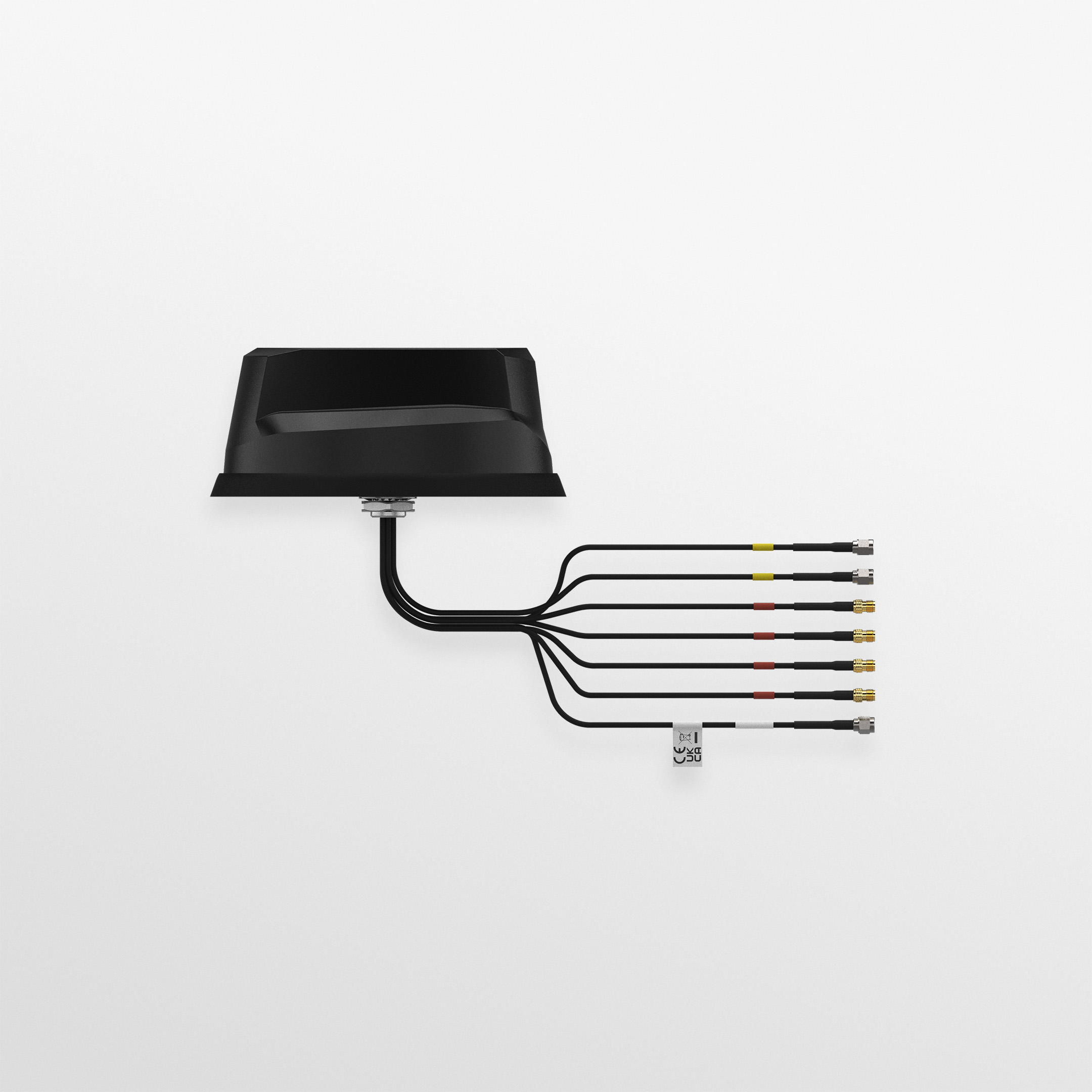

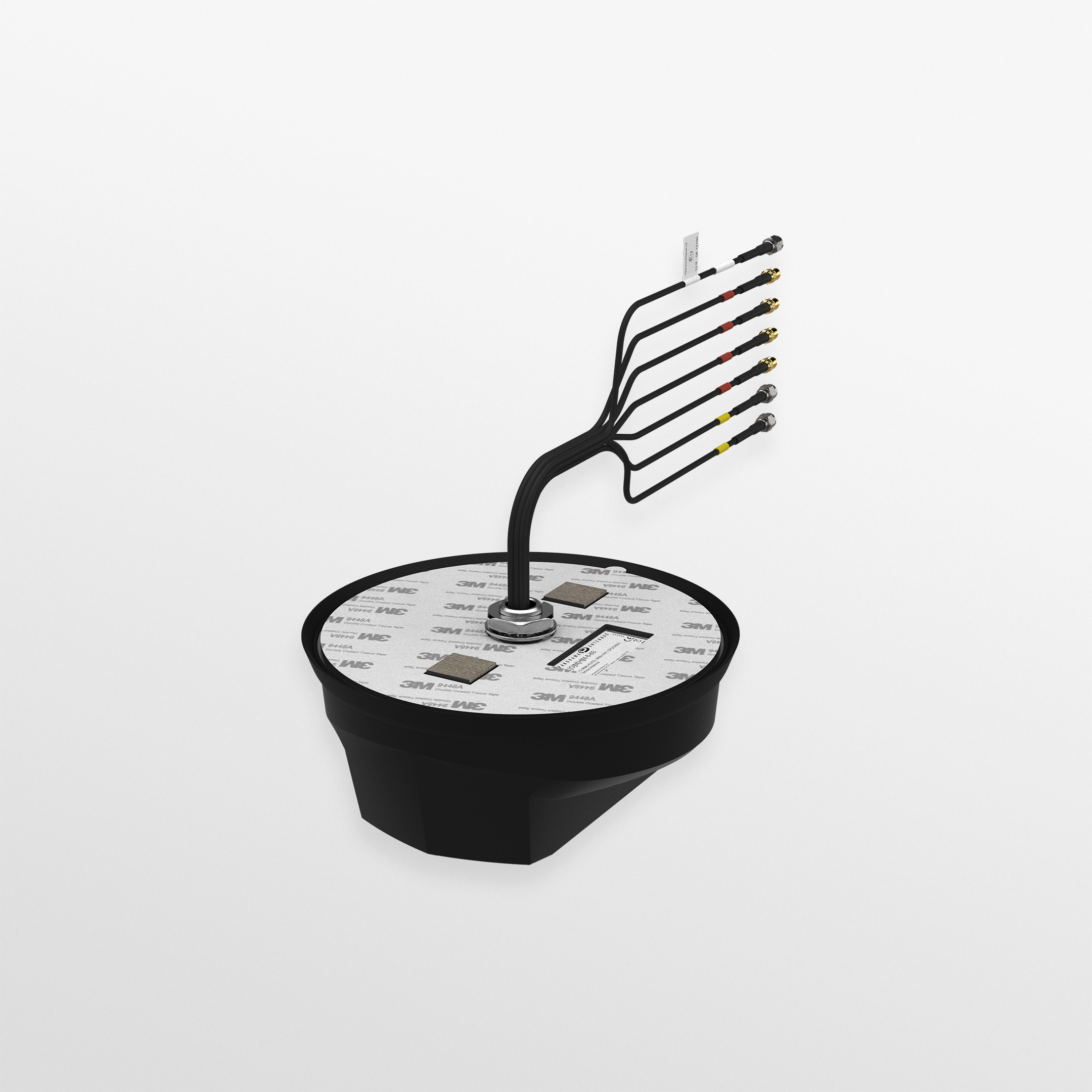

The antenna is designed for panel mounting on conductive or non-conductive panels and is ground-plane independent. Magnetic mounting is also supported for temporary installs. It comes with fitted 5 m cables: two SMA (m) cellular, one SMA (m) GPS and two reverse-polarity SMA Wi-Fi. The cables are flame-retardant RG174, compliant to UN ECE R118.03 and EN45545-2. The halogen-free radome meets IK10 and IP69K and operates from -40 °C to +80 °C. It stands 75 mm tall and measures 180 mm in diameter.

Ideal for

  • Patrol and emergency vehicles with Cradlepoint COR IBR900 routers
  • Field-service and utility trucks needing cellular, Wi-Fi hotspot and GPS
  • FirstNet public-safety fleet installs
  • Transit and municipal vehicles with in-vehicle routers

Specifications

General

MPN
LG-IN2457
UPC
5055416055224
Brand
Panorama Antennas
Functions
5 in 1 (2 cellular, 2 Wi-Fi, 1 GPS/GNSS)
Compatibility
Cradlepoint COR IBR900 Series routers
TAA Compliant
TAA compliant
Product Family
Great White 5G

Package

Shipping Weight
3.90 lb

GPS Data

Lna Gain
26 dB
Filtering
Advanced filtering for LTE B13/14
Constellations
GPS, GLONASS, Galileo, Compass
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 module

Cable Data

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
5 m (16.4 ft), fitted
Cable Length LTE
5 m (16.4 ft), fitted
Cable Length Wi-Fi
5 m (16.4 ft), fitted
Quantity OF Cell Cable
2
Quantity OF Wi-Fi Extension
2 (2 x 2 MIMO)
Quantity OF GPS GNSS Extension
1

Mounting Data

Ground Plane
Ground plane independent
Mounting Methods
Panel; Magnetic
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals Data

IP Rating
IP69K
Impact Rating
IK10 (radome)
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical Data

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO (2.4 / 4.9–7.2 GHz)
Max Input Power
20 W
Gain 617 960 MHz
5 dBi
Gain 1710 3800 MHz
9 dBi
Gain 4900 6000 MHz
10 dBi
Cellular LTE Elements
2 x 2 MIMO
Cellular Frequency Range
617–960 / 1427–6000 MHz

Mechanical Data

Colour
Black
Height
75 mm (2.95 in)
Radome
Halogen-free flame-retardant radome
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology Data

Technology
GPS, GNSS, 2G/3G/4G/5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO

Termination Data

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

What does 5-in-1 mean on the LG-IN2457?

The dome holds two cellular elements (2x2 MIMO), two dual-band Wi-Fi elements (2x2 MIMO) and one GPS/GNSS module.

Which router is it kitted for?

Cradlepoint COR IBR900 Series routers. It comes with fitted 5 m cables: two SMA (m) cellular, two RP-SMA Wi-Fi and one SMA (m) GPS.

Does it need a metal mounting surface?

No. It is ground-plane independent and panel mounts on conductive or non-conductive surfaces. Magnetic mounting is also supported for temporary use.

Is it suitable for FirstNet vehicles?

Panorama rates it as suitable for FirstNet (USA) and ESN (UK). Its GNSS module includes filtering for LTE Band 13/14 to minimise in-band interference.
