Cradlepoint R2400 5G In-Vehicle Router with Wi-Fi 7 and 1-Year NetCloud Essentials Plan (North America)

5GMPN MB01-R2400-5GF-NA-A
  • Wi-Fi 7
  • Dual SIM
  • eSIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • Rugged
$2,499.00

In stockShips from the US

Included subscription · 1 year
1 year3 years+$5005 years+$1,000
Compliance · Standard
StandardTAA compliant+$443
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 9 configurations

Datasheets & documents

Overview

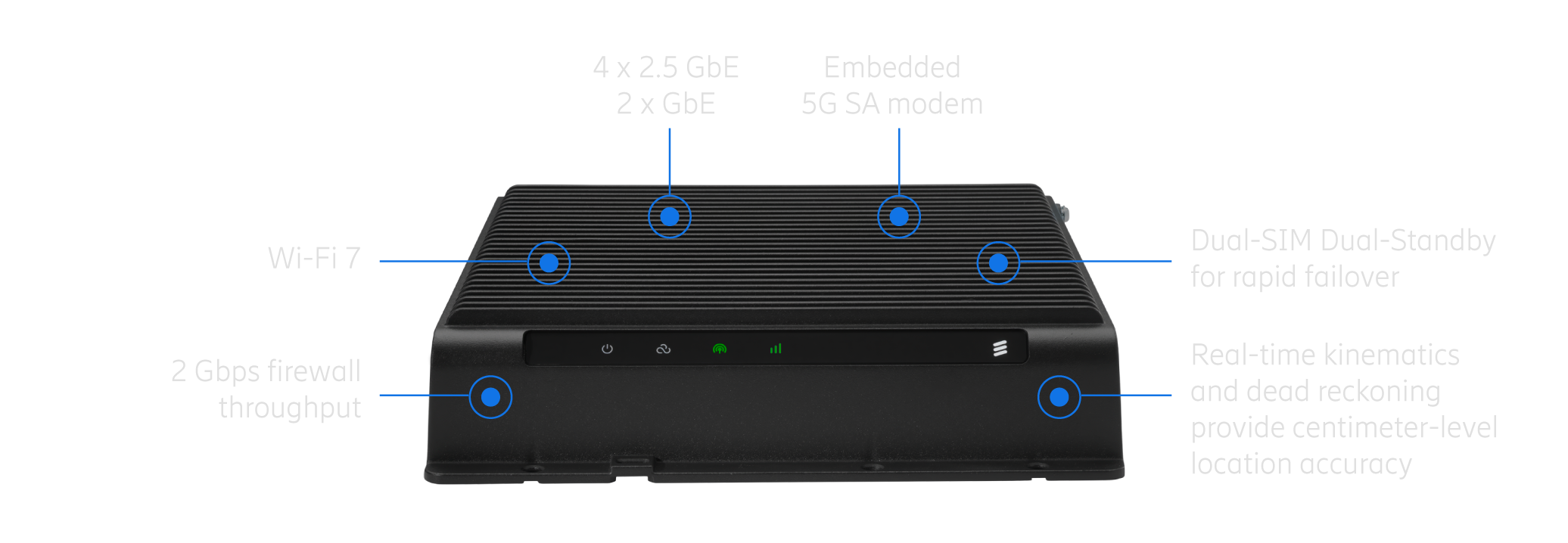

The Cradlepoint R2400 is a ruggedized 5G in-vehicle router for fleets, public safety and field operations. This North America (U.S. and Canada) SKU pairs the R2400 with an embedded 5G FR1 and LTE Category 20 modem and a 1-Year NetCloud Mobile Performance Essentials Plan. The router offers 5G Stand Alone support, Dual-SIM Dual Standby with dual eSIM, and Wi-Fi 7. It also provides six LAN/WAN switchable Ethernet ports, GNSS with dead reckoning, IP64 protection and a -40 °C to 70 °C operating range. The package does not include an AC power supply or antennas.

  • Embedded 5G FR1 NSA/SA and LTE Category 20 modem with peak rates up to 4.9 Gbps down and 900 Mbps up
  • Dual SIM slots with Dual-SIM Dual Standby and dual eSIM for fast carrier failover
  • Modular design supporting up to five internal and external 5G SA modems, field-upgradable
  • Software-defined Wi-Fi 7 radio plus 4 x 2.5 GbE and 2 x 1 GbE LAN/WAN switchable ports
  • Multi-constellation GNSS with dead reckoning and real-time kinematics
  • Rated IP64 with a -40 °C to 70 °C operating range, MIL-STD-810H shock/vibration and Class I Div 2
  • 1-Year NetCloud Mobile Performance Essentials Plan with 24x7 support
  • Keeps vehicles connected through carrier outages, with Dual-SIM Dual Standby failover that shows the state of the standby network before switching

The Cradlepoint R2400 is a ruggedized, secure router built for in-vehicle deployments. Its embedded 5G FR1 NSA/SA and LTE Advanced Pro Category 20 modem reaches peak rates of up to 4.9 Gbps downlink and 900 Mbps uplink. It uses 4x4 downlink MIMO and holds AT&T, T-Mobile and Verizon network operator certifications, plus T-Mobile T-Priority for public safety. Dual SIM slots with Dual-SIM Dual Standby give quick carrier failover with visibility into the standby network. Dual eSIM lets you switch carriers without changing physical SIMs. The modular design supports up to five internal and external 5G SA modems for multi-carrier and satellite deployments, and those modems can be upgraded in the field.

Inside the vehicle, a software-defined Wi-Fi 7 radio supports WPA3 and runs either as a single 4x4 radio or as two 2x2 radios. For wired devices, the router has four 2.5 GbE ports and two 1 GbE ports, all LAN/WAN switchable. It also provides USB-C, CAN Bus and 4 GPIO connections. For location, the R2400 combines GPS, Galileo, GLONASS and BeiDou with dead reckoning and real-time kinematics, which enables up to centimeter-level accuracy. A quad-core ARMv8 CPU with up to 3.8 GB of memory runs Docker containerized applications at the edge.

The chassis is rated IP64 and operates from -40 °C to 70 °C. It meets MIL-STD-810H vibration and shock methods, SAE J1455, E-Mark, NFPA 130 and Class I Div 2 standards. The router accepts 9–36 VDC input and includes ignition sensing and ISO 7637-2 transient protection.

The included 1-Year NetCloud Mobile Performance Essentials Plan covers NetCloud Manager device management and software updates for the full term. It also includes 24x7 support and a limited lifetime warranty while the subscription stays active. You can add a NetCloud Advanced Plan at any time.

Ideal for

  • Police, fire and EMS vehicles that need prioritized public safety network access and fast carrier failover
  • Transit buses and rail cars that need passenger Wi-Fi, onboard video uplink and NFPA 130 fire safety compliance
  • Utility, oil and gas field fleets working in extreme temperatures or Class I Div 2 hazardous locations
  • Fleet tracking and telematics that rely on RTK and dead-reckoning location data
  • Mobile command units running containerized edge applications and AI inference

Specifications

Power

Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Consumption
Sleep 15 mW; Idle 26 W; Typical 29 W; Heavy 41 W
Input Voltage
9–36 VDC steady state (in-line fuse required for vehicle installs)
Connector Type
4-pin 2x2 Molex Mini-Fit
Fuse Requirements
5 A fuse for 12 VDC nominal; 3 A fuse for 24 VDC nominal

General

MPN
MB01-R2400-5GF-NA-A
UPC
840292726499
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2400
Region
North America (U.S. & Canada)
Package Plan
1-Year NetCloud Mobile Performance Essentials Plan
Product Status
Active
Shipping Weight
4.50 lb (shipping)
Subscription Term
1 year
Hardware Configuration
Cat 20 5GF modem; AC power supply and antennas not included

GNSS GPS

Accuracy
Autonomous 1 m
Protocols
NMEA 0183, TAIP
Frequencies
L1, L5 (1559–1606 MHz)
Sensitivity
Acquisition -145 dBm; Tracking -165 dBm; Reacquisition -157 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent)
Time TO First Fix
26 seconds (cold start)
Active Antenna Bias
3.1–3.3 V supply, 100 mA max

Physical

Weight
1.64 kg (3 lb 10 oz)

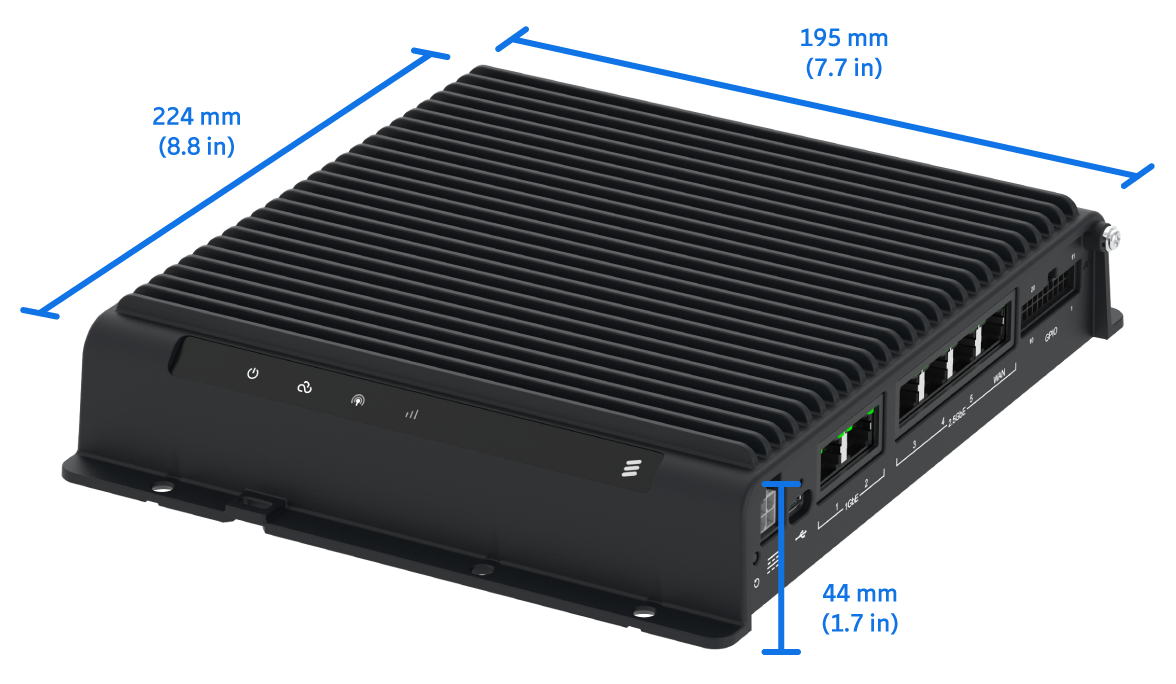

Dimensions
224 x 195 x 44 mm (8.8 x 7.7 x 1.7 in)

Interfaces

Wi-Fi
Software-defined radio, 4 x RP-SMA; Mode 1: 4x4 MU-MIMO 1376 Mbps (2.4 GHz) & 5765 Mbps (5 GHz); Mode 2: Radio A 2x2 dual-band 688/2882 Mbps + Radio B 2x2 5 GHz 2882 Mbps; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v
Modem

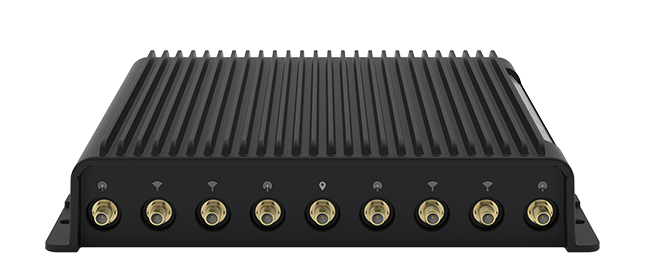

Embedded 5GF NR FR1 low/mid-band + LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet

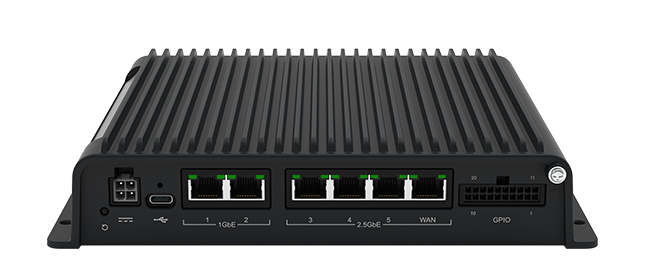

4 x 2.5 GbE + 2 x 1 GbE, LAN/WAN switchable
GNSS GPS
1 x SMA GNSS antenna connector
Expansion Console
1 x USB 2.0 Type-C (5 V, 1.5 mA, 7.5 W); 2 x 10 expansion connector; redundant power / ignition sense input; CAN Bus; 4 x GPIO; 5 V output

Wi-Fi Power

CE
2.4 GHz 17.63 dBm; 5150–5250 21.11; 5250–5350 21.10; 5470–5725 27.14; 5745–5825 12.00 dBm conducted
IC
2.4 GHz 28.93 dBm; 5150–5250 9.61; 5250–5350 13.29; 5470–5725 23.58; 5745–5825 24.10 dBm conducted
Fcc
2.4 GHz 28.93 dBm; 5150–5250 19.58; 5250–5350 23.58; 5470–5725 23.78; 5745–5825 23.88 dBm conducted
Rcm
2.4 GHz 17.63 dBm; 5150–5250 21.11; 5250–5350 21.10; 5470–5725 27.14; 5745–5850 12.00 dBm conducted
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Stateful Firewall
2 Gbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Point TO Point Ipsec VPN
800 Mbps
Sase Secure Connect SD-WAN Ipsec
720 Mbps (IPsec)

Reliability

Calculated MTBF
727,511 hours (Telcordia SR332 at 25 °C)

Environmental

Wind Rating
No wind rating
Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-40 °C to 70 °C (-40 °F to 158 °F)

Cellular Modem

SMS
Yes
MIMO
4x4 MIMO downlink, 2x2 MIMO uplink
GNSS GPS
Discrete active GPS with dead reckoning
LTE Bands
PC2: B38, B41, B42, B43; PC3: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29 DL, B30, B38, B41, B42, B43, B48, B66, B71
Modulation
5G FR1: up to 256 QAM downlink and uplink
Peak Rates
Up to 4.9 Gbps down / 900 Mbps up
Regulatory
FCC (U.S.), IC (Canada)
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM slots, dual eSIM; 3GPP Release 17
5G NR Bands
NSA/SA — PC1.5: n41, n77, n78; PC2: n2, n25, n41, n66, n71, n77, n78; PC3: n2, n5, n7, n12, n13, n14, n25, n26, n29 DL, n30, n38, n41, n48, n66, n70, n71, n77, n78
Transmit Power
5G NR: PC1.5 29 dBm, PC2 26 dBm, PC3 23 dBm; LTE: PC2 26 dBm, PC3 23 dBm (may be lower on select bands; tolerances per 3GPP TS 38.521-1 / 36.521-1)
Carrier Aggregation
5G SA: DL up to 3 CA (200 MHz max), UL 2 CA; 5G NSA: DL up to 3 CA, UL 1 CA; LTE: DL up to 6 CA, UL up to 2 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
T-Mobile T-Priority

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 in process (R2400 FIPS models only)
Shock Vibration
MIL-STD-810H operational vibration (514.8 Proc 1), functional shock 40G (516.8 Proc 1), crash hazard shock 75G (516.8 Proc 5)
Hazardous Locations
Class I Div 2 (North America), ATEX 2 (Europe)
Flame Smoke Toxicity
BSS 7239
Substance Compliance
RoHS, REACH, TSCA, California Prop 65, Canadian SOR/2012-285
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term (24x7 phone/web, chat 24x5)
Warranty
Limited lifetime warranty while subscribed to an active NetCloud plan
Service Plans
NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 3.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Software-defined 802.11be (Wi-Fi 7)
Category
Mobile
GPS GNSS
Active GNSS with dead reckoning and RTK
5G Status
5G Stand Alone, embedded
Bluetooth
No
Satellite
Integrated satellite management
USB Ports
1 x USB Type-C
Throughput
2 Gbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
Yes, with adapter
Ethernet Ports
4 x 2.5 GbE, 2 x GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
RTK and dead reckoning for up to centimeter-level location accuracy
Dual Modem Support
Yes, up to 5 active connections with captive modems
Subscription Terms
1, 3 & 5 years available
Operating Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Wireless Connectivity
5G & Cat 20 LTE
Private Cellular Network
Yes: CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What is included in the MB01-R2400-5GF-NA-A package?

The package includes the Cradlepoint R2400 router with an embedded 5G FR1 and LTE Category 20 modem and a 1-Year NetCloud Mobile Performance Essentials Plan. It does not include an AC power supply or antennas.

Which region is this SKU for?

This SKU is for North America (U.S. and Canada). Its modem carries FCC, IC and PTCRB approvals and AT&T, T-Mobile and Verizon network operator certifications.

What does the NetCloud Essentials plan provide?

The plan provides NetCloud Manager device management and software updates for the full term. It also includes 24x7 support: 24-hour weekday phone support with weekend emergency response, 24x7 web and 24x5 chat. The router carries a limited lifetime warranty while the subscription stays active. You can add a NetCloud Advanced Plan at any time.

How does the R2400 handle carrier failover?

The R2400 has dual 4FF SIM slots and dual eSIM, and it supports Dual-SIM Dual Standby. It can fail over to the standby carrier quickly with visibility into that network, so the switch is never blind. eSIM also lets you change carriers over the air.

How is the R2400 powered in a vehicle?

The R2400 accepts 9–36 VDC through a 4-pin 2x2 Molex Mini-Fit connector. Vehicle installs need an in-line fuse: 5 A for 12 VDC nominal systems or 3 A for 24 VDC. Ignition sensing turns the router on automatically and turns it off after a delay.
