Cradlepoint5G & LTE Routers

Cradlepoint R2400 5G Mobile Router with Wi-Fi 7, TAA/FIPS, 1-Year NetCloud Mobile Performance Essentials + Advanced

5GMPN TAA-MBA1-R2400-5GF-NA-FA
  • Wi-Fi 7
  • Dual SIM
  • eSIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • Rugged
$2,942.00

In stockShips from the US

Included subscription · 1 year
1 year3 years+$9815 years+$1,962
Compliance · TAA compliant
Standard−$443TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 9 configurations

Datasheets & documents

Overview

The Ericsson Cradlepoint R2400 is a ruggedized in-vehicle router with an embedded 5G SA/NSA and Cat 20 LTE modem, Wi-Fi 7, and Dual-SIM Dual Standby with dual eSIM. This TAA-compliant FIPS SKU (TAA-MBA1-R2400-5GF-NA-FA) is the North American configuration for US Federal Government ordering. It bundles a 1-year NetCloud Mobile Performance Essentials package and an Advanced Plan. It ships without an AC power supply or antennas.

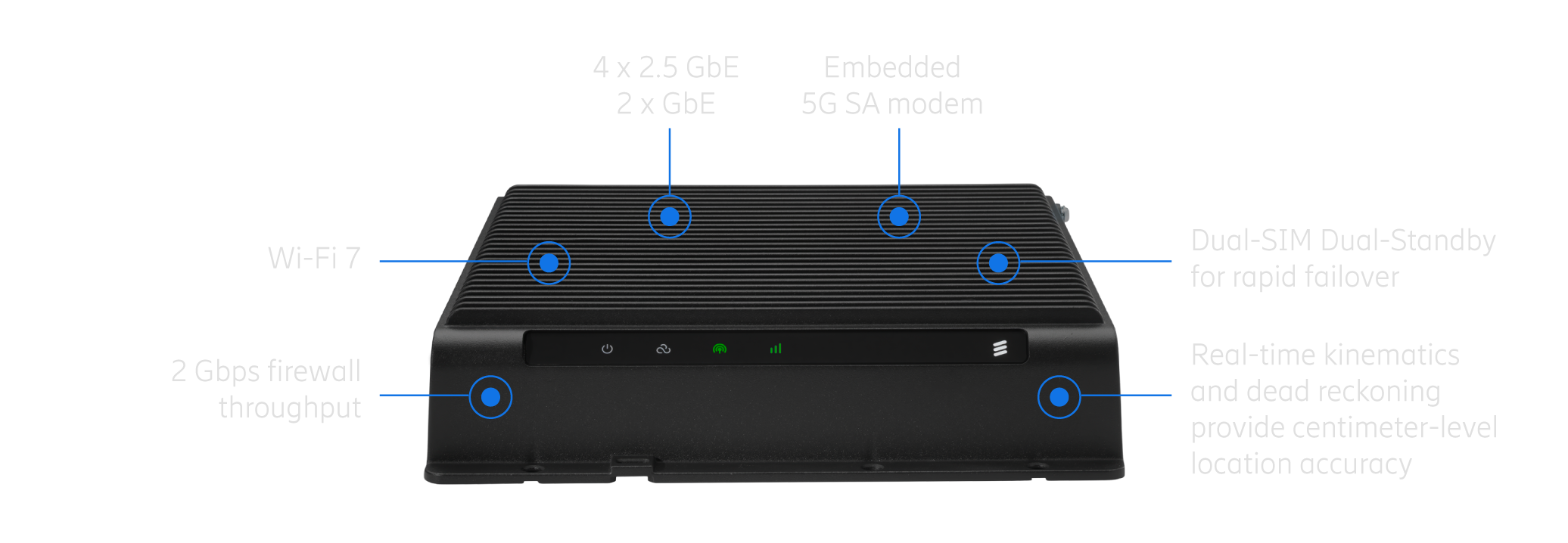

  • Embedded 5G FR1 NSA/SA and LTE Advanced Pro Cat 20 modem, up to 4.9 Gbps downlink and 900 Mbps uplink
  • Dual-SIM Dual Standby with dual eSIM for quick, visible carrier failover
  • Modular design supporting up to four additional external 5G SA modems and LEO satellite connections

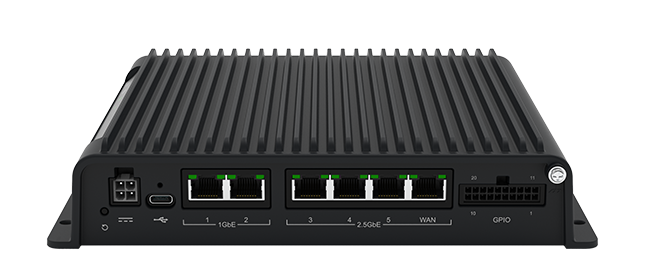

  • Software-defined Wi-Fi 7 radio plus 4 x 2.5 GbE and 2 x 1 GbE LAN/WAN-switchable ports
  • GNSS with dead reckoning and Real-Time Kinematics for up to centimeter-level location accuracy
  • Quad-core ARMv8 edge compute running Docker containers, with up to 3.8 GB memory
  • TAA-compliant FIPS SKU with 1-year NetCloud Mobile Performance Essentials + Advanced Plans
  • Meets US Federal procurement needs with a TAA-compliant FIPS configuration built for government ordering

The Ericsson Cradlepoint R2400 is a ruggedized, secure router built for in-vehicle deployments such as public safety fleets, transit and field operations. This SKU is the TAA-compliant FIPS variant for US Federal Government ordering. Its North American Cat 20 5G modem is certified on AT&T, T-Mobile and Verizon, and it supports T-Mobile T-Priority. It includes a 1-year NetCloud Mobile Performance Essentials package plus an Advanced Plan. The hardware configuration has no AC power supply or antennas, so plan for 9–36 VDC vehicle power and your own cellular, Wi-Fi and GNSS antennas.

The embedded modem supports 5G FR1 NSA and SA plus LTE Advanced Pro Category 20, with peak rates up to 4.9 Gbps down and 900 Mbps up. Dual-SIM Dual Standby lets the router watch the standby network and fail over quickly. Dual eSIM means you can change carriers without swapping physical SIMs. The modular design supports up to four additional external 5G SA modems, for up to five simultaneous 5G SA and LEO satellite connections. It also supports CBRS Band 48 private cellular and 5G network slicing.

For networking, the R2400 provides four 2.5 GbE and two 1 GbE LAN/WAN-switchable ports and a software-defined Wi-Fi 7 radio. It is rated for 2 Gbps stateful firewall throughput, 800 Mbps point-to-point IPsec VPN and 20 concurrent tunnels. A quad-core ARMv8 CPU with up to 3.8 GB of memory runs Docker containerized applications at the edge. Location comes from a four-constellation GNSS receiver with dead reckoning and Real-Time Kinematics for up to centimeter-level accuracy.

The chassis is rated IP64 and operates from -40 °C to 70 °C. It carries MIL-STD-810H shock and vibration testing, E-Mark, SAE J1455, NFPA 130 and Class I Div 2 certifications. The FIPS 140-3 Level 1 module is in process. The NetCloud package includes NetCloud Manager, software updates and 24x7 support for the term, plus a limited lifetime warranty while the subscription stays active.

Ideal for

  • Federal and public safety vehicle networks that require TAA-compliant, FIPS-configured equipment
  • Police, fire and EMS fleets using prioritized access through T-Mobile T-Priority
  • Transit and rail vehicles that need NFPA 130 and BSS 7239 certified connectivity
  • Mobile command and field operations using multi-carrier 5G SA and LEO satellite links
  • In-vehicle edge computing that runs containerized AI inference and telematics applications

Specifications

Modem

SMS
Yes
MIMO
4x4 DL, 2x2 UL MIMO
GNSS GPS
Discrete active GPS with dead reckoning
LTE Bands
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29 DL, B30, B38, B41, B42, B43, B48, B66, B71
Modulation
Up to 256 QAM DL/UL
Peak Rates
Up to 4.9 Gbps down / 900 Mbps up
Regulatory
FCC (U.S.), IC (Canada)
Technology
5G FR1 NSA/SA, LTE Cat 20, dual 4FF SIM + dual eSIM, 3GPP Rel. 17
5G NR Bands
n2, n5, n7, n12, n13, n14, n25, n26, n29 DL, n30, n38, n41, n48, n66, n70, n71, n77, n78
Transmit Power
5G up to 29 dBm (PC1.5); LTE up to 26 dBm (PC2)
Carrier Aggregation
5G SA DL 3CA/UL 2CA; NSA DL 3CA/UL 1CA; LTE DL 6CA/UL 2CA
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
T-Mobile T-Priority

Power

Features
ISO 7637-2 reverse polarity/transient protection; ignition sensing
Connector
4-pin 2x2 Molex Mini-Fit
Consumption
Sleep 15 mW, Idle 26 W, Typical 29 W, Heavy 41 W
Input Voltage
9–36 VDC steady state (in-line fuse required for vehicle installations)
Fuse Requirements
5 A fuse for 12 VDC, 3 A fuse for 24 VDC

General

MPN
TAA-MBA1-R2400-5GF-NA-FA
UPC
840292730328
FIPS
FIPS SKU (FIPS 140-3 variant)
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R2400
Region
United States: Federal Government
Package Plan
1-Year NetCloud Mobile Performance Essentials + Advanced Plans
TAA Compliant
TAA-compliant SKU
Product Status
Active
Subscription Term
1 year
Hardware Configuration
Cat 20 5GF modem, no AC power supply or antennas

GNSS GPS

Accuracy
Autonomous 1 meter
Protocols
NMEA 0183, TAIP
Frequencies
L1, L5 (1559–1606 MHz)
Sensitivity
Acquisition -145 dBm, Tracking -165 dBm, Reacquisition -157 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent)
Time TO First Fix
26 seconds (cold start)
Active Antenna Bias
3.1–3.3 V, max 100 mA

Physical

Size

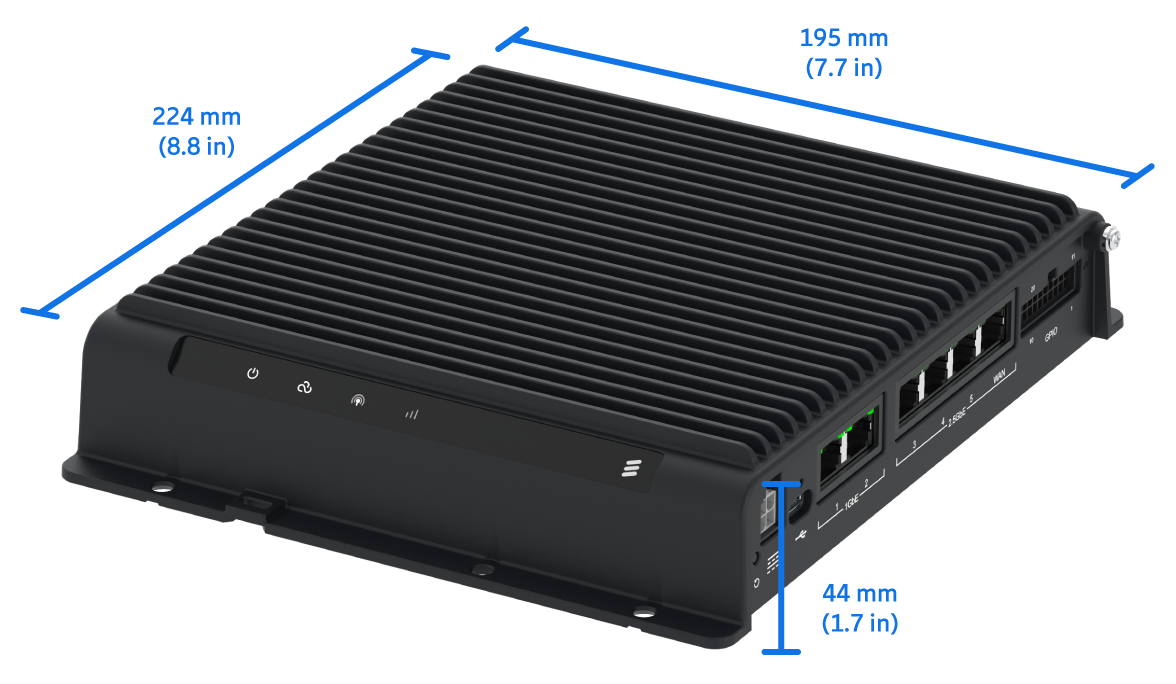

224 x 195 x 44 mm (8.8 x 7.7 x 1.7 in)
Weight
1.64 kg (3 lb 10 oz)
Shipping Weight
4.5 lb shipping weight

Interfaces

Wi-Fi
Software-defined Wi-Fi, 4 x RP-SMA; Mode 1 4x4 MU-MIMO up to 1376/5765 Mbps; Mode 2 dual 2x2 radios
Modem
Embedded 5GF NR FR1 low/mid-band and LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet
4 x 2.5 GbE + 2 x 1 GbE, LAN/WAN switchable
Expansion Console
USB 2.0 Type-C, 2x10 expansion connector, redundant power/ignition sense, CAN Bus, 4 x GPIO, 5 V output
GNSS GPS Connector
1 x SMA GNSS antenna connector

Wi-Fi Power

CE
CE conducted power by band
IC
IC conducted power by band
Fcc
FCC conducted power by band
Rcm
RCM conducted power by band
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Stateful Firewall
2 Gbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Point TO Point Ipsec VPN
800 Mbps
Sase Secure Connect SD-WAN
IPsec: 720 Mbps

Reliability

Calculated MTBF
727,511 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
5% to 95% operating and storage
Wind Rating
No wind rating
Ingress Protection
IP64 (dust tight and splashing water)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-40 °C to 70 °C (-40 °F to 158 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 module in process (FIPS models)
Shock Vibration
MIL-STD-810H vibration, 40G functional shock, 75G crash hazard shock
Hazardous Locations
Class I Div 2 (North America), ATEX 2 (Europe)
Flame Smoke Toxicity
BSS 7239
Substance Compliance
RoHS, REACH, TSCA, California Prop 65, Canadian Toxic Substance Act
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 3.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Software-defined radio, 802.11be (Wi-Fi 7)
Category
Mobile
GPS GNSS
Active with Dead Reckoning and RTK
5G Status
5G stand alone embedded
Bluetooth
No
Satellite
Integrated satellite management
USB Ports
1 x USB Type-C
Throughput
2 Gbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
Yes, with adapter
Ethernet Ports
4 x 2.5 GbE, 2 x GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
RTK and dead reckoning for up to centimeter-level location accuracy
Multi Modem Support
Yes, up to 5 active connections with captive modems
Wireless Connectivity
5G & Cat 20 LTE
Private Cellular Network
Yes: CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)
Subscription Terms Offered
1, 3 & 5 years

Questions buyers ask

Does this SKU include a power supply or antennas?

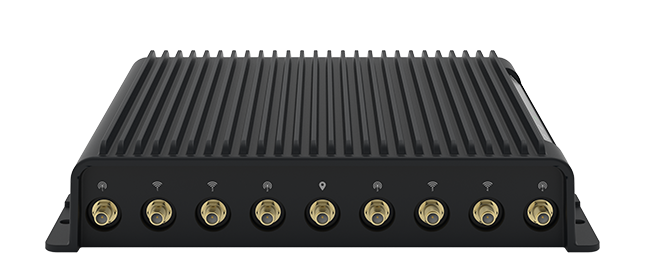

No. This hardware configuration ships without an AC power supply or antennas. The router runs on 9–36 VDC through a 4-pin 2x2 Molex Mini-Fit connector. It provides 4 SMA cellular connectors, 4 RP-SMA Wi-Fi connectors and 1 SMA GNSS connector for the antennas you choose.

What is the FIPS status of the R2400?

This is the FIPS SKU of the R2400. Ericsson lists its FIPS 140-3 Level 1 module as in process for R2400 FIPS models.

What does the 1-year NetCloud subscription include?

The Essentials package covers NetCloud Manager device management, software updates and 24x7 support for the full term. Phone support runs 24 hours on weekdays with emergency response on weekends, web support is 24x7 and chat is 24x5. The Advanced Plan adds further NetCloud capabilities. The hardware carries a limited lifetime warranty while an active NetCloud plan is maintained.

Which US carriers is the modem certified on?

The North American modem is certified on AT&T, T-Mobile and Verizon. It also holds T-Mobile T-Priority public safety certification and supports CBRS Band 48 private cellular networks.

Is the R2400 suitable for hazardous or harsh environments?

Yes. It is rated IP64, operates from -40 °C to 70 °C and is tested to MIL-STD-810H vibration and shock. It is also certified for Class I Div 2 (North America) and ATEX 2 (Europe) hazardous locations.
