Cisco Meraki MG21 Cat 6 LTE Cellular Gateway, North America

4G LTEMPN MG21-HW-NA
  • 2–4 × 1 Gb Ethernet
  • PoE powered
$768.37$1,119.15Save $350.78

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cisco Meraki MG21-HW-NA is the North America model of Meraki's IP67-rated Cat 6 LTE cellular gateway. It has two internal antennas, one nano SIM slot and two Gigabit Ethernet ports. The gateway converts LTE service into an Ethernet uplink at up to 300 Mbps down and 50 Mbps up. It runs on PoE or DC power and is managed entirely from the Meraki dashboard, making it a standard failover option for small branches.

  • Embedded Cat 6 LTE modem, up to 300 Mbps down / 50 Mbps up
  • Two internal antennas in a compact IP67 enclosure
  • Two Gigabit Ethernet LAN ports and one nano (4FF) SIM slot
  • Powered by 12 V DC or 802.3af PoE (10 W max)
  • Wall, ceiling or pole mounting with included bracket
  • Cloud-managed from the Meraki dashboard with zero-touch provisioning
  • North American LTE bands 2, 4, 5, 12, 13, 17, 29 with 2xDL carrier aggregation
  • Adds cellular backup to any branch router without replacing it

The Meraki MG21 turns a cellular connection into a wired Ethernet uplink for a Meraki MX or any other router. It is Meraki's standard backup-connectivity option for small branches. The MG21-HW-NA is the North America hardware SKU. Its embedded Cat 6 modem is rated up to 300 Mbps downlink and 50 Mbps uplink and supports LTE bands 2, 4, 5, 12, 13, 17 and 29 with two-carrier downlink aggregation up to 40 MHz. Cisco Meraki lists PTCRB certification, with carrier approvals from AT&T, Verizon and T-Mobile in the US and Rogers and Telus in Canada.

The two antennas are built into a sleek IP67 enclosure. That lets you mount the gateway on a wall, ceiling or pole with the included bracket, in the spot with the best signal, rather than where the router happens to sit. It operates from -30°C to 50°C. Power comes from 12 V DC or 802.3af PoE (10 W maximum), so a single cable can carry both data and power. Two Gigabit LAN ports support two separate downstream routers, which suits MX high-availability pairs.

The Meraki dashboard handles zero-touch provisioning, scheduled firmware upgrades and live cellular metrics (IMEI, ICCID, APN, RSRP, RSRQ). It also provides alerts, remote packet capture and searchable event logs. When idle, the gateway uses roughly 6 to 8 MB of data per day for dashboard telemetry.

Each unit is paired with a Meraki MG21 Enterprise licence (1, 3, 5, 7 or 10 years). The hardware carries Cisco Meraki's lifetime warranty with next-day advance replacement.

Ideal for

  • Small-branch cellular failover behind a Meraki MX or other router
  • Primary WAN at sites without wired internet
  • SD-WAN secondary uplink over LTE
  • Shared uplink for MX high-availability pairs
  • Pop-up and temporary locations needing quick connectivity

Specifications

General

MPN
MG21-HW-NA
UPC
810979016625
Brand
Cisco Meraki
Model
Meraki MG21
Region
North America
Country OF Origin
Taiwan

Cellular

Standard
LTE Cat 6
Gsm Bands
GSM 850/900/1800/1900
Hspa Plus
HSPA+ BC2 (1900), BC4 (1700), BC5 (850)
Fdd LTE Bands
FDD-LTE B2, B4, B5, B12, B13, B17, B29
Certifications
PTCRB (US)
Max Throughput
Up to 300 Mbps down / 50 Mbps up
Tested Carriers
AT&T, Verizon, T-Mobile, Rogers, Telus
Carrier Aggregation
2xDL-CA up to 40 MHz (2+17, 4+17, 2+29, 4+29, 4+5, 2+5)

Features

Highlights
Cat 6 LTE, 2 downstream connections, PoE or DC, IP67
Management
Meraki dashboard, self-configuring, scheduled firmware upgrades
Remote Diagnostics
Alerts, ping/traceroute, cable test, packet capture, searchable logs
Cellular Visibility
IMEI, ICCID, APN, RSRP, RSRQ
Idle Telemetry Data
6–8 MB per day when idle

Physical

Weight
497 g (without accessories)
Antennas
2 x internal antennas
Humidity
5% to 95% non-condensing
Mounting

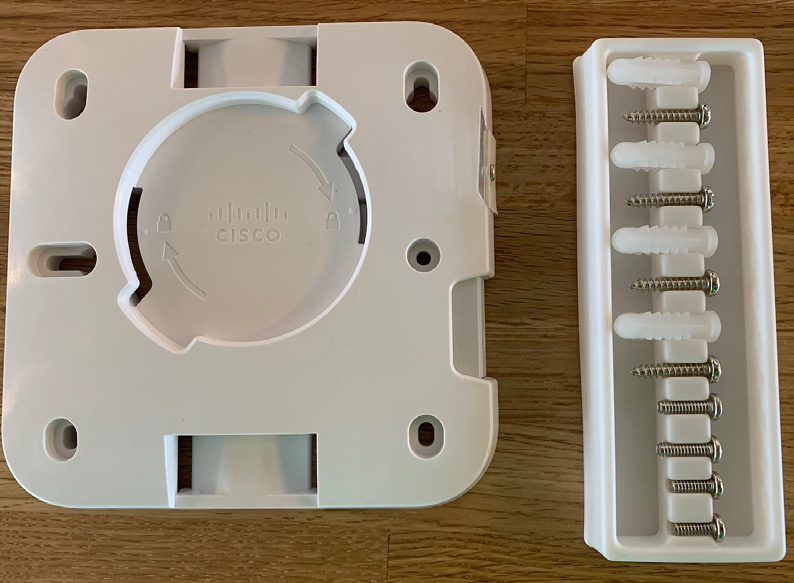

Included all-in-one wall/ceiling/pole bracket
Dimensions
160.45 x 160.45 x 34.45 mm (W x D x H)
Power Load
10 W maximum (PoE 802.3af)
Power Supply
12 V/1 A or 48–57 V DC/0.35 A
Ingress Protection
IP67
Operating Temperature
-22°F to 122°F (-30°C to 50°C)

Warranty

Hardware
Lifetime hardware warranty, next-day advance replacement
Accessories
1 year (mounting kits, antennas, power cords)

Licensing

Required Licence
Meraki MG21 Enterprise License and Support, 1, 3, 5, 7 or 10 years

Interfaces

SIM Card Slot
1 x Nano SIM (4FF)
LAN Interfaces
2 x Gigabit Ethernet
WAN Interfaces
1 x Cat 6 LTE modem

Accessories

MA Inj 4
Gigabit 802.3at PoE injector
MA Pwr 30w
Standard power adapter (regional plugs)
MA Pwr MV LV
Low Voltage Power Converter

Reliability

MTBF 25c
MTBF at 25°C: 2,689,019

Questions buyers ask

Is a licence required?

Yes. Each MG21 is paired with a Meraki MG21 Enterprise licence (1, 3, 5, 7 or 10 years) covering cloud services, upgrades and support.

How much data does the gateway use by itself?

Cisco Meraki states it uses about 6 to 8 MB per day for dashboard telemetry and monitoring when idle.

Can it be powered over Ethernet?

Yes. It accepts 802.3af PoE (10 W maximum) or a 12 V DC supply.

Can I mount it outdoors?

Yes. The enclosure is IP67-rated, operates from -30°C to 50°C, and ships with a wall, ceiling and pole bracket.
