Cisco Meraki MG21E Cat 6 LTE Cellular Gateway with External Antennas, North America

4G LTEMPN MG21E-HW-NA
  • 2–4 × 1 Gb Ethernet
  • PoE powered
$856.54$1,247.57Save $391.03

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cisco Meraki MG21E-HW-NA is the North America model of Meraki's IP67-rated Cat 6 LTE cellular gateway with external antennas. It converts an LTE signal into an Ethernet handoff through two Gigabit ports and delivers up to 300 Mbps down and 50 Mbps up. Two dipole antennas and an all-in-one wall, ceiling and pole bracket are included. The gateway is managed from the Meraki dashboard and serves as a failover or primary WAN uplink for Meraki or third-party routers.

  • Embedded Cat 6 LTE modem, up to 300 Mbps down / 50 Mbps up
  • Two included external dipole antennas (MA-ANT-C1-A) with optional patch antenna
  • Two Gigabit Ethernet LAN ports and one nano (4FF) SIM slot
  • IP67 enclosure, -30°C to 50°C operating temperature
  • Powered by 12 V DC or 802.3af PoE (10 W max)
  • Cloud management from the Cisco Meraki dashboard with zero-touch provisioning
  • North American LTE bands 2, 4, 5, 12, 13, 17, 29 with 2xDL carrier aggregation
  • Place the antennas where signal is strongest, independent of where the router lives

The Meraki MG21E is a cellular gateway that turns LTE service into a wired Ethernet uplink. It works with a Meraki MX or any other router. The MG21E-HW-NA is the North America hardware SKU, built around an embedded Cat 6 modem rated up to 300 Mbps downlink and 50 Mbps uplink. It supports LTE bands 2, 4, 5, 12, 13, 17 and 29, plus two-carrier downlink aggregation up to 40 MHz. Cisco Meraki lists PTCRB certification and carrier approvals from AT&T, Verizon and T-Mobile in the US and Rogers and Telus in Canada.

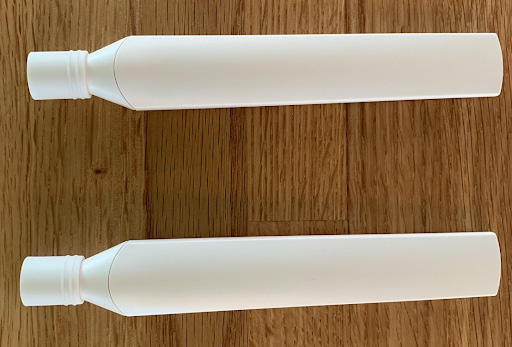

The E model uses two external dipole antennas, which are included, on RP-SMA sockets. An optional Meraki patch antenna is also available. Because the gateway sits apart from the router, you can mount it where cellular signal is strongest, on a wall, ceiling or pole, while the router stays in the rack. The IP67 enclosure operates from -30°C to 50°C. Power comes from a 12 V DC supply or 802.3af PoE (10 W maximum). Two Gigabit LAN ports let two downstream routers, such as an MX high-availability pair, share one cellular link.

Management runs entirely through the Meraki cloud dashboard: • Zero-touch provisioning and scheduled automatic firmware updates • Live visibility of IMEI, ICCID, APN, RSRP and RSRQ • Email, SMS and push alerts • Ping, traceroute, cable testing, remote packet capture and searchable event logs

Each gateway must be paired with a Meraki MG21 Enterprise licence (1, 3, 5, 7 or 10 years). Cisco Meraki includes a lifetime hardware warranty with next-day advance replacement on the gateway itself.

Ideal for

  • Cellular failover for a Meraki MX or third-party branch router
  • Primary WAN where wired internet is unavailable
  • SD-WAN secondary uplink carrying VPN traffic over LTE
  • Shared cellular uplink for an MX high-availability pair
  • Outdoor or rooftop cellular placement for data-center-mounted routers

Specifications

General

MPN
MG21E-HW-NA
UPC
810979016601
Brand
Cisco Meraki
Model
Meraki MG21E
Region
North America
Country OF Origin
Taiwan

Cellular

Standard
LTE Cat 6
Gsm Bands
GSM 850/900/1800/1900
Hspa Plus
HSPA+ BC2 (1900), BC4 (1700), BC5 (850)
Fdd LTE Bands
FDD-LTE B2, B4, B5, B12, B13, B17, B29
Certifications
PTCRB (US)
Max Throughput
Up to 300 Mbps down / 50 Mbps up
Tested Carriers
AT&T, Verizon, T-Mobile, Rogers, Telus
Carrier Aggregation
2xDL-CA up to 40 MHz (2+17, 4+17, 2+29, 4+29, 4+5, 2+5)

Features

Highlights
Cat 6 LTE, 2 downstream connections, PoE or DC, IP67
Management
Meraki dashboard, self-configuring, scheduled firmware upgrades
Remote Diagnostics
Alerts, ping/traceroute, cable test, packet capture, searchable logs
Cellular Visibility
IMEI, ICCID, APN, RSRP, RSRQ

Physical

Weight
489 g (without accessories)
Antennas
2 x external dipole (MA-ANT-C1-A), optional patch
Humidity
5% to 95% non-condensing
Mounting

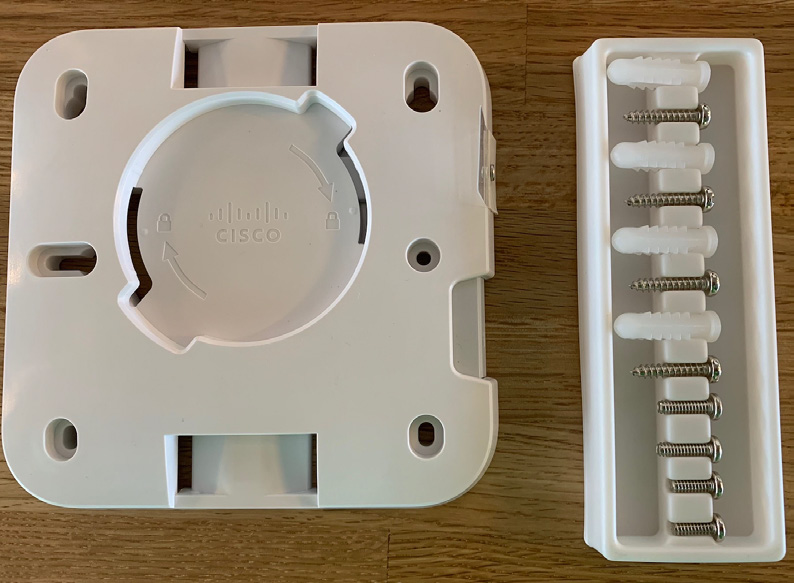

Included all-in-one wall/ceiling/pole bracket
Dimensions
165.7 x 160.45 x 34.45 mm (W x D x H)
Power Load
10 W maximum (PoE 802.3af)
Power Supply
12 V/1 A or 48–57 V DC/0.35 A
Ingress Protection
IP67
Operating Temperature
-22°F to 122°F (-30°C to 50°C)

Warranty

Hardware
Lifetime hardware warranty, next-day advance replacement
Accessories
1 year (mounting kits, antennas, power cords)

Licensing

Required Licence
Meraki MG21 Enterprise License and Support, 1, 3, 5, 7 or 10 years

Interfaces

SIM Card Slot
1 x Nano SIM (4FF)
LAN Interfaces
2 x Gigabit Ethernet
WAN Interfaces
1 x Cat 6 LTE modem
Antenna Connector
RP-SMA (Meraki smart antennas only)

Accessories

MA Inj 4
Gigabit 802.3at PoE injector
MA Pwr 30w
Standard power adapter (regional plugs)
MA Ant C1 A
Dipole antenna pair (included)
MA Ant C1 B
Patch antenna for MG21E
MA Pwr MV LV
Low Voltage Power Converter

Reliability

MTBF 25c
MTBF at 25°C: 2,689,019

Questions buyers ask

Does the MG21E require a licence?

Yes. Cisco Meraki pairs each MG hardware unit with an MG21 Enterprise licence (1, 3, 5, 7 or 10 years), which covers cloud services, software upgrades and support.

Can I use third-party antennas?

No. The RP-SMA sockets are designed to detect Meraki's smart dipole and patch antennas, and Cisco Meraki states that non-Meraki antennas are not supported.

Does it work with non-Meraki routers?

Yes. The MG21E provides a standard Ethernet handoff that works with Meraki MX appliances or other routers.

How is it powered?

It runs on 12 V DC or 802.3af PoE, with a maximum load of 10 W.

Which carriers has it been tested with?

Cisco Meraki lists AT&T, Verizon and T-Mobile in the US and Rogers and Telus in Canada as tested carriers.
