Cisco Meraki MG41E Cat 18 LTE Cellular Gateway with External Antennas and Dual SIM
4G LTEMPN MG41E
- Dual SIM
- 2–4 × 1 Gb Ethernet
- PoE powered
$1,466.99$2,133.39Save $666.40
In stockShips from the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
- Data plans with no contract · cancel anytime
Datasheets & documents
Overview

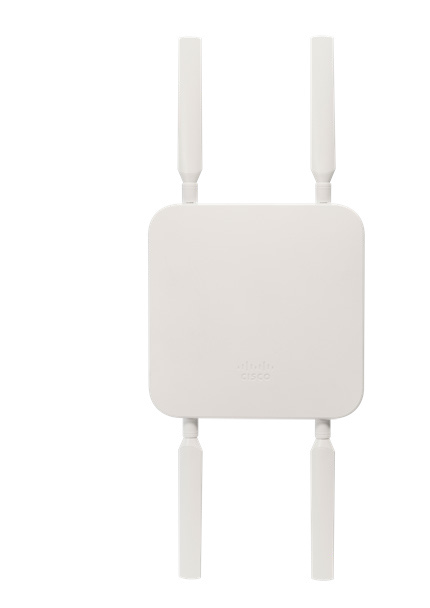

The Cisco Meraki MG41E is the external-antenna version of Meraki's Cat 18 LTE-A Pro cellular gateway. It pairs four external dipole antennas (optional patch antenna) with a modem rated up to 1.2 Gbps down and 150 Mbps up. Dual nano SIM slots provide automatic failover, and the modem supports five-carrier aggregation, private LTE and FirstNet band 14. The IP67 enclosure, PoE power and Meraki cloud management suit indoor or outdoor primary and backup WAN deployments.
- Four external dipole antennas with optional patch antenna
- Cat 18 LTE-A Pro modem, up to 1.2 Gbps down / 150 Mbps up, 4x4 DL MIMO
- Dual nano (4FF) SIM slots with auto SIM failover
- Downlink 5CA and uplink 2CA; private LTE (CBRS), FirstNet band 14, bands 66 and 71
- One dedicated GbE LAN port plus one convertible LAN/WAN GbE port
- IP67 enclosure, 12 V DC or 802.3af PoE power (10 W max)
- Meraki dashboard management with zero-touch provisioning and API support
- Pulls in weaker signals with external antennas and an optional patch antenna
The Meraki MG41E converts LTE service into an Ethernet uplink for a Meraki MX or any other router. It adds external antennas for sites where signal reach matters. Four external dipole antennas feed a Cat 18 LTE-A Pro modem rated up to 1.2 Gbps downlink and 150 Mbps uplink, with downlink 5CA, uplink 2CA and 4x4 downlink MIMO. For weaker coverage areas, an optional Meraki patch antenna is available. Band coverage spans 30 LTE bands, including B2, B4, B5, B12, B13, B14, B25, B26, B29, B30, B41, B48 CBRS, B66 and B71. Cisco Meraki lists PTCRB, RCM and GCF certification, and certified carriers include AT&T, AT&T FirstNet (capable), Verizon and T-Mobile.
Dual nano SIM slots provide automatic SIM failover, with SIM switching and custom APN settings available in the dashboard or on the local status page. One dedicated Gigabit LAN port and one convertible LAN/WAN Gigabit port serve two downstream routers. The IP67 enclosure mounts on a wall, ceiling or pole with the included bracket and operates from -30°C to 50°C. It draws power from 12 V DC or 802.3af PoE (10 W maximum).
The Meraki cloud handles the rest: • Zero-touch provisioning and scheduled firmware updates • Live IMEI, ICCID, APN, RSRP, RSRQ and carrier aggregation data • Alerts, remote packet capture, DM logging and an extensive API
Each gateway is paired with a Meraki MG41 Enterprise licence (1, 3, 5, 7 or 10 years). The hardware is covered by a lifetime warranty with next-day advance replacement.
Ideal for
- Primary LTE WAN at rural or fringe-coverage sites
- Outdoor or rooftop cellular uplink feeding a data-center or branch router
- Dual-carrier failover behind a Meraki MX or third-party router
- Private LTE (CBRS) and FirstNet band 14 deployments
- Shared cellular uplink for MX high-availability pairs
Specifications
General
- MPN
- MG41E
- UPC
- 810979017851
- Brand
- Cisco Meraki
- Model
- Meraki MG41E
Cellular
- MIMO
- 4x4 downlink MIMO
- LTE Bands
- B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700ac), B13 (700c), B14 (700PS), B17 (700b), B18 (800), B19 (800), B20 (800DD), B25 (1900), B26 (US 850 Ext), B28 (700 APAC), B29 (US 700de Lower), B30 (2300 WCS), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3600), B46 (TDD 5200), B48 (3600), B66 (AWS-3), B71 (600)
- Band 66 71
- Bands 66 and 71
- Umts Bands
- B1 (2100), B2 (1900), B4 (AWS), B5 (850), B8 (900), B9 (1700), B19 (800)
- LTE Category
- LTE Cat 18 LTE-A Pro
- Certifications
- PTCRB (US), RCM (ANZ, APAC), GCF (EU)
- Max Throughput
- Up to 1.2 Gbps down / 150 Mbps up
- 5ca Combinations
- 5CA combinations per Meraki datasheet
- Firstnet Band 14
- FirstNet band 14
- Private LTE CBRS
- Private LTE (CBRS)
- Certified Carriers
- AT&T, AT&T FirstNet (capable), Verizon, T-Mobile, Optus, Telstra, Bell, Telus, Spark, Vodafone NZ, DoCoMo
- Carrier Aggregation
- Downlink 5CA, uplink 2CA
- UL 2ca Combinations
- Uplink 2CA combinations per Meraki datasheet
- Beta Tested Carriers
- Beta tested with carriers in US, Canada, Europe, ANZ and Japan
Features
- Custom Apn
- Custom APN configuration via dashboard
- Highlights
- Cat 18, dual SIM, 2 downstream connections, PoE or DC, IP67, optional patch antenna
- Management
- Meraki dashboard, self-configuring, scheduled upgrades, API
- SIM Switch
- SIM switch via dashboard/local status page
- Dual SIM Info
- Dual SIM info on dashboard
- Auto SIM Failover
- Auto SIM failover
- Remote Diagnostics
- Alerts, diagnostics, packet capture, logs, DM logging
- Cellular Visibility
- IMEI, ICCID, APN, RSRP, RSRQ
- Carrier Aggregation Info
- Carrier aggregation info on dashboard
Physical
- Weight
- 670 g (without accessories)
- Antennas
- 4 x external dipole antennas, optional patch antenna
- Humidity
- 5% to 95% non-condensing
- Mounting
- Included all-in-one wall/ceiling/pole bracket
- Dimensions
- 168 x 168 x 35 mm (W x D x H)
- Power Load
- 10 W maximum (PoE 802.3af)
- Power Supply
- 12 V/1 A or 48–57 V DC/0.35 A
- Patch Antennas
- 2
- External Antennas
- 4
- Ingress Protection
- IP67
- Storage Temperature
- -22°F to 158°F (-30°C to 70°C)
- Operating Temperature
- -22°F to 122°F (-30°C to 50°C)
Warranty
- Hardware
- Lifetime hardware warranty, next-day advance replacement
- Accessories
- 1 year (mounting kits, antennas, power cords)
Licensing
- Required Licence
- Meraki MG41 Enterprise License and Support, 1, 3, 5, 7 or 10 years
Interfaces
- PoE Ports
- 2
- SIM Slots
- 2 x Nano SIM (4FF)
- LAN Dedicated
- 1 x dedicated GbE RJ45
- LAN Interfaces
- 2 x Gigabit Ethernet
- WAN Interfaces
- 1 x Cat 18 LTE modem
- LAN Convertible
- 1 x convertible LAN/WAN GbE RJ45
Reliability
- MTBF 25c
- MTBF at 25°C: 1,931,000
Questions buyers ask
What is the difference between the MG41 and MG41E?
The MG41E uses four external dipole antennas and supports an optional patch antenna for greater reach. The MG41 uses four internal antennas. Both share the same Cat 18 modem, dual SIM, ports and IP67 enclosure.
Is the MG41E a 5G device?
No. It uses a 4G LTE Cat 18 LTE-A Pro modem rated up to 1.2 Gbps down and 150 Mbps up.
Does it need a licence?
Yes. Each MG41E is paired with a Meraki MG41 Enterprise licence (1, 3, 5, 7 or 10 years).
How is it powered and mounted?
It runs on 12 V DC or 802.3af PoE (10 W maximum) and mounts on a wall, ceiling or pole with the included all-in-one bracket.
