InHand Networks ODU2002 Outdoor 5G Router with PoE, IP67, NAVA (Verizon) / NATM (T-Mobile), ODU2002-NAVA-5Y/TM-5Y

5GMPN ODU2002-NAVA-5Y/ODU2002-TM-5Y
  • 5 years included
$912.16$999.00Save $86.84

Backordered · ships as soon as it arrives

Included subscription · 5 years
5 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

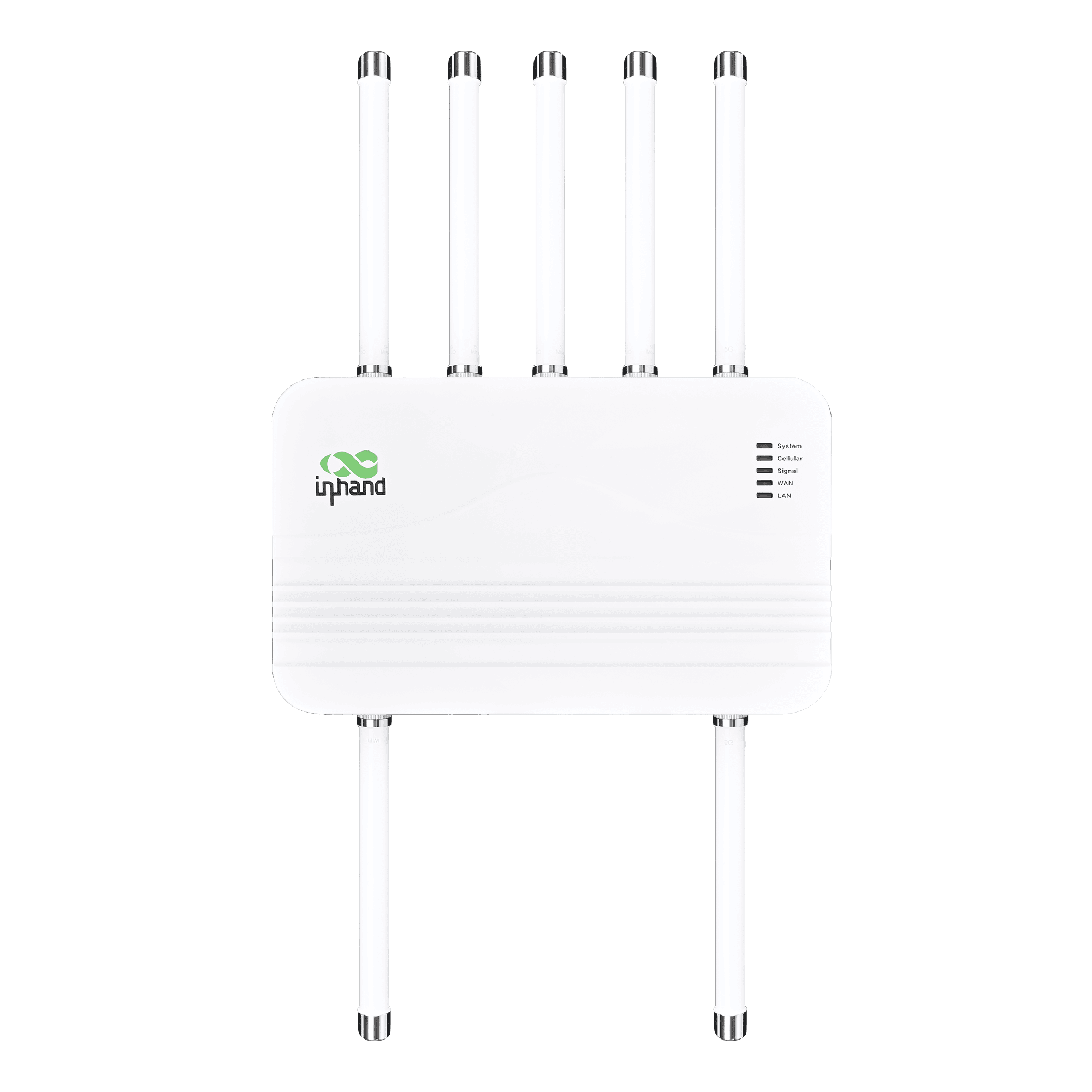

The InHand Networks ODU2002 is an IP67 outdoor 5G router that mounts on a wall or pole to capture a stronger cellular signal. It delivers that connection indoors over a single PoE Ethernet cable. This -5Y listing covers the North American ODU2002-NAVA (Verizon) and ODU2002-TM (T-Mobile) configurations. Both offer 5G SA/NSA up to 4.76 Gbps downlink with LTE Cat 19 fallback, six high-gain Sub-6 antennas, dual 2.5 GbE ports, dual-SIM and InCloud Manager cloud management.

  • 5G SA/NSA up to 4.76 Gbps DL / 1.25 Gbps UL with LTE Cat 19 fallback
  • 6 high-gain Sub-6 antennas (600–5000 MHz, 6.46 dBi) plus GNSS and Wi-Fi antennas on TNC connectors
  • IP67 fanless metal housing, -30 °C to +70 °C, wall or pole mounting
  • 2 × 2.5 GbE RJ45 (WAN/LAN switchable) with PoE 802.3af/at input, ≤15 W
  • Dual hot-swap nano-SIM with optional eSIM, cellular failover and link load balancing
  • InCloud Manager cloud management with zero-touch deployment and batch upgrades
  • Integrated GNSS: GPS, GLONASS, Beidou, Galileo, QZSS
  • Mount the radio outdoors where signal is strongest instead of fighting walls and low-E glass indoors

The InHand Networks ODU2002 is an outdoor 5G router for fixed wireless access and backup connectivity. It mounts on a wall or pole where the cellular signal is strongest and delivers the connection to the indoor network over a single PoE Ethernet cable. This listing, ODU2002-NAVA-5Y/ODU2002-TM-5Y, covers the two North American models. ODU2002-NAVA is the Verizon configuration. ODU2002-NATM, listed here as TM, is the T-Mobile configuration.

The cellular radio supports 5G SA/NSA at up to 4.76 Gbps downlink and 1.25 Gbps uplink, with LTE Cat 19 fallback at up to 1.6 Gbps/200 Mbps. Six Sub-6 antennas cover 600–5000 MHz at 6.46 dBi gain on TNC connectors, and GNSS and Wi-Fi antennas are also included. The router is rated for up to 2 Gbps throughput and 200 users. Two hot-swap nano-SIM slots (eSIM optional) provide carrier redundancy. Two switchable 2.5 GbE RJ45 ports support WAN/LAN, packet-by-packet load balancing and IP Passthrough.

The fanless metal housing is IP67-rated and operates from -30 °C to +70 °C. It is tested to IEC 60068 standards for salt mist, shock, vibration and free fall. Power comes over 802.3af/at PoE at 15 W or less. The package includes a PoE adapter cord, mounting bracket, plate and stainless steel pipe clamps.

InCloud Manager handles zero-touch deployment, remote configuration, batch firmware upgrades and dashboards. It also monitors link delay, jitter, packet loss and RSSI/RSRP/RSRQ/SINR. IPsec and L2TP VPN, firewall, policy routing, traffic shaping and software and hardware watchdogs round out the platform.

Ideal for

  • Primary fixed wireless access for branch offices, retail sites and rural locations without wired broadband
  • Cellular failover for business sites alongside a wired WAN
  • Remote industrial, construction and agricultural sites needing weatherproof 5G at the pole or rooftop
  • Temporary and pop-up sites that need fast, single-cable outdoor installation
  • Multi-site deployments managed centrally through InCloud Manager

Specifications

Emc

Esd
EN 61000-4-2 Level 3
Rfi
EN 61000-4-3 Level 3
RE CE
Class A, Margin 3 dB
Surge
EN 61000-4-5 Level 3
Conducted
EN 61000-4-6 Level 3
Eft Burst
EN 61000-4-4 Level 3

Wi-Fi

Mode
2.4 GHz AP mode
Protocol
802.11 b/g/n
TX Power
17 dBm
Frequency
2.4 GHz single-band
Max Bandwidth
150 Mbps

Bands

Natm Laa
B46
Nava Wcdma
B2/4/5
Natm 5G Sub6
n25/41/66/71
Natm LTE Fdd
B2/4/5/12/66/71
Natm LTE Tdd
B41
Nava 5G Sub6
n2/5/7/12/14/25/30/41/48/66/71/77/78
Nava LTE Fdd
B2/4/5/7/12/13/14/17/25/26/29/30/66/71
Nava LTE Tdd
B41/46/48

Power

Input
Power over Ethernet (PoE) 802.3at
Power Consumption
≤ 15 W

Policy

Policy
Policy routing, traffic shaping

General

MPN
ODU2002-NAVA-5Y/ODU2002-TM-5Y
Brand
InHand Networks
Model
ODU2002 Outdoor 5G Router
Region
North America
Sku Edition
-5Y
Natm Configuration
ODU2002-NATM (TM): North America (T-Mobile)
Nava Configuration
ODU2002-NAVA: North America (Verizon)

Package

Standard Package
Router, 2 × 5G antennas, 4 × 5G MIMO antennas, Wi-Fi antenna, GNSS antenna, Ethernet cable, PoE adapter AC cord, mounting bracket, mounting plate, 2 × stainless steel pipe clamps (contents vary by standard order code)

Cellular

Data Rate
5G: 4.76 Gbps DL / 1.25 Gbps UL; 4G: 1.6 Gbps DL / 200 Mbps UL
Antenna Gain 5G
6.46 dBi
Antenna Frequency 5G
600–5000 MHz

Physical

Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6

Security

VPN
IPsec VPN, L2TP VPN
Firewall
Access control, port mapping, port forwarding, MAC filtering

Interfaces

LED
System, Cellular, Signal, WAN, LAN
PoE
PoE in LAN port (802.3af/at)
SIM
2 × Nano 4FF, hot plug
USB
1 × USB Type-C 2.0
GNSS
GPS / GLONASS / Beidou / Galileo / QZSS
Reset
Reset button
Ground
1 × GND
Antenna
TNC-type; 6 × Sub-6, 1 × GNSS, 1 × Wi-Fi
Ethernet
2 × 2.5 GbE RJ45, WAN/LAN switchable, dual-LAN

Mechanical

Weight
2.87 kg (6.33 lb)
Housing
Metal, fanless
Dimensions
360 × 220 × 72 mm (14.17 × 8.66 × 2.83 in)
Installation
Wall mounting, pole mounting

Monitoring

Logs
System logs, diagnostic logs, device events, email alerts
Dashboard
Device info, interface status, traffic statistics
Cellular Signal
RSSI, RSRP, RSRQ, SINR

Environment

Humidity
5–95% RH (non-condensing)
Salt Mist
IEC 60068-2-52
Protection
IP67
Storage Temperature
-40 °C to +85 °C (-40 °F to +185 °F)
Operating Temperature
-30 °C to +70 °C (-22 °F to +158 °F)

Certification

Warranty
3 years
Certification
FCC, IC, PTCRB, Verizon, T-Mobile, CE

Self Recovery

Watchdog
Software and hardware watchdog

Cloud Management

Features
Centralized management, dashboard, batch upgrade, uplink management
Platform
InCloud Manager

Network Features

Access
5G/4G, Ethernet
Dialing
PPPoE, cellular auto redial, dual-SIM switching, APN configuration
Interface
Duplex mode, link negotiation
IP Protocol
IPv4 / IPv6
Link Backup
Packet-by-packet load balancing
Applications
VLAN, DHCP Server/Client, DNS, DDNS, Fixed Address, IP Passthrough
Link Priority
Link priority adjustment
Link Monitoring
Real-time delay, jitter, packet loss detection

Performance Metrics

Throughput
Up to 2 Gbps
Recommended Users
200

Core Technical Specifications

SIM
2 × Nano-SIM (hot-swap); eSIM optional
VPN
IPsec, L2TP
GNSS
GPS, GLONASS, Beidou, Galileo, QZSS
Wi-Fi
802.11 b/g/n, 2.4 GHz AP, 150 Mbps
Antennas
TNC: 6 × Sub-6 + 1 × GNSS + 1 × Wi-Fi
Cellular
5G SA/NSA + LTE Cat 19; up to 4.76 Gbps DL / 1.25 Gbps UL (5G); dual-SIM / optional eSIM
Environment
-30 °C to +70 °C (-22 °F to +158 °F) operating; IEC 60068 salt mist / shock / vibration / drop
Cloud Management
InCloud Manager
Ethernet PoE USB
2 × 2.5 GbE (WAN/LAN); PoE 802.3af/at in; USB-C 2.0
Network Security
IPv4/IPv6; VLAN, DHCP, DDNS; PPPoE; dual-SIM; link backup; NAT; firewall, ACL
Power Mechanical
PoE 802.3at; ≤15 W; 360 × 220 × 72 mm (14.17 × 8.66 × 2.83 in); 2.87 kg (6.33 lb); metal; fanless; wall/pole; IP67
Throughput Users
Up to 2 Gbps; up to 200 users

Questions buyers ask

What is the difference between ODU2002-NAVA and ODU2002-TM?

Both use the same ODU2002 hardware with different North American radio configurations. NAVA is the Verizon configuration, supporting 5G n2/5/7/12/14/25/30/41/48/66/71/77/78 and a broad LTE and WCDMA band set. NATM (TM) is the T-Mobile configuration, supporting 5G n25/41/66/71, LTE B2/4/5/12/66/71, B41 and LAA B46.

How is the ODU2002 powered?

It is powered over Ethernet through its LAN port, supporting 802.3af/at PoE at 15 W or less. A PoE adapter AC cord and Ethernet cable are included in the standard package, so one cable carries both power and data to the outdoor unit.

How fast is the ODU2002?

The 5G radio is rated up to 4.76 Gbps downlink and 1.25 Gbps uplink, with LTE Cat 19 fallback up to 1.6 Gbps downlink and 200 Mbps uplink. The router itself is rated for up to 2 Gbps throughput and 200 recommended users. Actual speeds depend on the network and signal at the site.

Does the ODU2002 support failover and dual SIM?

Yes. It has two hot-swap nano-SIM slots with optional eSIM, dual-SIM switching and cellular auto redial. It also supports 5G/wired backup with packet-by-packet load balancing, link priority adjustment and real-time monitoring of delay, jitter and packet loss.

How is the ODU2002 managed remotely?

Through InHand's InCloud Manager, which provides zero-touch deployment, centralized configuration, dashboards, batch firmware upgrades and uplink management. Integrated GNSS lets you see each unit's location on the cloud map.
