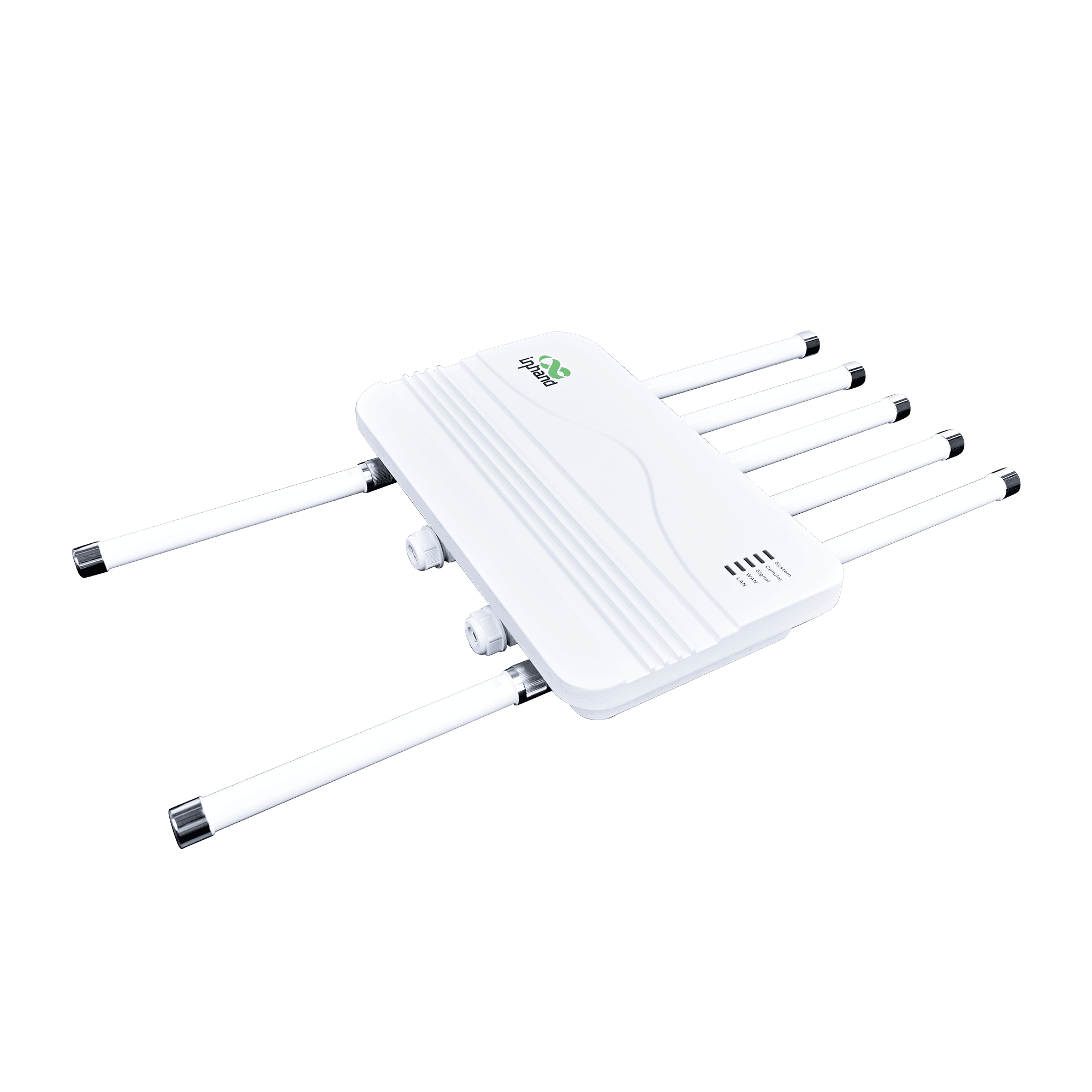

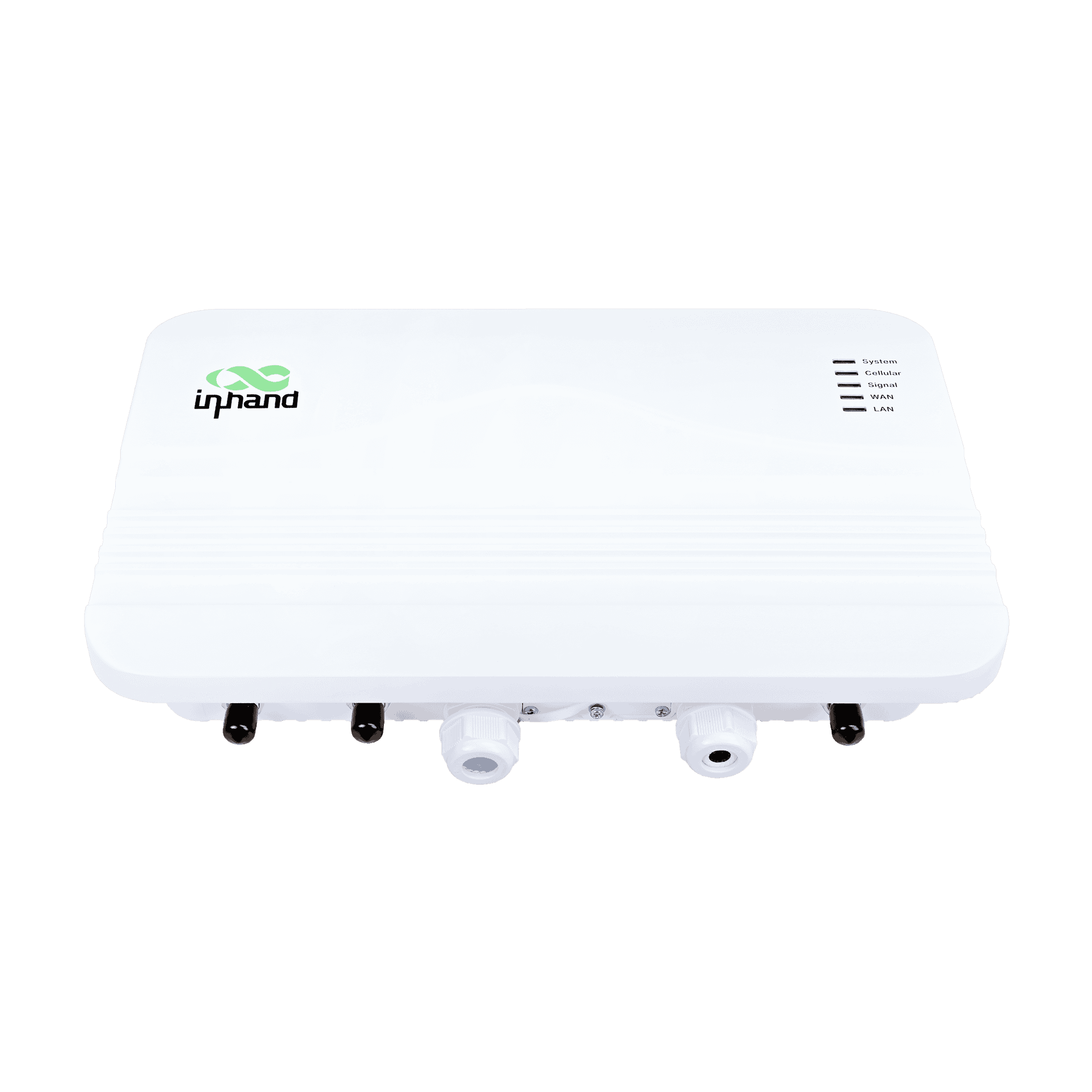

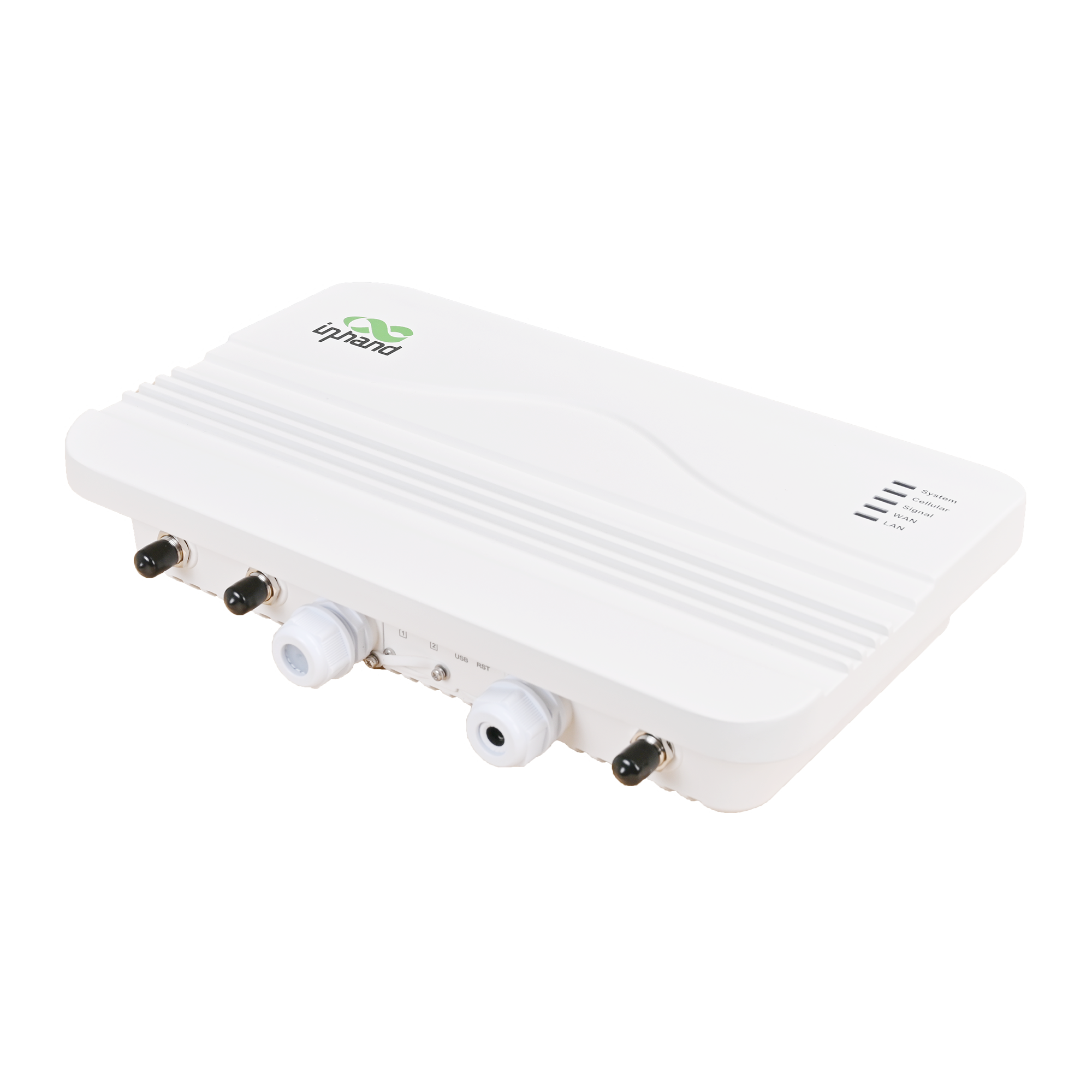

InHand Networks ODU2002 Outdoor 5G Router with PoE, IP67, NAVA (Verizon) / NATM (T-Mobile)

5GMPN ODU2002-NAVA/ODU2002-TM
$784.29$849.00Save $64.71

Backordered · ships as soon as it arrives

Included subscription
5 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The InHand Networks ODU2002 is a cloud-managed outdoor 5G router with an IP67 metal housing. It mounts on a wall or pole and carries power and data to the indoor network over one PoE Ethernet cable. This listing covers the North American ODU2002-NAVA (Verizon) and ODU2002-TM (T-Mobile) configurations. Both offer 5G SA/NSA up to 4.76 Gbps downlink, LTE Cat 19 fallback, six 6.46 dBi Sub-6 antennas, dual 2.5 GbE ports and dual hot-swap nano-SIM slots.

  • 5G SA/NSA up to 4.76 Gbps DL / 1.25 Gbps UL; LTE Cat 19 fallback up to 1.6 Gbps DL
  • Six Sub-6 antennas, 600–5000 MHz at 6.46 dBi, with GNSS and Wi-Fi antennas on TNC connectors
  • IP67 fanless metal enclosure, -30 °C to +70 °C, IEC 60068 salt mist, shock, vibration and drop tested
  • 2 × 2.5 GbE RJ45 (WAN/LAN switchable) with PoE 802.3af/at input at ≤15 W
  • Dual hot-swap nano-SIM with optional eSIM and packet-by-packet load balancing
  • InCloud Manager cloud management and GPS/GLONASS/Beidou/Galileo/QZSS positioning
  • Get dependable 5G at sites where building materials block indoor reception
  • Cut installation time with one PoE cable for power and data up the mast or wall

The InHand Networks ODU2002 is built for sites where indoor 5G reception is weak or unreliable. The router mounts outdoors on a wall or pole, captures the cellular signal with six high-gain Sub-6 antennas and delivers the connection inside over a single PoE Ethernet cable. Part number ODU2002-NAVA/ODU2002-TM covers the two North American models. ODU2002-NAVA is the Verizon configuration: 5G n2/5/7/12/14/25/30/41/48/66/71/77/78, LTE-FDD B2/4/5/7/12/13/14/17/25/26/29/30/66/71, LTE-TDD B41/46/48 and WCDMA B2/4/5. ODU2002-NATM (TM) is the T-Mobile configuration: 5G n25/41/66/71, LTE-FDD B2/4/5/12/66/71, LTE-TDD B41 and LAA B46.

The 5G SA/NSA radio is rated up to 4.76 Gbps downlink and 1.25 Gbps uplink, with LTE Cat 19 fallback. The router supports up to 2 Gbps throughput and 200 recommended users. Two 2.5 GbE RJ45 ports switch between WAN and LAN. Dual hot-swap nano-SIM slots, optional eSIM, cellular failover and packet-by-packet load balancing keep the link available. A 2.4 GHz 802.11 b/g/n access point and a USB-C 2.0 port handle local setup and service.

The fanless metal enclosure is rated IP67 and operates from -30 °C to +70 °C. It is tested to IEC 60068 for salt mist, shock, vibration and free fall, and to EN 61000 Level 3 for EMC. Power is 802.3af/at PoE at 15 W or less. The standard package includes all antennas, a PoE adapter cord, a mounting bracket and plate, and pipe clamps.

InCloud Manager provides zero-touch deployment, remote configuration, batch upgrades and signal monitoring. Integrated GNSS places each unit on the cloud map.

Ideal for

  • Fixed wireless primary internet for offices, retail stores and rural properties
  • Always-on cellular backup for sites with wired broadband
  • Weatherproof 5G for remote industrial, utility, construction and agricultural locations
  • Rapid-deployment connectivity for temporary sites and events
  • Centrally managed multi-site rollouts through InCloud Manager

Specifications

Emc

Esd
EN 61000-4-2 Level 3
Rfi
EN 61000-4-3 Level 3
RE CE
Class A, Margin 3 dB
Surge
EN 61000-4-5 Level 3
Conducted
EN 61000-4-6 Level 3
Eft Burst
EN 61000-4-4 Level 3

Wi-Fi

Mode
2.4 GHz AP mode
Protocol
802.11 b/g/n
TX Power
17 dBm
Frequency
2.4 GHz single-band
Max Bandwidth
150 Mbps

Bands

Natm Laa
B46
Nava Wcdma
B2/4/5
Natm 5G Sub6
n25/41/66/71
Natm LTE Fdd
B2/4/5/12/66/71
Natm LTE Tdd
B41
Nava 5G Sub6
n2/5/7/12/14/25/30/41/48/66/71/77/78
Nava LTE Fdd
B2/4/5/7/12/13/14/17/25/26/29/30/66/71
Nava LTE Tdd
B41/46/48

Power

Input
Power over Ethernet (PoE) 802.3at
Power Consumption
≤ 15 W

Policy

Policy
Policy routing, traffic shaping

General

MPN
ODU2002-NAVA/ODU2002-TM
Brand
InHand Networks
Model
ODU2002 Outdoor 5G Router
Region
North America
Natm Configuration
ODU2002-NATM (TM): North America (T-Mobile)
Nava Configuration
ODU2002-NAVA: North America (Verizon)

Package

Standard Package
Router, 2 × 5G antennas, 4 × 5G MIMO antennas, Wi-Fi antenna, GNSS antenna, Ethernet cable, PoE adapter AC cord, mounting bracket, mounting plate, 2 × stainless steel pipe clamps (contents vary by standard order code)

Cellular

Data Rate
5G: 4.76 Gbps DL / 1.25 Gbps UL; 4G: 1.6 Gbps DL / 200 Mbps UL
Antenna Gain 5G
6.46 dBi
Antenna Frequency 5G
600–5000 MHz

Physical

Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6

Security

VPN
IPsec VPN, L2TP VPN
Firewall
Access control, port mapping, port forwarding, MAC filtering

Interfaces

LED
System, Cellular, Signal, WAN, LAN
PoE
PoE in LAN port (802.3af/at)
SIM
2 × Nano 4FF, hot plug
USB
1 × USB Type-C 2.0
GNSS
GPS / GLONASS / Beidou / Galileo / QZSS
Reset
Reset button
Ground
1 × GND
Antenna

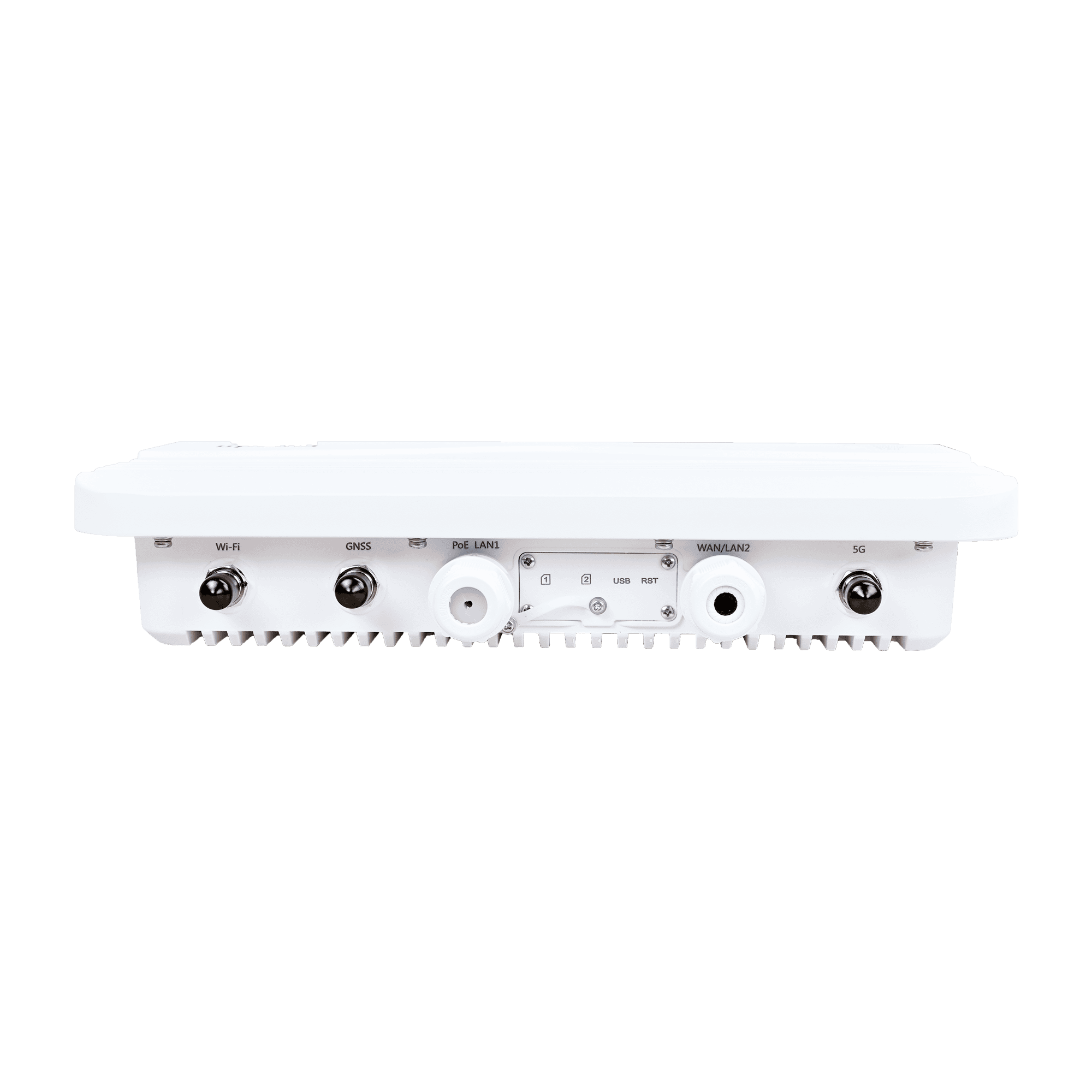

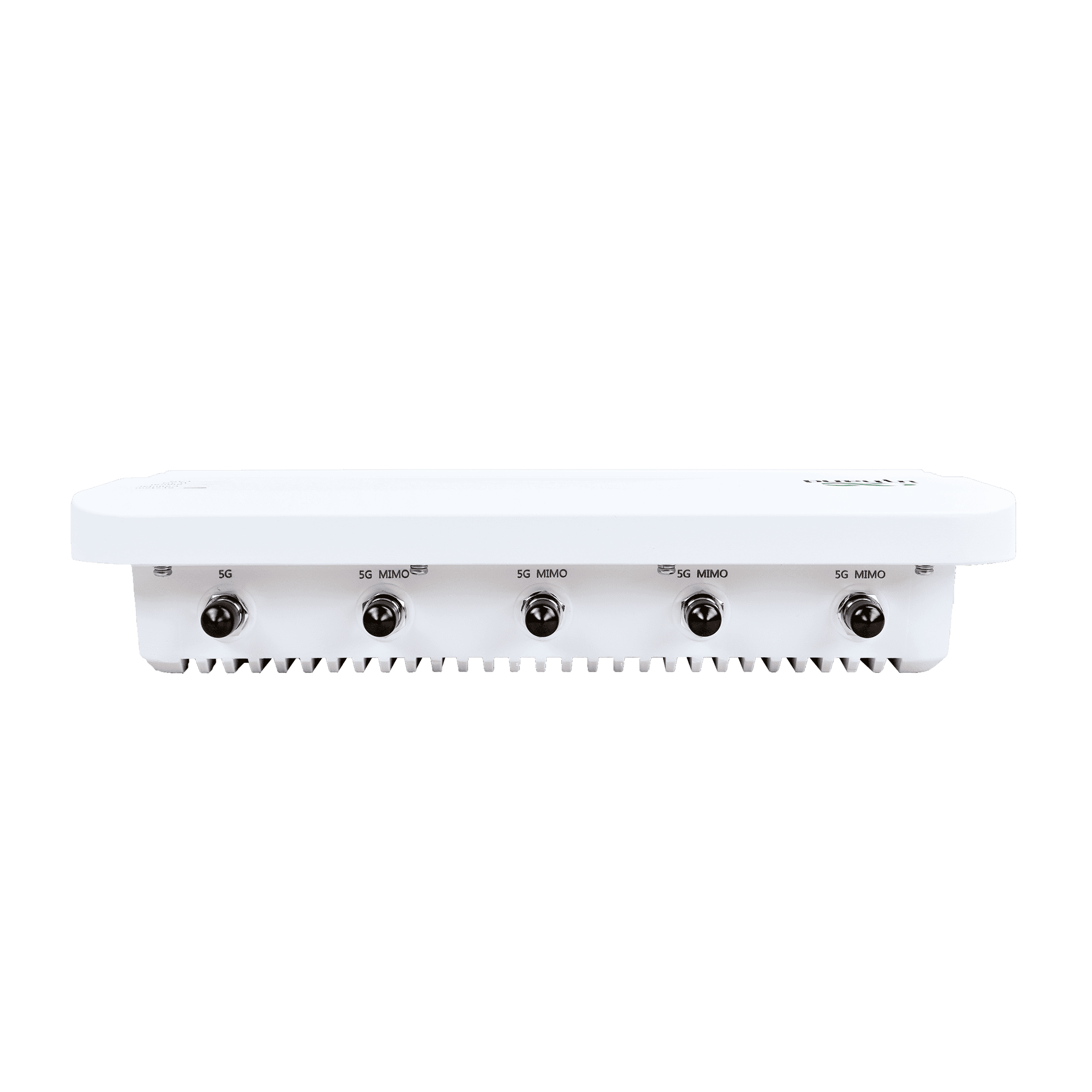

TNC-type; 6 × Sub-6, 1 × GNSS, 1 × Wi-Fi
Ethernet
2 × 2.5 GbE RJ45, WAN/LAN switchable, dual-LAN

Mechanical

Weight
2.87 kg (6.33 lb)
Housing
Metal, fanless
Dimensions
360 × 220 × 72 mm (14.17 × 8.66 × 2.83 in)
Installation
Wall mounting, pole mounting

Monitoring

Logs
System logs, diagnostic logs, device events, email alerts
Dashboard
Device info, interface status, traffic statistics
Cellular Signal
RSSI, RSRP, RSRQ, SINR

Environment

Humidity
5–95% RH (non-condensing)
Salt Mist
IEC 60068-2-52
Protection
IP67
Storage Temperature
-40 °C to +85 °C (-40 °F to +185 °F)
Operating Temperature
-30 °C to +70 °C (-22 °F to +158 °F)

Certification

Warranty
3 years
Certification
FCC, IC, PTCRB, Verizon, T-Mobile, CE

Self Recovery

Watchdog
Software and hardware watchdog

Cloud Management

Features
Centralized management, dashboard, batch upgrade, uplink management
Platform
InCloud Manager

Network Features

Access
5G/4G, Ethernet
Dialing
PPPoE, cellular auto redial, dual-SIM switching, APN configuration
Interface
Duplex mode, link negotiation
IP Protocol
IPv4 / IPv6
Link Backup
Packet-by-packet load balancing
Applications
VLAN, DHCP Server/Client, DNS, DDNS, Fixed Address, IP Passthrough
Link Priority
Link priority adjustment
Link Monitoring
Real-time delay, jitter, packet loss detection

Performance Metrics

Throughput
Up to 2 Gbps
Recommended Users
200

Core Technical Specifications

SIM
2 × Nano-SIM (hot-swap); eSIM optional
VPN
IPsec, L2TP
GNSS
GPS, GLONASS, Beidou, Galileo, QZSS
Wi-Fi
802.11 b/g/n, 2.4 GHz AP, 150 Mbps
Antennas
TNC: 6 × Sub-6 + 1 × GNSS + 1 × Wi-Fi
Cellular
5G SA/NSA + LTE Cat 19; up to 4.76 Gbps DL / 1.25 Gbps UL (5G); dual-SIM / optional eSIM
Environment
-30 °C to +70 °C (-22 °F to +158 °F) operating; IEC 60068 salt mist / shock / vibration / drop
Cloud Management
InCloud Manager
Ethernet PoE USB
2 × 2.5 GbE (WAN/LAN); PoE 802.3af/at in; USB-C 2.0
Network Security
IPv4/IPv6; VLAN, DHCP, DDNS; PPPoE; dual-SIM; link backup; NAT; firewall, ACL
Power Mechanical
PoE 802.3at; ≤15 W; 360 × 220 × 72 mm (14.17 × 8.66 × 2.83 in); 2.87 kg (6.33 lb); metal; fanless; wall/pole; IP67
Throughput Users
Up to 2 Gbps; up to 200 users

Questions buyers ask

Which model should I choose, NAVA or TM?

ODU2002-NAVA is the North American Verizon configuration, covering 5G n2/5/7/12/14/25/30/41/48/66/71/77/78 plus a broad LTE and WCDMA band set. ODU2002-NATM (TM) is the T-Mobile configuration, covering 5G n25/41/66/71, LTE B2/4/5/12/66/71, B41 and LAA B46. Choose the one that matches your carrier.

Is the ODU2002 carrier certified?

InHand lists FCC, IC, PTCRB, Verizon, T-Mobile and CE certifications for the ODU2002.

Does the router need a separate power supply outdoors?

No. It is powered over Ethernet through its LAN port (802.3af/at) and draws 15 W or less. A PoE adapter AC cord and Ethernet cable come in the standard package, so a single cable carries power and data.

Can I use the ODU2002 with my existing router?

Yes. The ODU2002 supports IP Passthrough, DHCP server/client, VLAN and fixed addressing. Its two 2.5 GbE ports can be set as WAN or LAN, so it can hand the cellular connection to an existing firewall or router indoors.

How durable is the outdoor enclosure?

The fanless metal housing is rated IP67 and operates from -30 °C to +70 °C. It is tested to IEC 60068 for salt mist, shock, vibration and free fall, and to EN 61000 Level 3 for ESD, surge and burst immunity.
