Cradlepoint5G & LTE Routers

Cradlepoint S750 Semi-Ruggedized LTE Cat 4 IoT Router with 3-Year TAA NetCloud IoT Essentials Plan

4G LTEMPN TAA-TB03-0750C4D-NA
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
  • 3 years included
$589.00

In stockShips from the US

Included subscription · 3 years
3 years5 years+$170
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Cradlepoint S750 is a semi-ruggedized, cloud-managed Cat 4 LTE router for light industrial, IoT and portable deployments. This TAA-compliant U.S. Federal Government SKU pairs the S750 hardware (Cat 4, 150 Mbps, without Wi-Fi) with a 3-year NetCloud IoT Essentials plan. It includes NetCloud Manager, 24x7 support and a limited lifetime warranty for the active subscription.

  • Embedded Cat 4 LTE modem: 150 Mbps downlink, 50 Mbps uplink, 2x2 MIMO
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • 2 x Gigabit Ethernet RJ45 ports, LAN/WAN switchable, plus 1 x USB 2.0 Type A
  • Active GNSS: GPS, GLONASS, BeiDou and Galileo
  • 9-33 VDC input with ignition sensing and ISO 7637-2 transient protection
  • IP30 aluminum housing; MIL-STD-810H, SAE J1455 and EN 61373 tested
  • 3-year NetCloud IoT Essentials plan with NetCloud Manager, 24x7 support and limited lifetime warranty
  • TAA-compliant part number for U.S. Federal Government procurement

The Cradlepoint S750 is an LTE router in a semi-ruggedized aluminum housing, built for IoT, light industrial and mobile applications where security is a baseline requirement. This part number, TAA-TB03-0750C4D-NA, is the TAA-compliant ordering option for the U.S. Federal Government. It combines the S750 in its Cat 4 (150 Mbps) configuration without Wi-Fi with a 3-year NetCloud IoT Essentials plan.

The embedded Cat 4 LTE modem delivers peak rates of 150 Mbps down and 50 Mbps up with 2x2 MIMO. Dual 4FF SIM slots use SIM-based auto-carrier selection. The modem covers North American LTE bands 2, 4, 5, 12, 13, 14, 66 and 71. It carries AT&T, T-Mobile and Verizon network certifications plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications. Two switchable LAN/WAN Gigabit Ethernet ports connect local equipment, and a USB 2.0 port supports a locking USB RS232 adapter connection. Active GNSS (GPS, GLONASS, BeiDou, Galileo) supports asset tracking and geofencing.

The router accepts 9-33 VDC input with reverse polarity and transient protection plus ignition sensing, so it suits vehicle installs. It is rated IP30 and operates from -20 °C to 60 °C. It meets MIL-STD-810H vibration and shock methods, SAE J1455 vehicle vibration and EN 61373 rail rolling-stock standards. Calculated MTBF for the S750-C4D is 483,373 hours.

The NetCloud IoT Essentials plan provides NetCloud Manager device management and software updates for the full 3-year term. Support covers phone 24 hours on weekdays with emergency response on weekends, web 24x7 and chat 24x5. The hardware carries a limited lifetime warranty while the subscription is active. NetCloud Advanced and NetCloud Exchange can be added at any time. The Cradlepoint S700 series datasheet documents the full specification.

Ideal for

  • Fleet and vehicle telematics with ignition-sensed power control
  • Remote IoT sensors, kiosks and industrial controllers on government sites
  • Asset tracking and geofencing using active GNSS
  • Rail and transit equipment connectivity
  • Public safety field deployments on FirstNet or carrier priority networks

Specifications

Power

Input
9-33 VDC steady state input
Features
Reverse polarity and transient protection (ISO 7637-2); ignition sensing (auto ON, time-delay OFF)
Consumption
Idle 9 W / Typical 13 W / Heavy 14.5 W

General

MPN
TAA-TB03-0750C4D-NA
UPC
840292705739
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S750 (S700 Series)
Market
U.S. Federal Government ordering option
Service Plan
3-Year NetCloud IoT Essentials Plan
TAA Compliant
TAA compliant
Product Status
Active
Subscription Term
3 years
Hardware Configuration
Cat 4 (150 Mbps) without Wi-Fi

Package

Shipping Weight
1.60 lb

Cellular

SMS
Yes
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Umts 3g
WCDMA/UMTS/HSPA+
Antennas
SMA female; external 600 MHz-6 GHz paddle antennas (Qty 2, certain packages only)
LTE Bands
LTE FDD B2, B4, B5, B12, B13, B14, B66, B71
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+; dual 4FF SIM; SIM-based auto-carrier selection
Umts 3g Bands
2, 4, 5
LTE Peak Rates
150 Mbps down / 50 Mbps up
Transmit Power
LTE 23 dBm ± 2; HSPA+ 23 dBm ± 1 (typical conducted)
Wcdma Peak Rates
42.2 Mbps down / 5.76 Mbps up
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
516 g (18.2 oz)

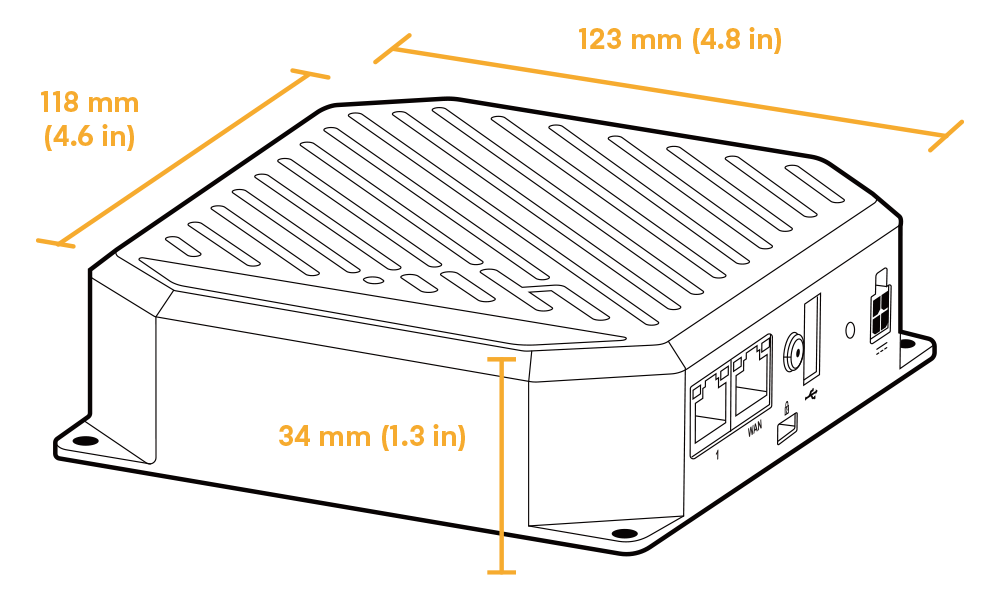

Dimensions
123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Construction
Aluminum housing

Interfaces

Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x 1 GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)
GNSS Connector
1 x SMA GNSS antenna connector

Performance

Stateful Firewall
480 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
20
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
100,000
Point TO Point Ipsec VPN
50 Mbps
Ips Application Aware Client Analytics
480 Mbps

Reliability

Calculated MTBF
S750-C4D: 483,373 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP30
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
SAE J1455-2006 Operating Sinusoidal Vibe, Cat. 2 Sec. 4.10.4.1
Shock Vibration
EN 61373 Cat. 2 vibration; MIL-STD-810H 514.8 Annex C-1 Cat. 4 vibration; MIL-STD-810H 516.8 Proc. I and V shock
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with active subscription
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Software updates for the full term
Device Management
NetCloud Manager for the full term

Product Summary

PoE
No
WI FI
Not included in this configuration
GPS GNSS
Active
USB Ports
1
Throughput
480 Mbps (Firewall)
Form Factor
Metal
Serial Ports
0
Five G Status
No 5G
Ethernet Ports
2 x GbE
Cloud Management
Cloud managed
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing
Dual Modem Support
No
Wireless Connectivity
LTE

Questions buyers ask

Does the Cradlepoint S750 have Wi-Fi?

No. This configuration is Cat 4 (150 Mbps) without Wi-Fi. Local devices connect through the two Gigabit Ethernet ports or the USB 2.0 port.

Is the S750 a 5G router?

No. It uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps down and 50 Mbps up, with DC-HSPA+ fallback.

What does the 3-year NetCloud IoT Essentials plan include?

NetCloud Manager device management and software updates for 3 years, 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5) and a limited lifetime warranty while the subscription is active.

Which carriers is it certified on?

The modem holds AT&T, T-Mobile and Verizon network certifications and FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.

Can it be installed in a vehicle?

Yes. It accepts 9-33 VDC input with reverse polarity and ISO 7637-2 transient protection and ignition sensing. It is tested to SAE J1455 vehicle vibration and MIL-STD-810H shock and vibration methods.
