Cradlepoint S750 Semi-Ruggedized LTE Cat 4 IoT Router with 5-Year TAA NetCloud IoT Essentials Plan

4G LTEMPN TAA-TB05-0750C4D-NA
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
  • 5 years included
$759.00

In stockShips from the US

Included subscription · 5 years
3 years−$1705 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Cradlepoint S750 is a semi-ruggedized, cloud-managed LTE router for light industrial, IoT and portable deployments. This TAA-compliant U.S. Federal Government SKU pairs the S750 hardware (Cat 4, 150 Mbps, without Wi-Fi) with a 5-year Ericsson NetCloud IoT Essentials Plan. It has a dual-SIM Cat 4 modem, two switchable Gigabit Ethernet ports, active multi-constellation GNSS, a 9-33 VDC input with ignition sensing, and an IP30 aluminum housing tested to vehicle, rail and MIL-STD-810H shock and vibration standards.

  • Embedded Cat 4 LTE modem (3GPP Rel. 11) with dual 4FF SIM slots and SIM-based auto-carrier selection; 150 Mbps down / 50 Mbps up peak
  • 2 x 1 GbE RJ45 ports (LAN/WAN switchable) and 1 x USB 2.0 Type A
  • Active GNSS supporting GPS, GLONASS, BeiDou and Galileo via SMA connector
  • 9-33 VDC input with ISO 7637-2 reverse polarity and transient protection and ignition sensing
  • IP30 aluminum housing with SAE J1455, EN 61373 and MIL-STD-810H shock and vibration certifications
  • 5-year NetCloud IoT Essentials Plan with NetCloud Manager, software updates and 24x7 support
  • TAA-compliant SKU for U.S. Federal Government ordering
  • Meets federal procurement requirements with a TAA-compliant hardware-plus-subscription SKU

The Ericsson Cradlepoint S750 is the wired-plus-LTE member of the S700 Series. It is a semi-ruggedized, cloud-managed router built for light industrial, IoT and portable applications where security is a foundational requirement. This part number, TAA-TB05-0750C4D-NA, is the TAA-compliant ordering option for the U.S. Federal Government. It bundles the S750 in its Cat 4 (150 Mbps) configuration without Wi-Fi together with a 5-year NetCloud IoT Essentials Plan.

Connectivity comes from an embedded Cat 4 LTE modem, rated at 150 Mbps downlink and 50 Mbps uplink peak. The modem has dual 4FF SIM slots with SIM-based auto-carrier selection, 2x2 MIMO and two SMA cellular antenna connectors. LTE bands cover B2, B4, B5, B12, B13, B14, B66 and B71. The modem holds AT&T, T-Mobile and Verizon network operator certifications, along with FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications. Two 1 GbE RJ45 ports are LAN/WAN switchable, and a USB 2.0 Type A port handles expansion. Active GNSS supports GPS, GLONASS, BeiDou and Galileo for asset tracking and geofencing. Configurable GPIO supports IoT integrations.

The S750 is built for vehicles and harsh sites. It runs on a 9-33 VDC input with reverse polarity and transient voltage protection (ISO 7637-2), plus ignition sensing with automatic on and time-delay off. It operates from -20 °C to 60 °C. The aluminum housing is IP30 rated and certified to SAE J1455, EN 61373 rail and MIL-STD-810H shock and vibration standards. Calculated MTBF for the S750-C4D is 483,373 hours.

The Essentials plan covers NetCloud Manager device management and software updates for the full 5-year term. Support runs 24x7 on the web, 24 hours on weekdays by phone with emergency response on weekends, and 24x5 by chat. Hardware carries a limited lifetime warranty while the subscription is active. A NetCloud IoT Advanced Plan can be added at any time.

Ideal for

  • Federal agency IoT and telemetry sites requiring TAA-compliant networking hardware
  • Public safety and government fleet vehicles on FirstNet or carrier priority networks
  • Asset tracking and geofencing for mobile equipment using active GNSS
  • Rail and light industrial installations exposed to vibration and wide temperature swings
  • Portable or temporary LTE connectivity for wired devices

Specifications

Power

Input
9-33 VDC steady state input
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption Idle
9 W idle
Ignition Sensing
Ignition sensing (automatic ON, time-delay OFF)
Consumption Heavy
14.5 W heavy
Consumption Typical
13 W typical

General

MPN
TAA-TB05-0750C4D-NA
UPC
840292705746
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S750 (S700 Series)
Region
United States Federal Government ordering option
FIPS Model
Non-FIPS model
Form Factor
Metal
Fiveg Status
No 5G
TAA Compliant
TAA compliant
Product Status
Active
Cloud Management
Cloud managed
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing
Wireless Connectivity
LTE
Hardware Configuration
Cat 4 (150 Mbps) without Wi-Fi

Cellular

SIM
Dual 4FF SIM slots with SIM-based auto-carrier selection
SMS
SMS supported
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Antennas
SMA female connectors; external 600 MHz - 6 GHz paddle antennas (Qty 2, included only with certain packages)
Bands 3g
3G bands 2, 4, 5
Wcdma 3g
WCDMA/UMTS/HSPA+
LTE Bands
LTE FDD B2, B4, B5, B12, B13, B14, B66, B71
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+
Transmit Power
LTE 23 dBm ± 2; HSPA+ 23 dBm ± 1 (typical conducted)
LTE Peak Uplink
50 Mbps
LTE Peak Downlink
150 Mbps
Wcdma Peak Uplink
5.76 Mbps
Wcdma Peak Downlink
42.2 Mbps
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
516 g (18.2 oz)
Dimensions

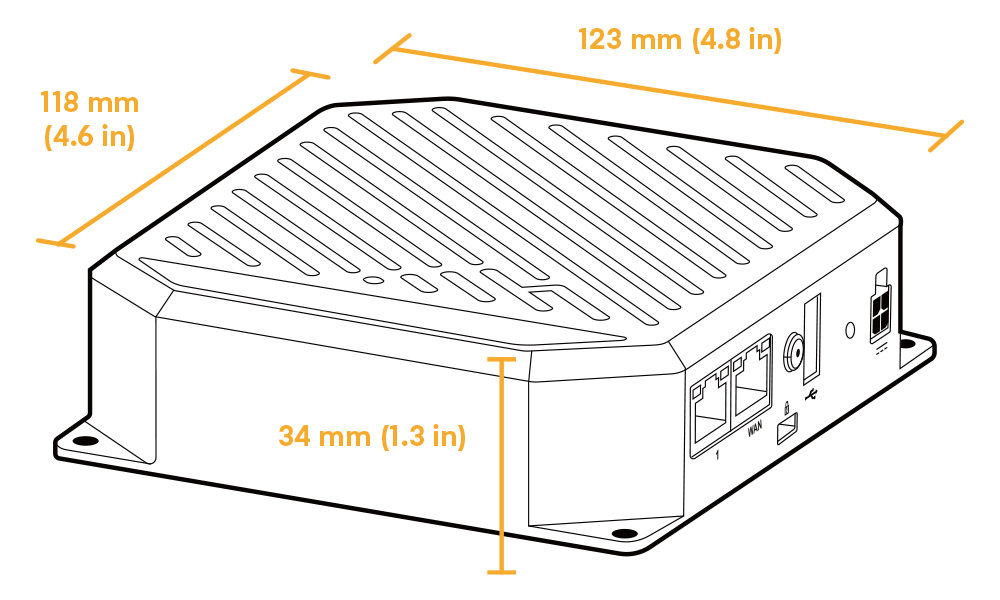

123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Construction
Aluminum housing
Shipping Weight
1.60 lb

Interfaces

PoE
No PoE
Wi-Fi
Not included (S750 non-Wi-Fi configuration)
Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x 1 GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
Serial Ports
0
GNSS Connector
1 x SMA GNSS antenna connector
Dual Modem Support
No

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
50 Mbps point-to-point IPsec VPN
Stateful Firewall
480 Mbps
Concurrent Sessions
100,000 concurrent sessions (TPC)
Typical Client Count
20 typical clients
Concurrent VPN Tunnels
10 concurrent VPN tunnels
Ips App Aware Client Analytics
480 Mbps (IPS / application aware services / client analytics)

Reliability

MTBF
483,373 hours (S750-C4D, Telcordia SR332 at 25 °C)

Subscription

Plan
5-Year NetCloud IoT Essentials Plan
Term
5 years
Support
Phone: 24-hour weekdays with weekend emergency response; web: 24x7; chat: 24x5
Warranty
Limited lifetime warranty for as long as an active NetCloud Service plan is licensed
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term
Ordering Guide Listing
TAA Compliant NC — Essentials

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP30
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
SAE J1455-2006 Operating Sinusoidal Vibe, Category 2 Section 4.10.4.1
Security
FIPS 140-3 applies to S700/S705 FIPS models only; this SKU is non-FIPS
Shock Vibration
EN 61373 Cat 2 vibration; MIL-STD-810H 514.8 Annex C-1 Cat 4 vibration; MIL-STD-810H 516.8 Procedures 1 and V shock
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Questions buyers ask

Does the Cradlepoint S750 have Wi-Fi?

No. This SKU is the S750 Cat 4 (150 Mbps) configuration without Wi-Fi. It connects devices over its two Gigabit Ethernet ports. The S700 is the Wi-Fi 6 model in the same series.

Is this a 5G router?

No. The S750 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink.

What does the 5-year NetCloud IoT Essentials Plan include?

It includes NetCloud Manager device management and software updates for the full five years. Support is 24x7 on the web, 24 hours on weekdays by phone with weekend emergency response, and 24x5 by chat. Hardware is covered by a limited lifetime warranty while the subscription is active. An Advanced Plan can be added at any time.

Can the S750 be installed in a vehicle?

Yes. It accepts 9-33 VDC input with reverse polarity and transient voltage protection (ISO 7637-2). Ignition sensing switches it on automatically and off after a delay. It is certified to SAE J1455 vehicle vibration testing.

Is this SKU TAA compliant?

Yes. TAA-TB05-0750C4D-NA is the TAA-compliant ordering option for the U.S. Federal Government.
