Fortinet FortiExtender 101G LTE Cat 6 Indoor Wireless WAN Router with Dual SIM and eSIM

4G LTEMPN FEX-101G
  • Dual SIM
  • eSIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
$565.21$770.00Save $204.79

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

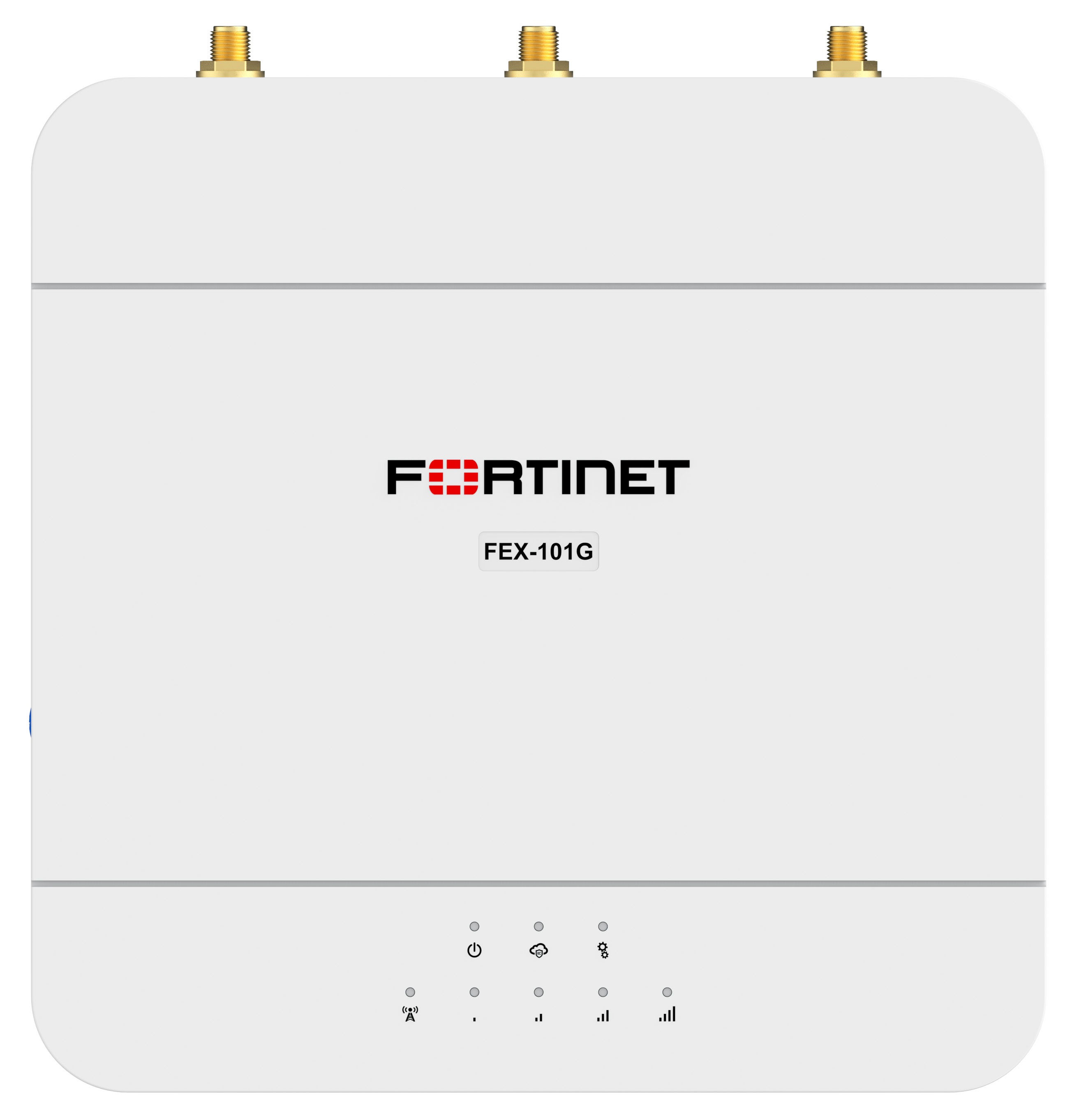

The Fortinet FortiExtender 101G (FEX-101G) is an indoor LTE Cat 6 wireless WAN router for Fortinet networks. It pairs a Telit LN920A6-WW modem, rated at 300 Mbps down and 50 Mbps up, with dual Micro-SIM failover and a reserved eSIM. It also provides one Gigabit WAN port and four Gigabit LAN ports, 802.3at PoE power and GPS/GNSS. You manage it from FortiGate and FortiManager, with cloud and on-premises options.

  • Telit LN920A6-WW LTE Cat 6 modem rated at 300 Mbps down / 50 Mbps up, with 2x2 MIMO and receiver diversity
  • Dual Micro-SIM (3FF) with intelligent failover, plus a reserved eSIM for NA/APAC/EMEA carriers
  • 1x Gigabit WAN and 4x Gigabit LAN ports, USB 2.0 Type-A, RJ45 console and BLE 5.0+
  • IEEE 802.3at PoE powered on Port 4, or an external DC adapter sold separately; 9.10 W average consumption
  • Three external SMA antenna connectors (2x LTE, 1x GNSS) with GPS/GNSS service
  • Single-pane management via FortiGate and FortiManager, with cloud and on-premises options
  • Carrier certified for Verizon, AT&T, T-Mobile and PTCRB; FirstNet Capable on 4G
  • Keeps POS, kiosks and microbranches online with an LTE link that fails over between two SIMs

The Fortinet FortiExtender 101G (FEX-101G) is an indoor broadband wireless WAN router that adds LTE Cat 6 connectivity to Fortinet-secured networks. It is built for sites that need a primary or backup cellular link managed from the same console as their FortiGate firewalls, including point-of-sale systems, kiosks, microbranches, factories and healthcare facilities.

The router uses a Telit LN920A6-WW LTE Cat 6 modem rated at 300 Mbps downlink and 50 Mbps uplink. The modem supports 2x2 MIMO, receiver diversity and receiver equalization, which help at cell edges, inside buildings and in noisy radio environments. Two Micro-SIM (3FF) slots with intelligent failover sit behind a SIM security cover, and a reserved eSIM supports NA, APAC and EMEA carriers. The modem covers 28 LTE bands, including 12, 13, 14, 48 (CBRS), 66 and 71, with 3G UMTS/HSPA+ and WCDMA fallback. It carries Verizon, AT&T, T-Mobile and PTCRB certifications and is FirstNet Capable on 4G, with FirstNet Trusted status in progress.

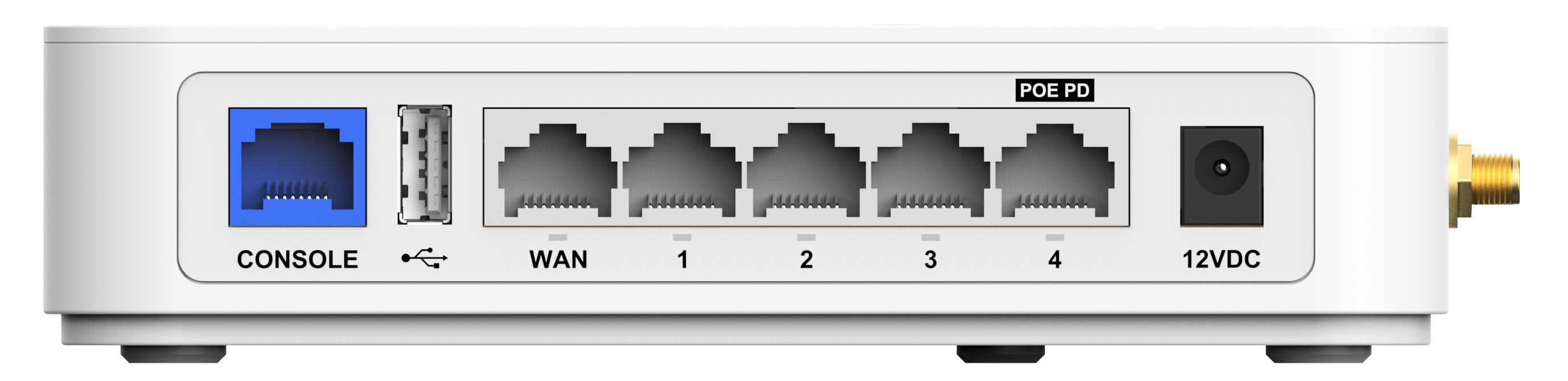

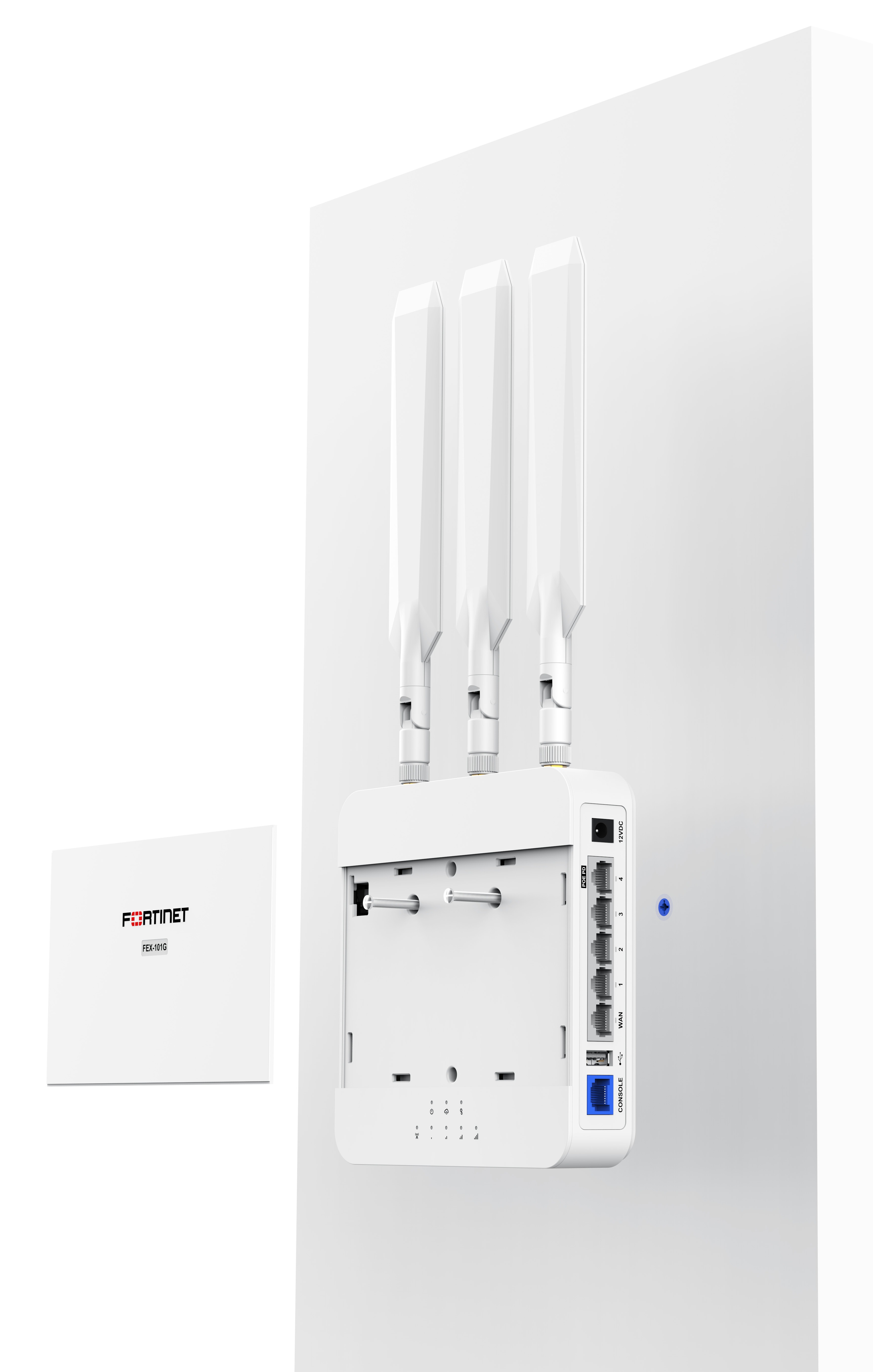

For wired connections there is one Gigabit Ethernet WAN port, four Gigabit Ethernet LAN ports, a USB 2.0 Type-A port, an RJ45 console port and Bluetooth Low Energy 5.0+. Port 4 accepts IEEE 802.3at PoE, so a single cable can power the unit. An external DC adapter is available separately. Average draw is 9.10 W. The 158 x 158 x 38 mm enclosure weighs 0.90 lb and mounts on a wall or desk. Three external SMA connectors handle two LTE antennas and one GNSS antenna.

The FortiExtender 101G integrates with Fortinet Secure SD-WAN and supports single-pane management through FortiGate and FortiManager, with cloud or on-premises options. It also provides out-of-band management, VxLAN network fabric extension and L2 tunnel mode over VLAN or CAPWAP. Rated throughput is 160 Mbps IPsec VPN over LTE and 600/350 Mbps VxLAN over IPsec. Fortinet publishes a series datasheet and a FortiExtender 101G quick start guide for this model.

Ideal for

  • Primary or backup LTE WAN for retail point-of-sale and kiosks
  • Cellular connectivity for microbranches and pop-up sites managed from FortiGate
  • Out-of-band management access to remote network equipment
  • Secure LAN extension to factory floors and healthcare facilities over VxLAN
  • PoE-powered cellular link where no local outlet is available

Specifications

General

MPN
FEX-101G
eSIM
1x reserved eSIM for NA/APAC/EMEA carriers
Brand
Fortinet
Console Port
1x RJ45 console port
Product Name
FortiExtender 101G
Cellular Module
Dual SIM LTE Cat 6 M.2 module, 300 Mbps down / 50 Mbps up

Bandwidth

Ipsec VPN Wired
890 Mbps
Max WAN Uplinks
1
Ipsec VPN Cellular
160 Mbps (LTE)
LAN LAN Layer2 Frames
950 Mbps
LAN WAN Nat Layer3 Packets
900 Mbps
LAN Extension Vxlan Over Ipsec
DL/UL: 600 Mbps / 350 Mbps

Dimensions

Weight
0.90 lbs (0.41 kg)
Height Width Length IN
1.5 x 6.22 x 6.22 in (not including antenna length)
Height Width Length MM
38 x 158 x 158 mm (not including antenna length)

Environment

Humidity
5% to 95%
Power Required
PoE 802.3af/at or 12V/3A external adapter
Storage Temperature
-40°F to 158°F (-40°C to 70°C)
Operating Temperature
32°F to 113°F (0°C to 45°C)
Power Consumption Average
9.10 W
Power Consumption Maximum
10.45 W

SIM Features

eSIM
Yes
SIM Size
Micro-SIM (3FF)
Dual SIM Failover
Dual-SIM with intelligent failover: Yes
SIM Security Cover
Yes
Imei Printed ON Enclosure
IMEI printed on bottom of enclosure: Yes

Certifications

CB
IEC/EN 62368-1
CE
EMC 2014/30/EU (EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-17/-19/-52); RED 2014/53/EU (EN 300 328, EN 303 413, EN 301 908-1/-2/-13, EN IEC 62311, EN 50665, EN 50385); LVD 2014/35/EU (EN 62368-1)
IC
ICES-003, RSS-247, RSS-102
UL
UL/CSA 62368-1
Fcc
FCC Part 15B, 15C, 2.1091

Internal Modem

MIMO
Yes
Diversity
Yes
GNSS Bias
Yes
LTE Bands
4G LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 71
Modem Model
Telit LN920A6-WW (Cat 6)
Wcdma Bands
3G WCDMA bands 1, 2, 4, 5, 6, 8, 9, 19
5G NR SA Nsa
Not supported
Connector Type
SMA (MAIN, AUX, GPS)
Umts Hspa Bands
3G UMTS/HSPA+ bands 1, 2, 4, 5, 8
Additional Ports
GPS antenna port
Module Certifications
RCM, ANATEL, ISED, CCC, JATE/TELEC, NCC, UKCA, FCC, PTCRB, GCF, Telstra, KDDI, DOCOMO, AT&T, T-Mobile, Verizon

Hardware And System

Type
Indoor
Bluetooth
Bluetooth Low Energy 5.0+
USB Ports
1x USB 2.0 Type-A
PoE Powered
1x Port 4, IEEE 802.3at (25.5 W)
Modem Support
Internal (1x modem) LTE Cat 6
Ethernet Ports
1x Gigabit WAN, 4x Gigabit LAN
Ieee Standards
802.1q, 802.1d, 802.1x, 802.3ab, 802.3af, 802.3at
GPS Antenna Port
Yes
Mounting Options
Wall mount / desktop
Number OF Antennas
3 external SMA (2x LTE + 1x GNSS)

Carrier Certifications

Att
Yes
Ptcrb
Yes
Verizon
Yes
T Mobile
Yes
Anatel Brazil
Not listed
Public Safety Network
FirstNet Capable (4G); FirstNet Trusted in progress

Regional Compatibility

Applied Region
Global carriers

Advanced Radio Technology

MIMO 2x2
2x2 MIMO: Yes
MIMO 4x4
4x4 MIMO: Not supported
Dual Modem
Not supported
Wi-Fi 6 2x2
2x2 2.4/5 GHz concurrent Wi-Fi 6 (802.11ax): Not supported
Wi-Fi 5 Wave2 2x2
2x2 2.4/5 GHz 802.11a/b/g/n/ac Wave 2 Wi-Fi: Not supported
Receiver Diversity
Yes
5G DL 4x4 MIMO Bands
5G downlink 4x4 MIMO (n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79): Not supported
Receiver Equalization
Yes
5G UL 2x2 MIMO Band N41
5G uplink 2x2 MIMO band n41: Not supported
LTE DL 4x4 MIMO Bands Set 1
LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66): Not supported
LTE DL 4x4 MIMO Bands Set 2
LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B66): Not supported
LTE DL 4x4 MIMO Bands Set 3
LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66, B70): Not supported

Advanced Software Features

Auto Connect
Yes
L2 Tunnel Mode
Yes
Data Byte Count
Yes
Network Profile
Yes
Power Management
Standby and hibernate selective suspend: Yes
Self Diagnostics
Yes
Connection Status
Yes
Auto Select Network
Yes
Diag And AT Commands
Yes
Private IP SIM Support
Yes
Single Pane Management
Single pane of glass management via FortiGate and FortiManager: Yes

Questions buyers ask

Is the FortiExtender 101G a 5G router?

No. The FEX-101G uses a Telit LN920A6-WW LTE Cat 6 modem rated at 300 Mbps down and 50 Mbps up, with 3G UMTS/HSPA+ and WCDMA fallback. It does not support 5G NR.

Can the FortiExtender 101G run on PoE?

Yes. Port 4 is an IEEE 802.3at PoE powered port. The unit draws 9.10 W on average and 10.45 W maximum. An external DC power adapter is available separately.

What SIM options does it support?

It has two Micro-SIM (3FF) slots with intelligent failover behind a SIM security cover. It also has a reserved eSIM for NA, APAC and EMEA carriers, plus private IP SIM support.

Which US carrier certifications does it carry?

Fortinet lists Verizon, AT&T, T-Mobile and PTCRB certifications. The unit is FirstNet Capable on 4G, with FirstNet Trusted status in progress.

How is the FortiExtender 101G managed?

It supports single-pane management through FortiGate and FortiManager, with cloud and on-premises options. It also integrates with Fortinet Secure SD-WAN and supports L2 tunnel mode via VLAN or CAPWAP.
