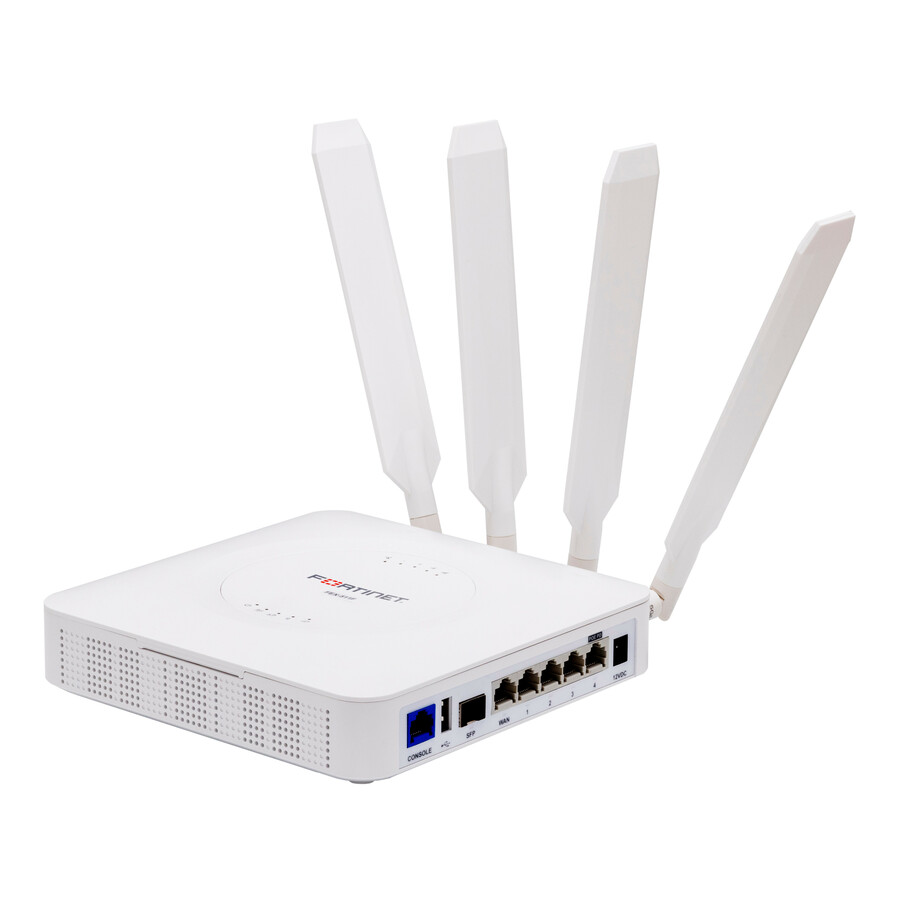

Fortinet FortiExtender 511F 5G Sub-6 GHz Wireless WAN Router

5GMPN FEX-511F

Dual SIM
5+ × 1 Gb Ethernet
PoE powered

$938.11$1,255.00Save $316.89

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card
Data plans with no contract · cancel anytime

Overview

Bring true 5G bandwidth to branches without touching your security architecture. The Fortinet FortiExtender 511F (FEX-511F) puts a dual-SIM 5G Sub-6 GHz M.2 module with LTE Cat 20 fallback behind your existing security stack, plugging straight into the Fortinet Security Fabric so the new link inherits the same policy, inspection, and visibility as the rest of the network. Five GE WAN/LAN configurable ports plus an SFP slot anchor the site's wiring, and 802.3at PoE PD delivers up to 25.5 W over one cable.

Dual-SIM 5G Sub-6 GHz M.2 module
LTE Cat 20 fallback (gigabit-class)
5x GE WAN/LAN configurable ports + 1 SFP
802.3at PoE PD, 25.5 W
4 antennas, desktop/wall-mountable indoor chassis
Power adapter sold separately (PoE typical)
Ride 5G where available and Cat 20 LTE everywhere else
Fail over between two carrier SIMs automatically

The FortiExtender 511F is part of Fortinet's FortiExtender line, built on the company's security-driven networking approach: connectivity and security are configured together rather than bolted on afterward. This 5G model carries a dual-SIM 5G Sub-6 GHz M.2 module with LTE Cat 20 fallback, so sites ride 5G where it's built out and drop to gigabit-class LTE where it isn't — no configuration churn either way.

The 511F is the F-series 5G flagship: Sub-6 GHz 5G for real-world coverage (not line-of-sight mmWave), Cat 20 LTE as a high-speed floor, and dual SIM slots for carrier diversity. Five software-configurable GE ports plus SFP mean it can be modem, router, and switch simultaneously. Four antennas support the radio system, and the 7.1 x 1.8 inch chassis mounts on a desktop or wall. The power adapter is sold separately — PoE is the typical install.

Management options fit both single sites and thousand-site fleets. A FortiGate can adopt and control the unit through Security Fabric integration, while FortiExtender Cloud provides zero-touch provisioning, monitoring, and firmware management at scale; FortiManager support rounds out the tooling. SD-WAN estates use the 511F as the 5G underlay that makes cellular a first-class WAN path rather than a last resort.

Ideal for

Retail POS, kiosk, and ATM connectivity with security policy enforced end to end
Branch WAN failover behind a FortiGate when the primary circuit drops
Rapid site turn-up for pop-ups, construction trailers, and temporary offices
Primary wireless WAN for sites where wired broadband is slow to provision

Specifications

Power

PoE: 802.3at PoE PD, 25.5 W
Adapter: Power adapter sold separately

Package

UPC: 195875035025

Cellular

Antennas: 4
Fallback: LTE Cat 20
SIM Slots: 2 SIM
Technology: 5G Sub-6 GHz

Physical

Weight: 2.75 lb
Mounting: Desktop / wall mount
Dimensions: 7.1" x 1.8" (D x H)
Environment: Indoor

Management

Platform: FortiGate Security Fabric, FortiExtender Cloud, FortiManager

Networking

SFP: 1x SFP
USB: USB port
Ports: 5x GE RJ45, software-configurable WAN/LAN

Questions buyers ask

Which carriers does it support?

It uses dual SIM slots — bring 5G/LTE data service from your preferred carrier and keep a second carrier profile loaded for automatic failover.

How is a FortiExtender managed?

Directly from a FortiGate via Security Fabric integration, or through FortiExtender Cloud for large distributed fleets; FortiManager is also supported. Cellular WAN inherits your existing Fortinet policy and visibility.

What's included in the box?

The FortiExtender unit with its standard accessory kit. The AC power adapter is sold separately; PoE powering is typical. SIM cards and data plans are purchased separately from your carrier.

What warranty and support apply?

FortiExtender hardware carries Fortinet's standard limited hardware warranty; FortiCare support contracts can be added for 24/7 TAC access, advance replacement, and firmware entitlement.
