Lantronix G527 LTE Cat 7/13 Security IoT Cellular Gateway with PoE+ for EMEA and APAC (G527GP22S)

4G LTEMPN G527GP22S
  • Wi-Fi 5
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
  • GPS/GNSS
  • PoE out

Pricing on request

Backordered · ships as soon as it arrives

Compliance · Standard
StandardTAA compliant
Region · EMEA + APAC
North AmericaEMEA + APACNorth America + Latin America
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote

or email info@cloudcarenetworks.com

Compare all 3 configurations

Datasheets & documents

Overview

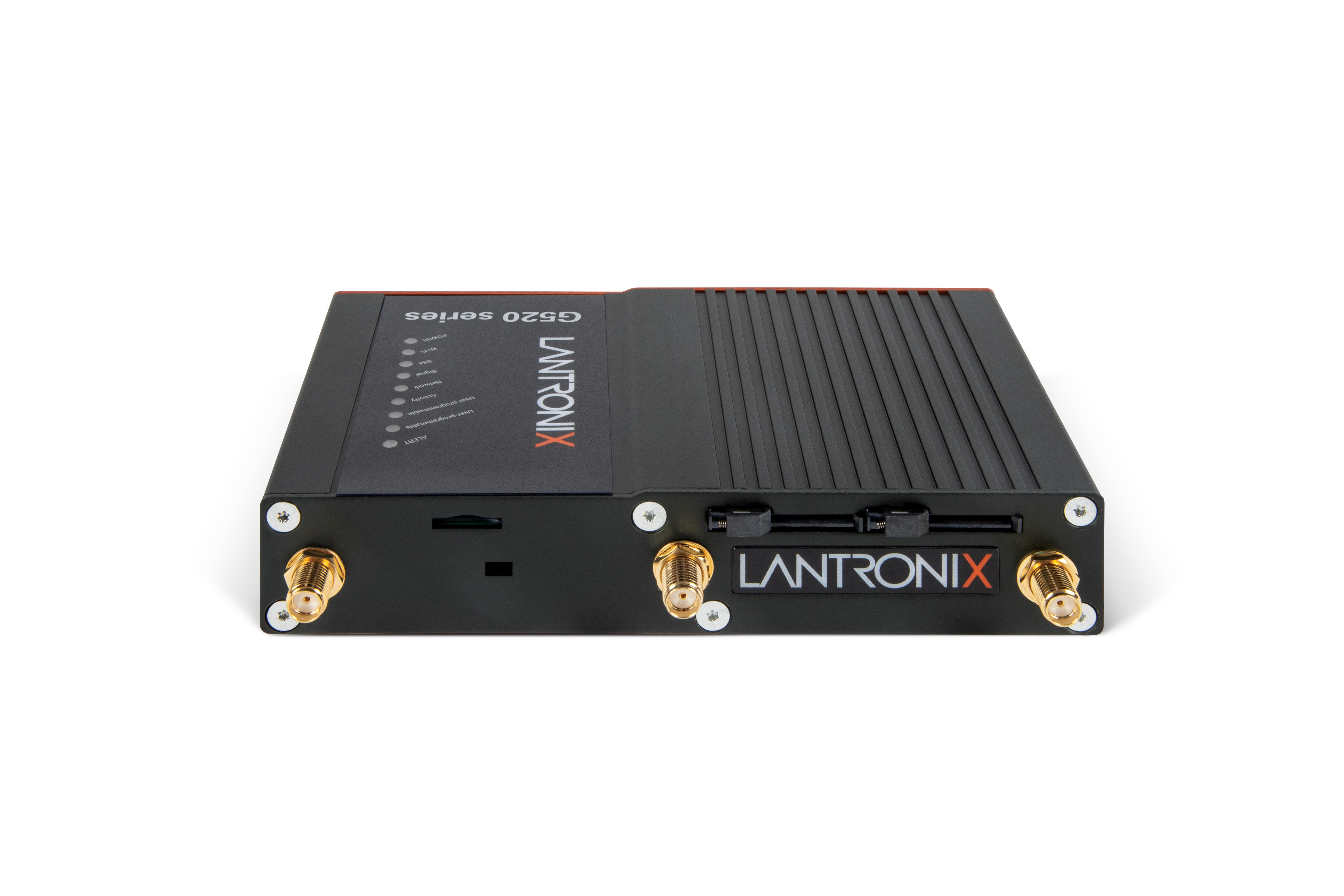

The Lantronix G527GP22S is the EMEA and APAC version of the G527, the security model in the G520 Series of rugged IoT cellular gateways. It pairs LTE Cat 7 downlink / Cat 13 uplink with two 10/100 Ethernet ports that deliver up to 30 W of PSE-PoE+ each. A Microchip ATECC608 secure element with Lantronix InfiniShield, dual SIM and an aluminum housing rated for -30 °C to +70 °C suit it to remote CCTV and security deployments. It is not the North American variant.

  • LTE Cat 7 downlink / Cat 13 uplink on bands B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43 with 3G fallback (EMEA, APAC)
  • Two 10/100 Ethernet ports with PSE-PoE+, 30 W per LAN port
  • Microchip ATECC608 secure element with Lantronix InfiniShield
  • Dual SIM, single standby, with two mechanically secured mini-SIM holders
  • 2T2R Wi-Fi 5, Bluetooth/BLE 5.1, GPS, RS-232, RS-485, USB 2.0, CANbus, I/O and ignition sensing
  • 10.8–60 V DC input, approx. 100-second last gasp, -30 °C to +70 °C operating range
  • Percepxion ready, with G520 SDK support
  • Power and connect IP cameras from one box with up to 30 W of PoE+ per LAN port

The Lantronix G527GP22S is the EMEA and APAC regional version of the G527, the security model in the Lantronix G520 Series of IoT cellular gateways. Lantronix positions the G527 as a cost-effective choice for high-throughput CCTV. It combines LTE Cat 7 downlink and Cat 13 uplink with PSE-PoE+ on its Ethernet ports, so a single unit can both power and backhaul IP cameras. LTE coverage spans bands B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42 and B43, with 3G fallback. This SKU targets EMEA and APAC networks; North American deployments use the G527GP2AS.

Each of the two 10/100 Ethernet ports can supply up to 30 W of PoE+, with a suitably sized power supply. One is a LAN port and the other is a WAN port that can be reassigned as a second LAN. Security starts in hardware with a Microchip ATECC608 cryptographic secure element under Lantronix InfiniShield. The software adds a zone-based firewall, VLAN, DMZ, HTTPS administration, SIM PIN and VPNs including IPsec (up to 4 channels), OpenVPN and WireGuard.

The G527 keeps the full G520 interface set: • RS-232 and RS-485 serial • USB 2.0 host port • CANbus and ignition sensing • Configurable analog, 4–20 mA or digital I/O • 2T2R Wi-Fi 5 and Bluetooth/BLE 5.1 • GPS

For resilience, it offers dual SIM, Ethernet/cellular/Wi-Fi failover or load balancing, watchdogs and an approximately 100-second last-gasp battery. The brushed aluminum housing runs on 10.8–60 V DC from -30 °C to +70 °C.

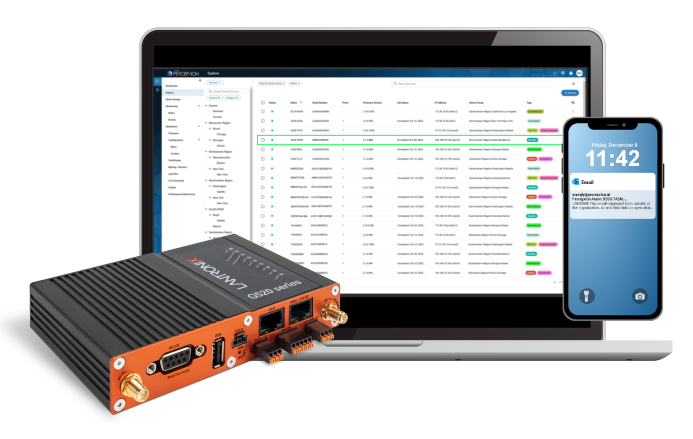

Fleets can be managed through Lantronix Percepxion or third-party platforms, and developers can extend the gateway with the G520 SDK in Python or C/C++. Lantronix publishes CE and UKCA declarations, Australian RCM and Taiwan NCC certificates for this SKU, along with UL and CB certification for the G527.

Ideal for

  • Remote CCTV sites where the gateway powers and backhauls IP cameras over PoE+
  • Perimeter and access-control systems that need a hardware secure element and VPN
  • Transport and vehicle deployments using ignition sensing, CANbus and GPS
  • Industrial telemetry across EMEA and APAC with Modbus, DNP3 and IEC 101/104
  • Temporary or pop-up security installations needing dual-SIM cellular backhaul

Specifications

I/O

Ignition
Ignition pin on power header
I/O Summary
4x I/O, Ignition Sensing, CANbus
Configurable I/O
2 configurable I/Os (analog / 4–20 mA / digital out)

USB

USB Host
One USB 2.0 host port (Type-A)

Power

Last Gasp
Approx. 100 s last gasp
Input Voltage
10.8 ~ 60 V DC
Power Off Timekeeping
RTC with 100-day retention

Serial

Rs232
RS-232 (DB9)
Rs485
RS-485 (5-pin COMBICON, plug sold separately)

General

MPN
G527GP22S
Brand
Lantronix
Model
G527 (Security)
Series
G520 Series
Product Group
Security Gateways
Regional Variant
EMEA, APAC

Cellular

SIM
Dual SIM, single standby (2x mini-SIM)
Fallback
3G fallback
LTE Bands
LTE B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
Technology
4G LTE Cat 7 (DL) / Cat 13 (UL)

Ethernet

PoE
PSE-PoE+ 30 W per LAN port
Ports
2 Ethernet ports
Speed
10/100 Base Ethernet
Connectors
RJ-45 headers with two LEDs
Port Configuration
1x LAN + 1x WAN/LAN

Physical

Weight
Approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
131.5 x 81.27 x 25 mm (without connectors)
Status Leds
Nine status LEDs

CPU Memory

CPU
ARM926EJ-S @ 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB SPI Flash
Secure Element
Microchip ATECC608 secure element
External Storage
microSD slot (card not included)
Internal Storage
256 MB NAND Flash user storage

Positioning

GPS
GPS (SMA connector)
GNSS
GNSS GPS/GLONASS for time sync and positioning

Temperature

Storage
-40 °C ~ +85 °C; up to 95% RH
Operating
-30 °C ~ +70 °C; up to 95% RH

Documentation

Guides
User guide, quick start guide, product brief
Certifications
CE, UKCA, RCM, NCC, UL, CB, RoHS/REACH

Software Suite

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, NAT, DDNS, STP
Security
Zone firewall, VLAN, DMZ, SIM PIN
Redundancy
Failover / load balancing
Resilience
Network and application watchdogs
VPN Tunneling
IPsec (4), OpenVPN, WireGuard, GRE, L2TP, PPTP
Administration
Web UI, SMS/OTA config, TR-069
Device Management
Percepxion or third-party
Industrial Protocols
EtherCAT, DLMS, DNP3, Modbus, IEC 101/104
Performance Fault Management
Traffic analysis and diagnostics

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5
Bluetooth
Bluetooth/BLE 5.1
Wi-Fi Modes
Client or AP, approx. 12 users
Fast Roaming
802.11r support
Wi-Fi Security Hardware
WEP, WPA, WPA-PSK / WPA2-PSK
Wi-Fi Security Software
WEP, WPA, WPA-PSK / WPA2-PSK, WPA3-PSK
Wi-Fi Antenna Connectors
Two RP-SMA antenna connectors

Questions buyers ask

Can I use the G527GP22S in the United States?

This SKU is the EMEA and APAC variant, with bands B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42 and B43. For North America (AT&T, T-Mobile, Verizon), Lantronix offers the G527GP2AS.

How much PoE power can it deliver?

Each LAN port supports PSE-PoE+ at up to 30 W. You need a power supply large enough to cover the gateway plus the connected PoE devices.

Is the G527 a 5G gateway?

No. The G527 uses LTE, with Cat 7 downlink and Cat 13 uplink plus 3G fallback. 5G sub-6 GHz is offered on the G528 model in the same series.

What security hardware is included?

The G527 includes a Microchip ATECC608 cryptographic secure element as part of Lantronix InfiniShield. Software security adds a zone-based firewall, VLAN, DMZ, SIM PIN, HTTPS administration and IPsec, OpenVPN and WireGuard VPNs.

Which regional certifications are published for this SKU?

Lantronix publishes CE and UKCA declarations of conformity, an Australian RCM certificate and Taiwan NCC certificates for the G527GP22S. It also publishes UL and CB certificates for the G527 and RoHS/REACH statements for the G520 Series.
