Lantronix G527 LTE Cat 7 Security IoT Cellular Gateway with PoE+, North America, TAA Compliant

4G LTEMPN G527GP2ASG
  • Wi-Fi 5
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
  • GPS/GNSS
  • PoE out
$438.76

Backordered · ships as soon as it arrives

Compliance · TAA compliant
Standard−$0.78TAA compliant
Region · North America + Latin America
North America−$0.78EMEA + APACNorth America + Latin America
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

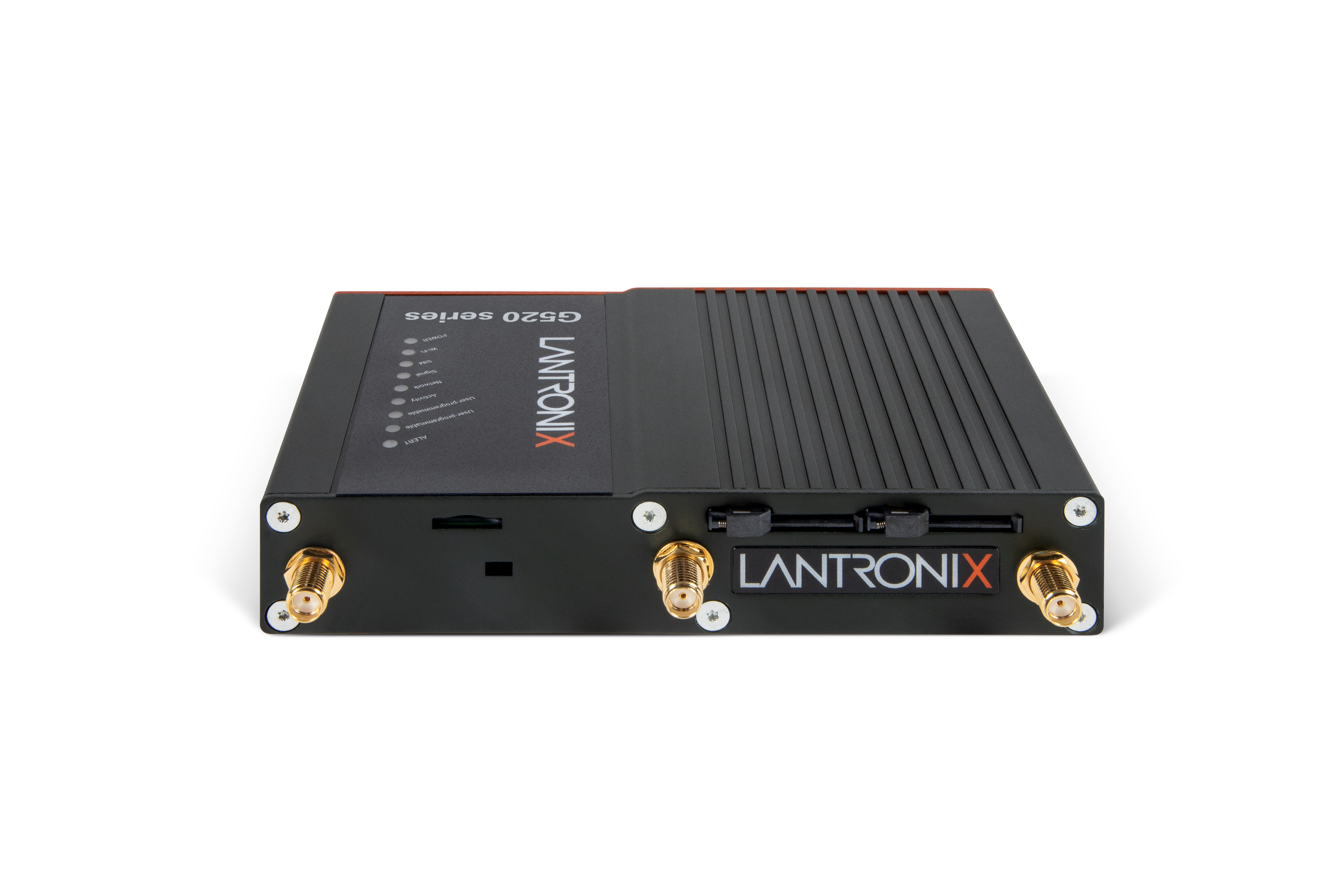

The Lantronix G527GP2ASG is the North American (AT&T, T-Mobile, Verizon), TAA-compliant version of the G527 security gateway. It combines 4G LTE Cat 7 downlink and Cat 13 uplink with two PSE-PoE+ Ethernet ports and a Microchip ATECC608 secure element in a rugged aluminum housing. Lantronix positions it for high-throughput CCTV, industrial automation and remote sites. It adds dual SIM, GNSS, Wi-Fi 5, Bluetooth 5.1, serial, I/O and CAN bus interfaces, and it runs on a 10.8-60 V DC supply.

  • 4G LTE Cat 7 downlink / Cat 13 uplink with North American bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71 and 3G fallback
  • Two 10/100 Ethernet ports with PSE-PoE+ at 30 W per LAN port
  • Microchip ATECC608 secure element with Lantronix InfiniShield security
  • Dual SIM (single standby), GPS and 2T2R Wi-Fi 5 plus Bluetooth/BLE 5.1
  • RS-232, RS-485, USB host, configurable I/O, ignition sensing and CAN bus
  • 10.8-60 V DC input, Last Gasp and -30 °C to +70 °C operation in an aluminum housing
  • TAA compliant; Percepxion ready with SDK support
  • Powers IP cameras or sensors directly from the gateway's PoE+ ports, removing a separate injector at the edge

The Lantronix G527GP2ASG is the North American (AT&T, T-Mobile, Verizon) variant of the G527. The G527 is the LTE model in the Security line of Lantronix's G520 Series IoT cellular gateways, and this SKU is TAA compliant. It pairs LTE Cat 7 downlink and Cat 13 uplink with a Microchip ATECC608 secure element and Lantronix InfiniShield security. Lantronix describes it as a cost-effective choice for high-throughput CCTV and for mission-critical industrial connections.

The cellular radio covers LTE bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66 and B71, with 3G fallback. Two mechanically secured mini-SIM holders provide dual SIM with single standby. Ethernet, cellular and Wi-Fi uplinks can be set for failover or load balancing. Two 10/100 Ethernet ports deliver PSE-PoE+ at up to 30 W per LAN port, so the gateway can power a camera or sensor directly. Local wireless includes 2T2R Wi-Fi 5, as a client or as an access point for about 12 users, plus Bluetooth/BLE 5.1. GPS uses a dedicated SMA connector.

For industrial integration, the gateway provides: • RS-232 on a 9-pin sub-D connector and RS-485 on a COMBICON header • A USB host port, two configurable analog, 4-20 mA or digital-output I/Os, ignition sensing and CAN bus • Modbus master, DNP3 outstation, IEC 101/104, EtherCAT and DLMS client protocols

The brushed aluminum housing operates from -30 °C to +70 °C. Last Gasp keeps the unit alive for about 100 seconds after power loss.

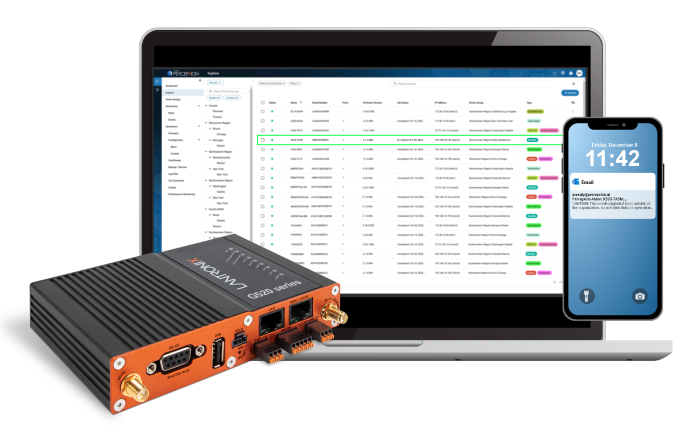

Management runs through the web UI, TR-069, SMS/OTA configuration or the Lantronix Percepxion platform. The G520 SDK supports custom packages in Python or C/C++. VPN options include IPsec (up to 4 channels), OpenVPN, WireGuard, GRE, L2TP and PPTP client, alongside a zone-based firewall, VLAN and DMZ. Lantronix provides a product brief, user guide and quick start guide.

Ideal for

  • Cellular backhaul and PoE power for remote CCTV and IP cameras
  • Secure connectivity for utility, substation and SCADA equipment using DNP3 or IEC 101/104
  • Vehicle and mobile equipment telemetry with ignition sensing, CAN bus and GPS
  • Remote industrial sites that need serial-to-cellular conversion for PLCs and meters
  • TAA-compliant IoT deployments for government and public-sector projects

Specifications

I/O

Can Bus
Yes
User I/O
2 configurable (analog, 4-20 mA or digital out)
Ignition
Pin on power header
I/O Count
4x I/O

USB

USB Host
1 x USB 2.0 host, Type-A

Power

Last Gasp
Approx. 100 s, two 96 mWh Li-ion batteries
Input Voltage
10.8-60 V DC
Power Off Timekeeping
RTC, 100-day retention

Serial

Rs232
Full implementation, 9-pin sub-D
Rs485
5-pin COMBICON header (sold separately)

General

MPN
G527GP2ASG
UPC
783384254480
Brand
Lantronix
Model
G527
Region
North America (AT&T, T-Mobile, Verizon)
Series
G520 Series (Security Gateways)
Product Type
IoT Cellular Gateway / Router
TAA Compliant
Yes
Security Framework
Lantronix InfiniShield

Package

Documentation
Product brief, user guide, quick start guide
Shipping Weight
2.00 lb

Cellular

SIM
Dual mini-SIM, single standby
Fallback
3G
LTE Bands
B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71
Technology
4G LTE Cat 7 DL / Cat 13 UL

Ethernet

PoE
PSE-PoE+, 30 W per LAN port
Ports
2 x 10/100 Ethernet (RJ-45)
Port Configuration
1 LAN + 1 WAN (reconfigurable as LAN)

Physical

Weight
Approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
131.5 x 81.27 x 25 mm (without connectors)
Status Leds
9 (Power, SIM, Wi-Fi, Activity, Network, Signal, 2 user, Alert)

CPU Memory

CPU
ARM926EJ-S, 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB
Secure Element
Microchip ATECC608
External Storage
microSD (card not provided)
Internal Storage
256 MB NAND Flash

Positioning

GNSS
Positioning: GPS/GLONASS, dedicated SMA connector

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-30 °C to +70 °C, up to 95% RH

Software Suite

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, NAT, DDNS, STP
Security
HTTPS, zone-based firewall, VLAN, DMZ, SIM PIN
Redundancy
Failover or load balancing (Ethernet, cellular, Wi-Fi)
Resilience
Network and application watchdogs
VPN Tunneling
IPsec (4 ch), OpenVPN, WireGuard, GRE, L2TP, PPTP
Administration
Web UI, wizard, NTP, SMS/OTA, TR-069
Device Management
Percepxion or third-party
Wi-Fi Security Modes
Wi-Fi (Software): WEP, WPA, WPA2-PSK, WPA3-PSK
Industrial Protocols
EtherCAT, DLMS, DNP3, Modbus, IEC 101/104
Performance Fault Management
Diagnostics: Load/traffic analysis, ICMP, trace-route, NS lookup

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5, two RP-SMA connectors
Roaming
802.11r support
Bluetooth
Bluetooth/BLE 5.1
Wi-Fi Modes
Client or Access Point (approx. 12 users)
Wi-Fi Security
WEP, WPA, WPA-PSK / WPA2-PSK

Questions buyers ask

Does the G527GP2ASG support 5G?

No. The G527GP2ASG is a 4G LTE gateway with Cat 7 downlink, Cat 13 uplink and 3G fallback. Lantronix offers 5G sub-6 GHz in the G528 model of the same series.

Can it power IP cameras?

Yes. Its Ethernet ports support PSE-PoE+ at up to 30 W per LAN port, provided the gateway is fed from a power supply with enough capacity.

What power input does it need?

It accepts 10.8 to 60 V DC. An ignition pin on the power header supports vehicle installations, and Last Gasp keeps the unit running for about 100 seconds after power loss.

Which parts are not included for the serial and I/O connections?

The RS-485 5-pin COMBICON header is sold separately, and plugs for the 3-pin I/O COMBICON header are not provided. A microSD card for external storage is also not provided.

How is the gateway managed remotely?

You can manage it through the HTTPS web interface, SMS/OTA configuration, TR-069, the Lantronix Percepxion platform or a third-party platform. The G520 SDK also supports custom applications in Python or C/C++.
