Lantronix G527 LTE Cat 7/13 Security IoT Cellular Gateway with PoE+ for North America (G527GP2AS)

4G LTEMPN G527GP2AS
  • Wi-Fi 5
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
  • GPS/GNSS
  • PoE out
$437.98

Backordered · ships as soon as it arrives

Compliance · Standard
StandardTAA compliant+$0.78
Region · North America
North AmericaEMEA + APACNorth America + Latin America+$0.78
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

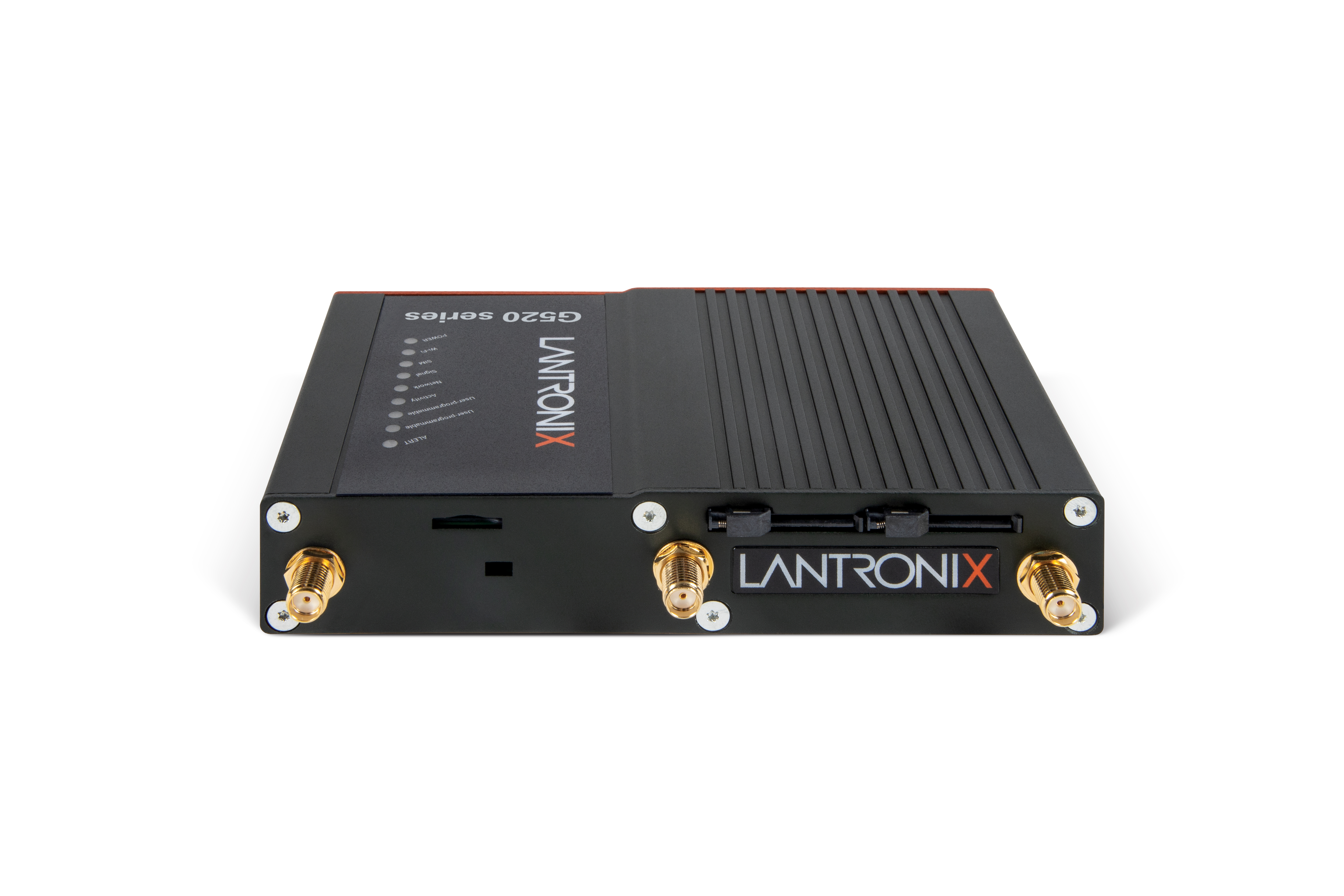

The Lantronix G527GP2AS is the North American version of the G527 security IoT cellular gateway, built for AT&T, T-Mobile and Verizon networks. It combines LTE Cat 7 downlink / Cat 13 uplink across 15 LTE bands with two 10/100 Ethernet ports delivering up to 30 W of PSE-PoE+ each. A Microchip ATECC608 secure element, dual SIM and a rugged aluminum housing rated for -30 °C to +70 °C make it a fit for CCTV, security and transport deployments.

  • LTE Cat 7 downlink / Cat 13 uplink on B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71 with 3G fallback
  • North American variant for AT&T, T-Mobile and Verizon, with published PTCRB, FCC and IC certificates
  • Two 10/100 Ethernet ports with PSE-PoE+, 30 W per LAN port
  • Microchip ATECC608 secure element with Lantronix InfiniShield
  • Dual SIM, single standby, with two mechanically secured mini-SIM holders
  • 2T2R Wi-Fi 5, Bluetooth/BLE 5.1, GPS, RS-232, RS-485, USB 2.0, CANbus, I/O and ignition sensing
  • 10.8–60 V DC input, approx. 100-second last gasp, -30 °C to +70 °C operating range
  • Power and connect IP cameras from one box with up to 30 W of PoE+ per LAN port

The Lantronix G527GP2AS is the North American regional version of the G527, the security model in the Lantronix G520 Series of IoT cellular gateways. Lantronix lists it for AT&T, T-Mobile and Verizon. LTE coverage spans bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66 and B71, with 3G fallback. Lantronix positions the G527 as a cost-effective choice for high-throughput CCTV. It combines LTE Cat 7 downlink and Cat 13 uplink with PSE-PoE+ on its Ethernet ports, so a single unit can power and backhaul IP cameras. Lantronix publishes PTCRB approval, FCC (FCC ID R68G527) and IC certificates for this SKU.

Each of the two 10/100 Ethernet ports can supply up to 30 W of PoE+, with a suitably sized power supply. One is a LAN port and the other is a WAN port that can be reassigned as a second LAN. Security starts in hardware with a Microchip ATECC608 cryptographic secure element under Lantronix InfiniShield. The software adds a zone-based firewall, VLAN, DMZ, HTTPS administration, SIM PIN and VPNs including IPsec (up to 4 channels), OpenVPN and WireGuard.

The gateway keeps the full G520 interface set: • RS-232 and RS-485 serial • USB 2.0 host port • CANbus and ignition sensing • Configurable analog, 4–20 mA or digital I/O • 2T2R Wi-Fi 5 and Bluetooth/BLE 5.1 • GPS

For resilience, it offers dual SIM, Ethernet/cellular/Wi-Fi failover or load balancing, watchdogs and an approximately 100-second last-gasp battery. The brushed aluminum housing runs on 10.8–60 V DC from -30 °C to +70 °C.

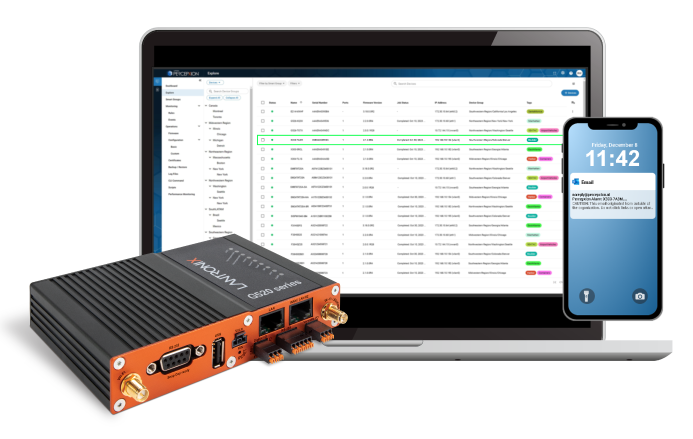

Manage fleets through Lantronix Percepxion or third-party platforms, and build custom applications with the G520 SDK in Python or C/C++. Agencies that need TAA compliance can choose the G527GP2ASG version.

Ideal for

  • Remote CCTV and parking-lot surveillance where the gateway powers and backhauls IP cameras over PoE+
  • Secure connectivity for access-control, alarm and perimeter systems on AT&T, T-Mobile or Verizon
  • Transit, fleet and specialty-vehicle deployments using ignition sensing, CANbus and GPS
  • Utility and industrial telemetry with Modbus, DNP3 and IEC 101/104 in North America
  • Temporary job-site or event security installations needing dual-SIM cellular backhaul

Specifications

I/O

Ignition
Ignition pin on power header
I/O Summary
4x I/O, Ignition Sensing, CANbus
Configurable I/O
2 configurable I/Os (analog / 4–20 mA / digital out)

USB

USB Host
One USB 2.0 host port (Type-A)

Power

Last Gasp
Approx. 100 s last gasp
Input Voltage
10.8 ~ 60 V DC
Power Off Timekeeping
RTC with 100-day retention

Serial

Rs232
RS-232 (DB9)
Rs485
RS-485 (5-pin COMBICON, plug sold separately)

General

MPN
G527GP2AS
UPC
783384244474
Brand
Lantronix
Model
G527 (Security)
Series
G520 Series
Product Group
Security Gateways
Regional Variant
North America (AT&T, T-Mobile, Verizon)

Cellular

SIM
Dual SIM, single standby (2x mini-SIM)
Fallback
3G fallback
LTE Bands
LTE B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71
Technology
4G LTE Cat 7 (DL) / Cat 13 (UL)

Ethernet

PoE
PSE-PoE+ 30 W per LAN port
Ports
2 Ethernet ports
Speed
10/100 Base Ethernet
Connectors
RJ-45 headers with two LEDs
Port Configuration
1x LAN + 1x WAN/LAN

Physical

Weight
Approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
131.5 x 81.27 x 25 mm (without connectors)
Status Leds
Nine status LEDs
Shipping Weight
0.66 lb shipping weight

CPU Memory

CPU
ARM926EJ-S @ 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB SPI Flash
Secure Element
Microchip ATECC608 secure element
External Storage
microSD slot (card not included)
Internal Storage
256 MB NAND Flash user storage

Positioning

GPS
GPS (SMA connector)
GNSS
GNSS GPS/GLONASS for time sync and positioning

Temperature

Storage
-40 °C ~ +85 °C; up to 95% RH
Operating
-30 °C ~ +70 °C; up to 95% RH

Documentation

Guides
User guide, quick start guide, product brief
Certifications
PTCRB, FCC, IC, UL, CB, RoHS/REACH

Software Suite

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, NAT, DDNS, STP
Security
Zone firewall, VLAN, DMZ, SIM PIN
Redundancy
Failover / load balancing
Resilience
Network and application watchdogs
VPN Tunneling
IPsec (4), OpenVPN, WireGuard, GRE, L2TP, PPTP
Administration
Web UI, SMS/OTA config, TR-069
Device Management
Percepxion or third-party
Industrial Protocols
EtherCAT, DLMS, DNP3, Modbus, IEC 101/104
Performance Fault Management
Traffic analysis and diagnostics

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5
Bluetooth
Bluetooth/BLE 5.1
Wi-Fi Modes
Client or AP, approx. 12 users
Fast Roaming
802.11r support
Wi-Fi Security Hardware
WEP, WPA, WPA-PSK / WPA2-PSK
Wi-Fi Security Software
WEP, WPA, WPA-PSK / WPA2-PSK, WPA3-PSK
Wi-Fi Antenna Connectors
Two RP-SMA antenna connectors

Questions buyers ask

Which networks is the G527GP2AS designed for?

Lantronix lists it as the G527 North America variant for AT&T, T-Mobile and Verizon. It covers LTE bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66 and B71 with 3G fallback. Lantronix publishes PTCRB, FCC and IC certificates for this SKU.

How much PoE power can it deliver?

Each LAN port supports PSE-PoE+ at up to 30 W. You need a power supply large enough to cover the gateway plus the connected PoE devices.

Is there a TAA-compliant version?

Yes. Lantronix offers the G527GP2ASG, a TAA-compliant North American G527 with the same band set.

Is the G527 a 5G gateway?

No. The G527 uses LTE, with Cat 7 downlink and Cat 13 uplink plus 3G fallback. 5G sub-6 GHz is available on the G528 model in the same series.

How is the gateway managed at scale?

It comes Percepxion ready for remote updates, real-time servicing and monitoring with alerts. It also supports third-party platforms, TR-069 and SMS/OTA remote configuration.
