Panorama Mako LG-IN2445-3 7-in-1 5G Dome Antenna, 4x4 MIMO, GNSS and 2x2 Wi-Fi, Black, 3 m Cables

5GMPN LG-IN2445-3
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 1–3 m

Made for Cradlepoint

$433.46$597.64Save $164.18

In stockShips from the US

Compliance · Standard
StandardTAA compliant+$0.36
1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

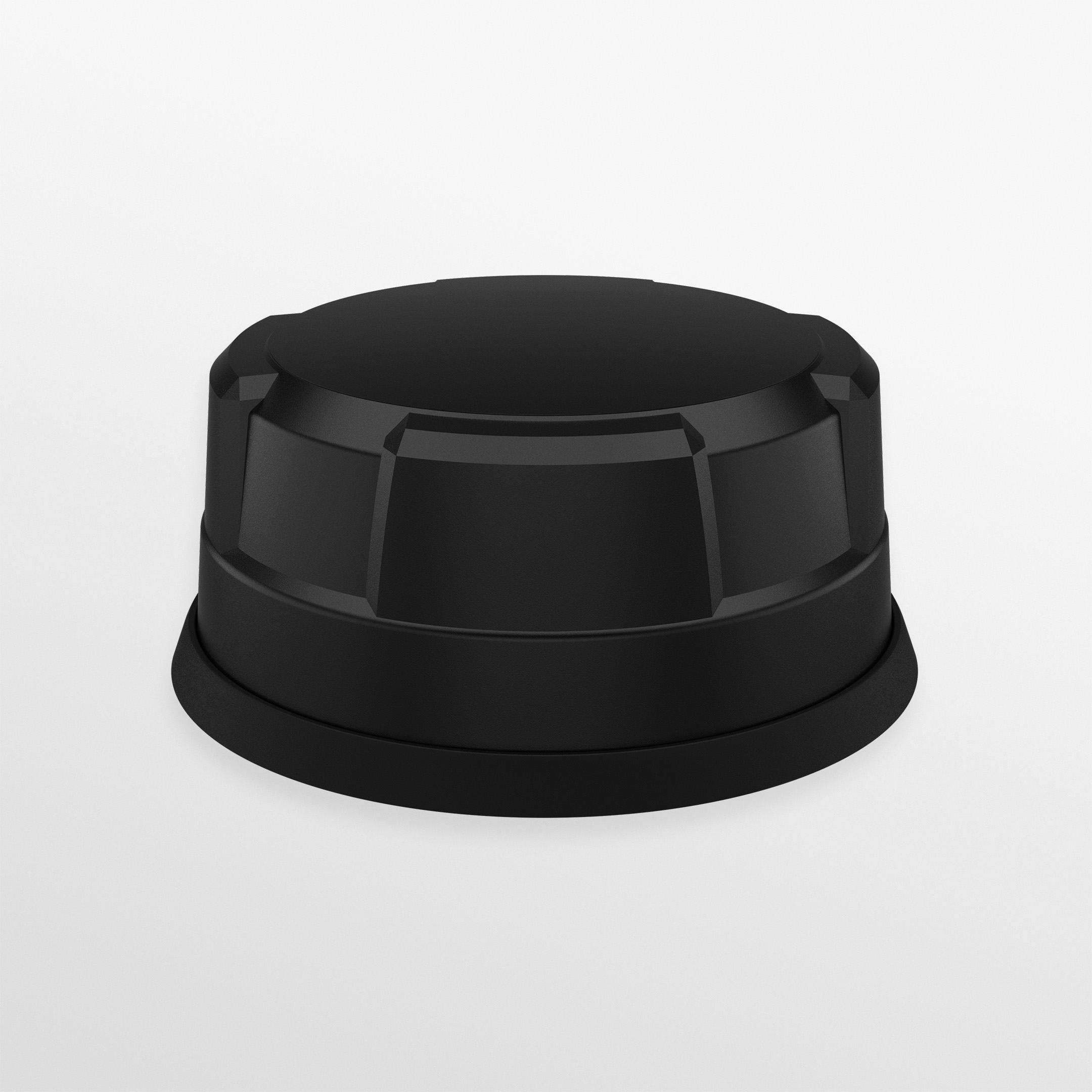

The Panorama LG-IN2445-3 is a black Mako 5G dome that puts seven antennas in one low-profile housing: four 4G/5G cellular elements for 4x4 MIMO across 617-960 and 1710-6000 MHz, an active GPS/GNSS module with a 26 dB LNA, and two dual-band Wi-Fi elements for 2x2 MIMO. This version ships with 3 m fitted cables terminated in SMA (m) for cellular and GPS and RP-SMA for Wi-Fi. It is built for emergency, transit and utility vehicles running Cat 18/20 LTE and 5G routers.

  • 7-in-1 low-profile dome: 4x4 MIMO 4G/5G cellular, 1 GPS/GNSS module and 2x2 MIMO dual-band Wi-Fi
  • Cellular coverage 617-960 / 1710-6000 MHz with 4 dBi, 8 dBi and 9 dBi peak gain by band
  • Active GPS/GNSS, 1562-1612 MHz, with integrated 26 dB LNA and filtering
  • 3 m fitted flame-retardant RG174 cables (UNECE R118) with SMA (m) and RP-SMA connectors and cable flags

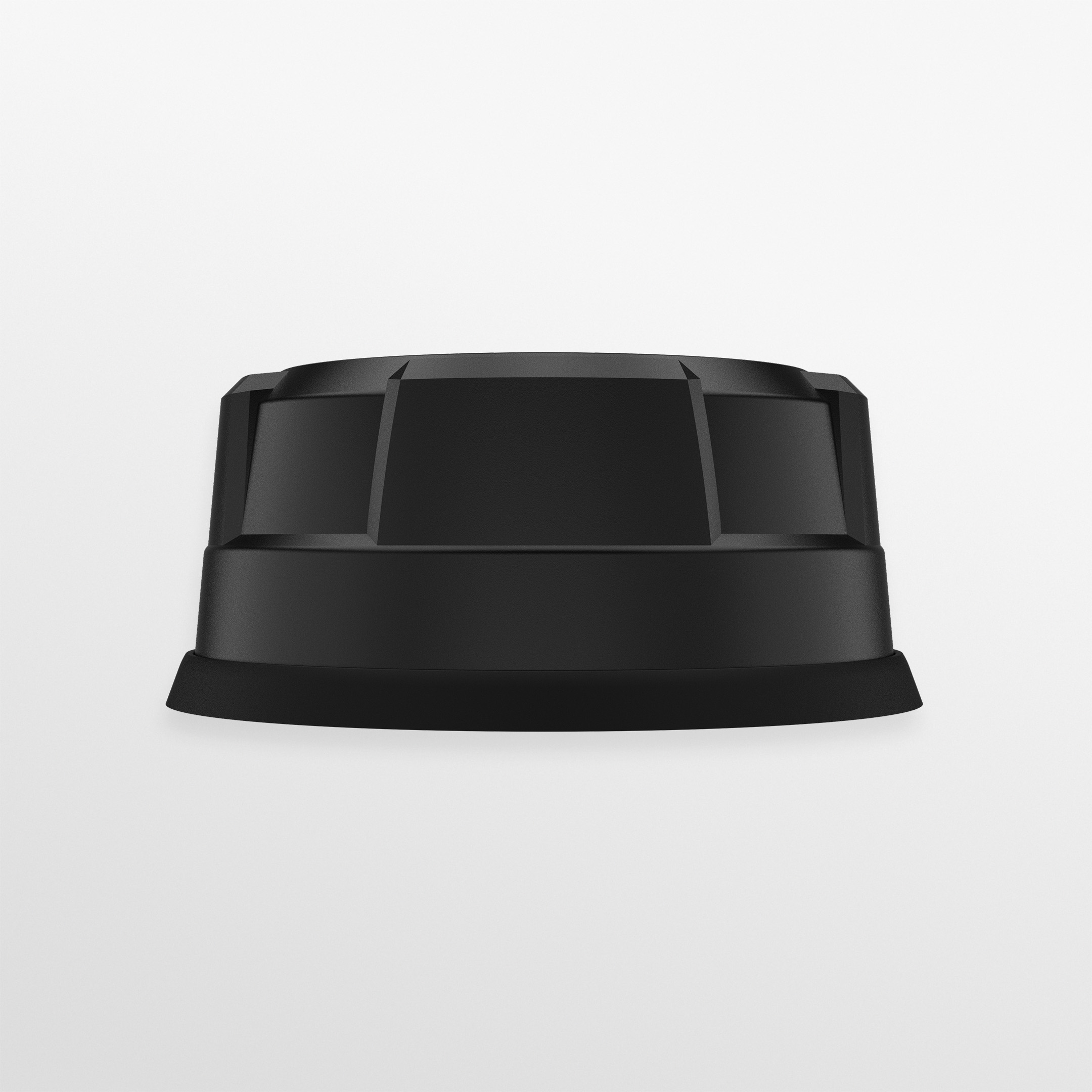

  • IP69K and IK10 rated housing, 80 mm high x 180 mm diameter, -40 to +80 °C
  • Ground-plane independent single-hole panel mount; suitable for FirstNet (USA) and ESN (UK)
  • Replaces separate cellular, GNSS and Wi-Fi antennas with one roof-mounted dome
  • Four cellular elements feed every MIMO port on 4x4-capable Cat 18/20 LTE and 5G routers

The Panorama Mako LG-IN2445-3 is a 7-in-1 vehicle dome for fleets that need full 4x4 MIMO cellular, positioning and Wi-Fi from a single roof penetration. Four isolated elements cover 617-960 MHz at 4 dBi, 1710-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi, which spans Band 71 600 MHz through the mid-band 5G spectrum. Panorama designed it for current Cat 18/20 LTE and 5G routers, and lists it as suitable for FirstNet in the USA and ESN in the UK.

A dedicated GPS/GNSS module covers 1562-1612 MHz and has an integrated 26 dB LNA with filtering for accurate positioning. Two dual-band 2.4/5 GHz elements provide 2x2 MIMO Wi-Fi for the in-vehicle hotspot. The four cellular elements can also be split into two 2x2 pairs for a dual-SIM router in failover mode, with only one SIM active at a time. The antenna is not intended for concurrent or aggregated dual-SIM operation.

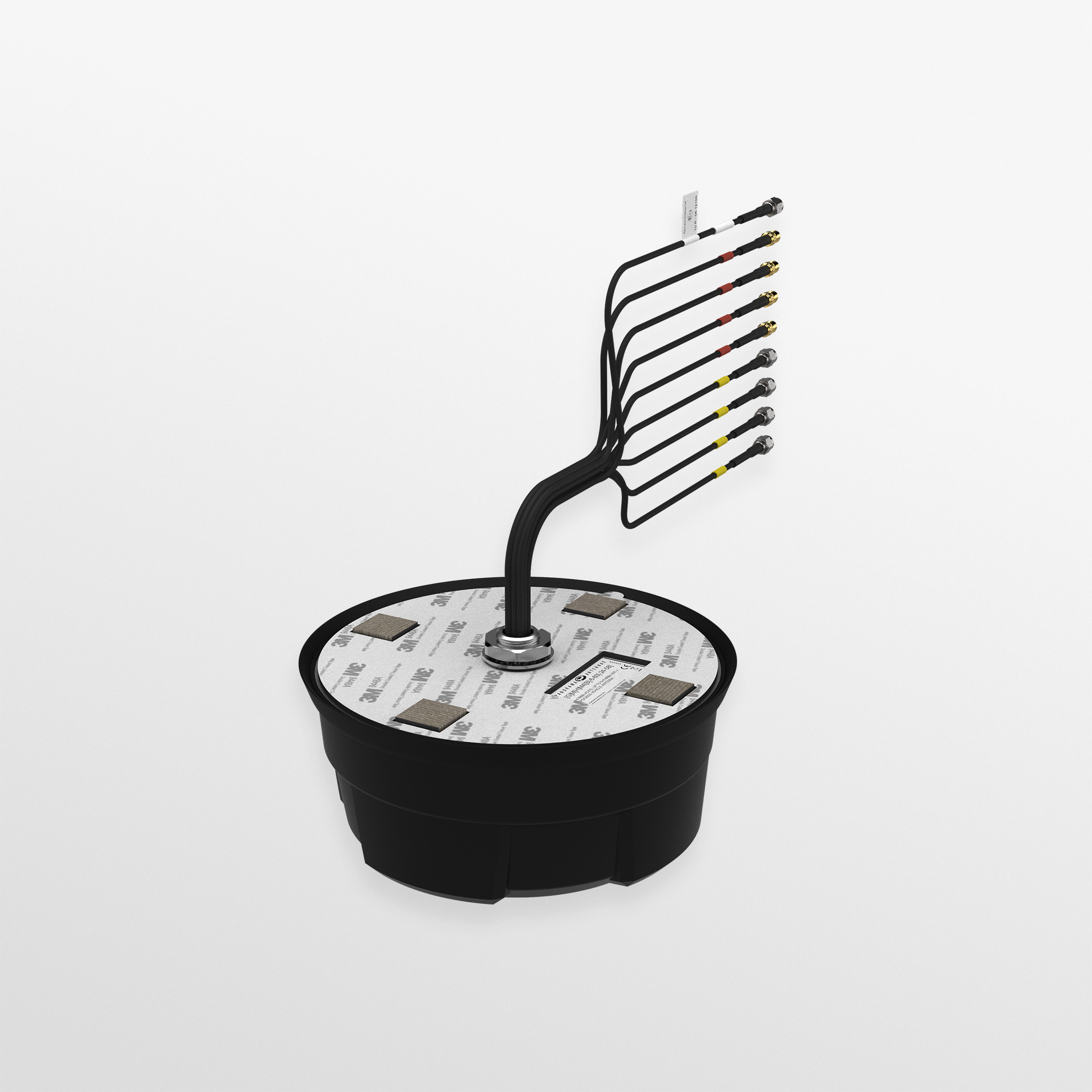

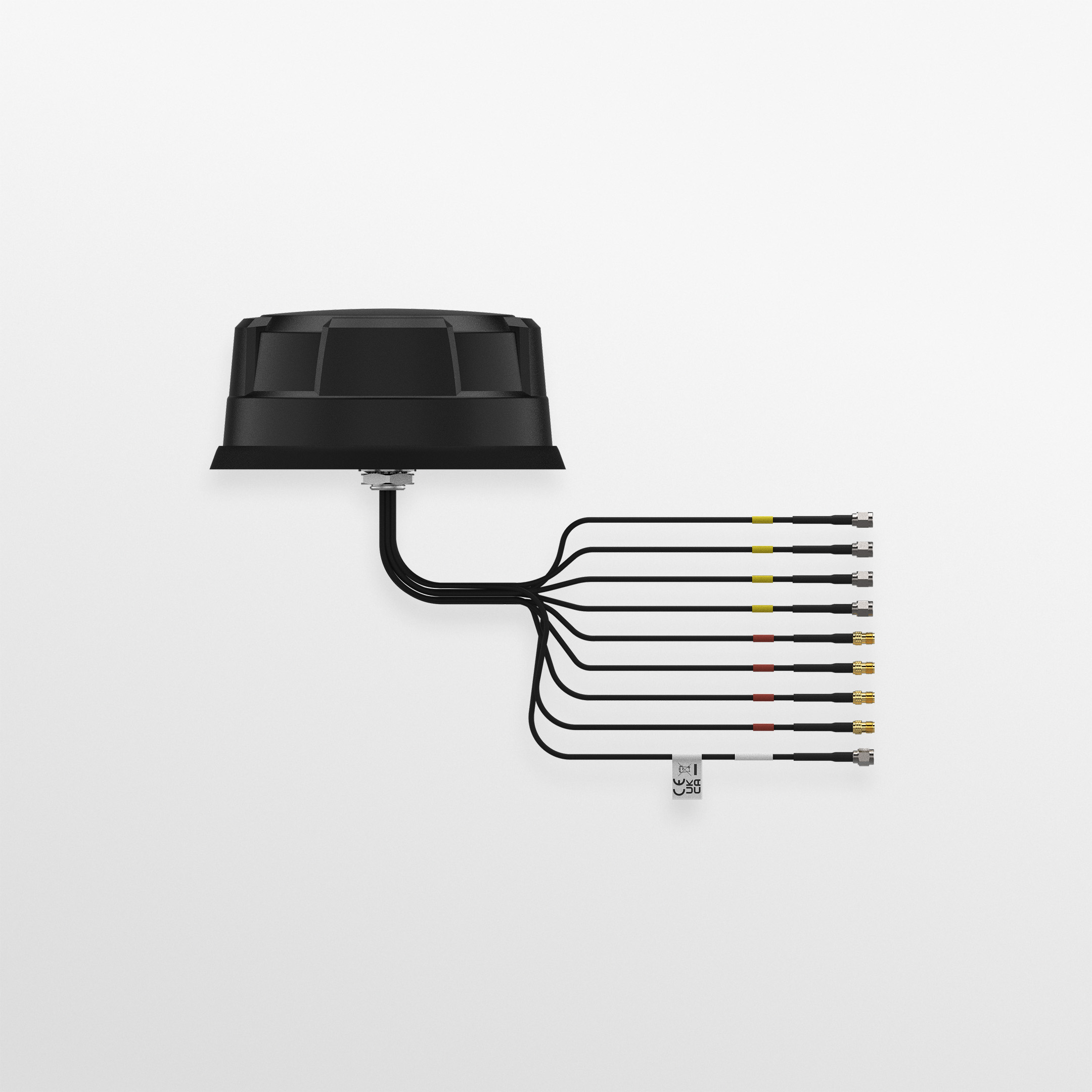

This kit is the 3 m fitted-cable version. It has four cellular leads and one GPS lead in SMA (m), plus two Wi-Fi leads in RP-SMA. The flame-retardant RG174 cables comply with UNECE R118 and carry flags for identification. The 80 mm by 180 mm housing is rated IP69K and IK10 and operates from -40 to +80 °C. It installs through a single hole on conductive or non-conductive panels, with no ground plane required. Panorama publishes a datasheet and installation instructions (SW3-931) for the range.

Ideal for

  • Police, ambulance and fire vehicles that need FirstNet-ready 4x4 MIMO cellular, GNSS and Wi-Fi from one dome
  • Public buses and transit vehicles providing onboard Wi-Fi and vehicle location
  • Utility and field-service fleets running Cat 18/20 LTE or 5G vehicle routers
  • Dual-SIM vehicle routers in failover configuration using two 2x2 cellular pairs

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 module

Cable

Cable Fitting
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174 / RG174
Cable Type Wi-Fi
FR RG174 / RG174
Cable Length GPS
3 m
Cable Length LTE
3 m
Cable Length Wi-Fi
3 m
Quantity Cell Cable
4
Quantity Wi-Fi Extension
2
Quantity GPS GNSS Extension
1

General

MPN
LG-IN2445-3
UPC
5055416088475
Brand
Panorama Antennas
Colour
Black
Configuration
7-in-1: 4x4 MIMO cellular, 1 GPS/GNSS, 2x2 MIMO Wi-Fi
Product Family
Mako 5G dome (L[G]M[H]M4[B]-6-60[-24-58] family)

Package

Shipping Weight
7.00 lb

Mounting

Ground Plane
Ground-plane independent; conductive or non-conductive surfaces
Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals

IP Rating
IP69K, IK10
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
10 W
Frequency Range Gain
617-960 MHz: 4 dBi; 1710-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
GPS, GNSS, 2G/3G/4G, 4G/5G, 5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO
Public Safety Networks
Suitable for FirstNet (USA) and ESN (UK)

Termination

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

What does 7-in-1 mean on this antenna?

The dome contains four cellular elements for 4x4 MIMO, one GPS/GNSS module and two dual-band Wi-Fi elements for 2x2 MIMO, which makes seven antennas in one housing.

Which connectors are on the 3 m cables?

The four cellular leads and the GPS lead terminate in SMA (m), and the two Wi-Fi leads terminate in reverse-polarity SMA.

Can I use it with a dual-SIM router?

Yes, in failover mode. The four cellular elements can be used as two 2x2 pairs when only one SIM is active at a time. Panorama states it is not intended for concurrent or aggregated dual-SIM operation because isolation between the pairs is insufficient.

Does it need a metal roof or ground plane?

No. The antenna is ground-plane independent and performs on conductive or non-conductive surfaces through a single-hole panel mount.

How rugged is it?

The housing is rated IP69K and IK10 and operates from -40 °C to +80 °C. The cables meet EN45545-2 HL3 and UN ECE R118 flammability requirements.
