Panorama Mako LG-IN2445-W 7-in-1 5G Dome Antenna, 4x4 MIMO, GNSS and 2x2 Wi-Fi, White, 5 m Cables

5GMPN LG-IN2445-W
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up

Made for Cradlepoint

$401.22$554.01Save $152.79

In stockShips from the US

Compliance · TAA compliant
Standard−$0.36TAA compliant
1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

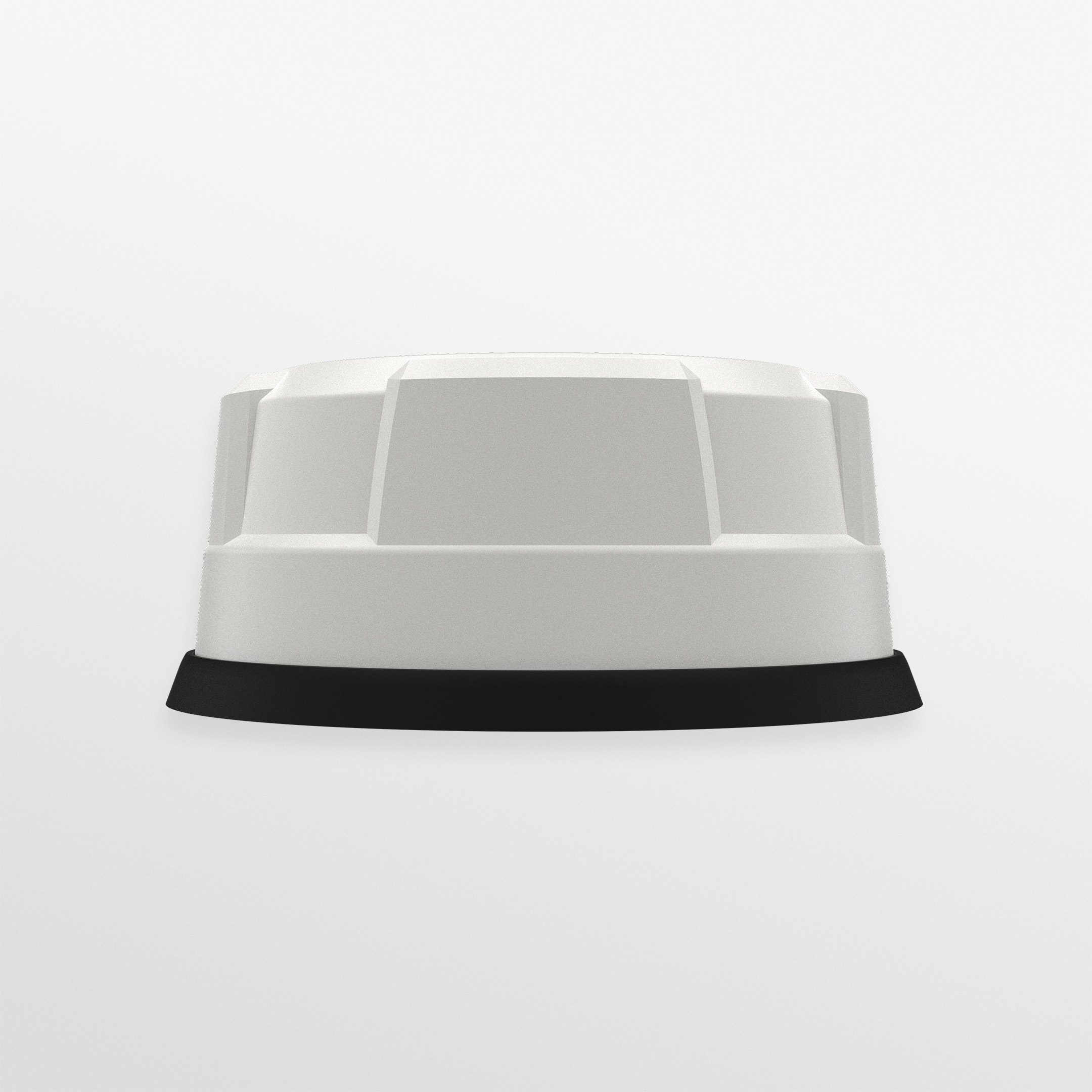

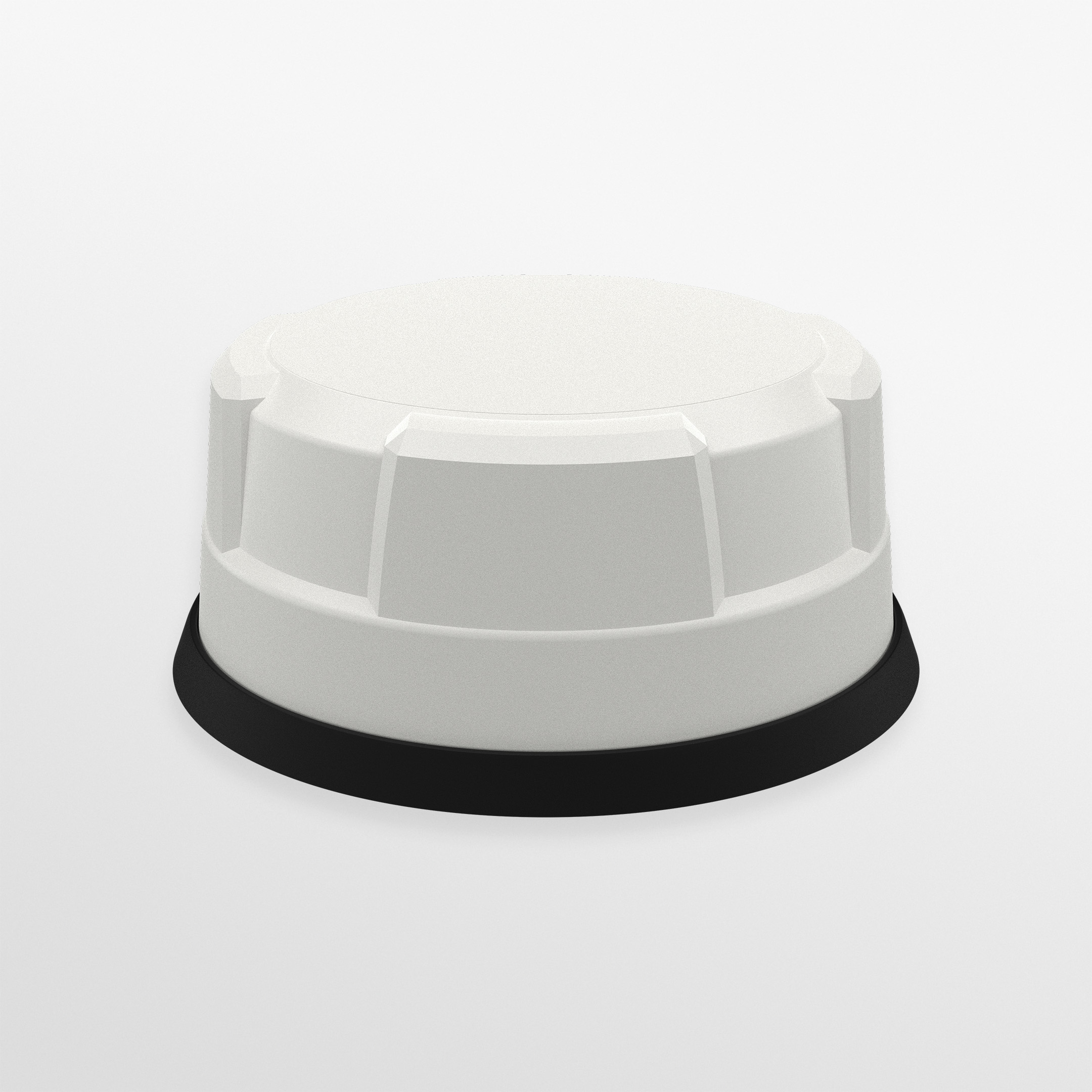

The Panorama LG-IN2445-W is the white Mako 7-in-1 5G dome with 5 m fitted cables. One low-profile housing contains four 4G/5G cellular elements for 4x4 MIMO across 617-960 and 1710-6000 MHz, an active GPS/GNSS module with a 26 dB LNA, and two dual-band Wi-Fi elements for 2x2 MIMO. The cables terminate in SMA (m) and RP-SMA for direct router connection. The antenna is TAA compliant and sold as a kit for Cradlepoint router installations.

  • 7-in-1 white dome: 4x4 MIMO 4G/5G cellular, 1 GPS/GNSS module, 2x2 MIMO dual-band Wi-Fi
  • 617-960 / 1710-6000 MHz cellular coverage with 4, 8 and 9 dBi peak gain by band
  • Active GPS/GNSS, 1562-1612 MHz, with 26 dB LNA
  • 5 m fitted FR RG174 cables: SMA (m) cellular/GPS, RP-SMA Wi-Fi
  • IP69K / IK10 housing, 80 x 180 mm, -40 to +80 °C
  • TAA compliant; suitable for FirstNet (USA) and ESN (UK)
  • The white housing blends with white vehicle roofs and fleet liveries
  • TAA compliance supports government and public-sector procurement

The Panorama Mako LG-IN2445-W is a white 7-in-1 vehicle dome for fleets whose livery or roof colour calls for a white antenna. It is sold as a kit for Cradlepoint router installations and is TAA compliant. Four isolated cellular elements cover 617-960 MHz at 4 dBi, 1710-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi, including Band 71 600 MHz. The dome is designed for Cat 18/20 LTE and 5G routers and is listed as suitable for FirstNet (USA) and ESN (UK).

A GPS/GNSS module covers 1562-1612 MHz with a 26 dB LNA and filtering, and two dual-band 2.4/5 GHz elements provide 2x2 MIMO Wi-Fi. The cellular elements can also run as two 2x2 pairs for a dual-SIM router in failover, with one SIM active at a time. The antenna is not intended for concurrent or aggregated dual-SIM operation.

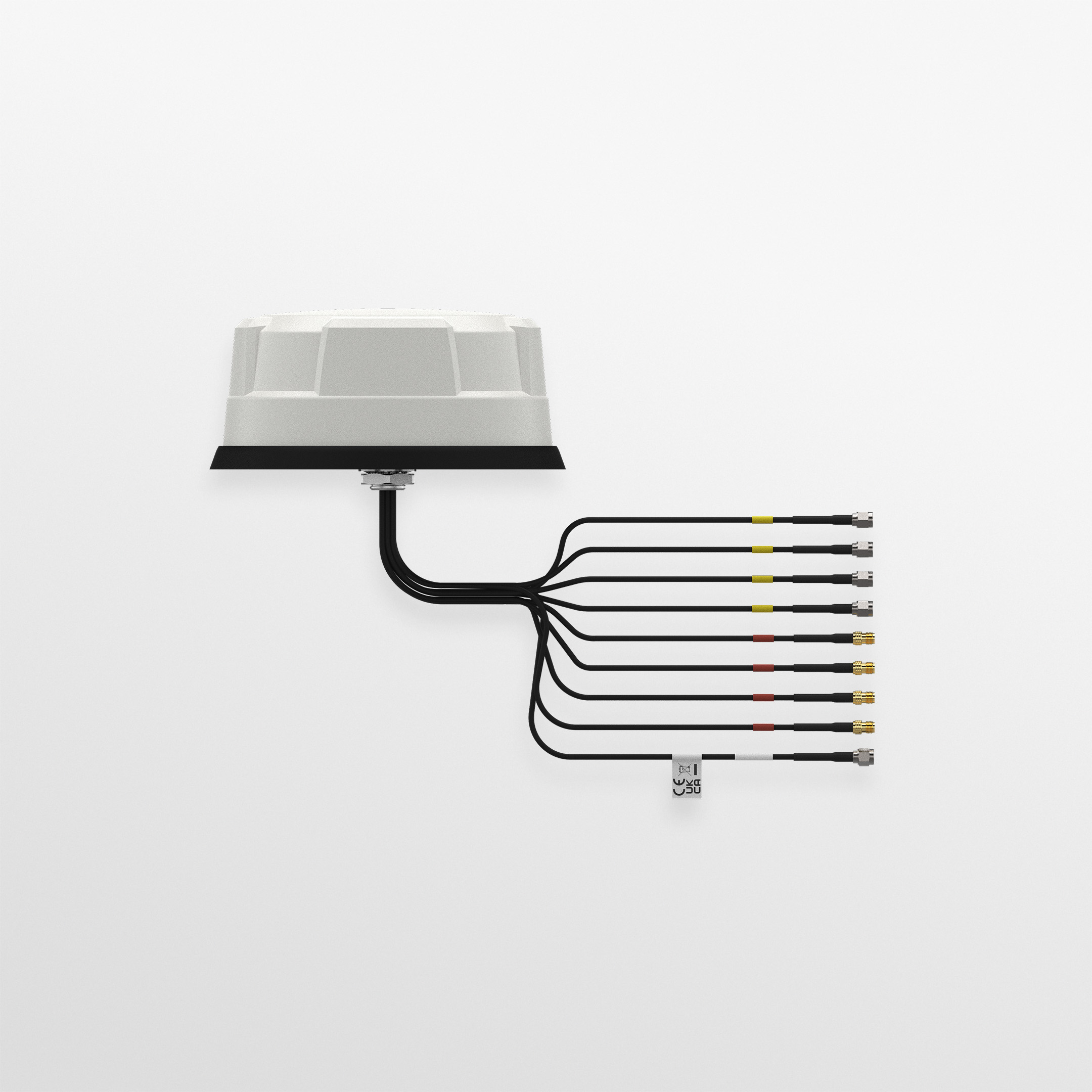

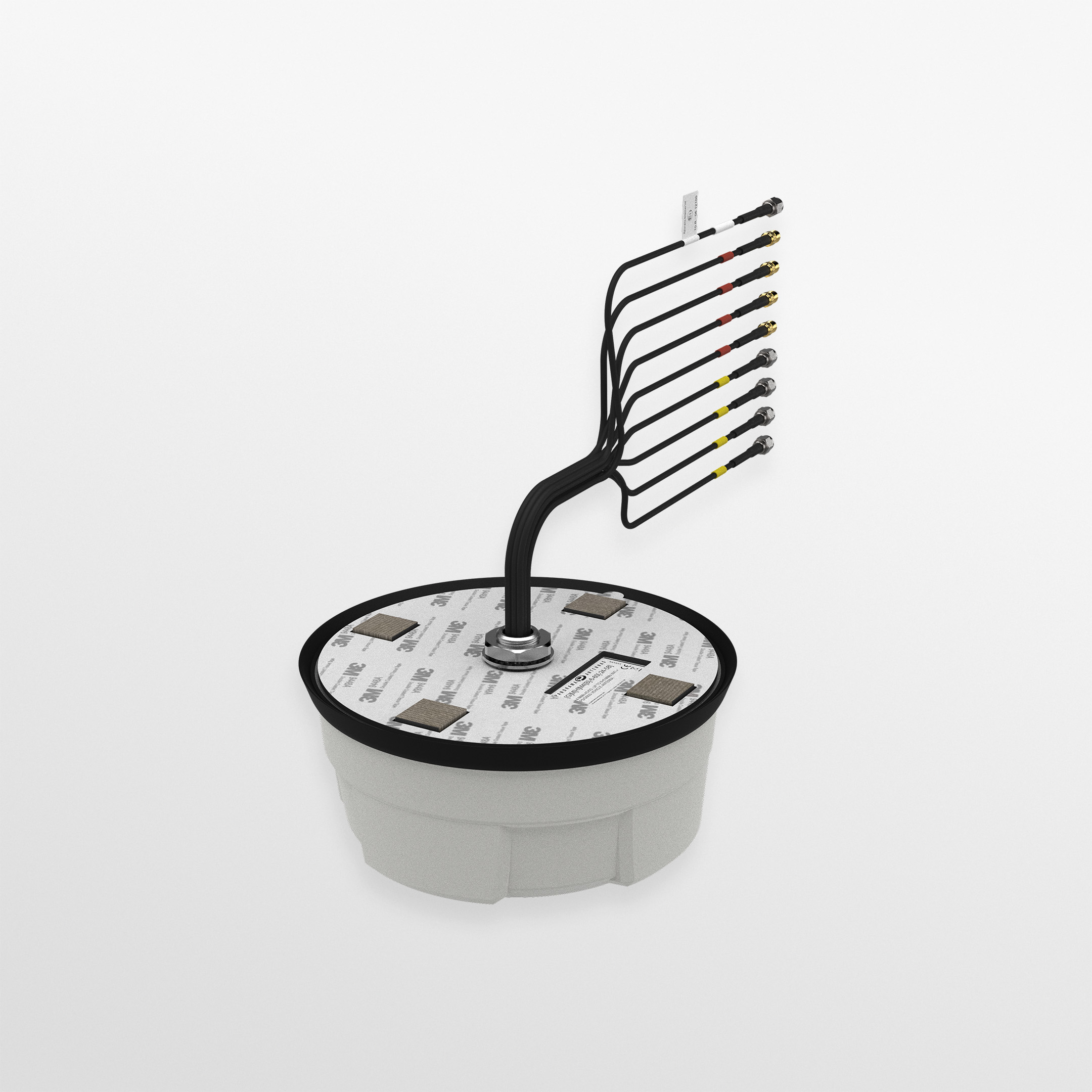

The kit has 5 m fitted flame-retardant RG174 cables, compliant with UNECE R118 and flagged for identification. There are four cellular and one GPS lead in SMA (m) and two Wi-Fi leads in RP-SMA. The 80 mm by 180 mm housing is rated IP69K and IK10, operates from -40 to +80 °C, and mounts through a single hole on conductive or non-conductive surfaces. Panorama publishes a datasheet and installation instructions (SW3-931) for the range.

Ideal for

  • White-roofed ambulances and public safety vehicles on FirstNet
  • Cradlepoint vehicle router installations needing 4x4 MIMO, GNSS and Wi-Fi from one dome
  • Transit buses providing passenger Wi-Fi and vehicle tracking
  • Government fleets with TAA procurement requirements

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 module

Cable

Cable Fitting
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174 / RG174
Cable Type Wi-Fi
FR RG174 / RG174
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Cable Length Wi-Fi
5 m (16.4 ft)
Quantity Cell Cable
4
Quantity Wi-Fi Extension
2
Quantity GPS GNSS Extension
1

General

MPN
LG-IN2445-W
UPC
5055416055040
Brand
Panorama Antennas
Colour
White
Configuration
7-in-1: 4x4 MIMO cellular, 1 GPS/GNSS, 2x2 MIMO Wi-Fi
Product Family
Mako 5G dome (L[G]M[H]M4[B]-6-60[-24-58] family)

Package

Shipping Weight
5.55 lb

Mounting

Ground Plane
Ground-plane independent; conductive or non-conductive surfaces
Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals

IP Rating
IP69K, IK10
TAA Compliant
TAA compliant
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
10 W
Frequency Range Gain
617-960 MHz: 4 dBi; 1710-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
GPS, GNSS, 2G/3G/4G, 4G/5G, 5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO
Public Safety Networks
Suitable for FirstNet (USA) and ESN (UK)

Termination

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

Is this antenna for Cradlepoint routers?

It is sold as a kit for Cradlepoint router installations. The cellular and GPS leads terminate in SMA (m) and the Wi-Fi leads in RP-SMA.

Is it TAA compliant?

Yes, the LG-IN2445-W is TAA compliant.

Can it serve a dual-SIM router?

It supports failover dual-SIM use, running the four cellular elements as two 2x2 pairs with one SIM active at a time. It is not intended for concurrent or aggregated dual-SIM operation.

What mounting options are there?

It is a single-hole panel mount that does not need a ground plane. Panorama also lists accessories including the SAB-225 magnetic mount, SAB-342 pole/mast mount and LGMM-EXT-R-SLT thick or ribbed panel adapter.
