Panorama Mako LG-IN2445-W-2 7-in-1 5G Dome Antenna, 4x4 MIMO, GNSS and 2x2 Wi-Fi, White, 2 m Cables

5GMPN LG-IN2445-W-2
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 1–3 m

Made for Cradlepoint

$431.23$597.64Save $166.41

In stockFree 2-day shipping

Compliance · Standard
StandardTAA compliant+$0.36
1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

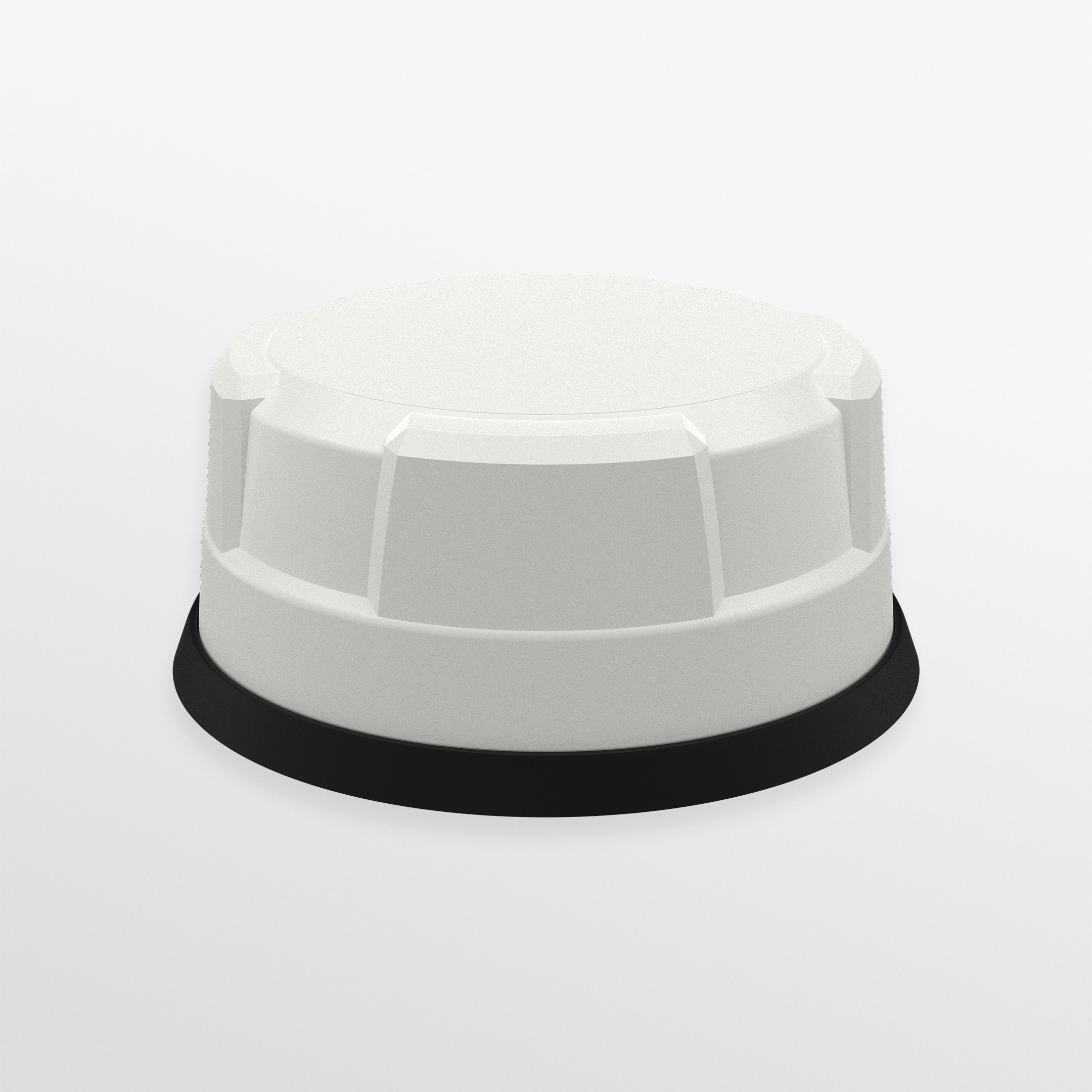

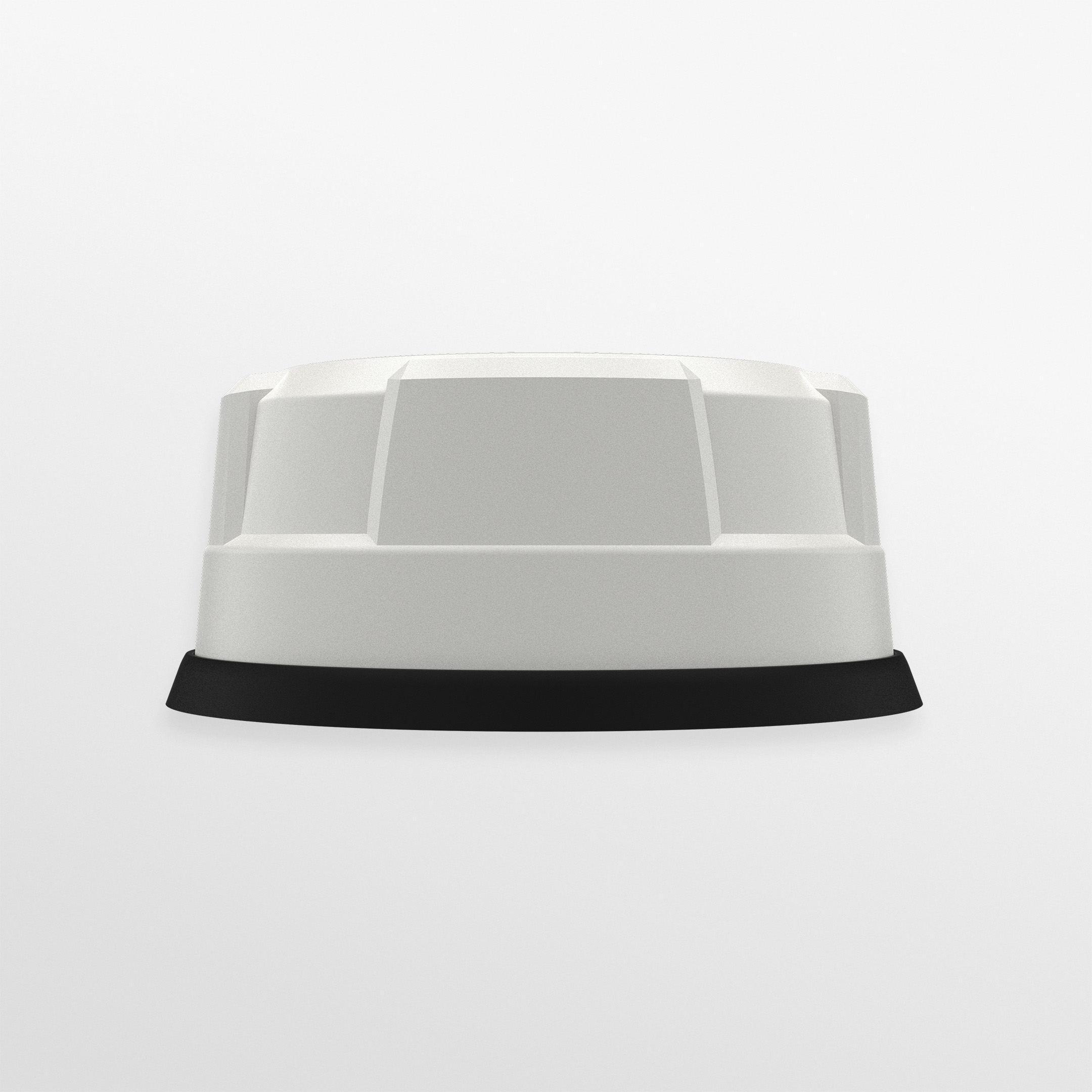

The Panorama LG-IN2445-W-2 is the white Mako 7-in-1 5G dome with 2 m fitted cables for installs where the router sits close to the antenna. It combines four 4G/5G cellular elements for 4x4 MIMO across 617-960 and 1710-6000 MHz, an active GPS/GNSS module with a 26 dB LNA, and two dual-band Wi-Fi elements for 2x2 MIMO. The leads terminate in SMA (m) for cellular and GPS and RP-SMA for Wi-Fi.

  • White 7-in-1 dome: 4x4 MIMO 4G/5G cellular, 1 GPS/GNSS module, 2x2 MIMO dual-band Wi-Fi
  • 617-960 / 1710-6000 MHz cellular coverage; 4, 8 and 9 dBi peak gain by band
  • Active GPS/GNSS, 1562-1612 MHz, with 26 dB LNA

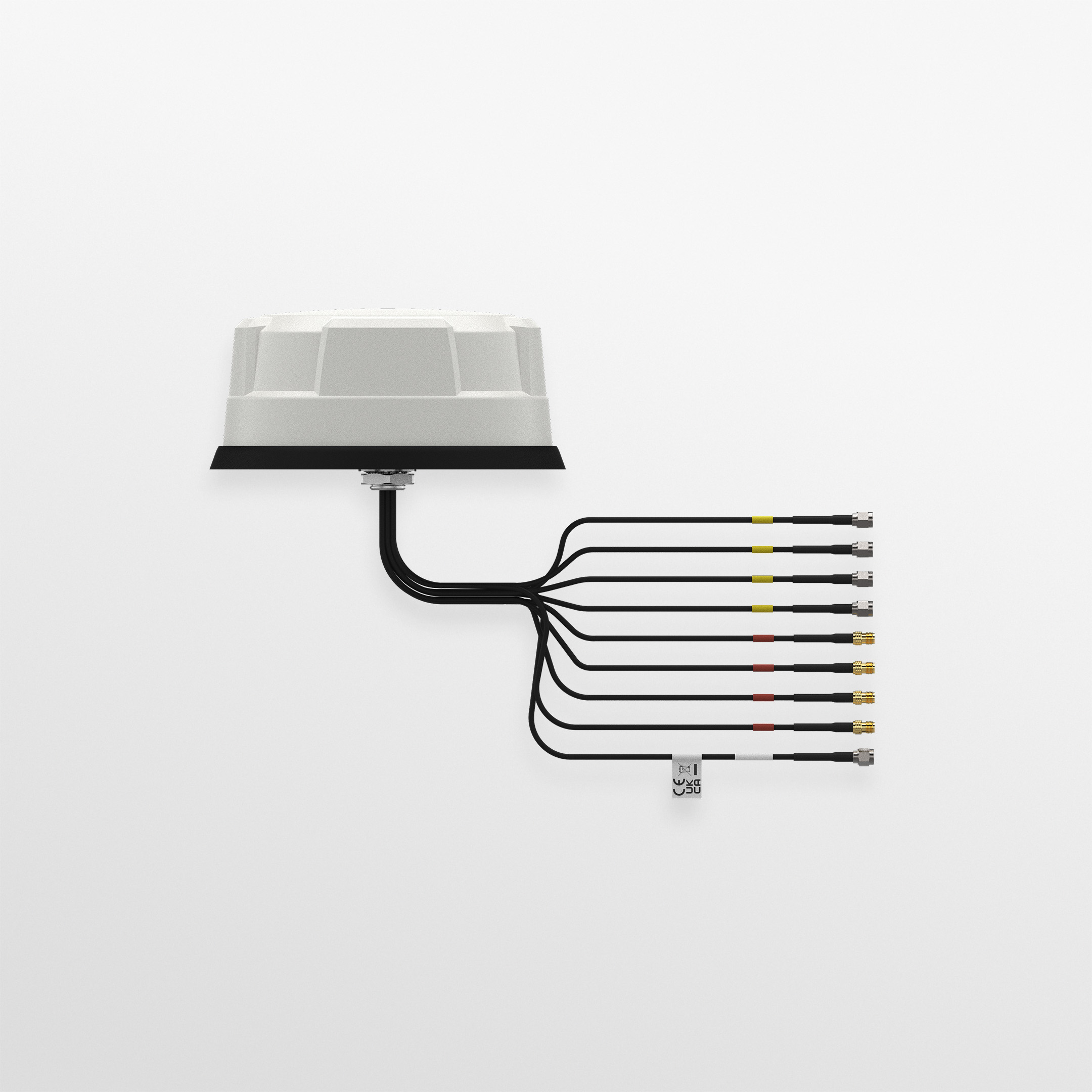

  • 2 m fitted FR RG174 cables: SMA (m) cellular/GPS, RP-SMA Wi-Fi
  • IP69K / IK10 housing, 80 x 180 mm, -40 to +80 °C
  • Single-hole panel mount, ground-plane independent; suitable for FirstNet (USA) and ESN (UK)
  • Short 2 m leads cut excess cable when the router is mounted near the roof
  • Shorter coax runs mean less cable to coil and route

The Panorama Mako LG-IN2445-W-2 packs seven antennas into one white, low-profile dome and pairs them with short 2 m fitted cables. The shorter leads keep cable slack to a minimum when the router is mounted near the roof, such as in a headliner, overhead console or cab. Four isolated cellular elements cover 617-960 MHz at 4 dBi, 1710-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi, including Band 71 600 MHz. The dome suits Cat 18/20 LTE and 5G routers and is listed as suitable for FirstNet (USA) and ESN (UK).

The GPS/GNSS module covers 1562-1612 MHz with a 26 dB LNA and filtering, and two dual-band 2.4/5 GHz elements deliver 2x2 MIMO Wi-Fi. On a dual-SIM router, the four cellular elements can run as two 2x2 pairs in failover, with one SIM active at a time. They are not intended for concurrent or aggregated dual-SIM use.

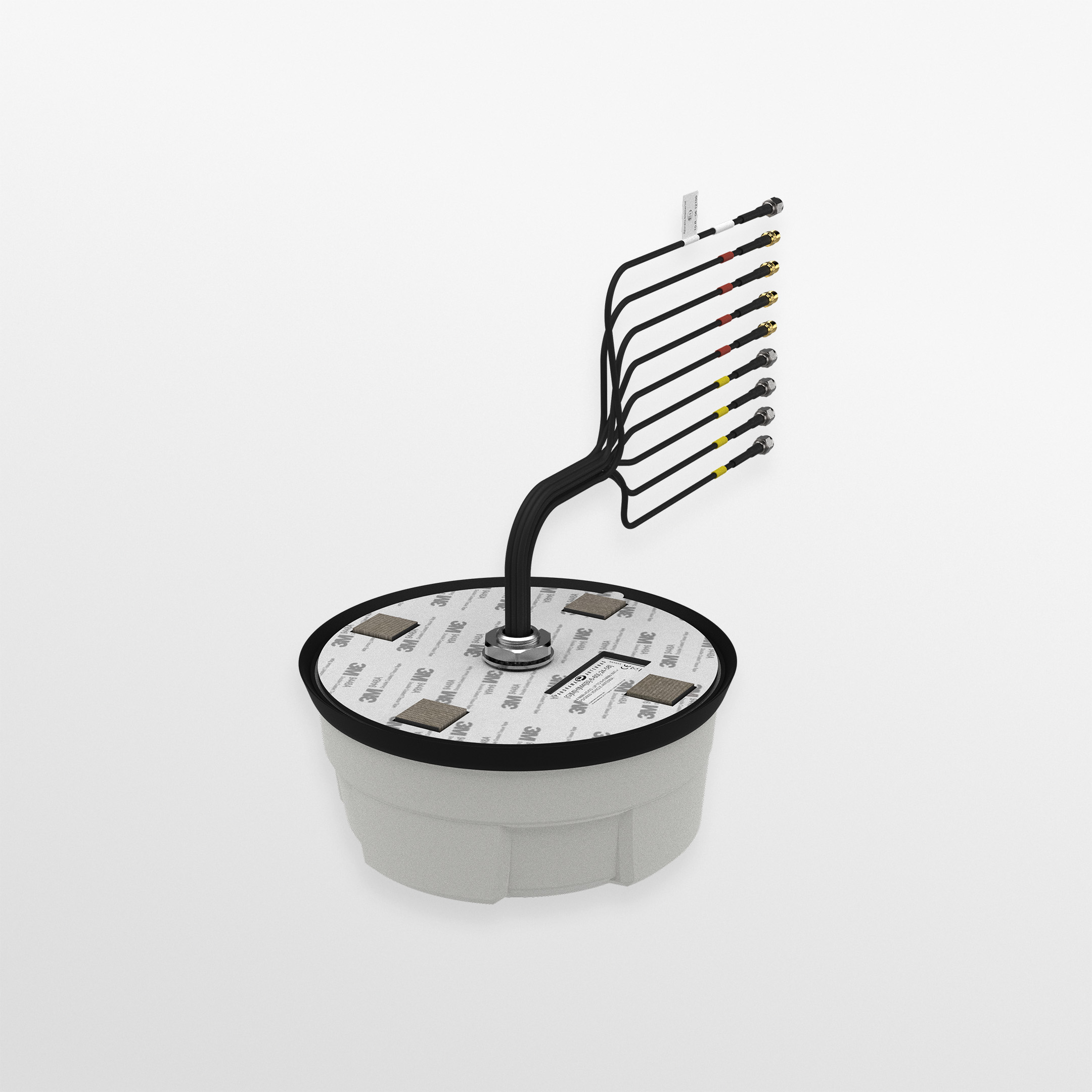

The cables are flame-retardant RG174, compliant with UNECE R118, and are flagged for identification. There are four cellular and one GPS lead in SMA (m) and two Wi-Fi leads in RP-SMA. The 80 mm by 180 mm housing is rated IP69K and IK10 and operates from -40 to +80 °C. It installs through a single hole on conductive or non-conductive panels with no ground plane needed. Panorama publishes a datasheet and installation instructions (SW3-931) for the range.

Ideal for

  • Vehicles with the router mounted in the headliner, overhead console or cab close to the roof
  • White-roofed ambulances and public safety vehicles on FirstNet
  • Transit and shuttle vehicles offering passenger Wi-Fi and GNSS tracking
  • Utility fleets running Cat 18/20 LTE or 5G routers

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 module

Cable

Cable Fitting
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174 / RG174
Cable Type Wi-Fi
FR RG174 / RG174
Cable Length GPS
2 m
Cable Length LTE
2 m
Cable Length Wi-Fi
2 m
Quantity Cell Cable
4
Quantity Wi-Fi Extension
2
Quantity GPS GNSS Extension
1

General

MPN
LG-IN2445-W-2
UPC
5055416081315
Brand
Panorama Antennas
Colour
White
Configuration
7-in-1: 4x4 MIMO cellular, 1 GPS/GNSS, 2x2 MIMO Wi-Fi
Product Family
Mako 5G dome (L[G]M[H]M4[B]-6-60[-24-58] family)

Package

Shipping Weight
3.55 lb

Mounting

Ground Plane
Ground-plane independent; conductive or non-conductive surfaces
Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals

IP Rating
IP69K, IK10
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
10 W
Frequency Range Gain
617-960 MHz: 4 dBi; 1710-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
GPS, GNSS, 2G/3G/4G, 4G/5G, 5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO
Public Safety Networks
Suitable for FirstNet (USA) and ESN (UK)

Termination

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

How long are the cables?

All seven leads (four cellular, one GPS, two Wi-Fi) are 2 m and come fitted to the antenna.

Which connectors are fitted?

The cellular and GPS leads use SMA (m) connectors and the Wi-Fi leads use reverse-polarity SMA.

What gain does it deliver?

Peak gain is 4 dBi at 617-960 MHz, 8 dBi at 1710-3800 MHz and 9 dBi at 4900-6000 MHz, and the GNSS module has a 26 dB LNA.

Can it be used on a non-metal roof?

Yes. The antenna is ground-plane independent and suits conductive or non-conductive surfaces.
