Panorama Mako LG-IN2445 5G 7-in-1 Dome Antenna with Wi-Fi and GPS for Cradlepoint, Black

5GMPN LG-IN2445
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up

Made for Cradlepoint

$401.06$554.01Save $152.95

In stockFree 2-day shipping

Compliance · Standard
StandardTAA compliant+$0.36
1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

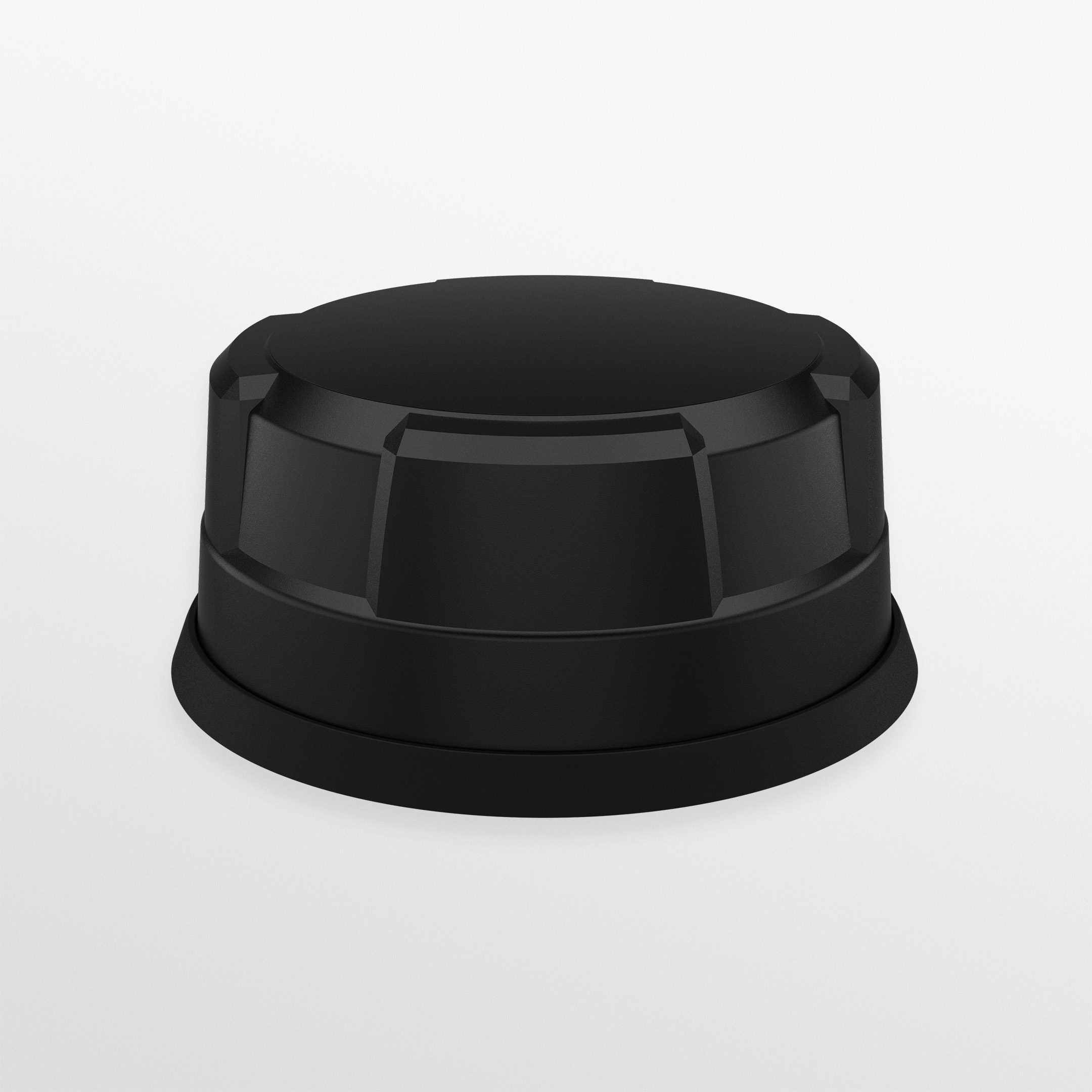

The Panorama LG-IN2445 is a black 7-in-1 Mako 5G dome antenna for Cradlepoint routers. One low-profile housing combines four cellular elements for 4x4 MIMO across 617-960 and 1710-6000 MHz, two dual-band Wi-Fi elements for 2x2 MIMO, and an active GPS/GNSS module. It ships with 5 m pre-terminated cables fitted: SMA (m) for cellular and GPS, and reverse polarity SMA for Wi-Fi.

  • Seven functions in one dome: 4x4 MIMO cellular, 2x2 MIMO Wi-Fi and GPS/GNSS
  • Cellular gain of 4 dBi (617-960 MHz), 8 dBi (1710-3800 MHz) and 9 dBi (4900-6000 MHz), omnidirectional
  • Dual-band Wi-Fi elements covering 2.4 and 5.0/7.2 GHz
  • GPS/GNSS 1562-1612 MHz with 26 dB LNA
  • 5 m fitted cables: SMA (m) for cellular and GPS, reverse polarity SMA for Wi-Fi
  • IK10 and IP69K rated, ground plane independent, single-hole panel mount
  • One roof antenna serves cellular WAN, passenger or crew Wi-Fi, and vehicle tracking
  • Moving the Wi-Fi antennas outside the cab can extend hotspot coverage around the vehicle

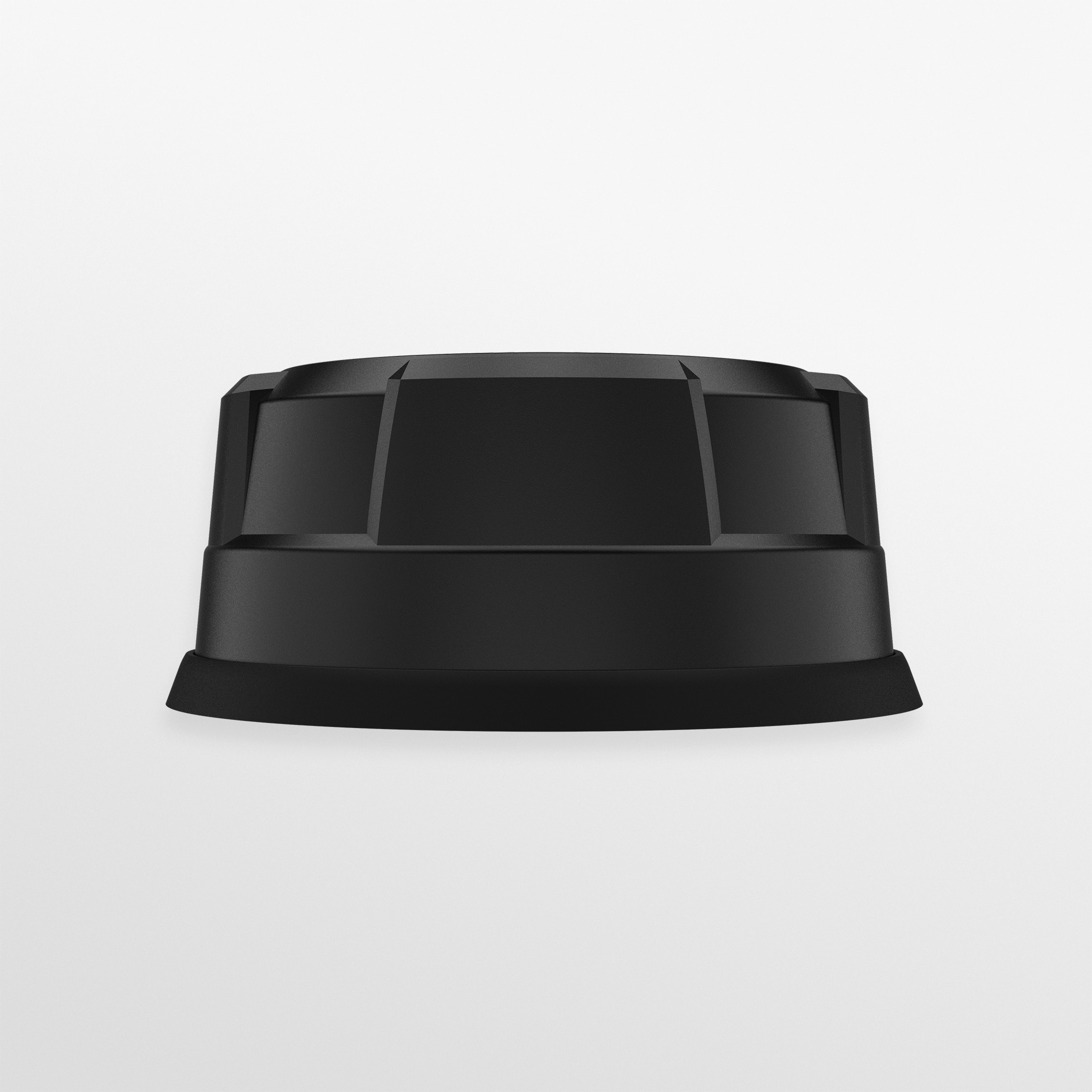

The LG-IN2445 is the 7-in-1 model in Panorama's Mako 5G dome family, supplied as a kit for Cradlepoint routers. Its single radome, 180 mm (7.09 in) wide and 80 mm (3.15 in) tall, holds three sets of elements: - four isolated cellular elements - two dual-band Wi-Fi elements covering 2.4 and 5.0/7.2 GHz - one GPS/GNSS module

This lets a vehicle router run its WAN, in-vehicle Wi-Fi and location services from one roof-mounted antenna.

The cellular elements are omnidirectional and deliver the following gain: - 4 dBi from 617-960 MHz - 8 dBi from 1710-3800 MHz - 9 dBi from 4900-6000 MHz

They support 4x4 MIMO on LTE Cat 18/20 and 5G routers and are Band 71 (600 MHz) ready. The GPS/GNSS module covers 1562-1612 MHz and uses a 26 dB LNA with filtering. The antenna is ground plane independent and performs on non-metallic surfaces.

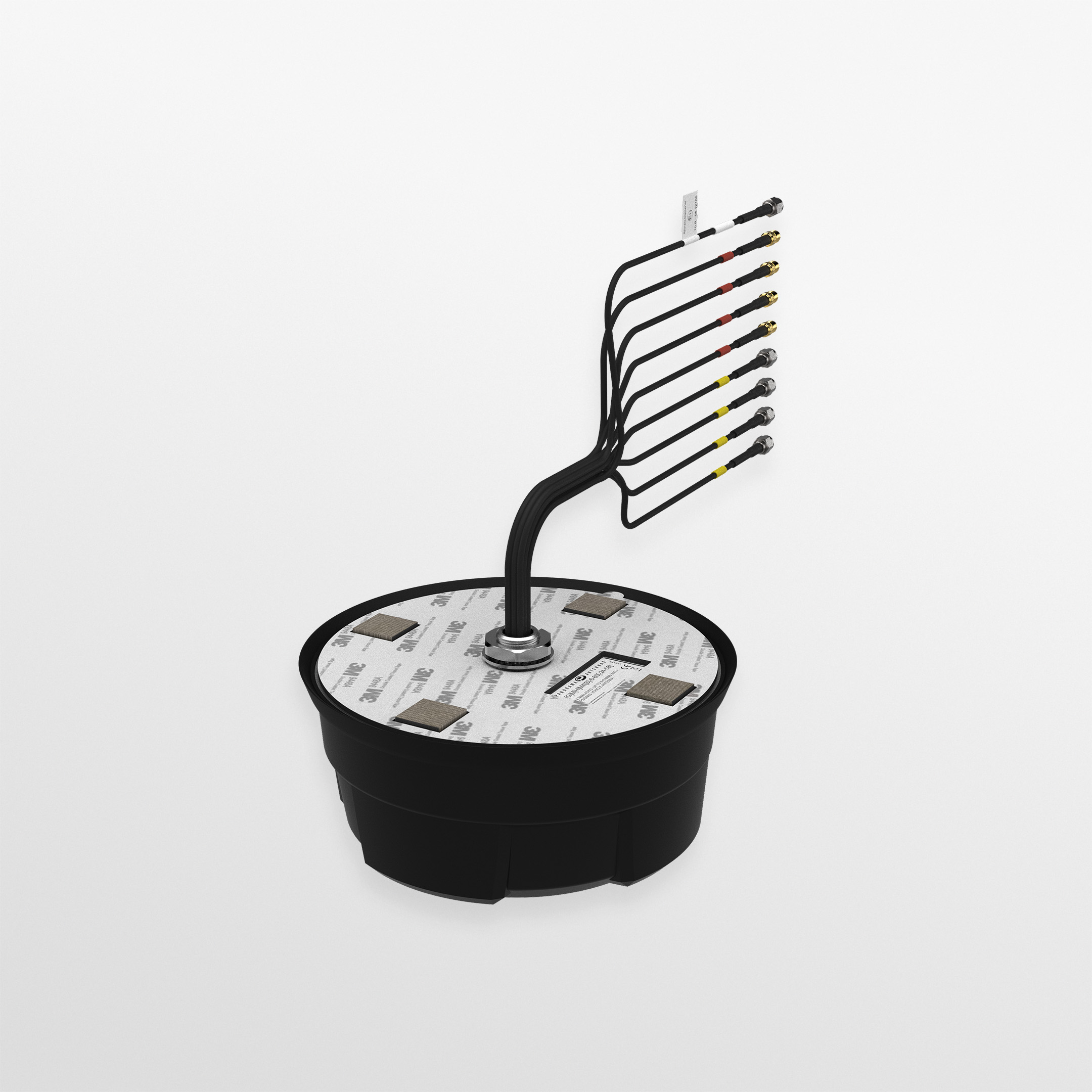

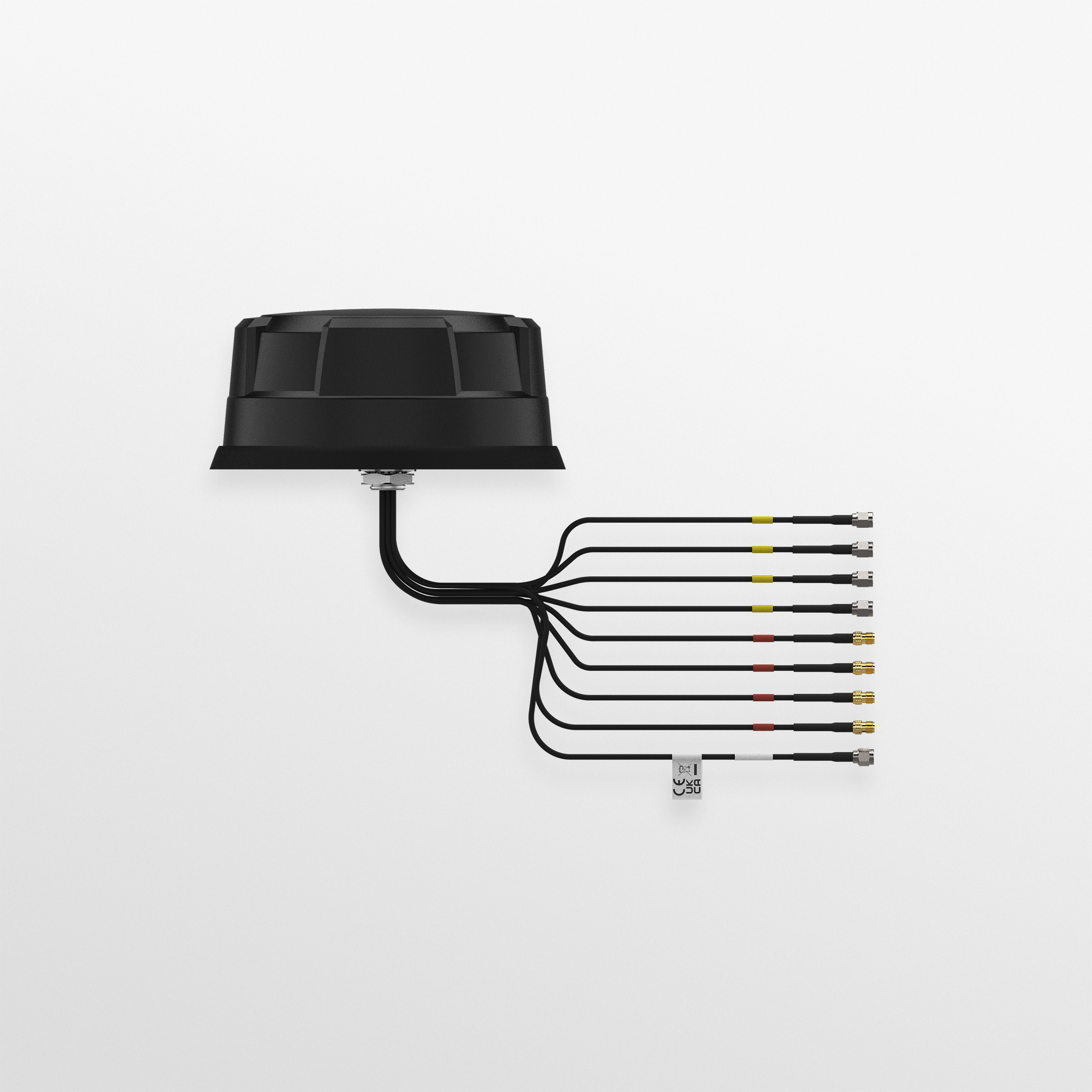

The kit includes 5 m flame-retardant RG174 cables with factory-fitted connectors. The four cellular cables and one GPS cable are terminated in SMA (m), and the two Wi-Fi cables in reverse polarity SMA. All cables are flagged for identification. Cable flammability approvals include UN ECE R118, EN45545-2 HL3 and EN6722. The housing is rated IK10 and IP69K and operates from -40 °C to +80 °C.

Panorama lists the antenna as suitable for FirstNet (USA) and ESN (UK) public safety networks. The installation instructions cover correct connection, including dual-SIM failover wiring.

Ideal for

  • Police and fire vehicles using a Cradlepoint router for cellular WAN plus an in-vehicle Wi-Fi hotspot
  • Public buses offering passenger Wi-Fi alongside GPS tracking
  • Utility and field-service trucks that need cellular, Wi-Fi and location from one antenna
  • Mobile command units on FirstNet

Specifications

General

MPN
LG-IN2445
UPC
5055416055026
Brand
Panorama Antennas
Colour
Black
Configuration
7-in-1: 4x4 MIMO cellular + 2x2 MIMO Wi-Fi + GPS/GNSS
Product Family
Mako 5G Dome

Package

Shipping Weight
5.30 lb

GPS Data

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 module

Cable Data

Cable Supply
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174 / RG174
Cable Type Wi-Fi
FR RG174 / RG174
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Cable Length Wi-Fi
5 m (16.4 ft)
Quantity OF GPS Cable
1
Quantity OF Cell Cable
4

Electrical

Pattern
Omnidirectional
Uhf Elements
None
Wi-Fi Elements
2 x 2 MIMO, dual-band 2.4 & 5.0/7.2 GHz
Max Input Power
10 W
Gain 617 960 MHz
4 dBi
Gain 1710 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Compatibility

Compatible Routers
Kit for Cradlepoint routers

Mounting Data

Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals Data

IP Rating
IK10, IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Technology Data

Technology
2G/3G/4G/5G, Band 71 600 MHz ready, FirstNet, GPS/GNSS, Wi-Fi MIMO

Termination Data

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse polarity SMA

Questions buyers ask

What are the seven functions in this antenna?

Four cellular elements for 4x4 MIMO, two dual-band Wi-Fi elements for 2x2 MIMO, and one GPS/GNSS module, all in one dome.

What connectors are on the cables?

The cellular and GPS cables use SMA (m) connectors, and the Wi-Fi cables use reverse polarity SMA. All cables are 5 m long and fitted at the factory.

Can it support a dual-SIM router?

Yes, for failover, where one SIM is active at a time, by wiring the cellular elements as two 2x2 pairs. It is not intended for concurrent or aggregated dual-SIM data.

Does it require a metal roof?

No. The antenna is ground plane independent and suitable for conductive or non-conductive surfaces.
