Panorama Mako LG-IN2445-W-LC 7-in-1 5G Dome Antenna, 4x4 MIMO, GNSS and 2x2 Wi-Fi, White, Loose Cables
5GMPN LG-IN2445-W-LC
- 4x4 MIMO
- GNSS
- Wi-Fi
- 9 dBi and up
Made for Cradlepoint
$400.86$554.01Save $153.15
In stock · only 6 leftShips from the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Compare all 8 configurations
Datasheets & documents
Overview

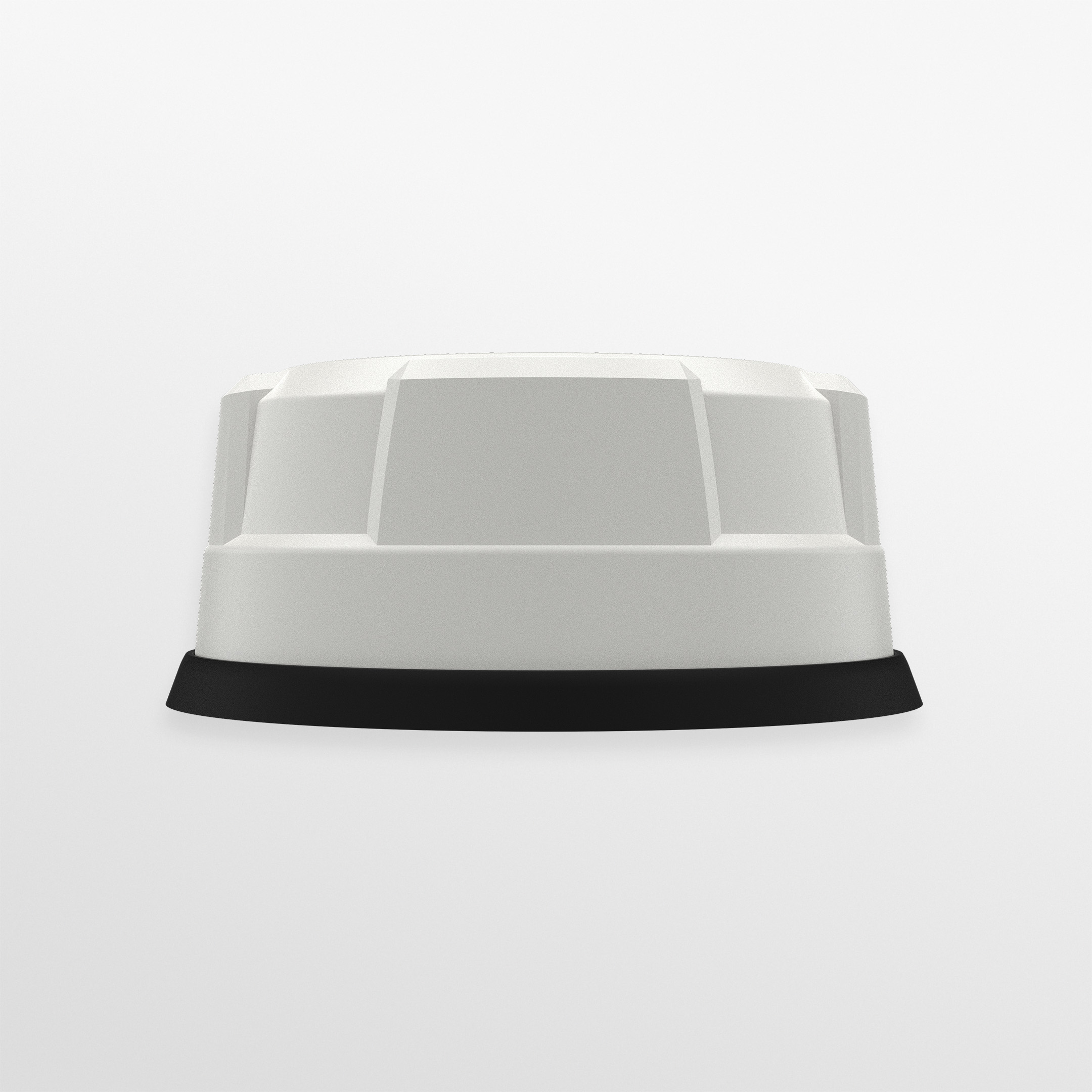

The Panorama LG-IN2445-W-LC is the white Mako 7-in-1 5G dome with its 5 m cables supplied loose. It combines four 4G/5G cellular elements for 4x4 MIMO across 617-960 and 1710-6000 MHz, an active GPS/GNSS module with a 26 dB LNA, and two dual-band Wi-Fi elements for 2x2 MIMO. The loose flame-retardant RG174 cables terminate in SMA (m) for cellular and GPS and RP-SMA for Wi-Fi.
- White 7-in-1 dome: 4x4 MIMO 4G/5G cellular, 1 GPS/GNSS module, 2x2 MIMO dual-band Wi-Fi
- 617-960 / 1710-6000 MHz cellular coverage; 4, 8 and 9 dBi peak gain by band
- Active GPS/GNSS, 1562-1612 MHz, with 26 dB LNA

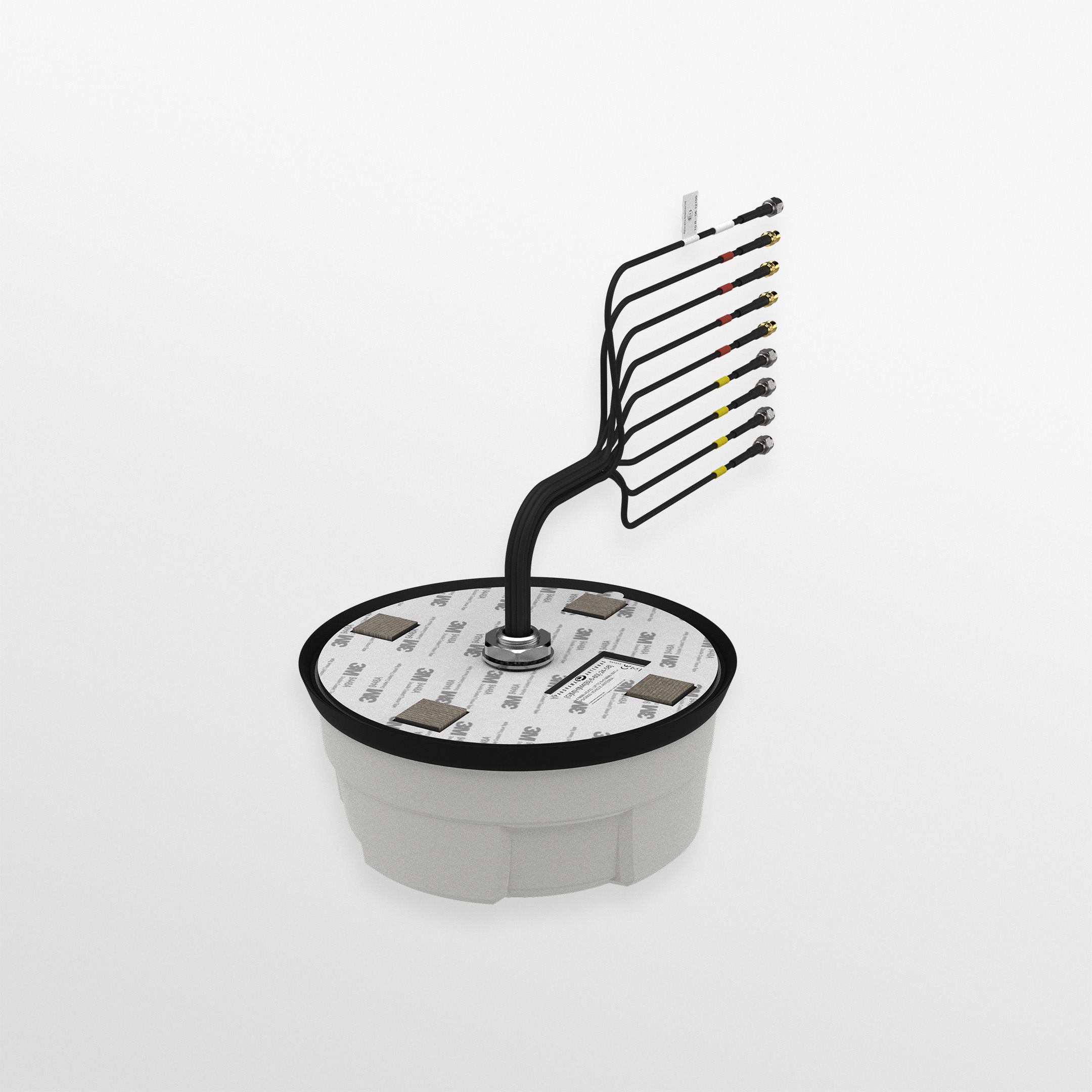

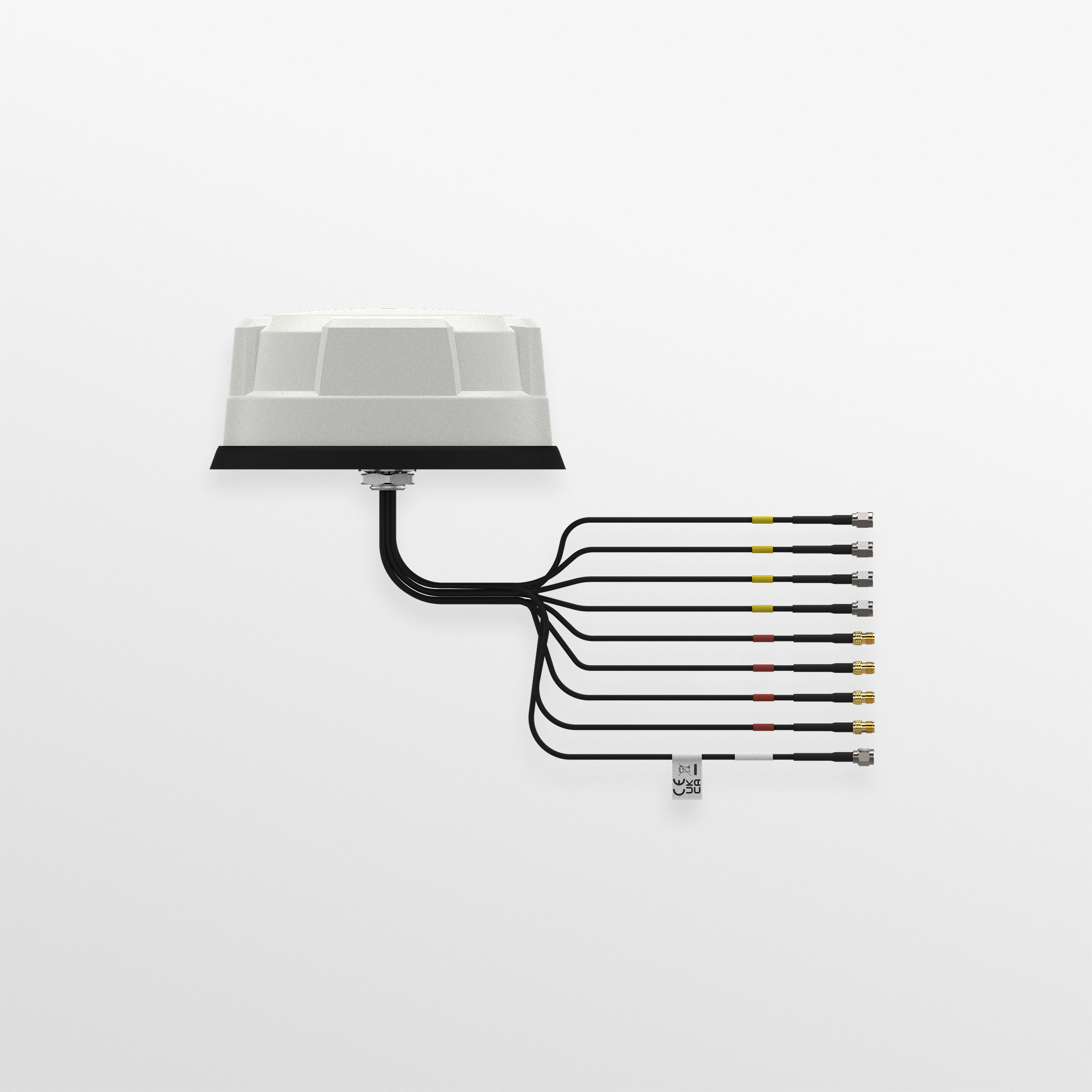

- 5 m FR RG174 cables supplied loose: SMA (m) cellular/GPS, RP-SMA Wi-Fi
- IP69K / IK10 housing, 80 x 180 mm, -40 to +80 °C
- Single-hole panel mount, ground-plane independent; suitable for FirstNet (USA) and ESN (UK)
- Loose cables simplify routing through tight vehicle bodywork before connection
- The white housing suits white roofs and fleet liveries
The Panorama Mako LG-IN2445-W-LC gives installers a white 7-in-1 dome with loose 5 m cables, which helps when leads have to be threaded through pillars, conduits or bulkheads before connection. Four isolated cellular elements cover 617-960 MHz at 4 dBi, 1710-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi, including Band 71 600 MHz. The dome is designed for Cat 18/20 LTE and 5G routers and is listed as suitable for FirstNet (USA) and ESN (UK).
It also houses a GPS/GNSS module covering 1562-1612 MHz with a 26 dB LNA and filtering, plus two dual-band 2.4/5 GHz Wi-Fi elements for 2x2 MIMO. On a dual-SIM router, the four cellular elements can run as two 2x2 pairs in failover, with one SIM active at a time. They are not intended for concurrent or aggregated dual-SIM operation.
The kit includes four cellular and one GPS cable in SMA (m) and two Wi-Fi cables in RP-SMA, all flame-retardant RG174 compliant with UNECE R118. The 80 mm by 180 mm housing is rated IP69K and IK10 and operates from -40 to +80 °C. It installs through a single hole on conductive or non-conductive panels without a ground plane. Panorama publishes a datasheet and installation instructions (SW3-931) for the range.
Ideal for
- White-roofed emergency vehicles where cables must pass through conduits or bulkheads
- Transit buses providing passenger Wi-Fi and GNSS location
- Utility and field-service vans with rear-mounted Cat 18/20 LTE or 5G routers
- Dual-SIM routers in failover configuration using two 2x2 cellular pairs
Specifications
GPS
- Lna Gain
- 26 dB
- GPS Frequency Range
- 1562-1612 MHz
- Number OF GPS Elements
- 1 module
Cable
- Cable Fitting
- Cables loose
- Cable Type GPS
- FR RG174
- Cable Type LTE
- FR RG174 / RG174
- Cable Type Wi-Fi
- FR RG174 / RG174
- Cable Length GPS
- 5 m (16.4 ft)
- Cable Length LTE
- 5 m (16.4 ft)
- Cable Length Wi-Fi
- 5 m (16.4 ft)
- Quantity Cell Cable
- 4
- Quantity Wi-Fi Extension
- 2
- Quantity GPS GNSS Extension
- 1
General
- MPN
- LG-IN2445-W-LC
- UPC
- 5055416055057
- Brand
- Panorama Antennas
- Colour
- White
- Configuration
- 7-in-1: 4x4 MIMO cellular, 1 GPS/GNSS, 2x2 MIMO Wi-Fi
- Product Family
- Mako 5G dome (L[G]M[H]M4[B]-6-60[-24-58] family)
Package
- Shipping Weight
- 5.00 lb
Mounting
- Ground Plane
- Ground-plane independent; conductive or non-conductive surfaces
- Mounting Methods
- Magnetic, Panel
- Mounting Type Temp
- Magnetic
- Mounting Type Fixed
- Panel (single hole)
Approvals
- IP Rating
- IP69K, IK10
- Cable Flammability
- EN45545-2 HL3, UN ECE R118, EN6722
Electrical
- Pattern
- Omnidirectional
- Uhf Elements
- No
- Wi-Fi Elements
- 2 x 2 MIMO
- Max Input Power
- 10 W
- Frequency Range Gain
- 617-960 MHz: 4 dBi; 1710-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
- Cellular LTE Elements
- 4 x 4 MIMO
Mechanical
- Height
- 80 mm (3.15 in)
- Diameter
- 180 mm (7.09 in)
- Operating Temperature
- -40 °C to +80 °C (-40 °F to +176 °F)
Technology
- Technology
- GPS, GNSS, 2G/3G/4G, 4G/5G, 5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO
- Public Safety Networks
- Suitable for FirstNet (USA) and ESN (UK)
Termination
- Connector GPS
- SMA (m)
- Connector LTE
- SMA (m)
- Connector Wi-Fi
- Reverse Polarity SMA
Questions buyers ask
What is the difference between LG-IN2445-W and LG-IN2445-W-LC?
Both are the white 7-in-1 dome with 5 m cables. On the -W the cables are fitted, while the -W-LC supplies them loose.
How many cables are included?
There are seven: four cellular and one GPS cable with SMA (m) connectors, and two Wi-Fi cables with reverse-polarity SMA connectors.
Can it handle concurrent dual-SIM operation?
No. It supports dual-SIM failover with two 2x2 pairs and one SIM active at a time. Panorama states it is not intended for concurrent or aggregated dual-SIM use.
Can I mount it on a thick or ribbed panel?
Panorama lists the LGMM-EXT-R-SLT thick or ribbed panel adapter as a compatible accessory for this dome family.
