Cradlepoint5G & LTE Routers

Cradlepoint S700 Cat 4 LTE Semi-Ruggedized IoT Router with Wi-Fi 6 and 3-Year TAA NetCloud IoT Essentials

4G LTEMPN TAA-TB03-0700C4D-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$649.00

In stockShips from the US

Included subscription · 3 years
3 years4 years+$100.445 years+$1706 years+$343.84
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The TAA-TB03-0700C4D-NA bundles the Ericsson Cradlepoint S700 with a 3-year NetCloud IoT Essentials plan, ordered for U.S. Federal Government buyers. The S700 is a semi-ruggedized, cloud-managed router with an embedded Cat 4 LTE modem (150 Mbps down, 50 Mbps up) and dual 4FF SIM slots. It adds dual-band Wi-Fi 6, two GbE ports and active GNSS in an IP30 aluminum housing, for light industrial, IoT and portable deployments.

  • Embedded Cat 4 LTE modem, up to 150 Mbps downlink and 50 Mbps uplink, 2x2 MIMO
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • Dual-band, dual-concurrent 2x2 Wi-Fi 6 with WPA3
  • Two GbE RJ45 ports (LAN/WAN switchable) and one USB 2.0 port
  • Active GNSS: GPS, GLONASS, BeiDou and Galileo
  • IP30 aluminum housing, -20 °C to 60 °C, MIL-STD-810H and EN 61373 shock/vibration
  • TAA-compliant SKU with 3-year NetCloud IoT Essentials plan
  • Fits federal procurement with a TAA-compliant North American SKU

The Cradlepoint S700 is a semi-ruggedized LTE router for light industrial, IoT and portable applications where security is a baseline requirement. This part number, TAA-TB03-0700C4D-NA, is the TAA-compliant North American Cat 4 model with Wi-Fi, ordered for U.S. Federal Government use. It includes three years of Ericsson NetCloud IoT Essentials.

The embedded Cat 4 LTE modem delivers up to 150 Mbps downlink and 50 Mbps uplink. It has 2x2 MIMO, dual 4FF SIM slots and SIM-based auto-carrier selection. It covers LTE bands 2, 4, 5, 12, 13, 14, 66 and 71, and carries AT&T, T-Mobile and Verizon certifications. Public-safety certifications include FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. For the local network, the S700 offers two switchable GbE ports and a USB 2.0 port. Dual-concurrent 2x2 Wi-Fi 6 runs at 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz with WPA3 support. Active GNSS tracks GPS, GLONASS, BeiDou and Galileo for asset tracking and geofencing.

The aluminum housing is rated IP30 and operates from -20 °C to 60 °C. It meets MIL-STD-810H shock and vibration methods and EN 61373 railway rolling stock standards. The router accepts 9-33 VDC with ignition sensing and ISO 7637-2 protection, which suits vehicle and portable kits. Stateful firewall throughput reaches 480 Mbps.

NetCloud IoT Essentials adds centralized cloud policy management through NetCloud Manager, with software updates for the full term. Support includes 24-hour weekday phone support with weekend emergency response, 24x7 web and 24x5 chat. The hardware carries a limited lifetime warranty while an active NetCloud plan is in place. An IoT Advanced Plan can be added at any time. A Cradlepoint S700 datasheet is available.

Ideal for

  • Federal IoT deployments requiring TAA-compliant hardware
  • Light industrial monitoring, kiosks and remote equipment connectivity
  • Portable and pop-up network kits running on DC power
  • Vehicle and rolling-stock telemetry with GNSS asset tracking and geofencing
  • Public-safety IoT on FirstNet Trusted and Verizon Frontline networks

Specifications

Modem

SMS
Yes
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Antennas
SMA female; external 600 MHz-6 GHz paddle antennas (qty 2, included only with certain packages)
Bands 3g
2, 4, 5
Bands LTE
LTE FDD: B2 (1900), B4 (1700), B5 (850), B12 (700), B13 (700), B14 (700), B66 (1700), B71 (600)
Legacy 3g
WCDMA/UMTS/HSPA+
Modulation
Up to 16 QAM
Peak Rates
LTE 150 Mbps down / 50 Mbps up; WCDMA 42.2 Mbps down / 5.76 Mbps up
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+; dual 4FF SIM slots; SIM-based auto-carrier selection
Transmit Power
LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted)
Gcf Global Operators
GCF member operators directory
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Ptcrb North America Operators
PTCRB operators list
Network Operator Certifications
AT&T, T-Mobile, Verizon

Power

DC Input
9-33 VDC steady state input
Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (automatic ON, time-delay OFF)
Consumption
Idle 9 W; Typical 13 W; Heavy 14.5 W

General

MPN
TAA-TB03-0700C4D-NA
UPC
840292705715
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint S700
Region
United States Federal Government
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Package Plan
3-Year NetCloud IoT Essentials Plan
TAA Compliant
TAA-compliant SKU
Product Status
Active
Shipping Weight
1.60 lb
Subscription Term
3 years
Hardware Configuration
Cat 4 (150 Mbps) with Wi-Fi

Physical

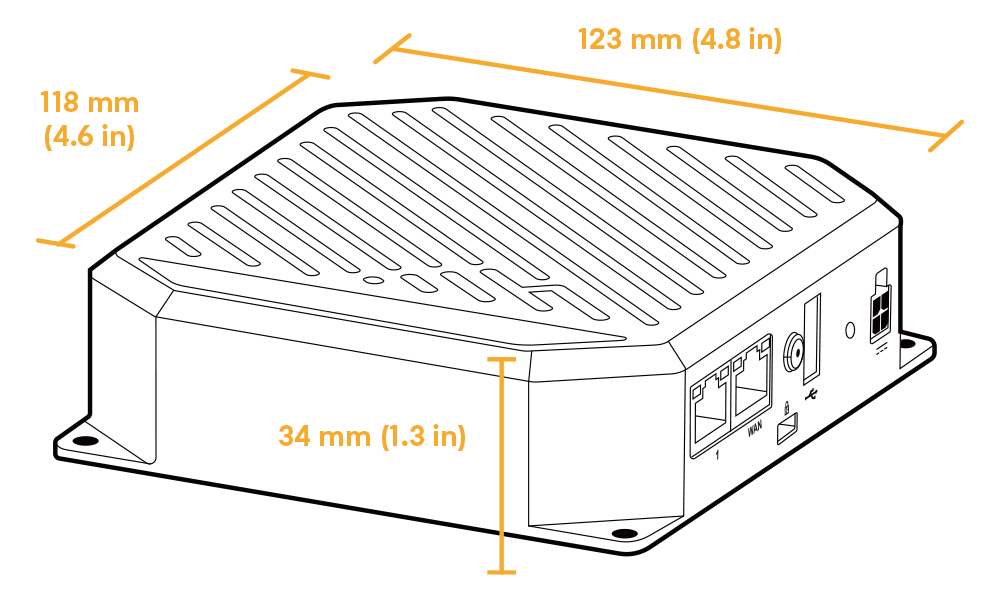

Size
123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Weight
516 g (18.2 oz)
Construction
Aluminum housing

Interfaces

Wi-Fi
Dual-radio, dual-band concurrent 2x2 MIMO Wi-Fi 6; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; Wi-Fi Alliance Certified
Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x 1 GbE RJ45 (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)

Wi-Fi Power

Fcc
2.4 GHz 35.66 dBm; 5150–5250 MHz 26.59 dBm; 5250–5350 MHz 25.33 dBm; 5470–5725 MHz 25.15 dBm; 5750–5825 MHz 26.22 dBm (EIRP)
Rest OF World
2.4 GHz 19.99 dBm; 5180–5240 MHz 22.38 dBm; 5260–5320 MHz 22.32 dBm; 5500–5700 MHz 27.45 dBm (EIRP)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
50 Mbps point-to-point IPsec VPN
Stateful Firewall
480 Mbps
Concurrent Sessions
100,000
Typical Client Count
20
Concurrent VPN Tunnels
10
Ips App Aware Client Analytics
480 Mbps IPS/application aware services/client analytics

Reliability

Calculated MTBF
S700-C4D 428,000 h; S700-C4E 423,399 h; S750-C4D 483,373 h (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP30
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
SAE J1455-2006 operating sinusoidal vibe, Category 2, Section 4.10.4.1
Security
FIPS 140-3 Level 1 module in process (S700/S705 FIPS models only)
Shock Vibration
EN 61373 Cat 2 (vibration); MIL-STD-810H 514.8 Annex C-1 Cat 4 (vibration); 516.8 Procedures I and V (shock); 516.8 4.6.6 Procedure V
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty while subscribed to an active NetCloud Service plan
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
Status 5G
None
USB Ports
1
Throughput
480 Mbps (firewall)
Form Factor
Metal
VPN Tunnels
5
Serial Ports
0
Ethernet Ports
2 GbE
Cloud Management
Yes
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 aluminum housing
Dual Modem Support
No
Subscription Terms
3 or 5 years (IoT products)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes, 4G LTE (no CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint S700 a 5G router?

No. The S700 uses an embedded Cat 4 LTE modem with up to 150 Mbps downlink and 50 Mbps uplink. Its 5 GHz radio is Wi-Fi, not cellular 5G.

Which LTE bands and carriers does this model support?

This North American model covers LTE FDD bands 2, 4, 5, 12, 13, 14, 66 and 71. It is certified on AT&T, T-Mobile and Verizon, with FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public-safety certifications.

What does the NetCloud IoT Essentials plan include?

The 3-year plan provides NetCloud Manager cloud management and software updates for the full term. Support includes 24-hour weekday phone support with weekend emergency response, 24x7 web and 24x5 chat. The hardware has a limited lifetime warranty while an active NetCloud plan is in place.

Can the S700 be powered from a vehicle?

Yes. It accepts 9-33 VDC steady-state input and includes ignition sensing (automatic on and time-delay off). It also has ISO 7637-2 reverse polarity and transient voltage protection.

Is this a FIPS model?

No. This SKU is TAA-compliant but is not a FIPS variant.
