Cradlepoint5G & LTE Routers

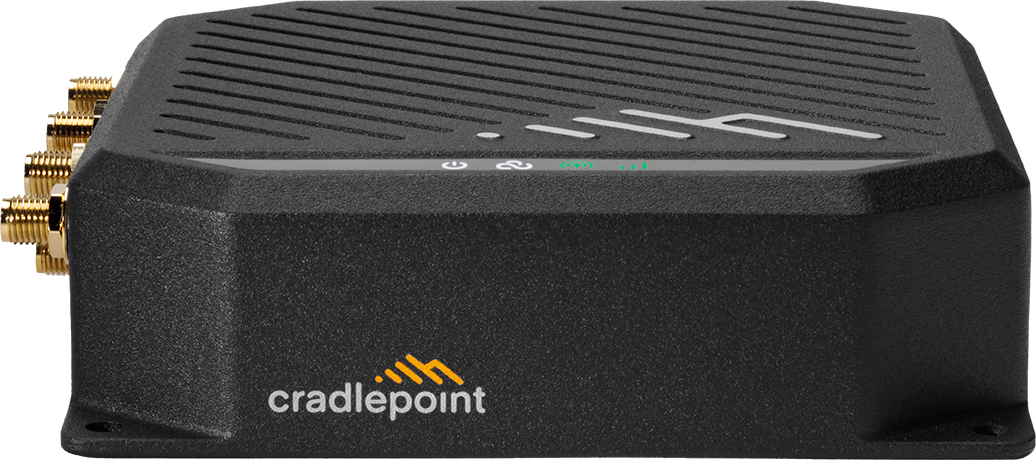

Cradlepoint S700 Cat 4 LTE Router with Wi-Fi 6, AC Power Supply, Antennas and 3-Year NetCloud IoT Essentials + Advanced

4G LTEMPN TBA3-0700C4D-NN
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$909.00

In stockShips from the US

Included subscription · 3 years
3 years4 years+$100.445 years+$1706 years+$343.84
Compliance · Standard
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

This Cradlepoint S700 package, part number TBA3-0700C4D-NN, delivers a semi-ruggedized, cloud-managed Cat 4 LTE router with dual-band Wi-Fi 6, an AC power supply and antennas, bundled with 3-year NetCloud IoT Essentials and Advanced plans for North America (U.S. & Canada). The router offers up to 150 Mbps LTE downlink, dual SIM slots, two Gigabit Ethernet ports, active GNSS and a 9-33 VDC input with ignition sensing, in an IP30 aluminum housing. It is built for light industrial, IoT, portable and fixed deployments.

  • Kit includes the S700 with Wi-Fi, an AC power supply and antennas
  • Embedded Cat 4 LTE modem: up to 150 Mbps downlink / 50 Mbps uplink, dual 4FF SIM slots
  • Dual-band concurrent 2x2 Wi-Fi 6: 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
  • 2 x 1 GbE RJ45 (LAN/WAN switchable), 1 x USB 2.0 Type A and active GNSS
  • IP30 aluminum housing, -20 °C to 60 °C, 9-33 VDC input with ignition sensing
  • 3-year NetCloud IoT Essentials and Advanced plans with NetCloud Manager and support
  • Deploy straight out of the box with the AC power supply and antennas included in the kit
  • Provide Wi-Fi 6 to local users and devices while LTE carries the WAN traffic

The Ericsson Cradlepoint S700 is a semi-ruggedized, cloud-managed LTE router for light industrial, IoT and portable applications where security is a foundational requirement. Part number TBA3-0700C4D-NN is the North America (U.S. & Canada) configuration listed as Cat 4 (150 Mbps) with Wi-Fi, AC power supply and antennas. That makes it a ready-to-deploy kit for fixed or bench installations, bundled with NetCloud IoT Essentials and Advanced plans for three years.

The embedded Cat 4 LTE modem peaks at 150 Mbps down and 50 Mbps up on LTE bands 2, 4, 5, 12, 13, 14, 66 and 71. Dual 4FF SIM slots support SIM-based auto-carrier selection. The modem lists AT&T, T-Mobile and Verizon operator certifications and FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications. Dual-radio, concurrent 2x2 Wi-Fi 6 provides up to 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz with WPA3. Two 1 GbE RJ45 ports (LAN/WAN switchable), USB 2.0 Type A and active GNSS covering GPS, GLONASS, BeiDou and Galileo complete the interfaces.

The included AC power supply suits building installs. For vehicle use, the router also accepts 9-33 VDC input and offers ignition sensing and reverse polarity protection. The IP30 aluminum housing operates from -20 °C to 60 °C and carries SAE J1455, EN 61373 and MIL-STD-810H shock and vibration test results. It is rated for 480 Mbps stateful firewall and IPS throughput and up to 64 VLANs.

Essentials includes NetCloud Manager management, software updates and 24x7 support for the full term, with a limited lifetime warranty while the plan is active. Advanced adds capabilities on top of Essentials. The Cradlepoint S700 datasheet provides the complete platform specification.

Ideal for

  • Branch, kiosk or retail installs powered from a wall outlet with the included AC power supply
  • Light industrial IoT sites combining wired controllers and Wi-Fi 6 clients over LTE
  • Portable and temporary deployments that need a complete router kit with antennas
  • Vehicle installations using the 9-33 VDC input with ignition sensing
  • Public safety connectivity on FirstNet, T-Mobile Connecting Heroes or Verizon Frontline

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SIM
Dual SIM slots, 4FF form factor; SIM-based auto-carrier selection
SMS
Yes
GNSS
Active GNSS; GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
3g Bands
2, 4, 5
Antennas
SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included only with certain packages)
LTE Bands
LTE FDD; B2 (1900), B4 (1700), B5 (850), B12 (700), B13 (700), B14 (700), B66 (1700), B71 (600)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.); IC (Canada)
Technology
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+
Transmit Power
LTE 23 dBm ± 2, DC-HSPA+ 23 dBm ± 1 (typical conducted)
LTE Peak Uplink
LTE uplink: 50 Mbps
LTE Peak Downlink
LTE downlink: 150 Mbps
Wcdma Peak Uplink
WCDMA uplink: 5.76 Mbps
Wcdma Peak Downlink
WCDMA downlink: 42.2 Mbps
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline
Network Operator Certifications
AT&T; T-Mobile; Verizon

Power

Input
9-33 VDC steady state input
Features
Reverse polarity and transient voltage protection (ISO 7637-2); Ignition sensing (automatic ON and time-delay OFF)
Consumption Idle
9 W
Consumption Heavy
14.5 W
Consumption Typical
13 W

General

MPN
TBA3-0700C4D-NN
UPC
840292705494
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S700
Region
North America (U.S. & Canada)
Service Plan
3-Year NetCloud IoT Essentials + Advanced Plans
Product Status
Active
Subscription Term
3 years
Hardware Configuration
Cat 4 (150 Mbps) with Wi-Fi, AC power supply, and antennas

Package

Contents
Cradlepoint S700 router with Wi-Fi, AC power supply, antennas and 3-Year NetCloud IoT Essentials + Advanced Plans
Shipping Weight
1.60 lb

Physical

Weight
516 g (18.2 oz)

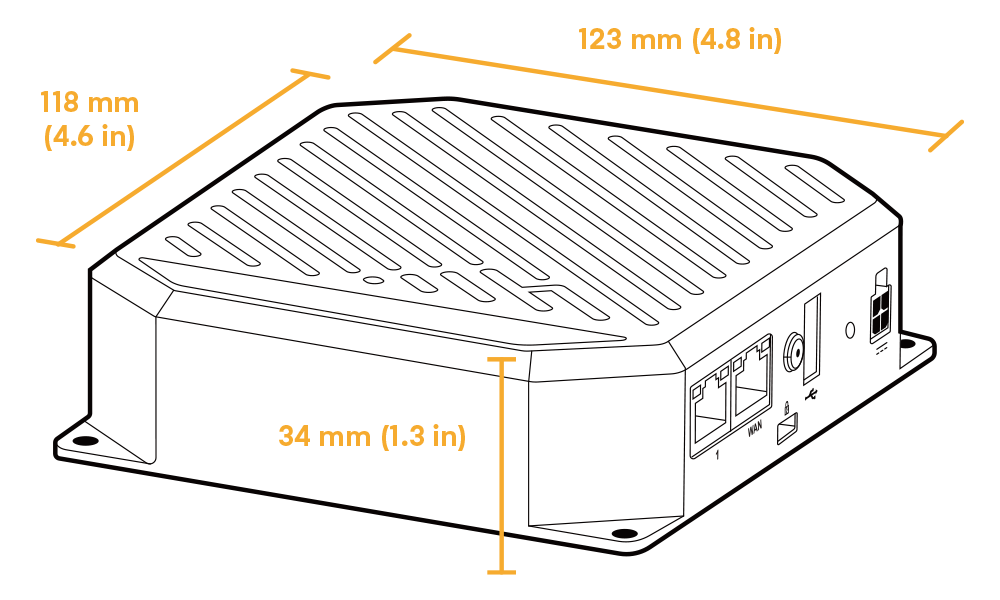

Dimensions
123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Construction
Aluminum housing

Interfaces

Wi-Fi
Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz); 2x2 MIMO 802.11ax Wi-Fi 6
Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x 1 GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W)
Wi-Fi Rates
574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; Wi-Fi Alliance Certified
GNSS Connector
1 x SMA GNSS antenna connector
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

Fcc
2.4 GHz: 35.66 dBm EIRP; 5150–5250 MHz: 26.59 dBm EIRP; 5250–5350 MHz: 25.33 dBm EIRP; 5470–5725 MHz: 25.15 dBm EIRP; 5750–5825 MHz: 26.22 dBm EIRP
Rest OF World
2.4 GHz: 19.99 dBm EIRP; 5180–5240 MHz: 22.38 dBm EIRP; 5260–5320 MHz: 22.32 dBm EIRP; 5500–5700 MHz: 27.45 dBm EIRP

Performance

Vlans
Up to 64
Ipsec VPN
50 Mbps
Stateful Firewall
480 Mbps
Concurrent Sessions
100,000 (TPC)
Typical Client Count
20
Concurrent VPN Tunnels
10
Ips App Aware Client Analytics
IPS/Application Aware Services/Client Analytics: 480 Mbps

Reliability

MTBF
S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP30
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (Railway rolling stock)
Safety
UL/cUL; CB Scheme; EN 62368-1
Vehicle
SAE J1455-2006 Operating Sinusoidal Vibe, Category 2 Section 4.10.4.1
Security
FIPS 140-3 Level 1 Module in Process (S700 and S705 FIPS models only)
Shock Vibration
EN 61373 Category 2 (Vibration); MIL-STD-810H Method 514.8, Annex C-1, Category 4 (Vibration); MIL-STD-810H Method 516.8, Procedure 1 and V (Shock); MIL-STD-810H Method 516.8 4.6.6, Procedure V
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term; Essentials: 24x7 support (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty while an active NetCloud Service plan subscription is in place
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
GPS GNSS
Active
USB Ports
1
Throughput
480 Mbps (Firewall)
Form Factor
Metal
VPN Tunnels
5
Fiveg Status
None
Serial Ports
0
Ethernet Ports
2 GbE
Cloud Management
Yes
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing
Dual Modem Support
No
Subscription Terms
3 or 5 years (relevant for IoT products only)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes — 4G LTE (No CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What comes in the TBA3-0700C4D-NN package?

The Cradlepoint S700 router with Wi-Fi, an AC power supply, antennas, and 3-year NetCloud IoT Essentials and Advanced plans. It is the North America (U.S. & Canada) configuration.

Can I still use DC or vehicle power?

Yes. Besides the included AC power supply, the S700 accepts 9-33 VDC input with reverse polarity and transient protection. Ignition sensing handles automatic on and time-delay off.

Which LTE bands and carriers does it support?

LTE FDD bands 2, 4, 5, 12, 13, 14, 66 and 71, with HSPA+ fallback on bands 2, 4 and 5. The modem lists AT&T, T-Mobile and Verizon operator certifications and FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.

What does the NetCloud plan cover?

NetCloud Manager device management and software updates for the full three-year term. It also covers 24x7 support and a limited lifetime warranty while the plan is active. The Advanced plan adds capabilities on top of Essentials.
