Cradlepoint S700 Semi-Ruggedized LTE Router with Wi-Fi 6 and 3-Year NetCloud IoT Essentials Plan (North America)

4G LTEMPN TB03-0700C4D-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$649.00

In stockShips from the US

Included subscription · 3 years
3 years4 years+$100.445 years+$1706 years+$343.84
Compliance · Standard
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint S700 (TB03-0700C4D-NA) is a semi-ruggedized, cloud-managed LTE router for light industrial, IoT and portable deployments in the U.S. and Canada. It pairs an embedded Cat 4 modem (150 Mbps down, 50 Mbps up) with dual SIM slots, 2x2 dual-band Wi-Fi 6, two switchable Gigabit Ethernet ports and active GNSS in an IP30 aluminum housing. It runs on 9-33 VDC with ignition sensing. The package includes a 3-year Ericsson NetCloud IoT Essentials plan. This router-only configuration ships without the AC power supply and antennas.

  • Embedded Cat 4 LTE modem: 150 Mbps downlink / 50 Mbps uplink, dual 4FF SIM slots with SIM-based auto-carrier selection
  • LTE bands 2, 4, 5, 12, 13, 14, 66 and 71; AT&T, T-Mobile and Verizon certified; FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline
  • Dual-radio, dual-band concurrent 2x2 Wi-Fi 6 (574 Mbps at 2.4 GHz, 1.2 Gbps at 5 GHz) with WPA3
  • 2 x Gigabit RJ45 (LAN/WAN switchable), 1 x USB 2.0, active GNSS (GPS, GLONASS, BeiDou, Galileo)
  • IP30 aluminum housing, -20 °C to 60 °C operation, MIL-STD-810H shock and vibration tested
  • 9-33 VDC input with ignition sensing and ISO 7637-2 transient protection
  • 3-year NetCloud IoT Essentials plan with NetCloud Manager, software updates and 24x7 support
  • Manage fleets of IoT routers from the cloud with centrally defined policies through NetCloud Manager

The Ericsson Cradlepoint S700 is a semi-ruggedized, cloud-managed LTE router for light industrial, IoT and portable applications where security is a foundational requirement. This North American SKU (U.S. & Canada) bundles the S700 hardware with a 3-year Ericsson NetCloud IoT Essentials plan, which provides cloud management, software updates and support for the full term.

Connectivity comes from an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink. It covers LTE bands 2, 4, 5, 12, 13, 14, 66 and 71 and has dual 4FF SIM slots with SIM-based auto-carrier selection. The modem carries AT&T, T-Mobile and Verizon network operator certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications. On the local side you get dual-radio, concurrent 2.4 GHz and 5 GHz Wi-Fi 6 (2x2 MIMO, up to 1.2 Gbps on 5 GHz) with WPA3 support. There are also two Gigabit RJ45 ports switchable between LAN and WAN, a USB 2.0 port and an SMA connector for active GNSS covering GPS, GLONASS, BeiDou and Galileo.

The 123 x 118 x 34 mm aluminum housing is rated IP30 and operates from -20 °C to 60 °C. It is tested to MIL-STD-810H shock and vibration methods, SAE J1455 vehicle vibration and EN 61373 rail standards. Power input is 9-33 VDC with reverse polarity and transient protection (ISO 7637-2) and ignition sensing, so the router suits vehicle installs as well as fixed cabinets.

NetCloud Manager handles policy definition and deployment at scale. The NetCloud SDK and API let you extend functionality, and NetCloud Exchange and NetCloud IoT Advanced are available as add-ons. This configuration is the router with Wi-Fi only, so plan antennas and power for your installation.

Ideal for

  • Connected kiosks, digital signage and vending equipment needing managed LTE WAN
  • Vehicle and mobile IoT deployments using ignition sensing and active GNSS for asset tracking
  • Light industrial and utility monitoring sites where wired broadband is unavailable
  • Public safety and first responder installations on FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Portable and pop-up networks for field teams and temporary sites

Specifications

Power

Input
9-33 VDC steady state input
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption Idle
9 W
Ignition Sensing
Ignition sensing (automatic ON and time-delay OFF)
Consumption Heavy
14.5 W
Consumption Typical
13 W

General

MPN
TB03-0700C4D-NA
UPC
840292702646
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint S700
Region
North America: U.S. & Canada
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Product Status
Active
Shipping Weight
1.60 lb
Hardware Configuration
Cat 4 (150 Mbps) with Wi-Fi

Cellular

3g
WCDMA/UMTS/HSPA+
SIM
Dual SIM slots, 4FF form factor
SMS
SMS supported
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
3g Bands
3G bands 2, 4, 5
Antennas
SMA female; 600 MHz-6 GHz paddle antennas (Qty 2, certain packages only)
LTE Bands
LTE FDD: B2, B4, B5, B12, B13, B14, B66, B71
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 4 LTE (3GPP Rel. 11), DC-HSPA+
Transmit Power
LTE 23 dBm ± 2, DC-HSPA+ 23 dBm ± 1 (typical conducted)
LTE Peak Uplink
LTE uplink: 50 Mbps
Carrier Selection
SIM-based auto-carrier selection
LTE Peak Downlink
LTE downlink: 150 Mbps
Wcdma Peak Uplink
WCDMA uplink: 5.76 Mbps
Wcdma Peak Downlink
WCDMA downlink: 42.2 Mbps
Gcf Global Operators
GCF members directory
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Ptcrb North America Operators
PTCRB operator list
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
516 g (18.2 oz)

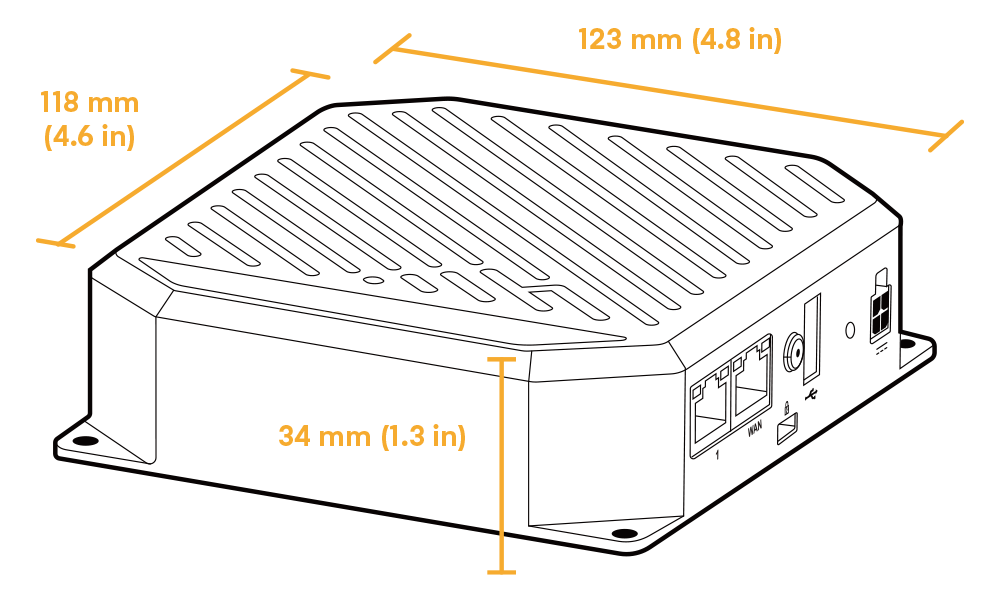

Dimensions
123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in)
Construction
Aluminum housing

Interfaces

GNSS
1 x SMA GNSS antenna connector
Modem
Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x 1 GbE RJ45 (LAN/WAN switchable)
Expansion
1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W)
Wi-Fi Radios
Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Wi-Fi Standard
2x2 MIMO 802.11ax Wi-Fi 6
Wi-Fi Data Rates
574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

Fcc
2.4 GHz 35.66 dBm; 5 GHz 25.15-26.59 dBm EIRP
Rest OF World
2.4 GHz 19.99 dBm; 5 GHz 22.32-27.45 dBm EIRP

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
480 Mbps
Concurrent Sessions
100,000 concurrent sessions (TPC)
Ipsec VPN Throughput
Point-to-point IPsec VPN: 50 Mbps
Typical Client Count
20 typical clients
Concurrent VPN Tunnels
10 concurrent VPN tunnels
Ips App Aware Client Analytics
IPS / application aware services / client analytics: 480 Mbps

Reliability

Calculated MTBF
S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C)

Subscription

Plan
3-Year Ericsson NetCloud IoT Essentials Plan
Term
3 years
Support
Phone: 24-hour weekdays with emergency response on weekends; web: 24x7; chat: 24x5
Warranty
Limited lifetime warranty (with active NetCloud subscription)
Upgrade Option
NetCloud IoT Advanced Plan can be added at any time

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP30
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
SAE J1455-2006 Operating Sinusoidal Vibe, Category 2 Section 4.10.4.1
Security
FIPS 140-3 Level 1 module in process (FIPS models only)
Shock Vibration
EN 61373 Cat 2 vibration; MIL-STD-810H 514.8 vibration; MIL-STD-810H 516.8 shock
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty while subscribed to an active NetCloud Service plan
Service Plans
Ericsson NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
5G Status
None
USB Ports
1
Throughput
480 Mbps (firewall)
Form Factor
Metal
VPN Tunnels
5
Serial Ports
0
Ethernet Ports
2 GbE
Cloud Management
Yes
Special Features
Active GNSS/GPS, locking USB RS232 adapter connection, IP30 aluminum housing
Dual Modem Support
No
Subscription Terms
3 or 5 years (IoT products)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes, 4G LTE (no CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does the S700 support 5G?

No. The S700 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink. Its Wi-Fi 6 radio operates on 2.4 GHz and 5 GHz for local clients.

Are antennas and a power supply included with TB03-0700C4D-NA?

This configuration is the S700 router with Wi-Fi only. The companion SKU TB03-0700C4D-NN includes an AC power supply and antennas. The router accepts 9-33 VDC input and uses SMA cellular and GNSS connectors and RP-SMA Wi-Fi connectors.

Which carriers is this model certified on?

The North American modem is certified on AT&T, T-Mobile and Verizon. It also holds FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.

What does the 3-year NetCloud IoT Essentials plan include?

It includes NetCloud Manager cloud management and software updates for the full term. Support is 24x7: phone 24 hours on weekdays with emergency response on weekends, web 24x7 and chat 24x5. The hardware also carries a limited lifetime warranty while the subscription is active.

Can the S700 be installed in a vehicle?

Yes. It accepts 9-33 VDC with reverse polarity and ISO 7637-2 transient protection. Ignition sensing provides automatic on and time-delay off. The router is tested to SAE J1455 vehicle vibration and MIL-STD-810H shock and vibration methods.
