Cradlepoint5G & LTE Routers

Cradlepoint E3000 5G Branch Router with Wi-Fi 6 and 5-Year NetCloud Essentials + Advanced (TAA)

5GMPN TAA-BFA5-30005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE out
  • FirstNet Ready
$5,073.00

In stockShips from the US

Included subscription · 5 years
1 year−$1,4703 years−$5784 years+$0.785 years6 years−$310
Compliance · TAA compliant
Standard−$420.15TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

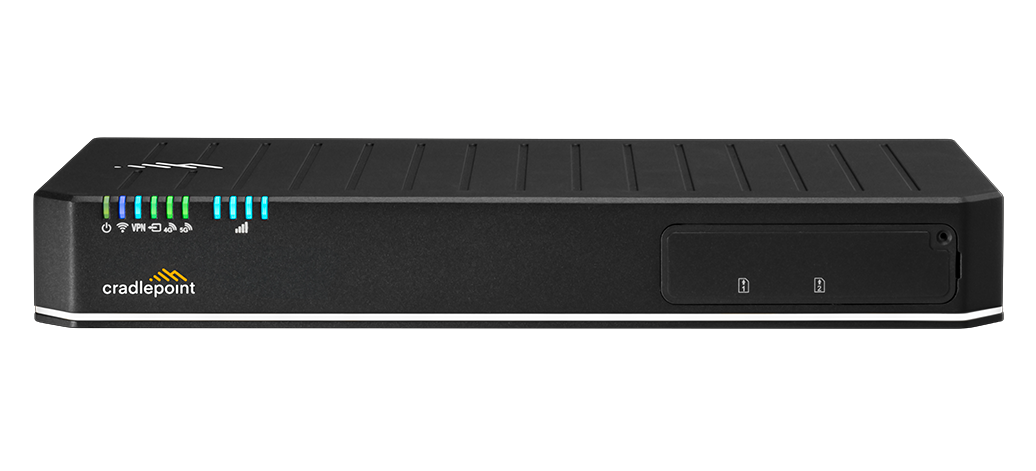

The Cradlepoint E3000 (TAA-BFA5-30005GB-GN) is an all-in-one 5G branch router offered as a TAA-compliant U.S. Federal Government ordering option in the standard (non-FIPS) configuration. It pairs an embedded 5G modem and Cat 20 LTE with 4x4 Wi-Fi 6, 802.3bt PoE switching and a 10GbE SFP+ port. It ships with a 5-year NetCloud Enterprise Branch Essentials + Advanced subscription. The subscription includes cloud management, software updates, 24x7 support and a limited lifetime warranty for the full term.

  • Embedded 5G FR1 modem (NSA/SA) with LTE Advanced Pro Cat 20 fallback, dual 2FF SIM slots and 4x4 MIMO
  • TAA-compliant SKU for U.S. Federal Government ordering (non-FIPS configuration)
  • 9 x GbE, 1 x 2.5GbE and 1 x 10GbE SFP+ ports, all LAN/WAN switchable
  • 4 x 802.3bt PoE Type 3/4 ports (up to 90 W each, 140 W total budget)
  • Dual-band, concurrent 4x4 MU-MIMO Wi-Fi 6 with WPA3 and 802.11k/v
  • MC400 modular modem slot for dual-modem cellular connectivity
  • 5-year NetCloud Enterprise Branch Essentials + Advanced plan with NetCloud Manager, updates and 24x7 support
  • Bring a branch online on day one over 5G or LTE without waiting for a wired circuit

The Ericsson Cradlepoint E3000 is an enterprise branch router for fixed offices, healthcare, financial services and retail sites that need security services at scale. This part number is a TAA-compliant U.S. Federal Government ordering option in the standard, non-FIPS configuration. It is paired with the 5GB modem, Wi-Fi and a 5-year NetCloud Enterprise Branch Essentials + Advanced subscription.

The embedded 5G FR1 modem supports NSA and SA modes and falls back to LTE Advanced Pro Category 20. It has dual 2FF SIM slots, 4x4 MIMO and four included 600 MHz to 6 GHz paddle antennas. Peak rates reach up to 4.14 Gbps down and 660 Mbps up. With cellular in the router, a site can be live on day one or run LTE/5G as failover behind wired broadband. An MC400 modular modem slot adds a second cellular connection for dual-modem resilience.

On the LAN side, the metal chassis provides: • 9 x GbE ports, 1 x 2.5GbE port and 1 x 10GbE SFP+ port, all LAN/WAN switchable • Four 802.3bt PoE Type 3/4 ports at up to 90 W each, within a 140 W total budget • Dual-band, concurrent 4x4 MU-MIMO Wi-Fi 6 with WPA3

Rated performance includes 2 Gbps stateful firewall throughput, 1.5 Gbps with IPS and application-aware services, 20 concurrent VPN tunnels, 130,000 concurrent TCP sessions and up to 64 VLANs.

The NetCloud Essentials + Advanced package adds a stateful zone-based firewall, intrusion prevention and threat protection. It also adds dynamic routing, application-aware traffic steering and SD-WAN. NetCloud Manager provides zero-touch deployment, group policy and analytics for the full subscription term.

Ideal for

  • Federal agency and government branch offices that require TAA-compliant networking
  • Day-one 5G connectivity for new sites before wired circuits arrive
  • Hybrid WAN with wired broadband primary and 5G/LTE failover
  • Healthcare, financial-services and retail branches that need firewall, IPS and SD-WAN in one device
  • PoE-powered branch deployments supporting cameras, access points and IP phones

Specifications

Power

Input
100–240 VAC, 2.3 A
Output
54 VDC, 3.34 A
Consumption
Idle 17 W / Typical 19 W / Heavy 24 W
Power Supply
External power supply (included)

General

MPN
TAA-BFA5-30005GB-GN
UPC
810007809021
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint E3000
Category
Branch
Form Factor
Metal
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active
Hardware Configuration
5GB modem with Wi-Fi

Package

Contents
E3000 router, power supply, 4 cellular antennas, 5-year NetCloud Essentials + Advanced
Documentation
Cradlepoint E3000 Datasheet

Physical

Weight
1.98 kg (4 lb 6 oz)
Dimensions
160 x 320 x 44 mm (6.3 x 12.6 x 1.7 in)
Shipping Weight
8 lb (shipping)

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)
Modem
Embedded 5GB modem, 4 x SMA; optional MC400 second modem
Console
1 x RJ45 Console
PoE Ports
4 x 802.3bt PoE Type 3/4, up to 90 W per port
PoE Budget
140 W total PoE power budget
Wi-Fi Radios
Dual-radio, dual-band concurrent (2.4/5 GHz)
Ethernet Gbe
9 x GbE RJ45 (LAN/WAN switchable)
Wi-Fi Roaming
802.11k, 802.11v
Supported SFP
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Wi-Fi Antennas
External 4x4 antennas
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Wi-Fi Standard
4x4 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Expansion Slot
1 x Expansion Slot (MC20BT Bluetooth LE module)
GNSS Connector
1 x SMA GNSS connector (C18B modem only)
Ethernet 2 5gbe
1 x 2.5GbE RJ45 (LAN/WAN switchable)
Wi-Fi Data Rates
1,148 Mbps (2.4 GHz) / 2,400 Mbps (5 GHz)
Ethernet SFP Plus
1 x 10GbE SFP+ (LAN/WAN switchable)
Wi-Fi Optimization
Global Optimized Wi-Fi
Modular Modem Slot
1 x MC400 slot (1 Gbps peak)
Supported SFP Plus
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC 2 4ghz
26.22 dBm conducted
Fcc 2 4ghz
26.22 dBm conducted
IC 5150 5250mhz
21.70 dBm conducted
IC 5725 5850mhz
28.65 dBm conducted
Fcc 5150 5250mhz
28.63 dBm conducted
Fcc 5725 5850mhz
28.65 dBm conducted

Performance

Stateful Firewall
2 Gbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
1.5 Gbps

Reliability

Calculated MTBF
E3000-5GB: 997,468 hours (Telcordia SR332 at 25 °C)

Subscription

Plan
5-Year NetCloud Enterprise Branch Essentials + Advanced
Term
5 years
Market
U.S. Federal Government
Support
24x7 support (phone, web, chat) for the full term
FIPS Sku
Non-FIPS configuration
Warranty
Limited lifetime warranty with active subscription
TAA Compliant
TAA compliant
Available Terms
E3000 plans offered in 1, 3 & 5 years
Ordering Guide Plan
TAA Compliant NC — Essentials + Advanced

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 85 °C (-4 °F to 185 °F)
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 ports)
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Antennas
4 x external 600 MHz–6 GHz paddle antennas (included), SMA female
SIM Slots
Dual SIM, 2FF
Modulation
Up to 256 QAM DL/UL
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA, LTE Advanced Pro Cat 20
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps (2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
3gpp Release
3GPP Release 15
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps (20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
Transmit Power
5G NR 23 ± 1.5 dBm; ENDC 20 ± 1 dBm; LTE 23 ± 1 dBm; HPUE 25 ± 1 dBm (B41 SA) — typical conducted
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, incl. FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, EE, T-Mobile, Verizon

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Security
FIPS 140-3 applies to E3000 FIPS models only (not this SKU)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for full subscription term
Warranty
Limited lifetime warranty with active NetCloud plan
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager, full term
Device Management
NetCloud Manager, full term

Product Summary

PoE
Yes
Wi-Fi
Dual-band, dual-concurrent Wi-Fi 6
GPS GNSS
Passive
5G Status
5G embedded or LTE options
USB Ports
1
Throughput
2 Gbps (firewall)
VPN Tunnels
20
Ethernet Ports
9 x GbE, 1 x 2.5 GbE, 1 x SFP+ (LAN/WAN switchable)
Cloud Management
Yes
Special Features
5G embedded or W-Series Adapters, dual modem, FirstNet Ready, private cellular, NetCloud Exchange, PoE+, 2.5 GbE, SFP+, WPA3
Dual Modem Support
Yes
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is this the FIPS version of the E3000?

No. This part number is the TAA-compliant, non-FIPS configuration. Cradlepoint's FIPS 140-3 Level 1 listing applies to E3000 FIPS models only.

What does the 5-year NetCloud Essentials + Advanced plan include?

It includes NetCloud Manager cloud management and software updates for the full term. It also includes 24x7 support: phone 24 hours on weekdays with emergency response on weekends, web 24x7 and chat 24x5. Security, routing and SD-WAN features come from Essentials + Advanced. The hardware limited lifetime warranty applies while the subscription is active.

Which cellular networks does the modem support?

The embedded 5GB modem supports 5G FR1 in NSA and SA modes and LTE Advanced Pro Category 20, across 19 5G NR bands and a broad set of LTE FDD and TDD bands. Cradlepoint lists network operator certifications for AT&T, EE, T-Mobile and Verizon, and public safety certifications for FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified.

Can I add a second cellular modem?

Yes. The E3000 has an MC400 modular modem slot with 1 Gbps peak throughput for dual-modem connectivity. Two E3000 routers can also be paired with VRRP for hardware redundancy.

What is included in the box?

The package includes the E3000 router with the 5GB modem and Wi-Fi, an external power supply, four 600 MHz to 6 GHz cellular paddle antennas and the 5-year NetCloud Enterprise Branch Essentials + Advanced subscription.
