Cradlepoint5G & LTE Routers

Cradlepoint E3000 5G Branch Router with Wi-Fi 6 and 3-Year NetCloud Essentials + Advanced (TAA, FIPS)

5GMPN TAA-BFA3-30005GB-FN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE out
  • FirstNet Ready
$4,080.24$4,459.00Save $378.76

In stockShips from the US

Included subscription · 3 years
1 year−$8923 years4 years+$578.785 years+$5786 years+$268
Compliance · TAA compliant
Standard−$312TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

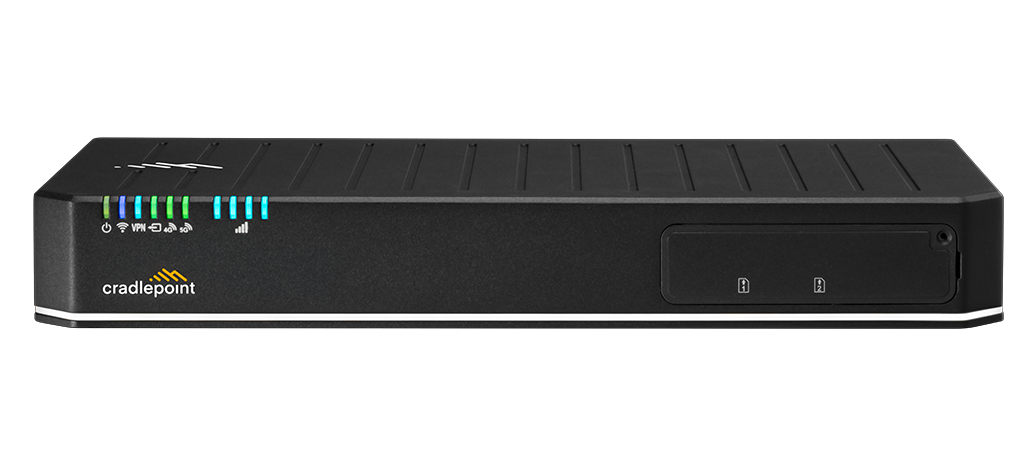

The Cradlepoint E3000 TAA-BFA3-30005GB-FN pairs the E3000 enterprise branch router with an embedded 5G modem (5GB) and a 3-year NetCloud Enterprise Branch Essentials + Advanced plan. This is the TAA-compliant FIPS ordering option for U.S. federal government buyers. The FIPS 140-3 Level 1 module is in process. The router combines routing, security, PoE switching and 4x4 Wi-Fi 6 in one metal chassis, rated to 2 Gbps stateful firewall throughput.

  • Embedded 5GB modem: 5G FR1 NSA/SA plus LTE Advanced Pro Cat 20, dual 2FF SIM slots, CBRS Band 48
  • 9 x GbE, 1 x 2.5GbE and 1 x 10GbE SFP+, all LAN/WAN switchable
  • 4 x 802.3bt PoE Type 3/4 ports (up to 90 W each, 140 W total budget)
  • Dual-band 4x4 MU-MIMO Wi-Fi 6 with WPA3, up to 2,400 Mbps on 5 GHz
  • 2 Gbps stateful firewall, 1.5 Gbps IPS/application-aware, 400 Mbps IPsec VPN, 20 tunnels
  • MC400 modular modem slot for optional dual-modem connectivity
  • 3-year NetCloud Enterprise Branch Essentials + Advanced; TAA-compliant FIPS SKU (FIPS 140-3 Level 1 module in process)
  • Bring a branch online on day one over 5G, without waiting for a wired circuit

The Cradlepoint E3000 is an all-in-one enterprise branch router for fixed offices, healthcare, financial services and retail locations that need security services at scale without extra hardware. This part number, TAA-BFA3-30005GB-FN, is the TAA-compliant FIPS variant for U.S. federal government procurement. It bundles the E3000 with the embedded 5GB 5G modem, Wi-Fi, and three years of NetCloud Enterprise Branch Essentials + Advanced.

The embedded modem supports 5G FR1 in both NSA and SA modes plus LTE Advanced Pro Category 20. It covers bands from n71 (600 MHz) through n77, n78 and n79, has dual 2FF SIM slots, and includes CBRS Band 48 for private cellular. Wired connectivity includes nine GbE ports, one 2.5GbE port and one 10GbE SFP+ port, all LAN/WAN switchable. Four 802.3bt PoE ports deliver up to 90 W each from a 140 W budget. Dual-band 4x4 MU-MIMO Wi-Fi 6 reaches 2,400 Mbps on 5 GHz. An MC400 modular modem slot adds a second cellular link for dual-modem resilience.

Performance is rated at 2 Gbps stateful firewall, 1.5 Gbps with IPS and application-aware services, 400 Mbps IPsec VPN and 130,000 concurrent TCP sessions. The E3000 supports 20 VPN tunnels and up to 64 VLANs for around 100 typical clients. You can also pair two routers with VRRP for hardware redundancy.

The Essentials + Advanced plan adds zone-based firewall, intrusion prevention, SD-WAN and Connection Manager to the router. It also includes zero-touch deployment and group policy through NetCloud Manager, and 24x7 support for the full term. Software updates come through NetCloud Manager for the full term. The hardware carries a limited lifetime warranty for as long as an active NetCloud subscription remains in place.

Ideal for

  • Federal agency branch offices that require TAA-compliant, FIPS-variant networking hardware
  • Healthcare clinics and financial branches that need firewall, IPS and PoE in one appliance
  • Retail and fixed sites using 5G as day-one primary connectivity or wired-broadband failover
  • Larger branches running PoE cameras, access points and IoT devices on 802.3bt ports
  • Multi-site rollouts managed through zero-touch deployment in NetCloud Manager

Specifications

Power

Input
100-240 VAC, 2.3 A
Output
54 VDC, 3.34 A
Consumption
Idle 17 W / Typical 19 W / Heavy 24 W
Power Supply
External power supply (included)

General

MPN
TAA-BFA3-30005GB-FN
UPC
840292700987
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint E3000
Region
U.S. Federal Government
FIPS Sku
Yes (FIPS 140-3 variant)
Package Plan
3-Year NetCloud Enterprise Branch Essentials + Advanced Plans
TAA Compliant
Yes
Product Status
Active
Subscription Term
3 years
Ordering Guide Plan
TAA Compliant NC FIPS — Essentials + Advanced
Hardware Configuration
5GB with Wi-Fi

Package

Included Items
E3000 router, power supply, 4 cellular antennas, 3-year NetCloud Essentials + Advanced
Shipping Weight
8 lb

Physical

Weight
1.98 kg (4 lb 6 oz)
Dimensions
160 x 320 x 44 mm (6.3 x 12.6 x 1.7 in)

Interfaces

PoE
4 x 802.3bt PoE Type 3/4, up to 90 W per port, 140 W total budget
Wi-Fi
4x4 MU-MIMO Wi-Fi 6, dual-band concurrent, 1,148 Mbps (2.4 GHz) / 2,400 Mbps (5 GHz), WPA3
Modem
Embedded 5GB (this SKU) or C18B modem, 4 x SMA; optional MC400 dual modem
Ethernet
9 x GbE RJ45, 1 x 2.5GbE RJ45, 1 x 10GbE SFP+ (all LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector (C18B modem only)
Supported SFP
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Expansion Console
MC400 slot (1 Gbps), USB 2.0 Type A, expansion slot (MC20BT BLE), RJ45 console
Supported SFP Plus
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 26.22 dBm; 5150–5250 MHz 21.70 dBm; 5725–5850 MHz 28.65 dBm (conducted)
Fcc
2.4 GHz 26.22 dBm; 5150–5250 MHz 28.63 dBm; 5725–5850 MHz 28.65 dBm (conducted)

Performance

Stateful Firewall
2 Gbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
1.5 Gbps

Reliability

Calculated MTBF
E3000-5GB: 997,468 hours; E3000-C18B: 997,408 hours (Telcordia SR332, 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 85 °C (-4 °F to 185 °F)
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Security
FIPS 140-3 Level 1 module in process (FIPS models)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud plan
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Product Summary

PoE
Yes
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Branch
GPS GNSS
Passive
USB Ports
1
Throughput
2 Gbps (firewall)
Form Factor
Metal
VPN Tunnels
20
Five G Status
5G embedded or LTE options
Ethernet Ports
9 x GbE, 1 x 2.5 GbE, 1 x SFP+ (LAN/WAN switchable)
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, FirstNet Ready, private cellular, NetCloud Exchange, PoE+, 2.5 GbE, SFP+, WPA3
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Cellular Modem 5gb

SMS
Yes
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 ports)
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x external 600 MHz–6 GHz paddle antennas included (SMA female)
Modulation
Up to 256 QAM DL / 256 QAM UL
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20, dual 2FF SIM, 3GPP Rel. 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps (2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B34, B38, B39, B40, B41, B42, B43, B46, B48
Peak Downlink
Up to 4.14 Gbps (20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
Three G Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Transmit Power
5G NR 23 ± 1.5 dBm; ENDC 20 ± 1 dBm; LTE 23 ± 1 dBm; HPUE 25 ± 1 dBm (B41 SA)
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, EE, T-Mobile, Verizon

Questions buyers ask

What is included with TAA-BFA3-30005GB-FN?

The Cradlepoint E3000 router with the embedded 5GB 5G modem and Wi-Fi, an external power supply, and four cellular paddle antennas. It also includes a 3-year NetCloud Enterprise Branch Essentials + Advanced subscription.

Is this E3000 FIPS certified?

This is the FIPS variant of the TAA-compliant E3000. The manufacturer lists its FIPS 140-3 Level 1 module as in process.

Does the E3000 support 5G standalone?

Yes. The embedded 5GB modem supports 5G FR1 in both NSA and SA modes, with LTE Advanced Pro Category 20 as well.

Can I add a second cellular connection?

Yes. The E3000 has an MC400 modular modem slot with up to 1 Gbps peak throughput, so you can run dual cellular connections.

How does the warranty work?

Cradlepoint hardware is covered by a limited lifetime warranty for as long as the router has an active NetCloud Service Plan. Support and software updates are included for the full subscription term.
