Lantronix5G & LTE Routers

Lantronix E214 LTE Cat-1 Industrial IoT Router for EMEA & Malaysia, Dual SIM, Wi-Fi 4 (E214F002S)

LTE Cat 1MPN E214F002S
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
$171.64

Backordered · ships as soon as it arrives

Region · EMEA + APAC
North America−$8.39APAC−$0.61EMEA + APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Lantronix E214 (E214F002S) is the EMEA and Malaysia LTE Cat-1 model of the E210 Series industrial router. It runs on LTE bands B1, B3, B7, B8, B20 and B28 with 3G and 2G fallback. The router combines dual SIM failover with two 10/100 Ethernet ports, Wi-Fi 4, RS-232 serial and two digital I/Os, and adds VPN, fieldbus protocol conversion and Percepxion cloud management. It is a regional variant for Europe, the Middle East, Africa and Malaysia, not for North American networks.

  • 4G LTE Cat-1 on bands B1, B3, B7, B8, B20, B28 with 3G and 2G fallback, for EMEA and Malaysia
  • Dual SIM (single standby) with failover or load balancing across cellular, Ethernet and Wi-Fi
  • Two 10/100 Ethernet ports, 1T1R Wi-Fi 4 client/AP, full RS-232 port and two configurable digital I/Os
  • Modbus, DNP3 and IEC 60870-5-101/104 conversion, plus Modbus to MQTT, Azure and Cumulocity
  • OpenVPN, IPsec (up to 4 channels), WireGuard, L2TP, GRE and zone-based firewall
  • Percepxion, TR-069 and MQTT/s with TLS 1.3 for centralized management
  • Linux edge platform with G520 SDK and microSD data logging
  • Matched to European, Middle Eastern, African and Malaysian LTE bands, with 3G and 2G fallback where LTE is weak

The Lantronix E214F002S is the EMEA and Malaysia version of the E210 Series LTE Cat-1 router. It is a compact industrial unit for IoT and enterprise deployments in Europe, the Middle East, Africa and Malaysia. Its radio covers LTE Cat-1 bands B1, B3, B7, B8, B20 and B28, with 3G and 2G fallback. US and Canadian buyers should look at the North American E214G variants instead, which are built for AT&T/T-Mobile or Verizon bands.

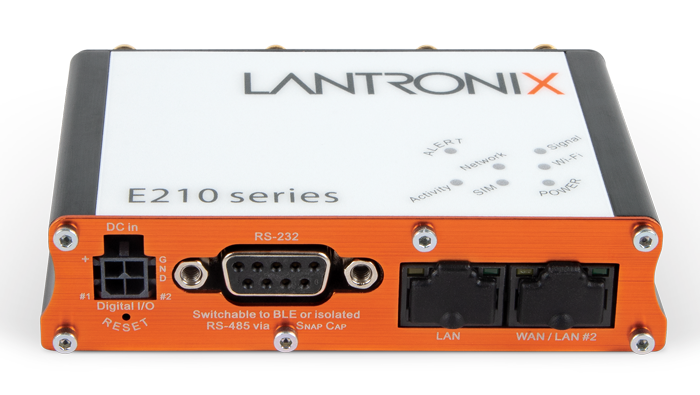

The router supports dual SIM in single standby, using two mini-SIM trays. Failover or load balancing can be configured across cellular, Ethernet WAN and Wi-Fi, SIM switching can be based on quality of service, and switching conditions can be scripted. Local interfaces are two 10/100 Ethernet ports (one WAN, reconfigurable as a second LAN), 1T1R Wi-Fi 4 as client or access point, a full RS-232 port on a 9-pin sub-D, and two configurable digital I/Os. The optional SC485 Snap Cap adds isolated RS-485.

The Linux-based ePack software provides OpenVPN, IPsec (up to 4 channels), WireGuard, L2TP and GRE, plus a zone-based firewall, VLAN and DMZ. Built-in converters link Modbus, DNP3 and IEC 60870-5-101/104 devices to each other or to MQTT, Azure and Cumulocity. Custom applications can be built with the G520 SDK in Python or C/C++, and data can be logged to microSD for edge processing. The router can be managed through Lantronix Percepxion, TR-069 or SMS/OTA configuration.

The housing is brushed aluminum, measures 92.5 x 57.2 x 22.5 mm and weighs about 150 g. The router takes 8–32 V DC and operates from -20 °C to +70 °C. Lantronix publishes a product brief, a quick start guide and user guides for the series.

Ideal for

  • Utility and energy telemetry in EMEA using Modbus, DNP3 or IEC 104
  • ATM, kiosk and payment terminal connectivity with dual SIM backup
  • Smart building and smart city controllers in Europe, the Middle East, Africa and Malaysia
  • Industrial automation sites needing serial, Ethernet and Wi-Fi from one compact router
  • Transportation and infrastructure monitoring with edge data logging

Specifications

I/O

Digital Input
0–1 V DC = 0; 1.4–36 V DC = 1
Digital Output
Open-collector digital output, 100 mA max, 36 V DC max
User Configurable I/O
2 user-configurable I/Os via the 4-pin Micro-Fit power connector (lower row)

Power

Input Voltage
8–32 V DC, with slow start
Power Off Timekeeping
Dedicated RTC, 100-day retention, approx. 15 mWh lithium manganese battery (not functional below -20 °C)

Serial

Rs232
Full RS-232 on 9-pin sub-D
Rs485
Isolated half/full-duplex RS-485 via SC485 Snap Cap (sold separately), 5-pin 3.5 mm COMBICON

General

MPN
E214F002S
UPC
783384240780
Brand
Lantronix
Model
E214 – EMEA, Malaysia
Region
EMEA and Malaysia regional variant
Series
E210 Series

Package

Shipping Weight
0.39 lbs

Cellular

SIM
Dual SIM, single standby (2x mini-SIM trays)
Fallback
3G and 2G fallback
LTE Bands
LTE Cat-1 bands B1, B3, B7, B8, B20, B28
Technology
4G LTE Cat-1

Ethernet

Ports
2 Ethernet ports
Speed
10/100 Base Ethernet
Configuration
1x LAN + 1x WAN (reconfigurable as second LAN), RJ-45 with two LEDs

Physical

Weight
Approx. 150 g
Material
Brushed aluminum alloy
Mounting
DIN rail mountable
Dimensions
92.5 x 57.2 x 22.5 mm (without connectors)
Status Leds
7 LEDs: Power, SIM, Wi-Fi, Activity, Network, Signal, Alert

Software

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, port forwarding, DDNS, DNS proxy, NAT, STP
Security
HTTPS UI, zone-based firewall, VLAN, DMZ, SIM PIN
Redundancy
Ethernet/cellular/Wi-Fi failover or load balancing
Resilience
Configurable network watchdog, internal application watchdog
VPN Tunneling
PPTP client, L2TP, OpenVPN, GRE, IPsec (4 channels), WireGuard
Wi-Fi Security
Client or AP (approx. 12 users); WEP, WPA, WPA2-PSK, WPA3-PSK
Administration
Web UI, setup wizard, console log viewer, config save/load, NTP, SMS/OTA config, TR-069
Device Management
Lantronix Percepxion or third-party platforms
Industrial Protocols
Modbus, DNP3, IEC 60870-5-101/104, MQTT, Azure, Cumulocity converters; I/O via SMS
Performance Fault Management
Real-time CPU/interface load, traffic analysis, ICMP, traceroute, NS lookup

CPU Memory

CPU
MIPS32 24KEc CPU at 580 MHz
RAM
128 MB DDR SDRAM
Flash
32 MB SPI flash
User Storage
microSD slot (card not provided)

Positioning

GPS
GPS available on G variants only

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-20 °C to +70 °C, up to 95% RH

Wi-Fi Bluetooth

Wi-Fi
1T1R Wi-Fi 4 via RP-SMA antenna connector
Wi-Fi Modes
Client or access point (approx. 25 users); WEP, WPA, WPA-PSK/WPA2-PSK

Questions buyers ask

Can I use the E214F002S in the United States?

This is the EMEA and Malaysia variant, with bands B1, B3, B7, B8, B20 and B28. For North America, Lantronix offers the E214G000S (AT&T, T-Mobile) and the E214G001S (Verizon).

What happens when LTE coverage drops?

The radio falls back to 3G and 2G. With two SIMs installed, it can also fail over to the second SIM, Ethernet WAN or Wi-Fi.

Which accessories are designed for the E214?

Lantronix's MF13 bundle for the E214 and E218 includes a KDC44 power cord, A32M0 and A21H0 antennas and a BR551 DIN rail clip. The SC485 Snap Cap adds isolated RS-485, and the P24E0 (Euro plug) and P24E4 (UK/HK plug) 12 V adapters are available.

Does it support custom applications?

Yes. It runs a Linux-based ePack environment, and the G520 SDK lets you build custom packages and firmware images in Python or C/C++.
