Lantronix E214G LTE Cat-1 Industrial IoT Router for Verizon, North America (E214G001S)

LTE Cat 1MPN E214G001S
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
$168.25

Backordered · ships as soon as it arrives

Region · North America
North AmericaAPAC+$7.78EMEA + APAC+$8.39
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

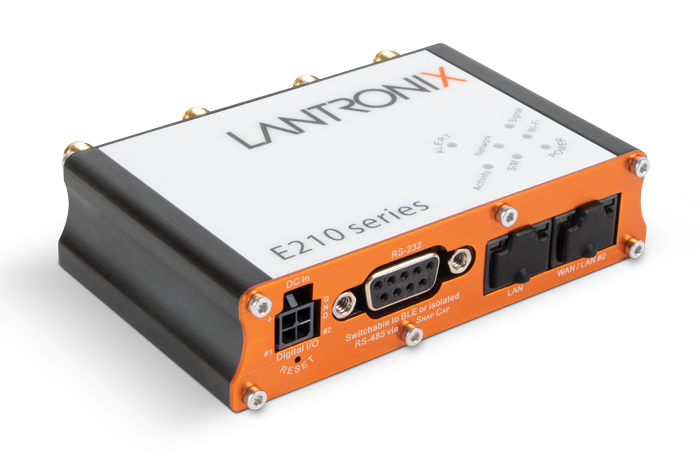

The Lantronix E214G001S is the North American Verizon variant of the E210 Series industrial IoT router. It connects over 4G LTE Cat-1 on bands 13 and 14. In a compact aluminum housing it pairs dual SIM operation with two 10/100 Ethernet ports, Wi-Fi 4, an RS-232 serial port, two configurable I/Os and GPS. It is designed for industrial automation, payment, smart building and transportation deployments on Verizon's network.

  • 4G LTE Cat-1 on bands B13 and B14 (North America, Verizon)
  • Dual SIM, single standby via two mini-SIM trays, with QoS-based or scripted switching
  • Two 10/100 Ethernet ports (WAN reconfigurable as a second LAN) and 1T1R Wi-Fi 4

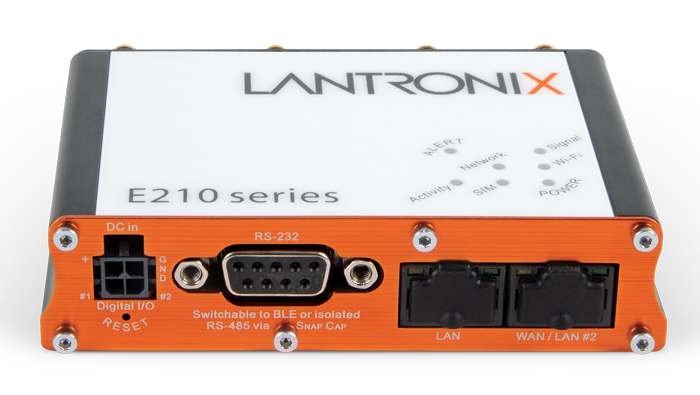

  • Full RS-232 serial port on a 9-pin sub-D connector, two configurable digital I/Os and GPS
  • Fieldbus protocol conversion including Modbus, DNP3 and IEC 60870-5-101/104
  • TR-069, MQTT/s, TLS 1.3 and Lantronix Percepxion for centralized management
  • Put industrial and payment equipment on Verizon LTE with a router built for continuous operation
  • Keep the connection up with dual SIM and Ethernet/cellular/Wi-Fi failover or load balancing

The Lantronix E214G001S is a compact, industrial-grade LTE Cat-1 router from the E210 Series, built as the North America Verizon variant. It operates on LTE bands B13 and B14. It targets mission-critical M2M and enterprise IoT applications, including industrial automation, Industry 4.0, smart buildings, smart city systems, transportation, security and sales/payment.

The router provides dual SIM, single-standby operation through two mini-SIM trays, with switching based on quality of service or scripted conditions. For wired connections it has one WAN and one LAN 10/100 Ethernet port, and the WAN port can be reconfigured as a second LAN. Wi-Fi 4 connects via an RP-SMA antenna and works as a client or access point. Ethernet, cellular and Wi-Fi can be set up for failover or load balancing. Field equipment connects through a full RS-232 port on a 9-pin sub-D connector, or through isolated RS-485 using the optional SNAP CAP SC485. Two user-configurable digital I/Os and GPS on a dedicated SMA connector round out the hardware.

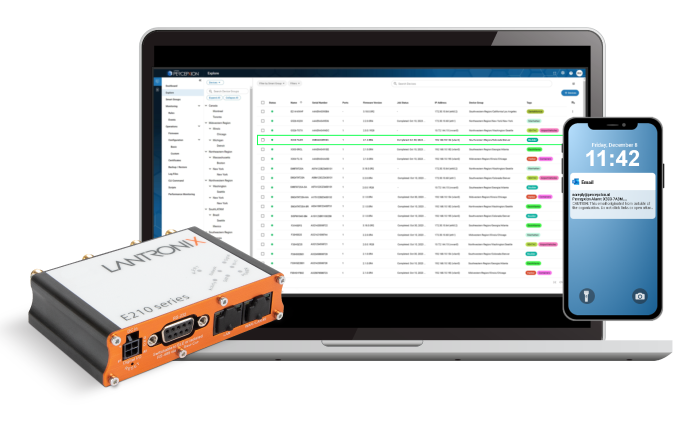

The Linux-based ePack software suite supports OpenVPN, IPsec (up to 4 channels), WireGuard, L2TP, GRE and PPTP client. It also provides a zone-based firewall, VLAN, DMZ and HTTPS management. Built-in converters handle Modbus RTU/TCP, IEC 60870-5-101/104 and DNP3, and Modbus data can be published to MQTT, Azure, Cumulocity, FTP or HTTP. Fleet operators can manage units through Lantronix Percepxion, TR-069 or SMS/OTA configuration. Developers can build custom packages with the G520 SDK in Python or C/C++, and a microSD slot supports local data logging.

The E214G001S runs on 8 to 32 V DC and operates from -20 °C to +70 °C. Lantronix publishes an E210 Series User Guide, an E214G Quick Start Guide and a product brief.

Ideal for

  • Verizon-connected industrial automation and PLC monitoring
  • Point-of-sale and ATM connectivity with cellular backup
  • Smart building and smart city sensor networks
  • Fleet and transportation connectivity with GPS
  • Utility substations and energy sites using DNP3 or IEC 104

Specifications

I/O

Digital Input
0 V DC ~ 1 V DC = ZERO; 1.4 V ~ 36 V DC = ONE
Digital Output
open collector, 100 mA max, 36 V DC max
User Configurable I/O
2 user-configurable I/Os via the 4-pin Micro-Fit power connector (lower row)

Power

Input Voltage
8 ~ 32 V DC, with slow start
Power Off Timekeeping
Dedicated RTC with 100-day data retention (approx. 15 mWh lithium manganese battery, not functional below -20 °C)

Serial

Rs232
RS-232 full implementation via 9-pin sub-D header
Rs485
RS-485 via SNAP CAP SC485 adapter (sold separately); isolated half- or full-duplex on 5-pin, 3.5 mm pitch COMBICON header

General

MPN
E214G001S
UPC
783384241008
Brand
Lantronix
Model
E214G
Series
E210 Series
Regional Variant
North America (Verizon)

Cellular

SIM
Dual SIM, single standby; via two mini-SIM held in trays
LTE Bands
LTE Cat-1: B13, B14
Technology
4G LTE Cat-1

Ethernet

Ports
2 x 10/100 Ethernet
Configuration
One LAN and one WAN (reconfigurable as second LAN); RJ-45 headers fitted with two LEDs

Physical

Size
92.5 x 57.2 x 22.5 mm without connectors
Weight
Approx. 150 g
Material
Brushed aluminum alloy
Status Leds
Seven: POWER; blue SIM, Wi-Fi; amber Activity, Network, Signal; red ALERT
Shipping Weight
0.44 lb

Software

Sdk
G520 SDK for custom packages and firmware images using Python or standard C/C++
VPN
PPTP client, L2TP, OpenVPN client/server/passthrough, GRE, IPsec (up to 4 channels), WireGuard
Cloud
TR-069, MQTT/s, TLS 1.3, Percepxion integration
Routing
DHCP, static routing, port forwarding, traffic routing, static/dynamic DNS, DNS proxy, NAT, STP
Security
Secure HTTPS web UI; zone-based firewall, VLAN, DMZ, HTTPS local and remote connection, SIM PIN
Redundancy
Ethernet, Cellular, Wi-Fi – configurable as failover or load balancing
Resilience
Configurable network connectivity watchdog, internal application watchdog
Wi-Fi Software
Client or Access point (approx. 12 users), WEP, WPA, WPA-PSK / WPA2-PSK, WPA3-PSK security modes
Administration
Web-based UI, setup wizard, console log viewer, save/load configuration, NTP, SMS/OTA remote configuration, TR-069-capable
Device Management
Lantronix Percepxion platform or third-party platforms
Industrial Protocols
Modbus RTU/TCP to IEC-60870-5-104, Modbus master, Modbus RTU to TCP, Modbus to MQTT/Cumulocity/FTP/Azure/HTTP, Serial to FTP, IEC-60870-5-101 to 104, Modbus to DNP3, I/O to Modbus, I/O to IEC 104, I/O toggling through SMS
Performance Fault Management
Real-time processor load and interface (WAN/LAN/Wi-Fi) traffic analysis, ICMP, trace-route, NS lookup

CPU Memory

CPU
MIPS32 24KEc CPU at 580 MHz
RAM
DDR SDRAM 128 MB
Flash
SPI Flash 32 MB
User Storage
External via microSD card (not provided)

Positioning

GPS
GPS via a dedicated SMA antenna connector

Temperature

Storage
-40 °C ~ +85 °C; up to 95% RH
Operating
-20 °C ~ +70 °C; up to 95% RH

Wi-Fi Bluetooth

Wi-Fi Modes
Client or Access point (approx. 25 users), WEP, WPA, WPA-PSK / WPA2-PSK security mode
Wi-Fi Radio
1T1R Wi-Fi 4; via an RP-SMA antenna connector

Questions buyers ask

Which network is the E214G001S built for?

It is the North America Verizon variant of the E214G, operating on LTE Cat-1 bands B13 and B14.

How many Ethernet ports does it have?

Two 10/100 ports: one LAN and one WAN. The WAN port can be reconfigured as a second LAN port.

Does it include GPS?

Yes. As a G variant, it provides GPS through a dedicated SMA antenna connector.

Can I develop my own applications on it?

Yes. The router runs Lantronix's Linux-based ePack suite, and the G520 SDK lets you build custom packages and firmware images in Python or C/C++.

What operating temperature is it rated for?

-20 °C to +70 °C, up to 95% relative humidity. Storage range is -40 °C to +85 °C.
