Lantronix5G & LTE Routers

Lantronix E214 LTE Cat-1 Industrial IoT Router for China & India, Dual SIM, Wi-Fi 4 (E214F00CS)

LTE Cat 1MPN E214F00CS
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
$171.03

Backordered · ships as soon as it arrives

Region · APAC
North America−$7.78APACEMEA + APAC+$0.61
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Lantronix E214 (E214F00CS) is the China and India LTE Cat-1 model of the E210 Series industrial router. It covers LTE bands B1, B3, B5 and B8 plus TDD bands B40 and B41, with 3G and 2G fallback. The router combines dual SIM failover with two 10/100 Ethernet ports, Wi-Fi 4, RS-232 and two digital I/Os, and adds VPN, fieldbus protocol conversion and Percepxion management. It is a regional variant for China and India, not for North American networks.

  • 4G LTE Cat-1 on FDD bands B1, B3, B5, B8 and TDD bands B40, B41 with 3G and 2G fallback, for China and India
  • Dual SIM (single standby) with failover or load balancing across cellular, Ethernet and Wi-Fi
  • Two 10/100 Ethernet ports, 1T1R Wi-Fi 4 client/AP, full RS-232 port and two configurable digital I/Os
  • Modbus, DNP3 and IEC 60870-5-101/104 conversion, plus Modbus to MQTT, Azure and Cumulocity
  • OpenVPN, IPsec (up to 4 channels), WireGuard, L2TP, GRE and zone-based firewall

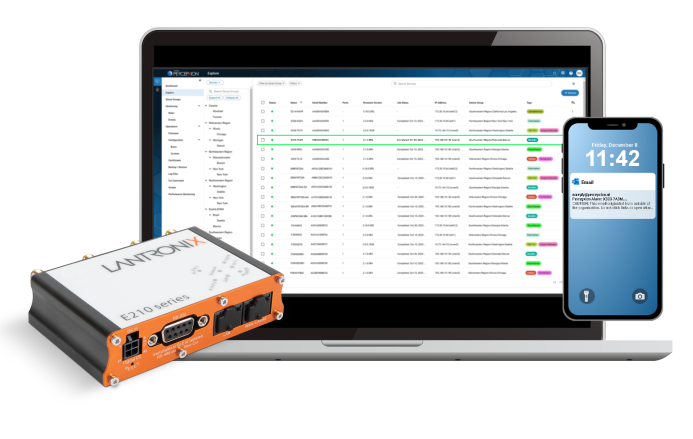

  • Percepxion, TR-069 and MQTT/s with TLS 1.3 for centralized management
  • Band set built for China and India, including TDD B40 and B41, with 3G and 2G fallback
  • Keep sites connected with two SIMs and automatic switching between cellular, wired WAN and Wi-Fi

The Lantronix E214F00CS is the China and India version of the E210 Series LTE Cat-1 router. It is a compact industrial unit for IoT and enterprise projects in those markets. The radio supports LTE Cat-1 on FDD bands B1, B3, B5 and B8 and TDD bands B40 and B41, with 3G and 2G fallback. It is not the right model for US networks. Lantronix offers the E214G000S (AT&T, T-Mobile) and E214G001S (Verizon) for North America.

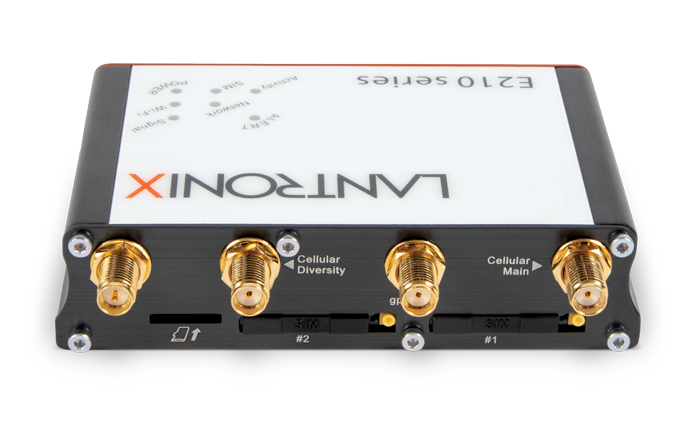

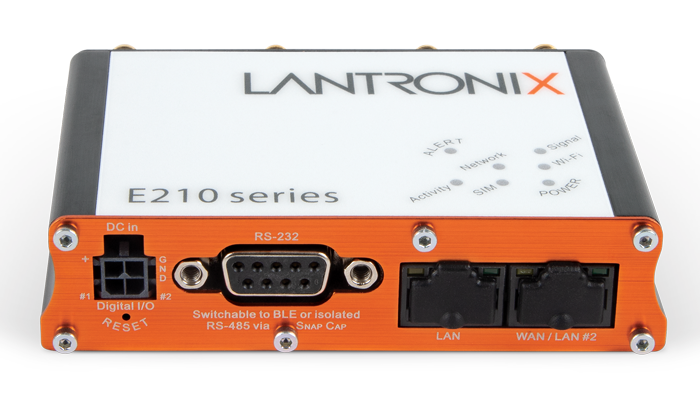

The router supports dual SIM in single standby, using two mini-SIM trays. Failover or load balancing can be configured across cellular, Ethernet WAN and Wi-Fi, and SIM switching can be based on quality of service or on scripts you write. Interfaces include two 10/100 Ethernet ports (one WAN, reconfigurable as a second LAN), 1T1R Wi-Fi 4 as client or access point, a full RS-232 port on a 9-pin sub-D, and two configurable digital I/Os. RS-485 is available through the optional SC485 Snap Cap.

The Linux-based ePack software adds OpenVPN, IPsec (up to 4 channels), WireGuard, L2TP and GRE, plus a zone-based firewall, VLAN and DMZ. Protocol converters bridge Modbus, DNP3 and IEC 60870-5-101/104, and forward data to MQTT, Azure or Cumulocity. Developers can extend the router with the G520 SDK in Python or C/C++ and log data to microSD. The router can be managed centrally through Percepxion, TR-069 or SMS/OTA configuration.

The housing is brushed aluminum, measures 92.5 x 57.2 x 22.5 mm and weighs about 150 g. The router runs on 8–32 V DC and operates from -20 °C to +70 °C. Lantronix publishes a product brief, a quick start guide and user guides for the series.

Ideal for

  • Industrial automation and factory telemetry projects in China and India
  • Payment terminal, ATM and kiosk connectivity with dual SIM backup
  • Utility and infrastructure monitoring with Modbus, DNP3 or IEC 104 devices
  • Smart building and smart city controllers needing Ethernet, serial and Wi-Fi
  • Edge data logging deployments that send only processed data to the cloud

Specifications

I/O

Digital Input
0–1 V DC = 0; 1.4–36 V DC = 1
Digital Output
Open-collector digital output, 100 mA max, 36 V DC max
User Configurable I/O
2 user-configurable I/Os via the 4-pin Micro-Fit power connector (lower row)

Power

Input Voltage
8–32 V DC, with slow start
Power Off Timekeeping
Dedicated RTC, 100-day retention, approx. 15 mWh lithium manganese battery (not functional below -20 °C)

Serial

Rs232
Full RS-232 on 9-pin sub-D
Rs485
Isolated half/full-duplex RS-485 via SC485 Snap Cap (sold separately), 5-pin 3.5 mm COMBICON

General

MPN
E214F00CS
UPC
783384240803
Brand
Lantronix
Model
E214 – China, India
Region
China and India regional variant
Series
E210 Series

Package

Shipping Weight
0.44 lbs

Cellular

SIM
Dual SIM, single standby (2x mini-SIM trays)
Fallback
3G and 2G fallback
LTE Bands
LTE Cat-1 bands B1, B3, B5, B8 (FDD), B40, B41 (TDD)
Technology
4G LTE Cat-1

Ethernet

Ports
2 Ethernet ports
Speed
10/100 Base Ethernet
Configuration
1x LAN + 1x WAN (reconfigurable as second LAN), RJ-45 with two LEDs

Physical

Weight
Approx. 150 g
Material
Brushed aluminum alloy
Mounting
DIN rail mountable
Dimensions
92.5 x 57.2 x 22.5 mm (without connectors)
Status Leds
7 LEDs: Power, SIM, Wi-Fi, Activity, Network, Signal, Alert

Software

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, port forwarding, DDNS, DNS proxy, NAT, STP
Security
HTTPS UI, zone-based firewall, VLAN, DMZ, SIM PIN
Redundancy
Ethernet/cellular/Wi-Fi failover or load balancing
Resilience
Configurable network watchdog, internal application watchdog
VPN Tunneling
PPTP client, L2TP, OpenVPN, GRE, IPsec (4 channels), WireGuard
Wi-Fi Security
Client or AP (approx. 12 users); WEP, WPA, WPA2-PSK, WPA3-PSK
Administration
Web UI, setup wizard, console log viewer, config save/load, NTP, SMS/OTA config, TR-069
Device Management
Lantronix Percepxion or third-party platforms
Industrial Protocols
Modbus, DNP3, IEC 60870-5-101/104, MQTT, Azure, Cumulocity converters; I/O via SMS
Performance Fault Management
Real-time CPU/interface load, traffic analysis, ICMP, traceroute, NS lookup

CPU Memory

CPU
MIPS32 24KEc CPU at 580 MHz
RAM
128 MB DDR SDRAM
Flash
32 MB SPI flash
User Storage
microSD slot (card not provided)

Positioning

GPS
GPS available on G variants only

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-20 °C to +70 °C, up to 95% RH

Wi-Fi Bluetooth

Wi-Fi
1T1R Wi-Fi 4 via RP-SMA antenna connector
Wi-Fi Modes
Client or access point (approx. 25 users); WEP, WPA, WPA-PSK/WPA2-PSK

Questions buyers ask

Which bands does the E214F00CS support?

LTE Cat-1 on bands B1, B3, B5 and B8 plus TDD bands B40 and B41, with 3G and 2G fallback.

Is this model suitable for US deployments?

No. It is the China and India regional variant. Lantronix offers the E214G000S (AT&T, T-Mobile) and the E214G001S (Verizon) for North America.

Does it have GPS?

No. In the E210 Series, GPS is available only on the G variants.

Which accessories fit the E214?

Lantronix's MF13 bundle for the E214 and E218 includes a KDC44 power cord, A32M0 and A21H0 antennas and a BR551 DIN rail clip. The SC485 Snap Cap adds isolated RS-485.

How can the router be managed remotely?

Through Lantronix Percepxion or third-party platforms, TR-069, the HTTPS web interface, or SMS/OTA remote configuration.
