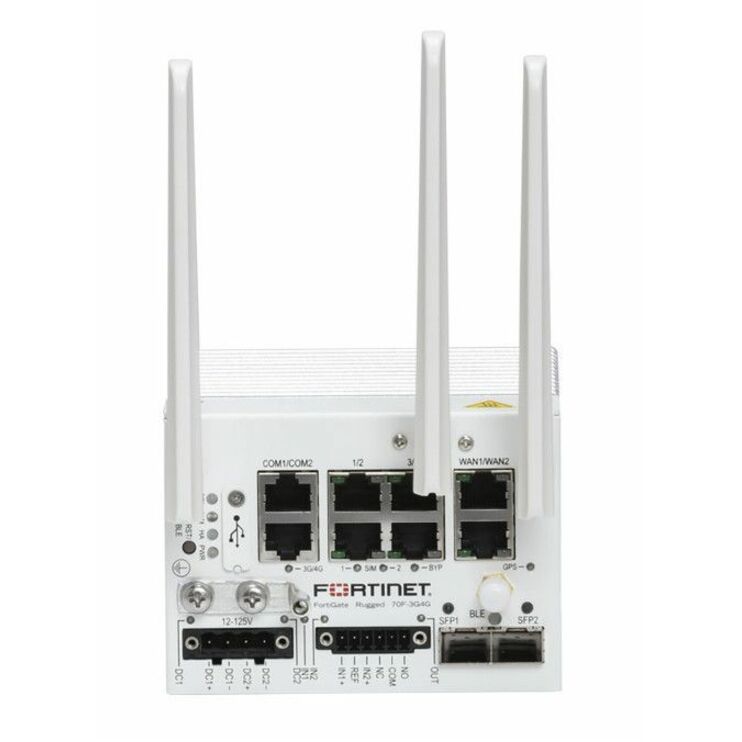

Fortinet FortiGate Rugged 70F-3G4G Industrial Next-Generation Firewall with Dual-SIM 4G LTE

4G LTEMPN FGR-70F-3G4G
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
$3,358.98$4,576.00Save $1,217.02

Backordered · ships as soon as it arrives

Included subscription
1 year5 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

The Fortinet FortiGate Rugged 70F-3G4G (FGR-70F-3G4G) is a fanless, IP40, DIN-rail next-generation firewall for industrial and OT networks. It combines 6 GE RJ45 ports, 2 SFP slots, a bypass port pair and an embedded Sierra Wireless EM7565 3G/4G LTE modem with two active/passive SIM slots and passive GPS. It delivers up to 8 Gbps firewall and 6.5 Gbps IPsec VPN throughput, runs from 12V to 125V DC redundant inputs and operates from -40°C to 75°C.

  • Fanless, IP40 ruggedized indoor appliance for DIN-rail mounting, rated -40°C to 75°C operating
  • Embedded Sierra Wireless EM7565 3G/4G LTE modem with 2 active/passive SIM slots and passive GPS
  • 6 GE RJ45 ports (4 LAN, 2 WAN), GE bypass pair on PORT3-4, 2 GE SFP slots, RJ45 serial and console ports
  • Up to 8 Gbps firewall, 6.5 Gbps IPsec VPN and 950 Mbps NGFW throughput on the FortiSoC4 processor
  • Built-in Secure SD-WAN and FortiGuard AI-powered security services under FortiOS
  • 12V to 125V DC redundant dual power inputs
  • IEC 61850-3, IEEE 1613 and EN 50155 certified for power utility and rolling stock use
  • Keeps industrial sites protected and online in extreme heat, cold and humidity without fans to fail or clog

The FortiGate Rugged 70F-3G4G is Fortinet's compact industrial next-generation firewall for substations, rail, utilities, factory floors and other operational technology sites where office-grade equipment will not last. The fanless, IP40 indoor enclosure mounts on DIN rail, operates from -40°C to 75°C in 5% to 95% non-condensing humidity, and carries IEC 61850-3 and IEEE 1613 certification for the electric power industry plus EN 50155 rolling stock certification.

Connectivity is built for field deployments: 4 GE RJ45 LAN ports, 2 GE RJ45 WAN ports, a GE bypass port pair between PORT3 and PORT4, 2 dedicated GE SFP slots, an RJ45 serial data port, an RJ45 console port, USB-A 2.0 and a MicroSD slot. The embedded Sierra Wireless EM7565 modem provides 3G/4G LTE across 24 LTE bands with MIMO and diversity, two active/passive SIM slots and passive GPS, with two external SMA WWAN antennas and one SMA GPS antenna included. The modem is PTCRB certified and carrier certified for AT&T, T-Mobile and Verizon.

The FortiSoC4 processor and FortiOS deliver up to 8 Gbps firewall throughput, 6.5 Gbps IPsec VPN, 975 Mbps IPS, 950 Mbps NGFW and 580 Mbps threat protection throughput, with 1 million concurrent sessions and 200 gateway-to-gateway IPsec tunnels. Built-in Secure SD-WAN, FortiGuard AI-powered security services, a Trusted Platform Module, Bluetooth Low Energy and a digital I/O module round out the platform, and it can manage up to 24 FortiSwitches and 64 FortiAPs.

Power comes from redundant dual DC inputs accepting 12V to 125V on terminal blocks (DC cables not included), with 18.3 W average consumption. The FortiGate Rugged Series Data Sheet and FortiGate Rugged 70F Series QuickStart Guide document installation and specifications.

Ideal for

  • Securing electrical substations and utility control networks that require IEC 61850-3 and IEEE 1613 certified hardware
  • Protecting onboard and trackside rail networks under EN 50155 rolling stock requirements
  • LTE-connected firewall and SD-WAN for remote pump stations, pipelines and unmanned industrial cabinets
  • Segmenting and inspecting OT traffic on factory floors and in industrial control panels
  • Dual-SIM cellular failover for critical sites with a single wired WAN

Specifications

General

MPN
FGR-70F-3G4G
Brand
Fortinet
Product Line
FortiGate Rugged Series
Product Name
FortiGate Rugged 70F-3G4G
Product Type
Ruggedized next-generation firewall
Environment Class
Ruggedized, indoor

Cellular Wireless

MIMO
Yes
Wcdma
Not listed
Regions
All Regions
5G Bands
Not supported
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Modem Model
Sierra Wireless EM7565 (2 SIM Slots, Active/Passive)
Gsm Gprs Edge
Not supported
Maximum TX Power
20 dBm
Umts Hspa Plus Bands
B1, B2, B3, B4, B5, B6, B8, B9, B29
Cdma 1xrtt Evdo Rev A
Not supported

Dimensions And Power

Weight
2.87 lbs (1.3 kg)
IP Rating
IP40
Form Factor
DIN-rail
Power Supply
12V to 125V DC redundant dual inputs, 2 pins per terminal block, negative or positive ground, DC cables not included
Maximum Current
12V DC / 1.67A
Heat Dissipation
68 BTU/h
Dimensions Hwl IN
4.4 x 3.2 x 4.8 in (H x W x L)
Dimensions Hwl MM
111 x 80.5 x 122 mm (H x W x L)
Antenna Height Width
205 mm x 25 mm
Power Consumption Avg Max
18.3 W / 19.9 W

Modem Certifications

Module Certifications
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Operating Environment

Humidity
5% to 95% non-condensing
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-40°F to 185°F (-40°C to 85°C)
Operating Temperature
-40°F to 167°F (-40°C to 75°C)

Carrier Certifications

Att
AT&T certified
Ptcrb
PTCRB certified
Verizon
Verizon certified
T Mobile
T-Mobile certified

Interfaces And Modules

Processor
FortiSoC4
Console Port
1 RJ45
Cellular Modem
3G / 4G LTE, GPS
Serial Interface
1 RJ45
Digital I/O Module
Yes
Microsd Card Slot
Yes
USB Client Server
1 USB-A 2.0
Bypass GE Port Pair
PORT3-4 RJ45
Bluetooth Low Energy
Yes
GE LAN WAN Interfaces
6 RJ45
Dedicated GE SFP Slots
2
Trusted Platform Module
Yes

Ordering Configuration

GPS
Passive GPS with 1x external SMA GPS antenna included
USB Port
1x USB port
LAN Ports
4x GE RJ45 LAN ports
SFP Slots
2x SFP slots
SIM Slots
2x SIM slots (Active/Passive)
WAN Ports
2x GE RJ45 WAN ports
Wwan Module
1x embedded 3G/4G LTE wireless WAN module
Microsd Slot
1x MicroSD card slot
Power Inputs
Dual power inputs
Wwan Antennas
2x external SMA WWAN antennas included
Bypass Port Pair
1x GE RJ45 bypass port pair (between PORT3 and PORT4)
Serial Data Port
1x RJ45 serial port (data)
Serial Console Port
1x RJ45 serial port (console)

Public Safety Networks

Att Firstnet
Not listed
Verizon Frontline
Not listed
T Mobile T Priority
Not listed

System Performance And Capacity

Max Fortitokens
500
Firewall Policies
5,000
Max Fortiswitches
24
Ssl VPN Throughput
450 Mbps
Concurrent Sessions Tcp
1M
Firewall Throughput Pps
12 Mpps
Max Fortiaps Total Tunnel
64 / 32
New Sessions Per Second Tcp
35,000
Virtual Domains Default Max
10 / 10
Firewall Latency 64 Byte Udp
6.71 μs
Ipsec VPN Throughput 512 Byte
6.5 Gbps
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
380
Client TO Gateway Ipsec VPN Tunnels
500
Gateway TO Gateway Ipsec VPN Tunnels
200
Application Control Throughput Http 64k
1.1 Gbps
Ssl Inspection Throughput Ips Avg Https
500 Mbps
Concurrent Ssl VPN Users Recommended Max
100
Ipv4 Firewall Throughput 1518 512 64 Byte Udp
8/8/8 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
90,000

Enterprise Traffic Mix Performance

Ips Throughput
975 Mbps
Ngfw Throughput
950 Mbps
Threat Protection Throughput
580 Mbps

Industry Compliance And Certifications

RF
EN 301 908-1 V15.1.1 (2021-09); EN 301 908-2 V13.1.1 (2020-06); EN 301 908-13 V13.1.1 (2019-11); ETSI EN 300 328 V2.2.2 (2019-07); EN 303 413 V1.2.1 (2021-04); EN 18031-1:2024; EN IEC 62311:2020; EN 50665:2017; FCC Part 15 Subpart C 15.247; FCC 47 CFR Part 2.1091; ISED RSS-247 Issue 2; RSS-102 Issue 5
Emc
EN 55032:2015 + A11:2020, Class A; EN 55035:2017 + A11:2020; ETSI EN 301 489-1 V2.2.3 (2019-11); ETSI EN 301 489-17 V3.2.4 (2020-09); ETSI EN 301 489-19 V2.1.1 (2019-04); ETSI EN 301 489-52 V1.2.1 (2021-11)
Rohs
EN IEC 63000:2018; EN 50581:2012
Health And Safety
IEC 62368-1:2014, 2nd Ed.; EN 62368-1:2014 + A11:2017; IEC 62368-1: 2018, 3rd Ed.; EN IEC 62368-1:2020 + A11:2020
Regulatory Compliance
FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB
Rolling Stock Industry
EN 50155:2021; EN 50121-1:2017; EN 50121-3-2:2016 + A1:2019; EN 50121-4:2016 + A1:2019; EMC, Environmental, Shock and Vibration Certified
Electric Power Industry
IEC 61850-3 and IEEE 1613 Certified

Questions buyers ask

Does the FortiGate Rugged 70F-3G4G support 5G?

No. It uses a Sierra Wireless EM7565 3G/4G LTE modem covering 24 LTE bands and UMTS/HSPA+; no 5G bands are listed.

Which carriers is the cellular modem certified for?

Fortinet lists PTCRB certification and carrier certification for AT&T, T-Mobile and Verizon. FirstNet, T-Priority and Verizon Frontline public safety networks are not listed.

How is the unit powered?

It has redundant dual DC inputs accepting 12V to 125V on 2-pin terminal blocks, with negative or positive ground. DC cables are not included. Average consumption is 18.3 W and maximum is 19.9 W.

Is SSL VPN supported?

SSL VPN throughput is rated at 450 Mbps, but Fortinet notes the SSL VPN feature is not supported starting with FortiOS v7.6.0 and recommends FortiOS v7.2.x LTS for access to it. IPsec VPN delivers up to 6.5 Gbps.

What antennas come with it?

The ordering configuration includes two external SMA WWAN antennas for the LTE modem and one external SMA GPS antenna. Each antenna measures 205 mm x 25 mm.
