Cisco Meraki MG41 Cat 18 LTE Cellular Gateway with Dual SIM

4G LTEMPN MG41
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • PoE powered
$1,247.80$1,814.63Save $566.83

In stock · only 6 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

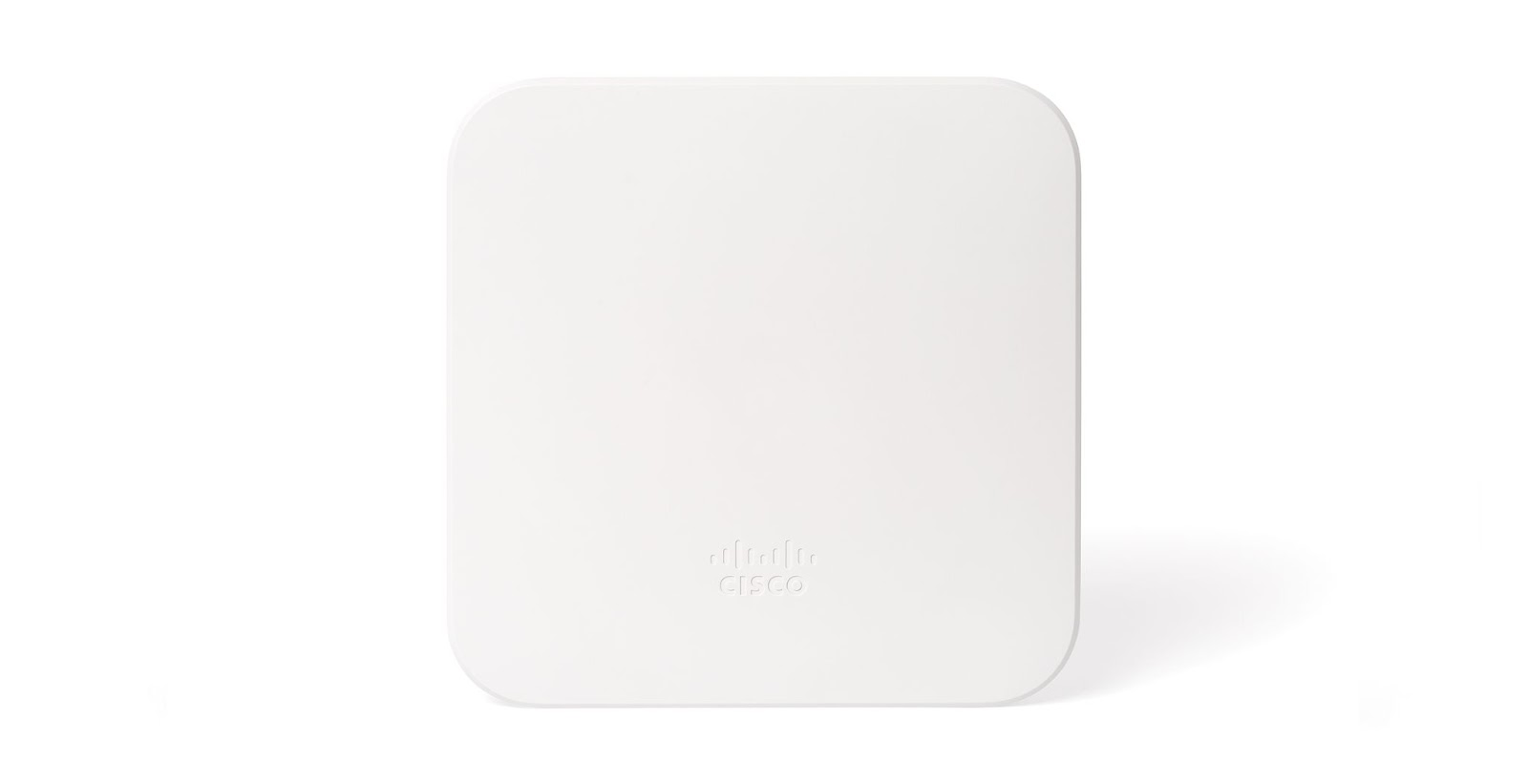

The Cisco Meraki MG41 is an IP67-rated Cat 18 LTE-A Pro cellular gateway. It delivers up to 1.2 Gbps down and 150 Mbps up through four internal antennas with 4x4 downlink MIMO. Dual nano SIM slots support automatic SIM failover, and the modem handles five-carrier aggregation, private LTE (CBRS) and FirstNet band 14. Two Gigabit ports hand off to any router, and the gateway is managed from the Meraki dashboard for primary or backup WAN.

  • Cat 18 LTE-A Pro modem, up to 1.2 Gbps down / 150 Mbps up
  • Dual nano (4FF) SIM slots with auto SIM failover and dashboard SIM switching
  • Downlink 5CA, uplink 2CA, 4x4 downlink MIMO with four internal antennas
  • Private LTE (CBRS band 48), FirstNet band 14, bands 66 and 71
  • One dedicated GbE LAN port plus one convertible LAN/WAN GbE port
  • IP67 enclosure, 12 V DC or 802.3af PoE power (10 W max)
  • Meraki dashboard management with zero-touch provisioning and API support
  • Delivers enough LTE capacity to serve as a primary WAN, not only failover

The Meraki MG41 converts LTE service into an Ethernet uplink for a Meraki MX or any other router. It is built for sites where cellular carries real production traffic, not just backup. Its embedded Cat 18 LTE-A Pro modem is rated up to 1.2 Gbps downlink and 150 Mbps uplink, with downlink carrier aggregation up to 5CA, uplink 2CA, and 4x4 downlink MIMO across four internal antennas. Band coverage spans 30 LTE bands, including B2, B4, B5, B12, B13, B14, B25, B26, B29, B30, B41, B48 CBRS, B66 and B71. Cisco Meraki lists PTCRB, RCM and GCF certification, and certified carriers include AT&T, AT&T FirstNet (capable), Verizon and T-Mobile.

Two nano SIM slots support automatic SIM failover. You can switch SIMs and set custom APNs from the dashboard or the local status page. One dedicated Gigabit LAN port and one convertible LAN/WAN Gigabit port let two routers share the link. The IP67 enclosure mounts on a wall, ceiling or pole with the included bracket and operates from -30°C to 50°C. It runs on 12 V DC or 802.3af PoE (10 W maximum), so you can place it for the best signal with one cable.

The Meraki cloud handles the rest: • Zero-touch provisioning and scheduled firmware updates • Live IMEI, ICCID, APN, RSRP and RSRQ, plus carrier aggregation status • Alerts, remote packet capture and DM logging • Extensive API support

Each gateway is paired with a Meraki MG41 Enterprise licence (1, 3, 5, 7 or 10 years). The hardware carries a lifetime warranty with next-day advance replacement.

Ideal for

  • Primary LTE WAN for branches without wired broadband
  • Dual-carrier cellular failover behind a Meraki MX or third-party router
  • Private LTE (CBRS) connectivity for campuses and industrial sites
  • Public-safety and FirstNet band 14 deployments
  • SD-WAN secondary uplink and MX high-availability shared uplink

Specifications

General

MPN
MG41
UPC
810979017868
Brand
Cisco Meraki
Model
Meraki MG41

Cellular

MIMO
4x4 downlink MIMO
LTE Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700ac), B13 (700c), B14 (700PS), B17 (700b), B18 (800), B19 (800), B20 (800DD), B25 (1900), B26 (US 850 Ext), B28 (700 APAC), B29 (US 700de Lower), B30 (2300 WCS), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3600), B46 (TDD 5200), B48 (3600), B66 (AWS-3), B71 (600)
Band 66 71
Bands 66 and 71
Umts Bands
B1 (2100), B2 (1900), B4 (AWS), B5 (850), B8 (900), B9 (1700), B19 (800)
LTE Category
LTE Cat 18 LTE-A Pro
Certifications
PTCRB (US), RCM (ANZ, APAC), GCF (EU)
Max Throughput
Up to 1.2 Gbps down / 150 Mbps up
5ca Combinations
5CA combinations per Meraki datasheet
Firstnet Band 14
FirstNet band 14
Private LTE CBRS
Private LTE (CBRS)
Certified Carriers
AT&T, AT&T FirstNet (capable), Verizon, T-Mobile, Optus, Telstra, Bell, Telus, Spark, Vodafone NZ, DoCoMo
Carrier Aggregation
Downlink 5CA, uplink 2CA
UL 2ca Combinations
Uplink 2CA combinations per Meraki datasheet
Beta Tested Carriers
Beta tested with carriers in US, Canada, Europe, ANZ and Japan

Features

Custom Apn
Custom APN configuration via dashboard
Highlights
Cat 18, dual SIM, 2 downstream connections, PoE or DC, IP67
Management
Meraki dashboard, self-configuring, scheduled upgrades, API
SIM Switch
SIM switch via dashboard/local status page
Dual SIM Info
Dual SIM info on dashboard
Auto SIM Failover
Auto SIM failover
Remote Diagnostics
Alerts, diagnostics, packet capture, logs, DM logging
Cellular Visibility
IMEI, ICCID, APN, RSRP, RSRQ
Idle Telemetry Data
6–8 MB per day when idle
Carrier Aggregation Info
Carrier aggregation info on dashboard

Physical

Weight
670 g (without accessories)
Antennas
4 x internal antennas
Humidity
5% to 95% non-condensing
Mounting
Included all-in-one wall/ceiling/pole bracket
Dimensions
168 x 168 x 35 mm (W x D x H)
Power Load
10 W maximum (PoE 802.3af)
Power Supply
12 V/1 A or 48–57 V DC/0.35 A
Ingress Protection
IP67
Storage Temperature
-22°F to 158°F (-30°C to 70°C)
Operating Temperature
-22°F to 122°F (-30°C to 50°C)

Warranty

Hardware
Lifetime hardware warranty, next-day advance replacement
Accessories
1 year (mounting kits, antennas, power cords)

Licensing

Required Licence
Meraki MG41 Enterprise License and Support, 1, 3, 5, 7 or 10 years

Interfaces

SIM Slots
2 x Nano SIM (4FF)
LAN Dedicated
1 x dedicated GbE RJ45
LAN Interfaces
2 x Gigabit Ethernet
WAN Interfaces
1 x Cat 18 LTE modem
LAN Convertible
1 x convertible LAN/WAN GbE RJ45

Reliability

MTBF 25c
MTBF at 25°C: 1,931,000

Questions buyers ask

Is the MG41 a 5G gateway?

No. The MG41 uses a 4G LTE Cat 18 LTE-A Pro modem rated up to 1.2 Gbps down and 150 Mbps up.

How does dual SIM work?

Two nano SIM slots support automatic SIM failover. You can also switch SIMs and configure APNs from the Meraki dashboard or the local status page.

Does it support private LTE?

Yes. Cisco Meraki lists private LTE (CBRS) support, along with FirstNet band 14 and bands 66 and 71.

Is a licence required?

Yes. Each MG41 is paired with a Meraki MG41 Enterprise licence (1, 3, 5, 7 or 10 years).

Can it work with a non-Meraki router?

Yes. The MG41 provides a standard Ethernet handoff that works with any routing or switching device.
