Fortinet FortiWiFi 50G-5G-II 5G Next-Generation Firewall with Wi-Fi 6 (FWF-50G-5G-II-A)

5GMPN FWF-50G-5G-II-A
  • Wi-Fi 6
  • 5+ × 1 Gb Ethernet
$1,887.95$2,572.00Save $684.05

Backordered · ships as soon as it arrives

Included subscription
1 year
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Fortinet FortiWiFi 50G-5G-II (FWF-50G-5G-II-A, Region Code A) combines a FortiGate next-generation firewall, SD-WAN, network controller and dual-band 802.11ax Wi-Fi in one desktop appliance. An embedded Telit Cinterion FN990A28-HP 3G/4G/LTE/5G modem with two nano-SIM slots serves as primary or backup WAN. Five GE RJ45 ports, 1.1 Gbps Threat Protection throughput and FortiOS make it a strong fit for distributed branch sites.

  • Embedded Telit Cinterion FN990A28-HP 3G/4G/LTE/5G modem with 2 nano-SIM slots (active/passive)
  • Dual-radio 2.4/5 GHz 802.11a/b/g/n/ac/ax Wi-Fi with 2x2 MU-MIMO, up to 1201 Mbps at 5 GHz
  • 5 GE RJ45 ports: 1 WAN, 3 LAN and 1 FortiLink (default)
  • Fortinet SD-WAN-based ASIC with FortiOS; SD-WAN and network controller included
  • 1.1 Gbps Threat Protection, 1.25 Gbps NGFW and 4.5 Gbps IPsec VPN throughput
  • Carrier certifications: PTCRB, AT&T and Verizon; FirstNet capable
  • TPM, Bluetooth Low Energy and signed-firmware hardware switch
  • Keep a branch online with 5G as primary or failover WAN, with two SIMs for carrier redundancy

The FortiWiFi 50G-5G-II is a desktop FortiGate appliance for distributed enterprise sites that need firewalling, SD-WAN, wireless and cellular WAN in one box. This SKU, FWF-50G-5G-II-A, is the Region Code A hardware. It runs FortiOS, Fortinet's converged networking and security operating system, and it is built on Fortinet's patented SD-WAN-based ASIC with an embedded multi-core processor. SD-WAN and the network controller are included in every FortiGate appliance at no extra cost.

For WAN connectivity, the unit carries an embedded Telit Cinterion FN990A28-HP 5G modem with two nano-SIM slots in active/passive mode. The modem supports 5G NR bands from n1 to n79, broad LTE coverage including B2, B4, B5, B12, B13, B14, B66 and B71, diversity, MIMO and GNSS. Fortinet lists PTCRB, AT&T and Verizon certification and FirstNet capability, with T-Mobile certification targeted for Q4 26. External SMA antenna ports let you place the antennas for the best signal.

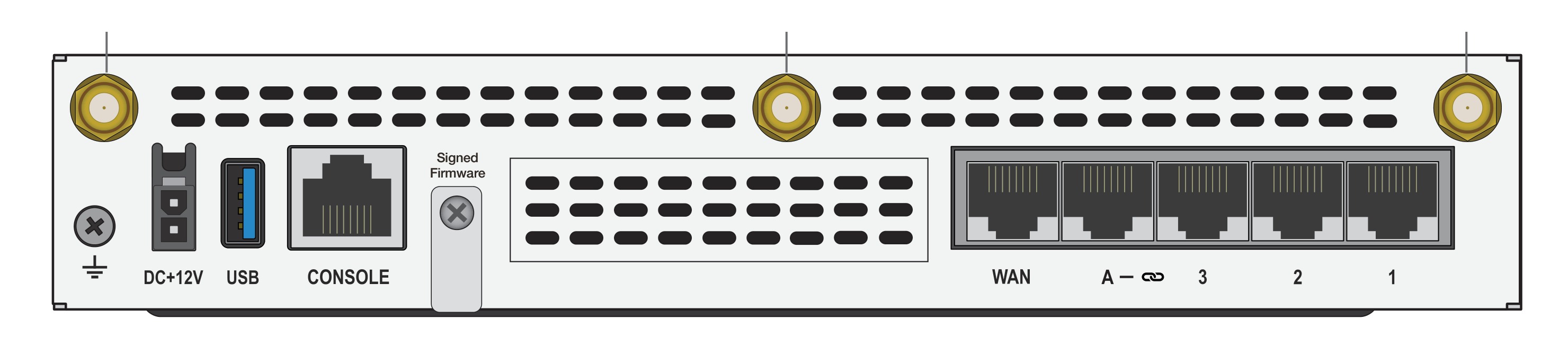

On the LAN side you get 5 GE RJ45 ports: 1 WAN, 3 hardware-accelerated LAN and 1 FortiLink port by default. A dual-radio 2x2 MU-MIMO 802.11a/b/g/n/ac/ax interface delivers up to 1201 Mbps at 5 GHz and 574 Mbps at 2.4 GHz. The appliance also includes USB, an RJ45 console port, a TPM, Bluetooth Low Energy and a signed-firmware hardware switch.

Performance is sized for busy branches. Fortinet rates it at 5 Gbps firewall throughput, 4.5 Gbps IPsec VPN, 2.25 Gbps IPS, 1.25 Gbps NGFW and 1.1 Gbps Threat Protection, with 720,000 concurrent sessions. It can manage up to 8 FortiSwitches and 16 FortiAPs and supports Active-Active, Active-Passive and clustering HA. The fanless-quiet 21.73 dBA desktop chassis weighs 2.4 lbs and draws 20.43 W on average. The FortiGate/FortiWiFi 50G Series Data Sheet documents the full specifications.

Ideal for

  • Branch offices and retail stores that need 5G primary or failover WAN behind a next-generation firewall
  • Pop-up, construction and temporary sites where wired broadband is unavailable
  • Distributed enterprise SD-WAN edge with integrated Wi-Fi 6 for staff and guests
  • Public-safety and government sites using FirstNet or AT&T/Verizon cellular service
  • Small campuses managing FortiSwitch and FortiAP devices from one appliance

Specifications

Radio

MU MIMO
2x2
Maximum TX Power
21.0 dBm per chain @ 2.4 GHz, 19.5 dBm per chain @ 5 GHz
Maximum Wi-Fi Speeds
1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz

General

MPN
FWF-50G-5G-II-A
Brand
Fortinet
Model
FWF-50G-5G-II
Region Code
Region Code A
Product Name
FortiWiFi 50G-5G-II
Ordering Description
5x GE RJ45 (1 WAN, 4 internal), 802.11a/b/g/n/ac/ax, embedded 3G/4G/LTE/5G HP WWAN module, 8 external SMA WWAN antennas

Hardware

USB Port
1
Internal Storage
—
Antenna Ports Sma
3
Console Port Rj45
1
SIM Slots Nano SIM
2 Nano SIM
Wireless Interface
Dual Radio (2.4 GHz / 5 GHz), 802.11 a/b/g/n/ac/ax
Bluetooth Low Energy
Yes
Trusted Platform Module
Yes
Signed Firmware Hardware Switch
Yes
Hardware Accelerated GE WAN Ports
1
Hardware Accelerated GE Rj45 Ports
3
Hardware Accelerated GE Rj45 Fortilink Ports Default
1

Dimensions

Weight
2.4 lbs (1.1 kg)
Form Factor
Desktop
Height Width Length IN
1.7 x 8.5 x 7.0 in
Height Width Length MM
42 x 216 x 178 mm

Cellular 5G Modem

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM slots, active/passive)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 26; Verizon: Yes; Public Safety Network: Yes (FirstNet Capable)
Cdma 1xrtt EV DO Rev A
—

System Performance

Firewall Policies
2000
Ssl VPN Throughput
—
Maximum Fortitokens
500
Concurrent Sessions Tcp
720 000
Capwap Throughput Http 64k
3.8 Gbps
New Sessions Per Second Tcp
85 000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Maximum Fortiswitches Supported
8
Virtual Domains Default Maximum
5 / 5
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
699
Maximum Fortiaps Total Tunnel Mode
16 / 8
Client TO Gateway Ipsec VPN Tunnels
250
Concurrent Ssl VPN Users Tunnel Mode
—
Gateway TO Gateway Ipsec VPN Tunnels
200
Firewall Throughput Packets Per Second
6 Mpps
Application Control Throughput Http 64k
2.8 Gbps
Ssl Inspection Throughput Ips Avg Https
1.3 Gbps
Firewall Throughput 1518 512 64 Byte Udp
5 / 5 / 4 Gbps
Ssl Inspection Concurrent Session Ips Avg Https
74 000

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, IC, CE, UL/cUL, CB
Noise Level
21.73 dBA
Power Rating
12 VDC, 3 A
Certifications
USGv6/IPv6
Power Required
External DC power adapter, 100–240 V AC, 50/60 Hz
Maximum Current
100 V AC / 0.4 A, 240 V AC / 0.2 A
Heat Dissipation
80.44 BTU/hr
Operating Altitude
Up to 10 000 ft (3048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Power Consumption Avg Max
20.43 W / 23.59 W

Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

Which cellular networks does the FortiWiFi 50G-5G-II support?

Its Telit Cinterion FN990A28-HP modem supports 5G NR, LTE and UMTS/HSPA+ bands across all regions. Fortinet lists PTCRB, AT&T and Verizon certification and FirstNet capability, with T-Mobile certification targeted for Q4 26.

Can I use two SIM cards?

Yes. The appliance has two nano-SIM slots that operate in active/passive mode, so you can hold a second carrier or plan in standby.

What Wi-Fi does it provide?

A dual-radio 2.4 GHz and 5 GHz 802.11a/b/g/n/ac/ax interface with 2x2 MU-MIMO. Maximum rates are 1201 Mbps at 5 GHz and 574 Mbps at 2.4 GHz.

Is SD-WAN included?

Yes. Fortinet includes SD-WAN and the network controller in every FortiGate appliance at no extra cost.

What does Region Code A mean?

Fortinet orders the FortiWiFi 50G-5G-II by region code. FWF-50G-5G-II-A is the Region Code A version of the hardware.
